ICON Vehicle Dynamics

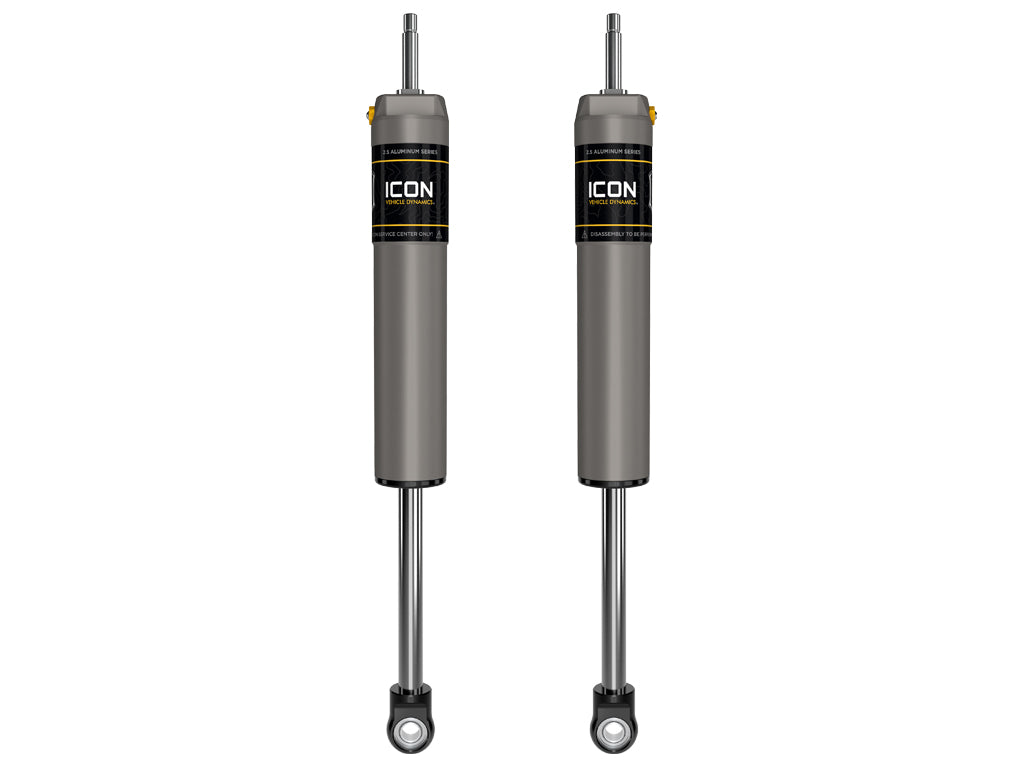

ICON 2005-2026 Ford F-250/F-350 Super Duty 4WD, 7” Lift, Front, V.S. 2.5 Aluminum Series Shock Absorbers, Internal Reservoir, Pair

Name: ICON 2005-2026 Ford F-250/F-350 Super Duty 4WD, 7” Lift, Front, V.S. 2.5 Aluminum Series Shock Absorbers, Internal Reservoir, Pair
Brand: ICON Vehicle Dynamics
SKU: 67620P
Price: 812.0 USD
Availability: OutOfStock

ICON 2005-2026 Ford F-250/F-350 Super Duty 4WD, 7” Lift, Front, V.S. 2.5 Aluminum Series Shock Absorbers, Internal Reservoir, Pair

PART #

$812.00

SALE CALL OR CHAT TO ORDER

Shipping calculated at checkout.

Product variants

Quantity

Inventory: Special Order (Live Chat or Call)

View full details

Important: Always read the entire product description, including Important Notes and Fitment information, before making a purchase. Components contained in images and descriptions may change based upon your selections.

ICON Vehicle Specific (V.S.) 2.5 Series shocks are designed and built to give your vehicle outstanding performance off-road and a smooth ride on the street. These shocks are configured specifically for each application in both length and damping tune. Like all ICON'S Shock Absorbers, V.S. 2.5 Series shocks are 100% rebuildable and 100% revalveable. The larger diameter and oil volume of ICON 2.5 IR Series shocks provide better ride quality and heat dissipation properties than the standard 2.0 Aluminum Series IR Shocks. If you are looking for a more user defined tune, consider looking into the Compression Damping Control Valve (CDC Valve) or the Omega Series bypass shocks.

Features

Polyurethane bushings and forged steel mounting stems for OE factory type fitment

Brand Overview

ICON Vehicle Dynamics specializes in performance suspension components, shocks, and accessories for today’s most popular trucks & SUVs. Since 2008, ICON has been developing products that redefine the limits of what a “stock” vehicle is capable of. ICON is part of a family of manufacturing companies that includes state of the art machining, laser cutting, and metal forming processes. This unique situation allows ICON to develop products that are at the forefront of technology quickly and efficiently, while maintaining a standard of quality unrivaled in the industry.

APPLICATION NOTE #512: Compatible with 6-7” of front lift over stock of 2020-2025 F-250/F-350 4WD equipped with Tremor package

Quick Specs

Specs: AAP_UDA_12: EA
Specs: AAP_UDA_22: 1
Specs: AAP_UDA_4: 55
Specs: Active or Passive Suspension: Passive
Specs: Adjustable: NO
Specs: Adjustable Compression: No
Specs: Adjustable Damping: No
Specs: Adjustable Rebound: No
Specs: Attributed Description: ICON Vehicle Dynamics; Shock Absorber; Adjustable: No; Boot Included: No; Coil Over Springs Included: No; Dust Shield: No; Gas Charged: Yes; Lower Mount Type: Eyelet; Shock Absorber Body End Measuring Point: Center of Eyelet; Shock Absorber Rod End Measuring Point: Center of Eyelet; Upper Mount Type: Eyelet; Remote Reservoir: No; Body Diameter: 2 IN; Compressed Length: 16.100 IN; Fully Open Length: 26.17 IN; Shock Stroke: 10.07 IN; Travel Length: 10.07 IN
Specs: Boot Included: NO
Specs: Bore Diameter: 2.25 IN
Specs: California Prop 65 Warning: Yes
Specs: California Proposition 65: WARNING: This product contains chemicals known to the State of California to cause cancer, and birth defects or other reproductive harm.
Specs: Compressed Length: 17.55 IN
Specs: Cylinder Color: Gray
Specs: Cylinder Diameter: 2.5 IN
Specs: Cylinder Material: Aluminum
Specs: Damping Type: Oil
Specs: Extended Length: 27.88 IN
Specs: External Reservoir: NO
Specs: Gas Charged: Yes
Specs: Grade Type: Performance
Specs: Includes Bump Stop: No
Specs: Lower Mount Type: EYELET
Specs: Mounting Hardware Included: Yes
Specs: Reservoir Type: Internal
Specs: Service Parts: 252010 - 2.5 IFP REBUILD KIT
Specs: Service Parts: 252003 - SEAL INSTALL TOOL 2.5/3.0
Specs: Service Parts: 257340 - 7/8 SHAFT 14.25 OAL, 10.00 TRAVEL
Specs: Service Parts: 252002 - UNIVERSAL SPANNER WRENCH (2.0/2.5/3.0)
Specs: Service Parts: 254100G - 1 GALLON ICON PERFORMANCE SHOCK OIL
Specs: Service Parts: 252001 - 2.5 FIXED SPANNER WRENCH
Specs: Service Parts: 611006 - 9/16 HD STEM BUSHING KIT
Specs: Service Parts: 252004 - ECONOMY NEEDLE CHARGING TOOL
Specs: Shaft Diameter: 0.875 IN
Specs: Shaft Material: Chrome
Specs: Shock Absorber Body End Measuring Point: Shoulder of Stem
Specs: Shock Absorber Rod End Measuring Point: Center of Eylet
Specs: Stroke Length Front: 10.33 IN
Specs: Title: ICON 2005-2026 Ford F-250/F-350 Super Duty 4WD, 7” Lift, Front, V.S. 2.5 Aluminum Series Shock Absorbers, Internal Reservoir, Pair
Specs: Tube Outside Diameter: 2.5 IN
Specs: Upper Mount Type: Stem
Specs: Valving Type: Digressive

Instructions

Instructions (pdf)

Fitment

: N/A
