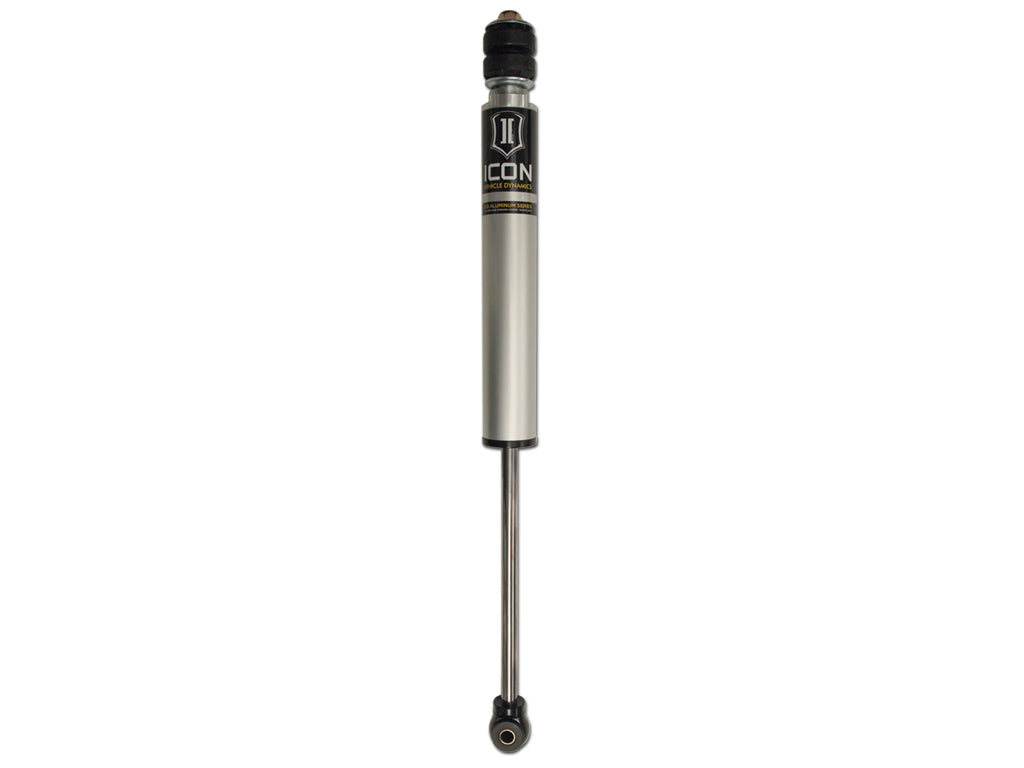

ICON 2005-2026 Ford Super Duty 4WD, 2.5” Lift, Front, V.S. 2.0 Aluminum Series Shock Absorber, Internal Reservoir
- Finish Anodized
- Material Aluminum, Steel
Questions about fitment? Live chat or call 866-235-4715
Complete your build
Optional add-ons
Recommended Add-Ons
Add-ons selected:
Couldn't load pickup availability
- Free shippingMost orders $500+
- 30-day returnsSee policy
- Warranty supportWe work with the maker
Questions about fitment?
Talk to a TRU specialist
We’ll help you verify fitment before you buy.
Veteran-owned · Austin, Texas · Mon–Fri 9:30a–11:00a & 1:00p–5:30p CT
Important notes before you order
- APPLICATION NOTE #1: Only fits 4WD models
- APPLICATION NOTE #150: Shocks are fully serviceable
- APPLICATION NOTE #295: Shocks sold individually. A quantity of 2 are required per vehicle.
- APPLICATION NOTE #481: Can be installed as secondary shocks in OE location with ICON 2.5-3" lift coilover conversions
- APPLICATION NOTE #499: Compatible with 2.5-3" of front lift over stock on 2005-2019 Super Duty models
- APPLICATION NOTE #500: Compatible with 2.5-3.75" of front lift over stock on 2020-2022 Super Duty models without Tremor package.
- APPLICATION NOTE #501: Compatible with 1.5-2.75" of front lift over stock on 2020-2022 Super Duty models equipped with Tremor package.
- APPLICATION NOTE #502: Compatible with 2.5-3.5" of front lift over stock on 2023-2026 Super Duty models without Tremor package.
- APPLICATION NOTE #503: Compatible with 1.5-2.5" of front lift over stock on 2023-2026 Super Duty models equipped with Tremor package.
Specifications
| Brand | ICON Vehicle Dynamics |
|---|---|
| Part number | 66512 |
| UPC / GTIN | 840103405636 |
| Active or Passive Suspension | Passive |
| Adjustable Compression | No |
| Adjustable Damping | No |
| Adjustable Rebound | No |
| Adjustable Ride Height | No |
| Body Color | Gray |
| Body Diameter | 2 IN |
| Body Material | Aluminum |
| Boot Included | NO |
| Bore Diameter | 1.75 IN |
| Bushing Color | Black |
| Bushing Included | yes |
| Bushing Material | Polyurethane |
| Coil Over Springs Included | NO |
| Coil Spring Insulator(s) Included | No |
| Coilover Springs Included | NO |
| Color | Gray, Black, Silver |
| Compressed Length | 14.38 IN |
| Configuration | Performance |
| Cylinder Color | Gray |
| Cylinder Diameter | 2 IN |
| Cylinder Finish | Anodized |
| Cylinder Material | Aluminum |
| Cylinder Outside Diameter | 2 IN |
| Damping Type | Oil |
| Dust Boot Included | No |
| Dust Shield | NO |
| Dust Shield Included | No |
| Extended Length | 23.15 IN |
| External Reservoir | No |
| Finish | Anodized |
| Gas Charged | Yes |
| Grade Type | Performance |
| Hydraulic Lockout | No |
| Includes Bump Stop | No |
| Internal Construction Type | Single Tube |
| Internal Rebound Bumper | Yes |
| Internal Rebound Spring | No |
| Lower Mount Sleeve Inside Diameter | .56 IN |
| Lower Mount Sleeve Overall Length | 1.65 IN |
| Lower Mount Type | EYELET |
| Material | Aluminum, Steel |
| Maximum Ride Height Raising Distance | 2.5 IN |
| Mounting Hardware Included | Yes |
| Quantity | 1 |
| Remote Reservoir | NO |
| Reservoir Type | Internal |
| Rod Diameter | .625 IN |
| Self-Leveling | No |
| Shaft Diameter | 0.625 IN |
| Shaft Material | Chrome |
| Shock Absorber Body End Measuring Point | Shoulder of Stem |
| Shock Absorber Bore Size | 1.75 IN |
| Shock Absorber Rod End Measuring Point | CENTER OF EYELET |
| Shock Stroke | 8.78 IN |
| Suspension Type | Spring |
| Travel Length | 8.78 IN |
| Type | Telescopic |
| Upper Mount Stem Overall Length | 2.5 IN |
| Upper Mount Stem Thread Size | M12 - 1.25 |
| Upper Mount Type | Stem |
| Valving Type | Linear, Digressive |
| Country of Origin | US |
California Proposition 65 warning applies to this product. www.P65Warnings.ca.gov
Features
- Premium grade 5WT shock oil for consistent suspension damping along a wide temperature range
- Nitrogen charged monotube design with internal reservoir3
- One piece linear/digressive piston design with vehicle specific valving for unsurpassed performance and ride quality on and off-road
- 5/8” chrome plated hardened steel shaft resists corrosion and pits
- 6061 aluminum rod end, top cap, and internals ensure strength and durability
- Polyurethane bushings, zinc plated sleeves, and forged steel mounting stems for OE factory type fitment
- 6063 anodized aluminum body and reservoir tubing for superb heat dissipation, excellent corrosion resistance, and high-tech appearance
- Nitrile rubber top out bumper for noise free operation
- 100% rebuildable
- 100% revalveable
Installation
Free install support from the Trucks R Us tech team, for you or your shop.
Overview
ICON Vehicle Specific (V.S.) 2.0 Aluminum Series shock absorbers are the ultimate in cost effective upgrades, specifically tailored by ICON engineers for your application. The V.S. 2.0 Aluminum Series shocks are a high quality upgrade for the everyday street driver and weekend warrior looking for improved on and off-road performance. Like all ICON shock absorbers, V.S. 2.0 Aluminum Series shocks are 100% rebuildable and 100% revalveable. For those using their vehicle in extreme off road situations, consider the ICON V.S. 2.5 Series shock to handle extra abuse and punishment your suspension will need to endure.
