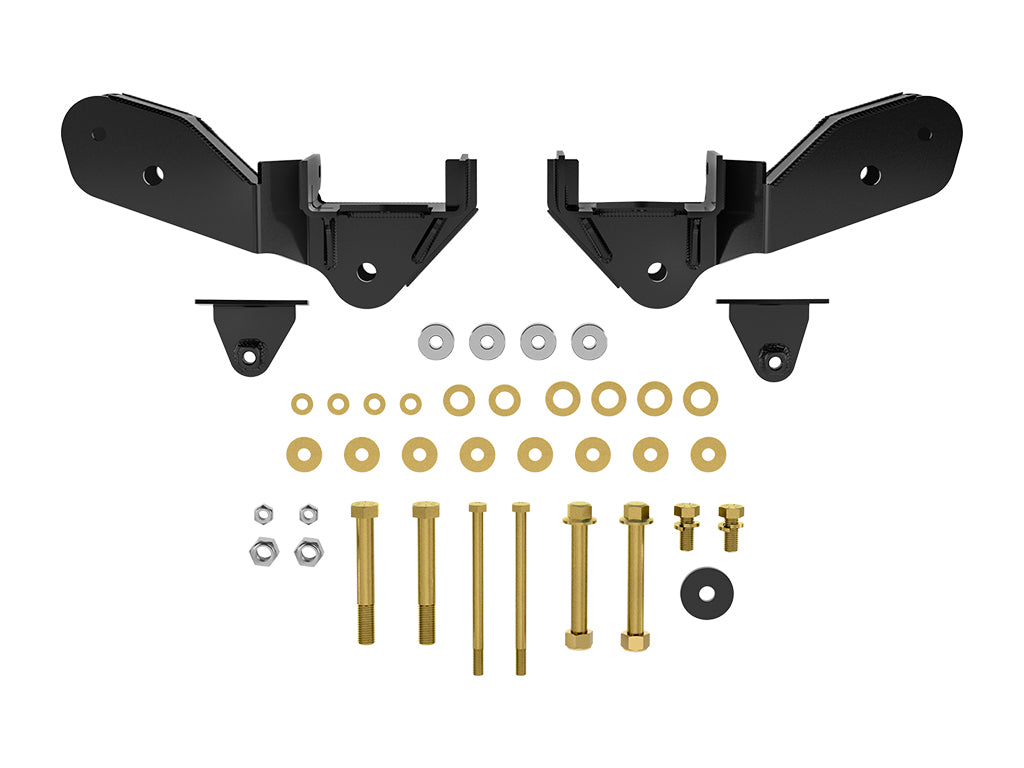

ICON 2023-2026 Ford F-250/F-350 Super Duty 4WD, Front 4-Link Conversion, Frame Bracket Kit
Questions about fitment? Live chat or call 866-235-4715
Complete your build
Optional add-ons
Recommended Add-Ons
Add-ons selected:
Couldn't load pickup availability
- Free shippingMost orders $500+
- 30-day returnsSee policy
- Warranty supportWe work with the maker
Questions about fitment?
Talk to a TRU specialist
We’ll help you verify fitment before you buy.
Veteran-owned · Austin, Texas · Mon–Fri 9:30a–11:00a & 1:00p–5:30p CT
Important notes before you order
- Factory Wheels & Tires Fitment: Yes
- APPLICATION NOTE #1: Only fits 4WD models
- APPLICATION NOTE #485: Compatible with 2.5"-7" of front lift
- APPLICATION NOTE #524: Requires ICON 4-Link Arms Part numbers 64052 & 164502 to complete installation.
Specifications
| Brand | ICON Vehicle Dynamics |
|---|---|
| Part number | 64053 |
| UPC / GTIN | 840103427799 |
| Adjustable | No |
| Ball Joint Included | No |
| Bracket Color | Black |
| Bracket Material | Steel |
| Bushing(s) Included | No |
| Grade | Performance |
| Grade Type | Performance |
| Grease Fitting Included | No |
| Greaseable | No |
| Mounting Hardware Included | Yes |
| Country of Origin | US |
| Warranty | Lifetime |
California Proposition 65 warning applies to this product. www.P65Warnings.ca.gov
Features
- 4-Link system maintains consistent caster angles through suspension travel for superior handling characteristics
- Improves front end articulation and overall drivability
- Allows on-vehicle caster adjustment via ICON double adjusters in lower links
- Brackets are fabricated from CNC laser cut and brake-formed steel plate
- Corrosion resistant semi-gloss black powder coat finish
- 100% Bolt-on system - no cutting or welding necessary for install
- Fabricated components covered under ICON's Limited Lifetime Warranty
Recommended wheels & tires
- Recommended Aftermarket Wheels: ICON Alloys - 17x8.5" w/ 5.00” Backspace / 6mm Offset
- Recommended Aftermarket Wheels: ICON Alloys - 18x9" w/ 5.25” Backspace / 6mm Offset
- Recommended Aftermarket Wheels: ICON Alloys - 20x9" w/ 5.25” Backspace / 6mm Offset
- Recommended Aftermarket Tires: Up to 37" x 12.50"
Installation
Free install support from the Trucks R Us tech team, for you or your shop.
Overview
The 4-link bracket kit is an essential component of the ICON 2023-2026 Ford Super Duty 4-Link Conversion System. This 4-Link system not only gives your Ford Super Duty an aggressive look, it enhances the articulation of the front suspension by eliminating bushing bind and improves handling of the truck by maintaining consistent caster angles through the entirety of the front suspension travel range. The large, deflective radius arm bushings are replaced with competition grade, PTFE lined spherical bearings in each link. This harder surface minimizes deflection to further increase the overall handling characteristics for maximum predictability and suspension responsiveness. Additionally, the ICON double adjusters in the lower links allows tuning of caster angle while the links are installed on the vehicle, easing the front-end alignment process.
The 4-link brackets, upper links, and lower links are sold separately, allowing the 4-link system to be customized for your specific Ford Super Duty year range.
Questions
Will this fit my truck?
Select your truck at the top of the page and the fit check will confirm it. If your exact trim is not listed, call 866-235-4715 or live chat and a fitment specialist will check it before you order.
Do you help with installation?
Yes. Our technical team helps you or your shop with installation and troubleshooting after delivery, on top of the manufacturer’s support.
What if the part has a problem?
We work the warranty claim with the manufacturer on your behalf, within the manufacturer’s warranty policy.
Can I return it?
Most items can be returned within 30 days. See our return policy for details.
No reviews for this part yet. Trucks R Us is rated on Trustpilot, Google and the BBB.
About ICON Vehicle Dynamics
ICON Vehicle Dynamics specializes in performance suspension components, shocks, and accessories for today’s most popular trucks & SUVs. Since 2008, ICON has been developing products that redefine the limits of what a “stock” vehicle is capable of. ICON is part... Shop all ICON Vehicle Dynamics
