ICON 2023-2026 Ford F-250/F-350/F-450 Super Duty 4WD, Radius Arm System, 2-5.5" Lift
Questions about fitment? Live chat or call 866-235-4715
Complete your build
Optional add-ons
Recommended Add-Ons
Add-ons selected:
Couldn't load pickup availability
- Free shippingMost orders $500+
- 30-day returnsSee policy
- Warranty supportWe work with the maker
Questions about fitment?
Talk to a TRU specialist
We’ll help you verify fitment before you buy.
Veteran-owned · Austin, Texas · Mon–Fri 9:30a–11:00a & 1:00p–5:30p CT
Important notes before you order
- APPLICATION NOTE #1: Only fits 4WD models
- APPLICATION NOTE #546: Compatible with 2-6" front lift height without need for caster bushings or radius arm drop brackets. Not recommended for use on stock height trucks.
- APPLICATION NOTE #547: Models equipped with OnBoard Scales and up to 3.5" of front lift also require sensor bracket part number 66203
- APPLICATION NOTE #548: Models equipped with OnBoard Scales and 4-6" of front lift also require sensor bracket part number 66204
Specifications
| Brand | ICON Vehicle Dynamics |
|---|---|
| Part number | 64043 |
| UPC / GTIN | 840103431826 |
| Bushing Color | Black |
| Bushing Material | Rubber |
| Bushing(s) Included | Yes |
| Color | Black |
| Grade Type | Performance |
| Material | Steel |
| Country of Origin | US |
| Warranty | Limited Lifetime; Excludes Wearable Items |
California Proposition 65 warning applies to this product. www.P65Warnings.ca.gov
Features
- Fully boxed design
- Built in caster adjustment for optimized return to center
- Ample caster range for 2-6" of front lift over stock
- Replaceable sealed pivot bushing provides maintenance free operation
- CNC machined and laser cut steel components
- Semi-gloss black powder coat finish
- Ability to have a 5.5” backspace wheel with 37” tires without contact with the arm at steering lock
Recommended wheels & tires
- OEM Wheels & Tires Fitment: Yes
- Recommended Aftermarket Tires: Up to a 37" x 12.50"
- Recommended Aftermarket Wheels: ICON Alloys - 17x8.5" w/ 5” Backspace / 6mm Offset
- Recommended Aftermarket Wheels: ICON Alloys - 18x9" w/ 5.25” Backspace / 6mm Offset
- Recommended Aftermarket Wheels: ICON Alloys - 20x9" w/ 5.25” Backspace / 6mm Offset
Installation
Free install support from the Trucks R Us tech team, for you or your shop.
Overview

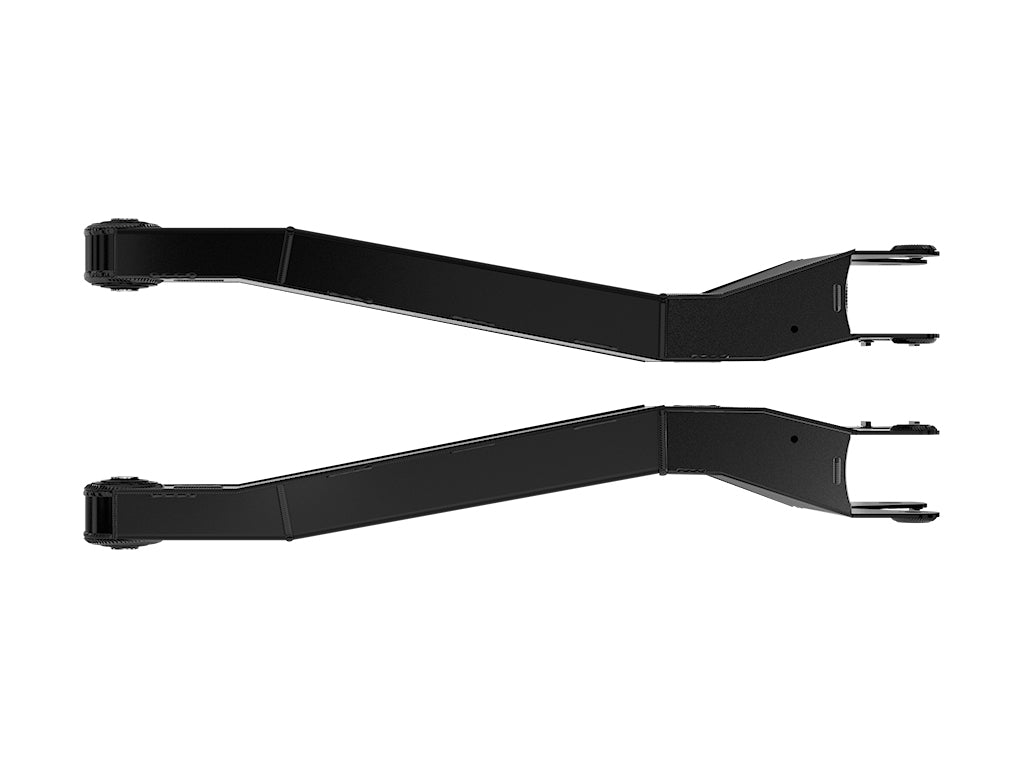

The ICON Vehicle Dynamics Ford 2023-2026 F-250 and F-350 Super Duty 4WD Radius Arm System is designed with adjustable caster cams allowing fine tuning of caster angle for optimum drivability. Their added caster allows for use with 2-6” of front lift over stock with the radius arm installed in the factory pivot, eliminating the need for caster bushings or radius arm drop brackets. They feature a sealed pivot bushing that minimizes road feedback and ensures a long life and quiet operation. Additionally, their fabricated, fully boxed design ensures strength and utilizes a profile optimized for tire clearance at full steering lock, making a 37” tall tire clear without coming in contact with the radius arm. For trucks equipped with OnBoard Scales ICON also offers sensor linkage brackets for specific height ranges that allows attachment of the OE sensor linkages to the ICON radius arm, ensuring proper function of that system.
Questions
Will this fit my truck?
Select your truck at the top of the page and the fit check will confirm it. If your exact trim is not listed, call 866-235-4715 or live chat and a fitment specialist will check it before you order.
Do you help with installation?
Yes. Our technical team helps you or your shop with installation and troubleshooting after delivery, on top of the manufacturer’s support.
What if the part has a problem?
We work the warranty claim with the manufacturer on your behalf, within the manufacturer’s warranty policy.
Can I return it?
Most items can be returned within 30 days. See our return policy for details.
No reviews for this part yet. Trucks R Us is rated on Trustpilot, Google and the BBB.
About ICON Vehicle Dynamics
ICON Vehicle Dynamics specializes in performance suspension components, shocks, and accessories for today’s most popular trucks & SUVs. Since 2008, ICON has been developing products that redefine the limits of what a “stock” vehicle is capable of. ICON is part... Shop all ICON Vehicle Dynamics
