ICON 2005-2023 Tacoma/2007-2021 Tundra/2008-2022 Sequoia/2016-2023 Titan XD/2019-2026 GM 1500, Delta Joint Kit
ICON 2005-2023 Tacoma/2007-2021 Tundra/2008-2022 Sequoia/2016-2023 Titan XD/2019-2026 GM 1500, Delta Joint Kit
PART #
Couldn't load pickup availability
- Free shippingmost orders $500+
- 30-day returnssee policy
- Warranty helpwe work claims for you
Important notes before you order
- APPLICATION NOTE #351: Requires ICON front upper control arms. Will not fit other brands of UCAs.
Specifications
| Brand | ICON Vehicle Dynamics |
|---|---|
| Part number | 614550 |
| Add-On Part | 614526 - 96-04 TACOMA/96-02 4RNR DJ RETROFIT HARDWARE KIT |
| Adjustable | No |
| Ball Joint Assembly | yes |
| Castle Nut Included | Yes |
| Color | Black |
| Cotter Pin Hole | No |
| Cotter Pin Included | No |
| Dust Boot Included | No |
| Grade Type | Performance |
| Grease Fitting Included | yes |
| Greaseable | Yes |
| Locking Nut Included | Yes |
| Material | Steel |
| Mount Plate Included | No |
| Mounting Hardware Included | Yes |
| Mounting Type | Press In |
| Nuts Included | yes |
| Pre-Greased | Yes |
| Quantity | Pair |
| Retaining Ring Included | Yes |
| Steering Type | Power |
| Stud Thread Size | M14 - 2 |
| Stud Thread Type Standard | Metric |
| Suspension Grade Type | Performance |
| Tapered Stud | yes |
| Thread Direction | Clockwise (Right) |
| Washers Included | Yes |
| Wear Indicator Included | No |
California Proposition 65 warning applies to this product. www.P65Warnings.ca.gov
Features
- 5 Year ICON Limited Warranty (When used with ICON Vehicle Dynamics suspension components, visit www.iconvehicledynamics.com/deltajoint for more info)
Installation
Free install support from the Trucks R Us tech team, for you or your shop.
Overview

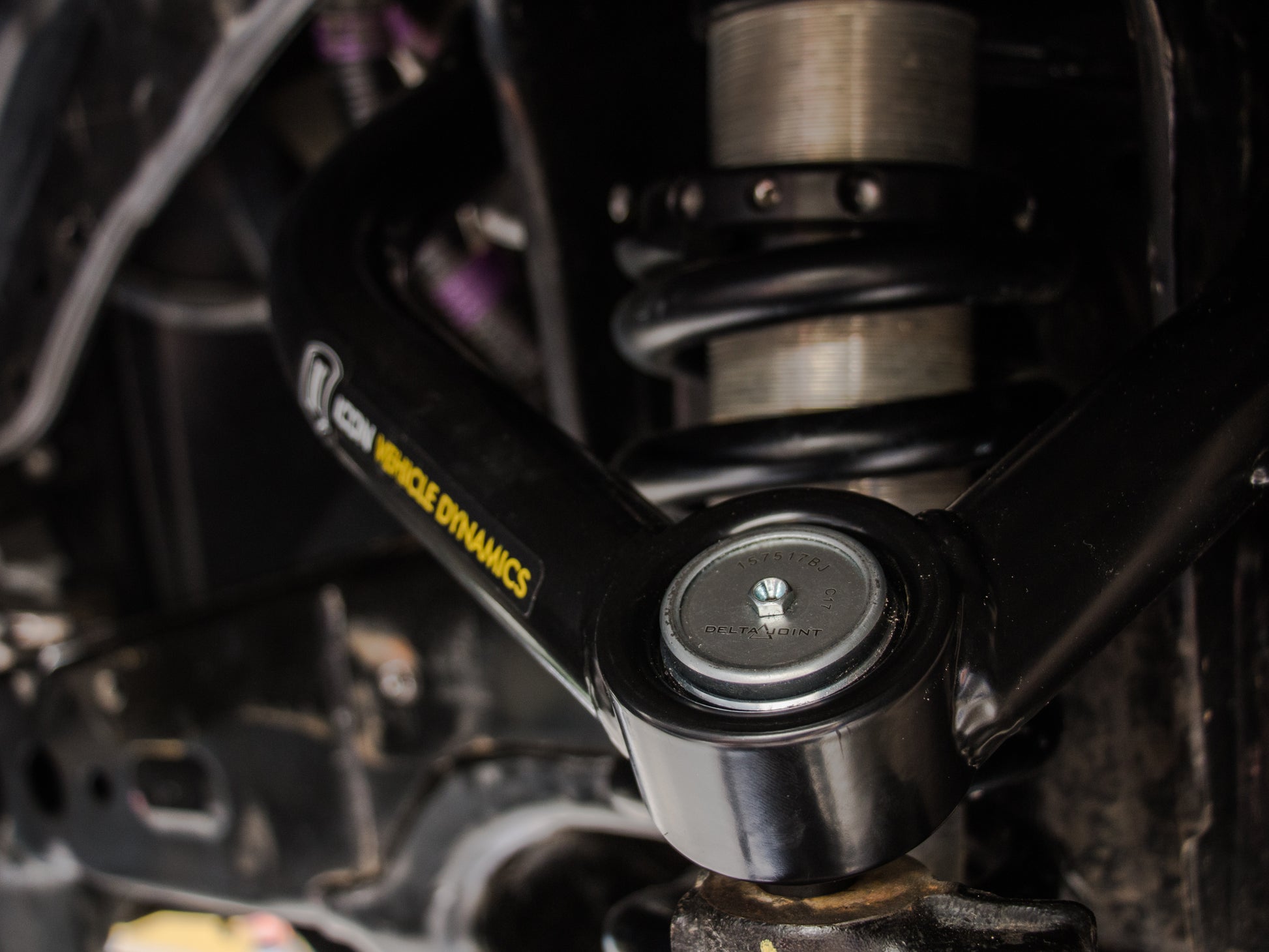

ICON’s Delta Joint is a heavy-duty high-angle ball joint that combines the durability of a ball joint with the performance characteristics of a traditional uniball. While the industry standard uniball does a great job of allowing the control arms of a vehicle to articulate with little bind, they do have an inherent weakness that leaves more to be desired when used in a daily driven application - exposure to the elements. The Delta Joint’s zinc plated housing provides the first layer of corrosion resistance, while a tough grease seal keeps potentially harmful elements out of the inner workings of the joint. Metal on metal construction and a greaseable design increase the longevity of the Delta Joint while also allowing for noise-free operation. What makes the Delta Joint unique is that it brings the best of both worlds to ICON upper control arms with features that make it more robust than a uniball, and capable of greater angularity than a typical ball joint.
