ICON Vehicle Dynamics

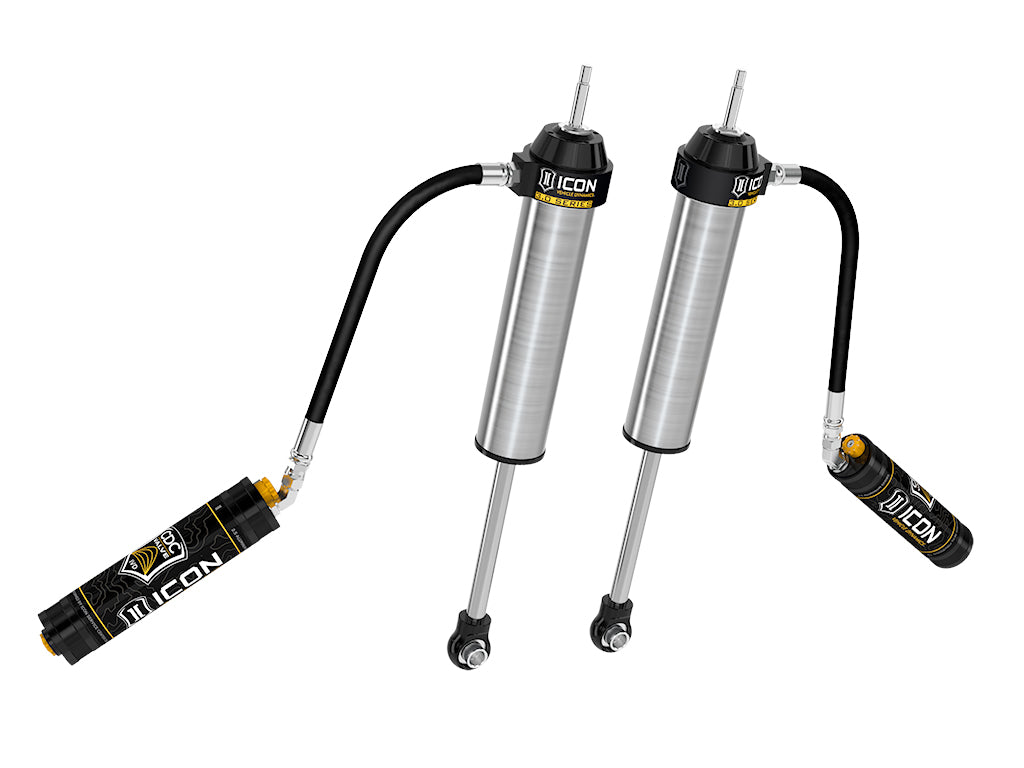

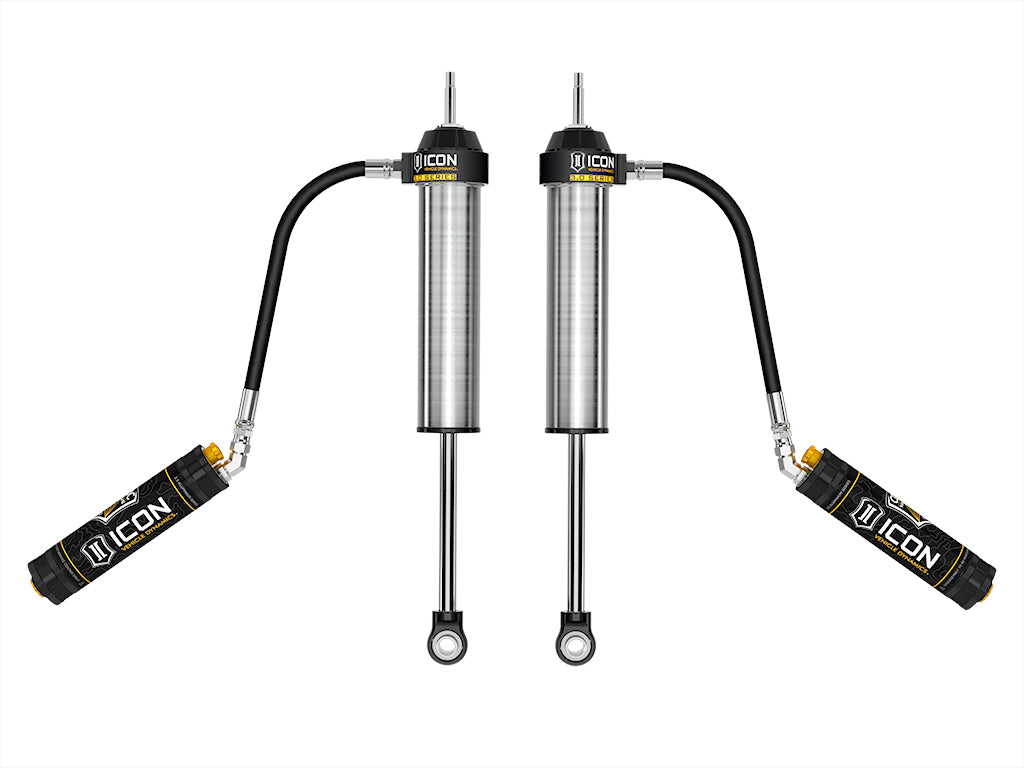

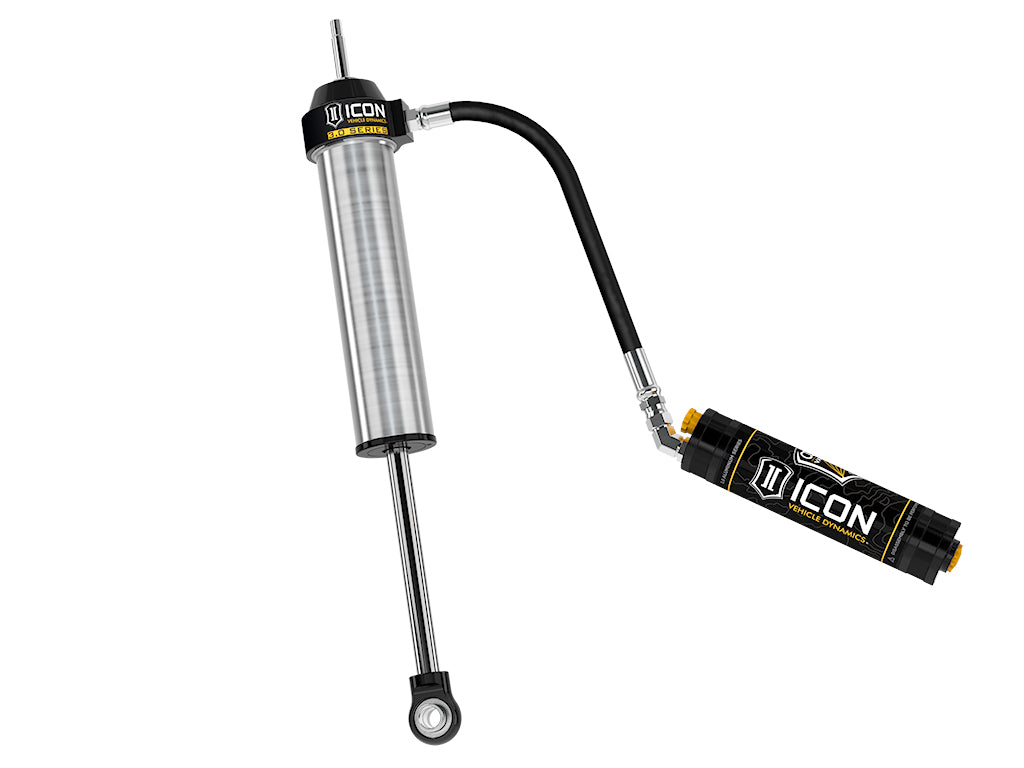

ICON 2022-2026 Toyota Tundra 0-1.5” Lift/2023-2026 Sequoia 0-4" Lift, Rear, V.S. 3.0 Series Shock Absorbers, Remote Reservoir w/ CDCV, Pair
ICON 2022-2026 Toyota Tundra 0-1.5” Lift/2023-2026 Sequoia 0-4" Lift, Rear, V.S. 3.0 Series Shock Absorbers, Remote Reservoir w/ CDCV, Pair
PART #
Couldn't load pickup availability
- Free shippingmost orders $500+
- 30-day returnssee policy
- Warranty helpwe work claims for you
Important notes before you order
- APPLICATION NOTE #153: Not compatible with Adaptive Variable Suspension (AVS) equipped vehicles
Specifications
| Brand | ICON Vehicle Dynamics |
|---|---|
| Part number | 57845CP |
| Active or Passive Suspension | Passive |
| Add-On Part | 252012 - -4 TO -10 HOSE SHIELD KIT |
| Adjustable | Yes |
| Adjustable Compression | Yes |
| Adjustable Damping | Yes |
| Adjustable Rebound | No |
| Boot Included | NO |
| Bore Diameter | 2.75 IN |
| Compressed Length | 16.43 IN |
| Cylinder Color | Grey |
| Cylinder Diameter | 3 IN |
| Cylinder Material | Steel |
| Damping Adjustment Type | Manual |
| Damping Type | Oil |
| Extended Length | 25.56 IN |
| External Reservoir | Yes |
| Gas Charged | Yes |
| Grade Type | Performance |
| Includes Bump Stop | No |
| Lower Mount Type | Eyelet |
| Mounting Hardware Included | Yes |
| Reservoir Type | Remote |
| Service Parts | 254100G - 1 GALLON ICON PERFORMANCE SHOCK OIL |
| Shaft Diameter | 0.875 IN |
| Shaft Material | Chrome |
| Shock Absorber Body End Measuring Point | Shoulder of Stem |
| Shock Absorber Rod End Measuring Point | Center of Eyelet |
| Stroke Length Rear | 9.13 IN |
| Tube Outside Diameter | 3 IN |
| Upper Mount Type | Stem |
| Valving Type | Linear/Digressive |
California Proposition 65 warning applies to this product. www.P65Warnings.ca.gov
Features
- Fully Rebuildable and Re-tunable
Installation
Free install support from the Trucks R Us tech team, for you or your shop.
Overview

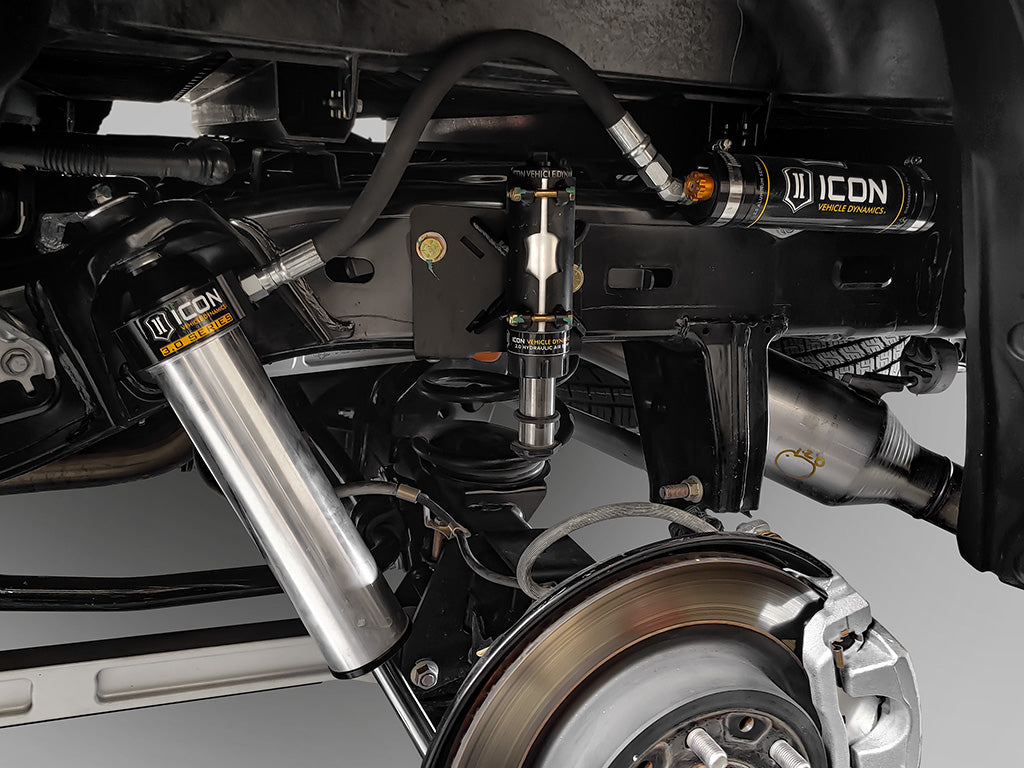

These 3.0 Series Shocks are designed as an OEM shock replacement, making installation a simple and straightforward bolt-on affair. Compatible with rear lift heights from 0-1.5” over stock on Tundra or 0-3" over stock on Sequoia allowing for the fitment of larger, more aggressive wheel and tire combinations. First class ICON manufacturing processes and quality components are used to ensure these shocks function to their maximum potential without issue.
