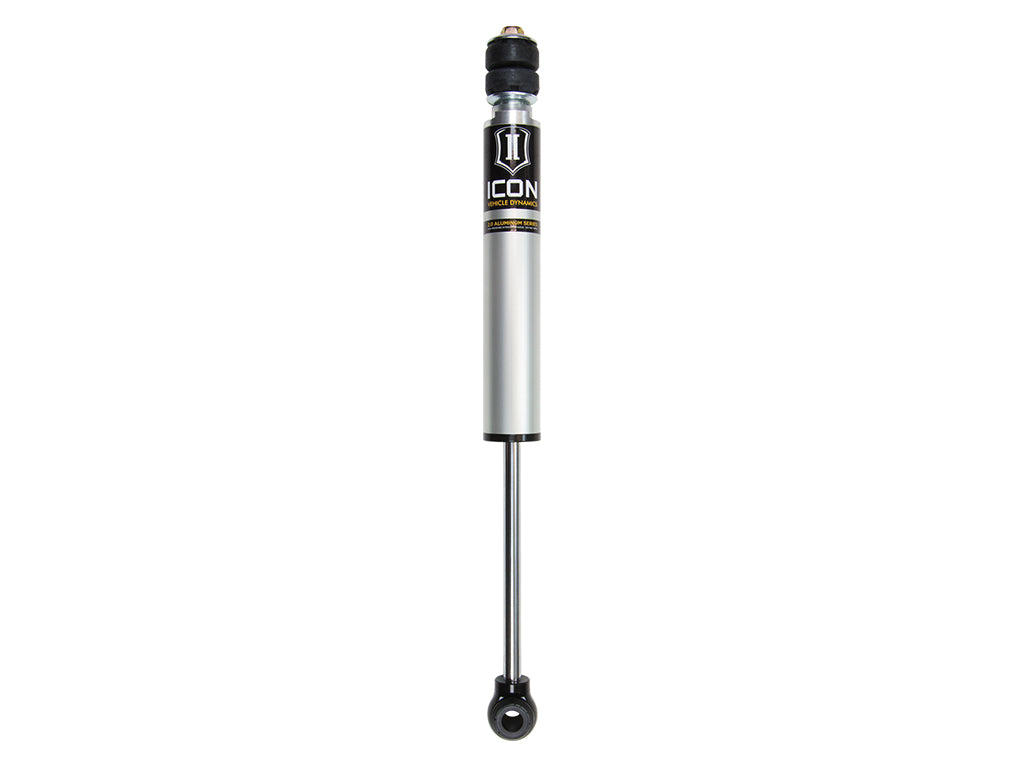

ICON 2025-2026 Toyota 4Runner, 0-3" Lift, Rear, V.S. 2.0 Aluminum Series Shock Absorber, Internal Reservoir
- Finish Anodized
- Material Aluminum, Steel
Questions about fitment? Live chat or call 866-235-4715
Couldn't load pickup availability
- Free shippingMost orders $500+
- 30-day returnsSee policy
- Warranty supportWe work with the maker
Questions about fitment?
Talk to a TRU specialist
We’ll help you verify fitment before you buy.
Veteran-owned · Austin, Texas · Mon–Fri 9:30a–11:00a & 1:00p–5:30p CT
Important notes before you order
- APPLICATION NOTE #14: Included rear shocks are compatible with 0-3” of rear lift over stock
- APPLICATION NOTE #55: Shocks are fully serviceable. Lift heights indicated are for a stock equipped vehicle.
- APPLICATION NOTE #153: Not compatible with Adaptive Variable Suspension (AVS) equipped vehicles
- APPLICATION NOTE #295: Shocks sold individually. A quantity of 2 are required per vehicle.
Specifications
| Brand | ICON Vehicle Dynamics |
|---|---|
| Part number | 56523 |
| UPC / GTIN | 840103434957 |
| Active or Passive Suspension | Passive |
| Adjustable Compression | No |
| Adjustable Damping | No |
| Adjustable Rebound | No |
| Adjustable Ride Height | No |
| Body Color | Gray |
| Body Diameter | 2 IN |
| Body Material | Aluminum |
| Boot Color | Black |
| Boot Included | No |
| Bore Diameter | 1.75 IN |
| Bushing Color | Black |
| Bushing Included | yes |
| Bushing Material | Polyurethane, Rubber |
| Coil Spring Insulator(s) Included | No |
| Color | Silver, Gray, Black |
| Compressed Length | 16.1 IN |
| Cylinder Color | Gray |
| Cylinder Finish | Anodized |
| Cylinder Material | Aluminum |
| Cylinder Outside Diameter | 2 IN |
| Damping Type | Oil |
| Dust Shield | No |
| Dust Shield Included | Yes |
| Dust Shield Material | Rubber |
| Extended Length | 26.5 IN |
| External Reservoir | NO |
| Finish | Anodized |
| Gas Charged | Yes |
| Grade Type | Performance |
| Hydraulic Lockout | No |
| Includes Bump Stop | No |
| Internal Construction Type | Single Tube |
| Internal Rebound Bumper | Yes |
| Internal Rebound Spring | No |
| Lower Mount Bushing Inside Diameter | .75 IN |
| Lower Mount Bushing Overall Length | 1.825 IN |
| Lower Mount Type | Eyelet |
| Material | Aluminum, Steel |
| Maximum Ride Height Raising Distance | 3 IN |
| Minimum Ride Height Raising Distance | 0 IN |
| Mounting Hardware Included | No |
| Remote Reservoir | No |
| Reservoir Type | Internal |
| Rod Diameter | .625 IN |
| Self-Leveling | No |
| Shaft Diameter | 0.625 IN |
| Shaft Material | Chrome |
| Shock Absorber Body End Measuring Point | Shoulder of Stem |
| Shock Absorber Bore Size | 1.75 IN |
| Shock Absorber Rod End Measuring Point | Center of Eyelet |
| Shock Stroke | 10.4 IN |
| Suspension Type | Spring |
| Travel Length | 10.4 IN |
| Type | Telescopic |
| Upper Mount Stem Overall Length | 2.5 IN |
| Upper Mount Stem Thread Size | M12 - 1.25 |
| Upper Mount Type | Stem |
| Valving Type | Digressive, Linear |
| Country of Origin | US |
California Proposition 65 warning applies to this product. www.P65Warnings.ca.gov
Features
- Nitrogen charged monotube design with internal reservoir
- One piece linear/digressive piston design with vehicle specific valving for unsurpassed performance and ride quality on and off-road
- 5/8” chrome plated hardened steel shaft resists corrosion and pits
- 6061 aluminum rod end, top cap, and internals ensure strength and durability
- Polyurethane bushings, zinc plated sleeves, and forged steel mounting stems for OE factory type fitment
- 6063 anodized aluminum body and reservoir tubing for superb heat dissipation, excellent corrosion resistance, and high-tech appearance
- Premium grade 5WT shock oil for consistent suspension damping along a wide temperature range
- Nitrile rubber top out bumper for noise free operation
- Rubber dust boot included for added shaft protection
- Fully rebuildable and re-tunable
Installation
Free install support from the Trucks R Us tech team, for you or your shop.
Overview
ICON Vehicle Specific (V.S.) 2.0 Aluminum Series shock absorbers are the ultimate in cost effective upgrades, specifically tailored by ICON engineers for your application. The V.S. 2.0 Aluminum Series shocks are a high-quality upgrade for the everyday street driver and weekend warrior looking for improved on and off-road performance. Like all ICON shock absorbers, V.S. 2.0 Aluminum Series shocks are fully rebuildable and re-tunable. For those using their vehicle in extreme off-road situations, consider the ICON V.S. 2.5 Aluminum Series shock to handle extra abuse and punishment your suspension will need to endure.
