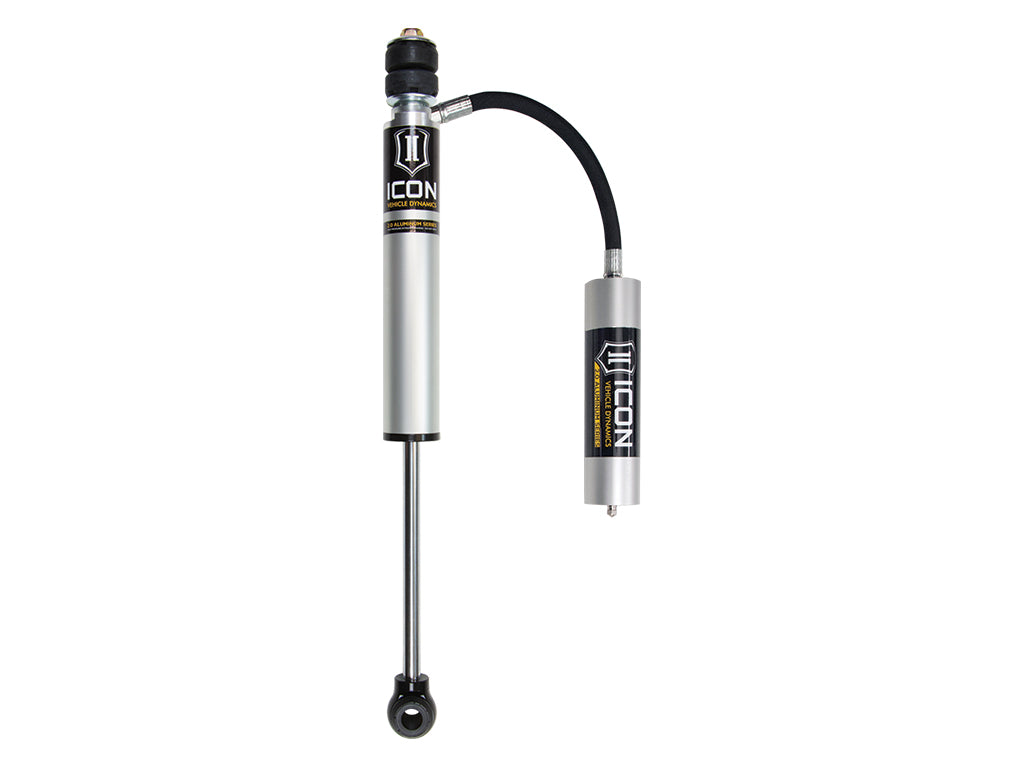

ICON 2024-2025 Toyota Land Cruiser 250 Series/2024-2025 Lexus GX550, 0-3" Lift, Passenger Side, Rear, V.S. 2.0 Aluminum Series Shock Absorber, Remote Reservoir

Name: ICON 2024-2025 Toyota Land Cruiser 250 Series/2024-2025 Lexus GX550, 0-3" Lift, Passenger Side, Rear, V.S. 2.0 Aluminum Series Shock Absorber, Remote Reservoir
Brand: ICON Vehicle Dynamics
SKU: 56522R
Price: 328.26 USD
Availability: InStock

ICON 2024-2025 Toyota Land Cruiser 250 Series/2024-2025 Lexus GX550, 0-3" Lift, Passenger Side, Rear, V.S. 2.0 Aluminum Series Shock Absorber, Remote Reservoir

PART #

$328.26

SALE Backordered

Shipping calculated at checkout.

Product variants

Quantity

Inventory: Low (Live-Chat or Call For Stock)

View full details

Important: Always read the entire product description, including Important Notes and Fitment information, before making a purchase. Components contained in images and descriptions may change based upon your selections.

ICON Vehicle Specific (V.S.) 2.0 Aluminum Series shock absorbers are the ultimate in cost effective upgrades specifically tailored by ICON engineers for your application. The V.S. 2.0 Aluminum Series shocks are a high-quality upgrade for the everyday street driver and weekend warrior looking for improved on and off-road performance. Remote reservoirs greatly increase shock oil volume and heat dissipation surface area to resist overheating and cavitation under hard use which can lead to damper fade. Like all ICON shock absorbers V.S. 2.0 Aluminum Series shocks are fully rebuildable and re-tunable. For those using their vehicle in extreme off-road situations consider the ICON V.S. 2.5 Aluminum Series shock to handle extra abuse and punishment your suspension will need to endure.

Features

Nitrogen charged monotube design with remote reservoir
Rubber dust boot included for added shaft protection
Fully rebuildable and re-tunable
One piece linear/digressive piston design with vehicle specific valving for unsurpassed performance and ride quality on and off-road
Remote reservoirs maintain cooler operating temperatures during extended off-road use
5/8” chrome plated hardened steel shaft resists corrosion and pits
6061 aluminum rod end top cap and internals ensure strength and durability
Polyurethane bushings zinc plated sleeves and forged steel mounting stems for OE factory type fitment
6063 anodized aluminum body and reservoir tubing for superb heat dissipation excellent corrosion resistance and high-tech appearance
Premium grade 5WT shock oil for consistent suspension damping along a wide temperature range
Nitrile rubber top out bumper for noise free operation

Application note #55: shocks are fully serviceable.
Lift heights indicated are for a stock equipped vehicle.
; application note #153: not compatible with adaptive variable suspension (avs) equipped vehicles; application note #175: will not fit gx550 overtrail; tech note: compatible with 0-3” of rear lift over stock; tech note: shocks sold individually.
Driver side shock part number 56520r is also required.

Quick SpecsOverview:

Valving Type: Digressive
Valving Type: Linear
Adjustable Compression: No
Adjustable Ride Height: No
Self-Leveling: No
Active or Passive Suspension: Passive
Maximum Ride Height Raising Distance: 3 IN
Minimum Ride Height Raising Distance: 0 IN
Lower Mount Sleeve Inside Diameter: .75 IN
Lower Mount Sleeve Overall Length: 1.825 IN
Reservoir Hose Length: 29 IN
Reservoir Hose Inside Diameter: .25 IN
Rod Diameter: .625 IN
Body Color: Gray
Color: Gray
Color: Silver
Finish: Anodized
Cylinder Material: Aluminum
Reservoir Length: 8 IN
Reservoir Diameter: 2 IN
Mounting Hardware Included: No
Cylinder Outside Diameter: 2 IN
Internal Construction Type: Single Tube
Grade Type: Performance
Shock Absorber Rod End Measuring Point: Center of Eyelet
Shock Absorber Body End Measuring Point: Shoulder of Stem
Lower Mount Type: Eyelet
Upper Mount Type: Stem
Boot Included: No
Gas Charged: Yes
Cylinder Color: Gray
Body Diameter: 2 IN
Boot Color: Black
Body Material: Aluminum
Adjustable Rebound: No
Dust Shield Included: Yes
Dust Shield Material: Rubber
Internal Rebound Spring: No
Remote Reservoir: Yes
Includes Bump Stop: No
Hydraulic Lockout: No
Shock Absorber Bore Size: 1.75 IN
Internal Rebound Bumper: Yes
Add-On Part: 56100 - 07-14 FJ/03-24 4RUNNER/22-24 TUNDRA/23-24 SEQUOIA REAR SHIN GUARDS
Add-On Part: 56520R - 24-25 LC250/24-25 GX550 0-3" DRIVER REAR 2.0 VS RR
Add-On Part: 52752 - 24-25 LC250/24-25 GX550 2" DUAL RATE REAR SPRING KIT
Add-On Part: 252012 - -4 TO -10 HOSE SHIELD KIT
Adjustable: No
Adjustable Damping: No
Bore Diameter: 1.75
Bushing Color: Black
Bushing Included: yes
Bushing Material: Rubber
Bushing Material: Polyurethane
California Prop 65 Warning: Yes
California Proposition 65: WARNING: This product contains chemicals known to the State of California to cause cancer and birth defects or other reproductive harm.
Cylinder Finish: Anodized
Damping Type: Oil
Dust Boot Included: Yes
Dust Shield: No
External Reservoir: Yes
Material: Aluminum
Material: Steel
Reservoir Type: Remote
Service Parts: 202003 - 2.0 REMOTE RESI REBUILD KIT
Shaft Diameter: 0.625 IN
Shaft Material: Chrome
Suspension Type: Spring
Title: ICON 2024-2025 Toyota Land Cruiser 250 Series/2024-2025 Lexus GX550 0-3" Lift Passenger Side Rear V.S. 2.0 Aluminum Series Shock Absorber Remote Reservoir

Additional Specifications:

Country of Origin: US
Warranty: 1 Years
Weight (lbs): 11.0
Vehicle Specific Fitment: Y

Instructions

I56520R_REVA.pdf
