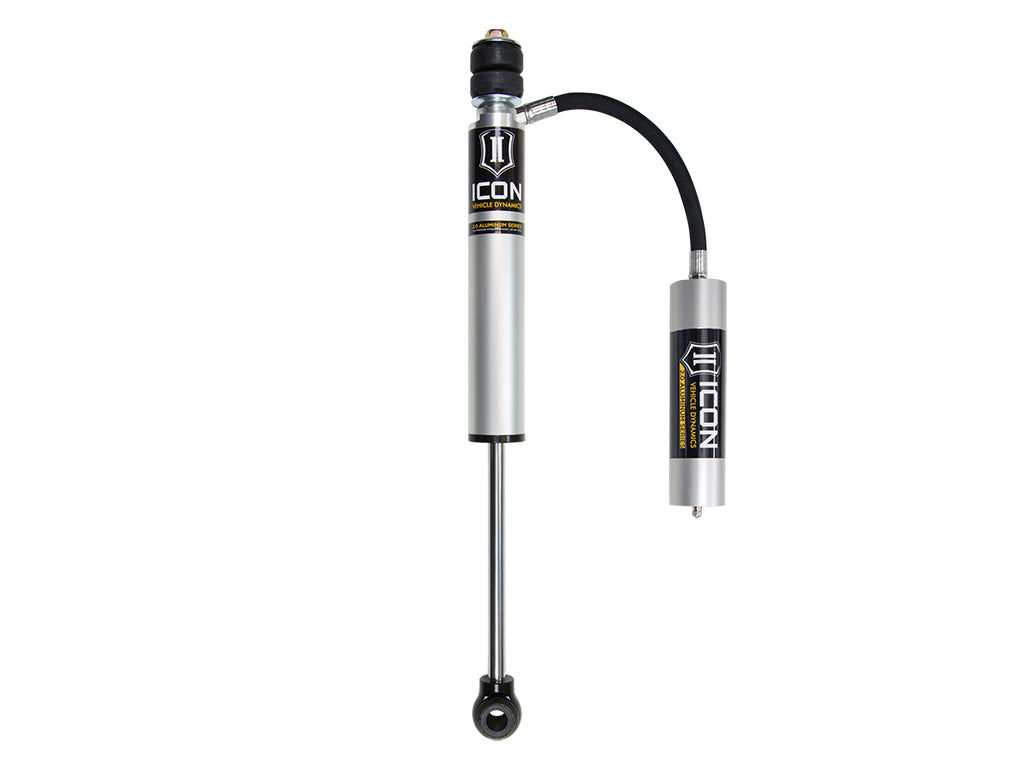

ICON 2022-2026 Toyota Tundra, 3-3.5" Lift, Rear, V.S. 2.0 Aluminum Series Shock Absorber, Remote Reservoir

Name: ICON 2022-2026 Toyota Tundra, 3-3.5" Lift, Rear, V.S. 2.0 Aluminum Series Shock Absorber, Remote Reservoir
Brand: ICON Vehicle Dynamics
SKU: 56517R
Price: 308.95 USD
Availability: OutOfStock

ICON 2022-2026 Toyota Tundra, 3-3.5" Lift, Rear, V.S. 2.0 Aluminum Series Shock Absorber, Remote Reservoir

PART #

$308.95

SALE CALL OR CHAT TO ORDER

Shipping calculated at checkout.

Product variants

Quantity

Inventory: Special Order (Live Chat or Call)

View full details

Important: Always read the entire product description, including Important Notes and Fitment information, before making a purchase. Components contained in images and descriptions may change based upon your selections.

ICON Vehicle Specific (V.S.) 2.0 Aluminum Series shock absorbers are the ultimate in cost effective upgrades, specifically tailored by ICON engineers for your application. The V.S. 2.0 Aluminum Series shocks are a high-quality upgrade for the everyday street driver and weekend warrior looking for improved on and off-road performance. Like all ICON shock absorbers, V.S. 2.0 Aluminum Series shocks are fully rebuildable and re-tunable. Remote reservoirs greatly increase shock oil volume and heat dissipation surface area to resist overheating and cavitation under hard use, which can lead to damper fade. For those using their vehicle in extreme off-road situations, consider the ICON V.S. 2.5 Series shock to handle extra abuse and punishment your suspension will need to endure.

Features

Fully rebuildable and re-tunable

Brand Overview

ICON Vehicle Dynamics specializes in performance suspension components, shocks, and accessories for today’s most popular trucks & SUVs. Since 2008, ICON has been developing products that redefine the limits of what a “stock” vehicle is capable of. ICON is part of a family of manufacturing companies that includes state of the art machining, laser cutting, and metal forming processes. This unique situation allows ICON to develop products that are at the forefront of technology quickly and efficiently, while maintaining a standard of quality unrivaled in the industry.

APPLICATION NOTE #397: Compatible with 3-3.5” of rear lift on non-TRD Tundras or 3" rear lift on TRD Tundras equipped with rear coil springs

Quick Specs

Specs: AAP_UDA_12: EA
Specs: AAP_UDA_22: 1
Specs: AAP_UDA_4: 55
Specs: Active or Passive Suspension: Passive
Specs: Add-On Part: 252012 - -4 TO -10 HOSE SHIELD KIT
Specs: Adjustable: No
Specs: Adjustable Compression: No
Specs: Adjustable Damping: No
Specs: Adjustable Rebound: No
Specs: Adjustable Ride Height: No
Specs: Body Color: Gray
Specs: Body Diameter: 2 IN
Specs: Body Material: Aluminum
Specs: Boot Color: Black
Specs: Boot Included: No
Specs: Bore Diameter: 1.75 IN
Specs: Bushing Color: Black
Specs: Bushing Included: yes
Specs: Bushing Material: Rubber
Specs: Bushing Material: Polyurethane
Specs: California Prop 65 Warning: Yes
Specs: California Proposition 65: WARNING: This product contains chemicals known to the State of California to cause cancer, and birth defects or other reproductive harm.
Specs: Color: Gray
Specs: Color: Black
Specs: Color: Silver
Specs: Compressed Length: 17.1 IN
Specs: Cylinder Color: Silver
Specs: Cylinder Finish: Anodized
Specs: Cylinder Material: Aluminum
Specs: Cylinder Outside Diameter: 2 IN
Specs: Damping Type: Oil
Specs: Dust Boot Included: Yes
Specs: Dust Shield: No
Specs: Dust Shield Included: Yes
Specs: Dust Shield Material: Rubber
Specs: Extended Length: 27.88 IN
Specs: External Reservoir: Yes
Specs: Finish: Anodized
Specs: Gas Charged: Yes
Specs: Grade Type: Performance
Specs: Hydraulic Lockout: No
Specs: Includes Bump Stop: No
Specs: Internal Construction Type: Single Tube
Specs: Internal Rebound Bumper: Yes
Specs: Internal Rebound Spring: No
Specs: Lower Mount Bushing Inside Diameter: .75 IN
Specs: Lower Mount Bushing Overall Length: 1.825 IN
Specs: Lower Mount Type: Eyelet
Specs: Material: Steel
Specs: Material: Aluminum
Specs: Maximum Ride Height Raising Distance: 3.5 IN
Specs: Minimum Ride Height Raising Distance: 3 IN
Specs: Mounting Hardware Included: No
Specs: Quantity: 1
Specs: Remote Reservoir: Yes
Specs: Reservoir Diameter: 2 IN
Specs: Reservoir Hose Inside Diameter: .25 IN
Specs: Reservoir Hose Length: 21 IN
Specs: Reservoir Length: 8 IN
Specs: Reservoir Type: Remote
Specs: Rod Diameter: .625 IN
Specs: Self-Leveling: No
Specs: Service Parts: 202003 - 2.0 REMOTE RESI REBUILD KIT
Specs: Shaft Diameter: 0.625 IN
Specs: Shaft Material: Chrome
Specs: Shock Absorber Body End Measuring Point: Shoulder of Stem
Specs: Shock Absorber Bore Size: 1.75 IN
Specs: Shock Absorber Rod End Measuring Point: Center of Eyelet
Specs: Shock Stroke: 10.78 IN
Specs: Suspension Type: Spring
Specs: Suspension Type: Air
Specs: Title: ICON 2022-2026 Toyota Tundra, 3-3.5" Lift, Rear, V.S. 2.0 Aluminum Series Shock Absorber, Remote Reservoir
Specs: Travel Length: 10.78 IN
Specs: Type: Telescopic
Specs: Upper Mount Stem Overall Length: 2.5 IN
Specs: Upper Mount Stem Thread Size: M12 - 1.25
Specs: Upper Mount Type: Stem
Specs: Valving Type: Digressive
Specs: Valving Type: Linear
