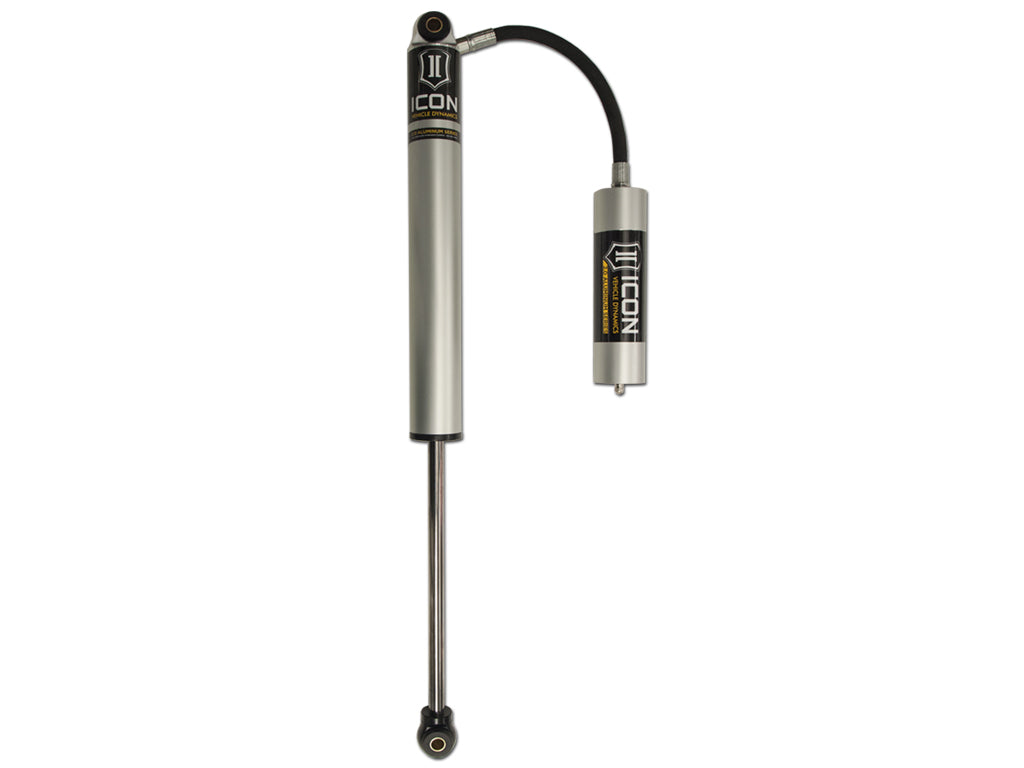

ICON 2012-15 Toyota HiLux, Rear, 2.0 VS Remote Reservoir Shock
ICON 2012-15 Toyota HiLux, Rear, 2.0 VS Remote Reservoir Shock
PART #
Couldn't load pickup availability
- Free shippingmost orders $500+
- 30-day returnssee policy
- Warranty helpwe work claims for you
Specifications
| Brand | ICON Vehicle Dynamics |
|---|---|
| Part number | 56513R |
| Active or Passive Suspension | Passive |
| Add-On Part | 252012 - -4 TO -10 HOSE SHIELD KIT |
| Adjustable | NO |
| Adjustable Compression | No |
| Adjustable Rebound | No |
| Adjustable Ride Height | No |
| Body Color | Gray |
| Body Diameter | 2 IN |
| Body Material | Aluminum |
| Boot Included | NO |
| Bushing Color | Black |
| Bushing Included | yes |
| Bushing Material | Polyurethane |
| Coil Over Springs Included | NO |
| Coil Spring Insulator(s) Included | No |
| Color | Black |
| Compressed Length | 13.55 IN |
| Cylinder Color | Gray |
| Cylinder Finish | Anodized |
| Cylinder Material | Aluminum |
| Cylinder Outside Diameter | 2 |
| Dust Shield | NO |
| Dust Shield Included | No |
| Extended Length | 23 IN |
| Finish | Anodized |
| Gas Charged | Yes |
| Grade Type | Performance |
| Hydraulic Lockout | No |
| Includes Bump Stop | No |
| Internal Construction Type | Single Tube |
| Internal Rebound Bumper | Yes |
| Internal Rebound Spring | No |
| Lower Mount Bushing Inside Diameter | .75 IN |
| Lower Mount Bushing Overall Length | 1.45 IN |
| Lower Mount Type | EYELET |
| Mounting Hardware Included | Yes |
| Remote Reservoir | Yes |
| Reservoir Diameter | 2 IN |
| Reservoir Hose Inside Diameter | .25 IN |
| Reservoir Hose Length | 11 IN |
| Reservoir Length | 6 IN |
| Rod Diameter | .625 IN |
| Self-Leveling | No |
| Service Parts | 254101G - 1/2 GALLON ICON PERFORMANCE SHOCK OIL |
| Shaft Material | Chrome |
| Shock Absorber Body End Measuring Point | Center of Eylet |
| Shock Absorber Bore Size | 1.75 IN |
| Shock Absorber Rod End Measuring Point | Center of Eylet |
| Shock Stroke | 9.45 IN |
| Travel Length | 9.45 IN |
| Type | Telescopic |
| Upper Mount Bushing Inside Diameter | .75 IN |
| Upper Mount Bushing Overall Length | 1.45 IN |
| Upper Mount Type | EYELET |
| Valving Type | Digressive |
California Proposition 65 warning applies to this product. www.P65Warnings.ca.gov
Features
- 100% rebuildable
Overview
ICON Vehicle Specific (V.S.) 2.0 Aluminum Series shock absorbers are the ultimate in cost effective upgrades, specifically tailored by ICON engineers for your application. The V.S. 2.0 Aluminum Series shocks are a high quality upgrade for the everyday street driver and weekend warrior looking for improved on and off-road performance. Like all ICON shock absorbers, V.S. 2.0 Aluminum Series shocks are 100% rebuildable and 100% revalveable. For those using their vehicle in extreme off road situations, consider the ICON V.S. 2.5 Series shock to handle extra abuse and punishment your suspension will need to endure.
