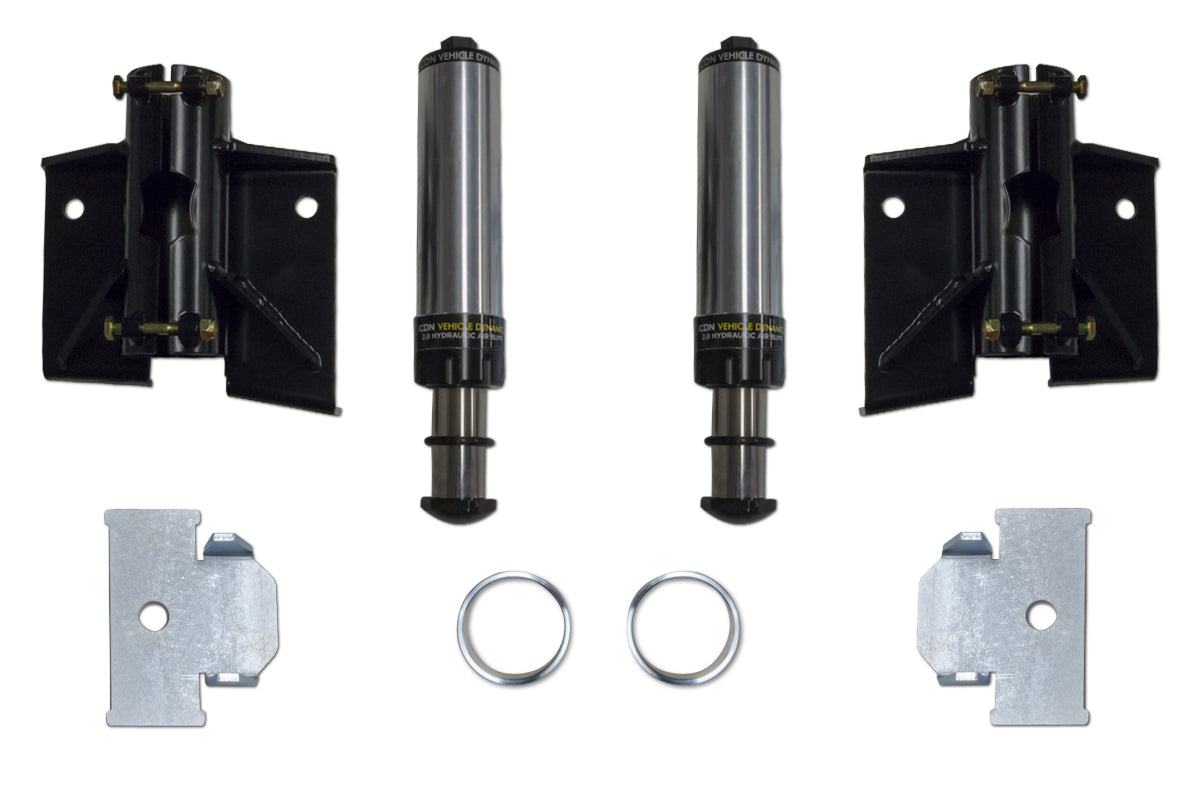

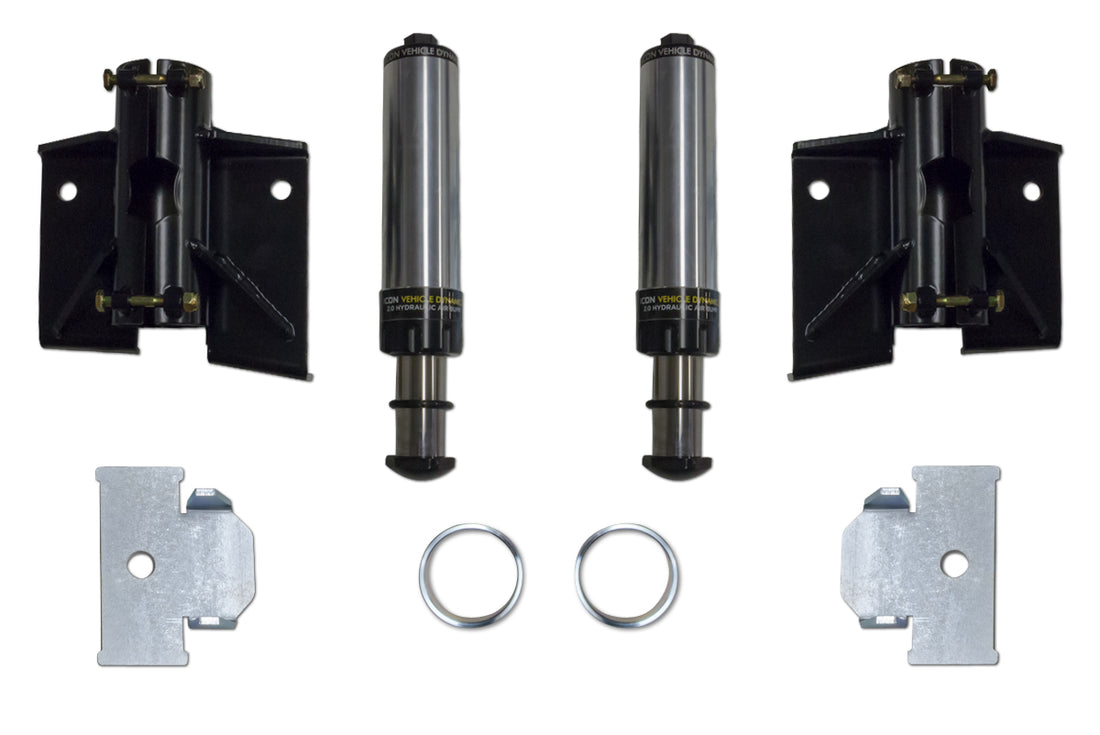

ICON 2005-2023 Toyota Tacoma Rear Hydraulic Bump Stop Kit
Questions about fitment? Live chat or call 866-235-4715
Couldn't load pickup availability
- Free shippingMost orders $500+
- 30-day returnsSee policy
- Warranty supportWe work with the maker
Questions about fitment?
Talk to a TRU specialist
We’ll help you verify fitment before you buy.
Veteran-owned · Austin, Texas · Mon–Fri 9:30a–11:00a & 1:00p–5:30p CT
Important notes before you order
- APPLICATION NOTE #185: Will not fit 2WD Tacoma with 5 wheel lug studs
Specifications
| Brand | ICON Vehicle Dynamics |
|---|---|
| Part number | 56103 |
| UPC / GTIN | 840103402956 |
| Attachment Type | Bolt On |
| Bumper Material | Hydraulic |
| Bumper Type | Hydraulic |
| Color | Black |
| Diameter | 2 IN |
| Grade Type | Performance |
| Length | 2.5 IN |
| Material | Steel, Aluminium |
| Mounting Hardware Included | yes |
| Country of Origin | US |
| Warranty | 1 Year-Bump Stops; Limited Lifetime-Brackets |
California Proposition 65 warning applies to this product. www.P65Warnings.ca.gov
Features
- Bolt-on design using existing holes in frame for clean install with no cutting or welding
- Industry only Toyota Tacoma specific tune to maximize bottom out resistance while having smooth engagement as well as return
- Absorbs additional impact energy over the OEM rubber bumpstop and returns the axle in a more controlled manner
- Industry only kit allowing adjustment for leaf pack height changes so uptravel is not lost
- Can be returned to stock
- Linear-digressive piston which compliment a bumpstop over the industry standard linear-linear piston. Infinite tuning options with valve stack, oil volume, and nitrogen pressure adjustments
- Anodized billet top cap, o-ring sealed back up cap, seal head and striker
- CAD Plated body for corrosion free service
- Urethane rod seal and wiper for long service life
- User serviceable
Installation
Free install support from the Trucks R Us tech team, for you or your shop.
Overview

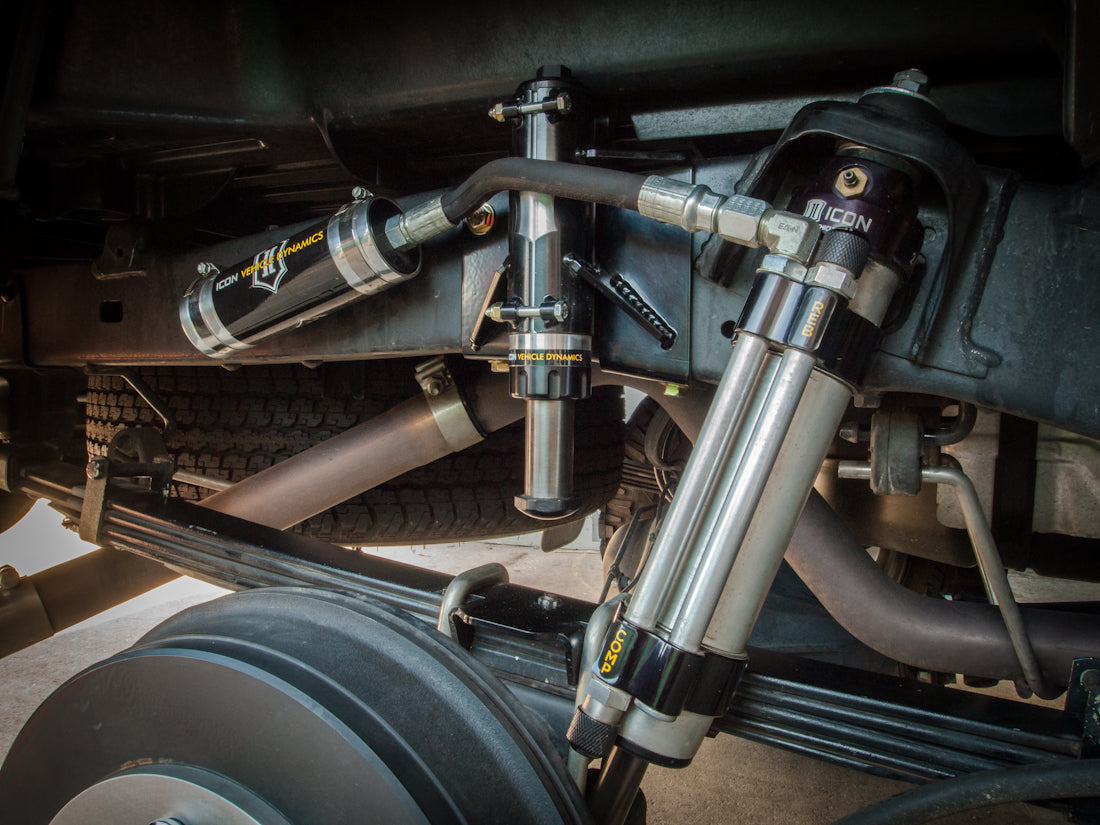

Bolt on a set of ICON Vehicle Dynamics rear hydraulic air bumpstops to improve the on or off-road capabilities of your 2005-2023 Toyota Tacoma when using maximum suspension travel. ICON’s race proven hydraulic air bumpstops are tested, tried and true, from Cabo to Canada in all conditions. This vehicle specific tuned hydraulic air bumpstop system offers both smooth engagement, maximum bottom resistance, and smooth controlled return while being used in extreme conditions. The true value to using a compression and rebound tuned bumpstop is the exponentially increasing force is smooth, not abrupt or harsh like the OEM bumpstop.
As part of the kit, ICON includes an industry first selectable install height for the hydraulic air bumpstop so up travel is not limited with use of an aftermarket thicker leaf pack. This allows you to upgrade your leaf springs down the road, and retain maximum up travel without having to purchase a new bump stop bracket kit.
Questions
Will this fit my truck?
Select your truck at the top of the page and the fit check will confirm it. If your exact trim is not listed, call 866-235-4715 or live chat and a fitment specialist will check it before you order.
Do you help with installation?
Yes. Our technical team helps you or your shop with installation and troubleshooting after delivery, on top of the manufacturer’s support.
What if the part has a problem?
We work the warranty claim with the manufacturer on your behalf, within the manufacturer’s warranty policy.
Can I return it?
Most items can be returned within 30 days. See our return policy for details.
No reviews for this part yet. Trucks R Us is rated on Trustpilot, Google and the BBB.
About ICON Vehicle Dynamics
ICON Vehicle Dynamics specializes in performance suspension components, shocks, and accessories for today’s most popular trucks & SUVs. Since 2008, ICON has been developing products that redefine the limits of what a “stock” vehicle is capable of. ICON is part... Shop all ICON Vehicle Dynamics
