ICON 2022-2025 Toyota Tundra/2023-2025 Toyota Sequoia/2024-2025 Toyota Tacoma/2024 Toyota Land Cruiser 250 Series/2024 Lexus GX550, Rear, Tubular Upper Link Kit

Name: ICON 2022-2025 Toyota Tundra/2023-2025 Toyota Sequoia/2024-2025 Toyota Tacoma/2024 Toyota Land Cruiser 250 Series/2024 Lexus GX550, Rear, Tubular Upper Link Kit
Brand: ICON Vehicle Dynamics
SKU: 54102T
Price: 653.95 USD
Availability: InStock

PART #

$653.95

SALE Backordered

Shipping calculated at checkout.

Product variants

Quantity

Inventory: In Stock

View full details

Important: Always read the entire product description, including important notes and fitment information, before making a purchase. Components contained in images and descriptions may change based upon your selections.

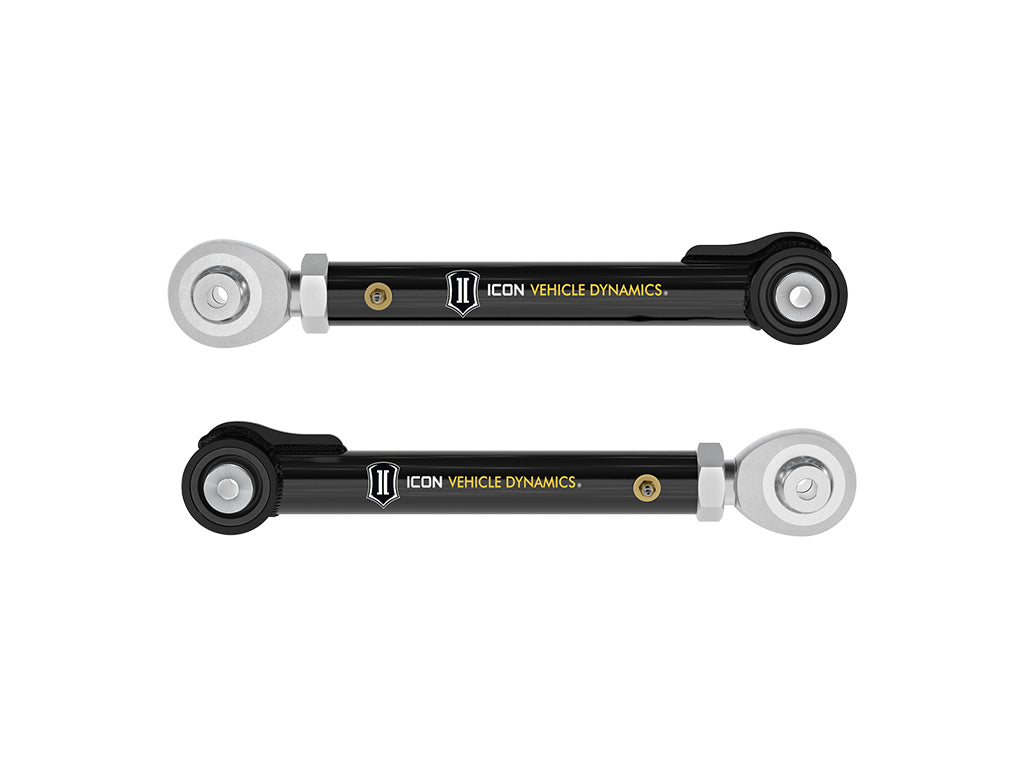

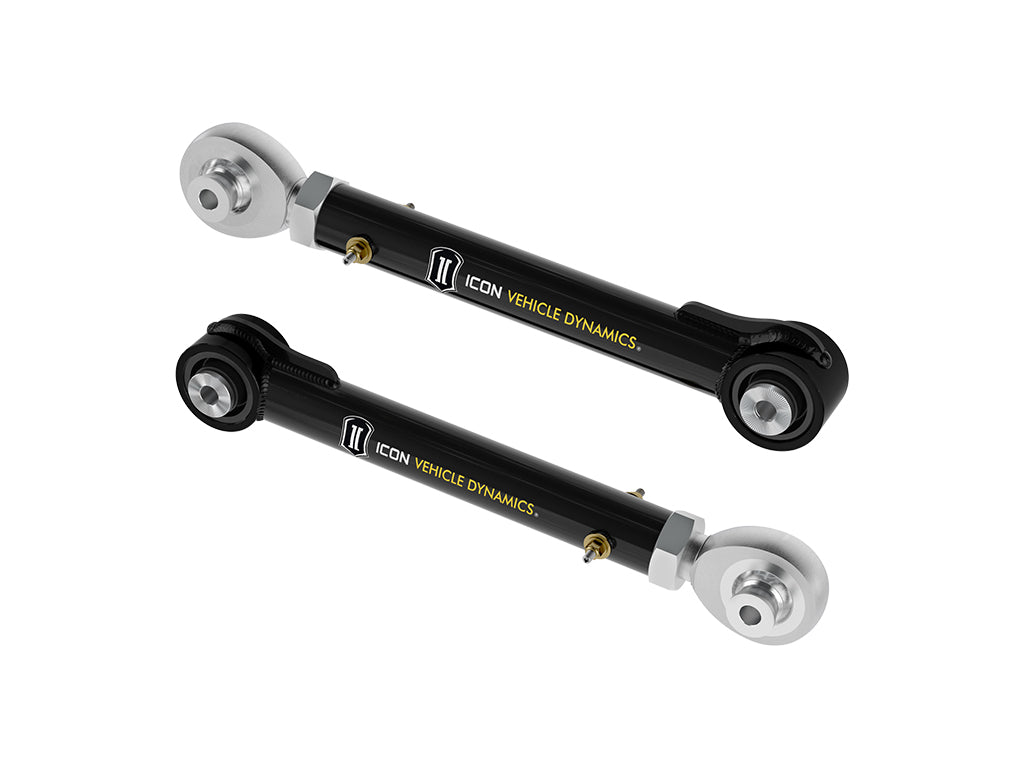

The ICON Tubular Rear Upper Link System helps free up rear axle movement on the 2022-2025 Toyota Tundra 2023-2025 Toyota Sequoia 2024-2025 Toyota Tacoma 2024 Toyota Land Cruiser 250 Series and the 2024 Lexus GX550 to allow for increased suspension travel and articulation. Formed using 1 ¾” x .313 wall DOM Tubing for high strength with CNC machined threaded ends and bushing housings and feature a multi-stage black powder coat finish. These upper links are designed with massive FK Rod End at one end along with a dual-durometer high angle greaseless bushing at the other end yields the best combination of maximum travel and articulation while isolating and damping road noise and vibrations. The quality rod ends and bushings featured in these link arms allow the vehicle’s suspension to function as intended without the bushing bind that limits the vehicle in stock form. Hit the trail with the confidence of knowing your suspension components are covered by ICON’s Limited Lifetime Warranty.

Features

Adjustable for various lift heights &
driveline angles
Help free rear suspension bind compared to OE links
CNC machined &
notched 1026 DOM steel construction with semi-gloss black powder coat finish
Multi durometer bushings for noise free operation and maximum angularity
No grease required for life of bushings
Quality JM16T PTFE-lined FK Rod Ends
Fabricated components covered under ICON's Limited Lifetime Warranty

Application note #141: tundra/sequoia equipped with automatic leveling headlights or load-leveling rear height control air suspension part # 55153 is also required; application note #143: compatible with icon tundra 6" lift performance suspension system but may not be compatible with 6" lift kits from other manufacturers; application note #164: will not fit tacoma submodels equipped with rear leaf springs; application note #199: land cruiser 250 series and gx550 also require sensor bracket part number 55161

Quick SpecsOverview:

Pre-Assembled: Yes
Set: Yes
Reinforced: Yes
Construction: Tubular
Pre-Greased: No
Grease Fitting Included: No
Suspension Grade Type: Performance
Bushings Included: Yes
Ball Joint Stud Type: Threaded
Ball Joint Included: Yes
Control Arm Construction: Tubular
Control Arm Material: DOM Steel
Attachments Included: No
Mounting Hardware Included: Yes
Grade Type: Performance
Adjustable: Yes
Control Arm Color: Black
Bushing Material: Polyurethane
Bushing Material: Rod End Bearing
Mounting Bracket Included: No
Suspension Type: Air
AAP_UDA_12: EA
AAP_UDA_22: 1
AAP_UDA_4: 55
Add-On Part: 54002T - 22-25 TUNDRA/23-24 SEQUOIA/24 TACOMA TUBULAR REAR LOWER LINK KIT
Add-On Part: 55153 - 22-25 TUNDRA/23-24 SEQUOIA AIR RIDE/AUTO HEADLIGHT BRACKET KIT
Add-On Part: 55161 - 24 LC250/24 GX550 REAR UPPER LINK SENSOR BRACKET KIT
Adjustable Control Arm: yes
Ball Joint Mounting Type: Thread in
Bushing Color: Black
Bushing Color: Silver
California Prop 65 Warning: Yes
California Proposition 65: WARNING: This product contains chemicals known to the State of California to cause cancer and birth defects or other reproductive harm.
Color: Black
End 1 Type: Bushing
End 2 Type: Rod End Bearing
Finish: Powdercoated
Material: DOM Steel
Quantity: Pair
Suspension Type: Coil Spring
Title: ICON 2022-2025 Toyota Tundra/2023-2025 Toyota Sequoia/2024-2025 Toyota Tacoma/2024 Toyota Land Cruiser 250 Series/2024 Lexus GX550 Rear Tubular Upper Link Kit

Additional Specifications:

Country of Origin: US
Warranty: Limited Lifetime; Excludes Wearable Items
Weight (lbs): 23.0
Vehicle Specific Fitment: Y
