ICON 2024-2026 Toyota Land Cruiser 250 Series/2024-2026 Lexus GX550/2025-2026 Toyota 4Runner, Rear, Tubular Lower Link Kit
ICON 2024-2026 Toyota Land Cruiser 250 Series/2024-2026 Lexus GX550/2025-2026 Toyota 4Runner, Rear, Tubular Lower Link Kit
PART #
- Finish Powdercoated
- Material Steel
Couldn't load pickup availability
- Free shippingMost orders $500+
- 30-day returnsSee policy
- Warranty supportWe work with the maker
Specifications
| Brand | ICON Vehicle Dynamics |
|---|---|
| Part number | 54003T |
| Adjustable | Yes |
| Adjustable Control Arm | yes |
| Attachments Included | No |
| Ball Joint Included | Yes |
| Ball Joint Mounting Type | Thread in |
| Ball Joint Stud Type | Threaded |
| Bushing Color | Black |
| Bushing Material | Rod End Bearing |
| Bushing(s) Included | Yes |
| Color | Black |
| Construction | Tubular |
| Control Arm Color | Black |
| Control Arm Construction | Tubular |
| Control Arm Material | DOM Steel |
| End 1 Type | Rod End Bearing |
| End 2 Type | Bushing |
| Finish | Powdercoated |
| Grade Type | Performance |
| Grease Fitting Included | No |
| Material | Steel |
| Mounting Bracket Included | No |
| Mounting Hardware Included | Yes |
| Pre-Assembled | Yes |
| Pre-Greased | No |
| Quantity | Pair |
| Reinforced | Yes |
| Set | Yes |
| Suspension Grade Type | Performance |
| Suspension Type | Spring |
California Proposition 65 warning applies to this product. www.P65Warnings.ca.gov
Features
- Fabricated components covered under ICON's Limited Lifetime Warranty
Overview

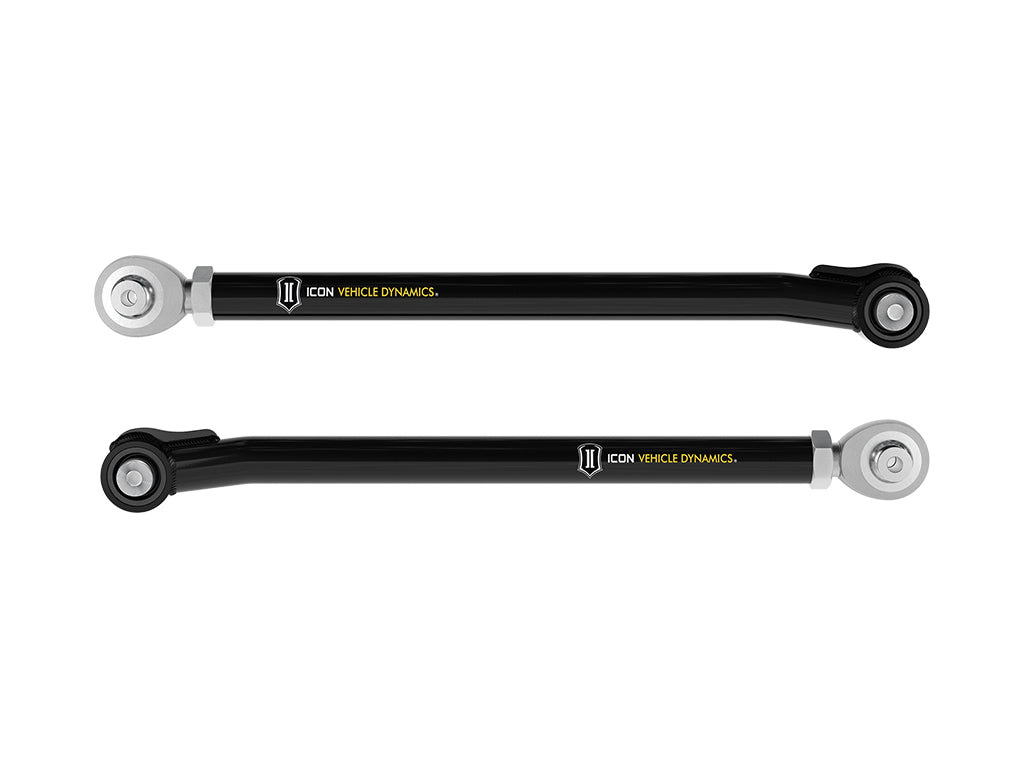

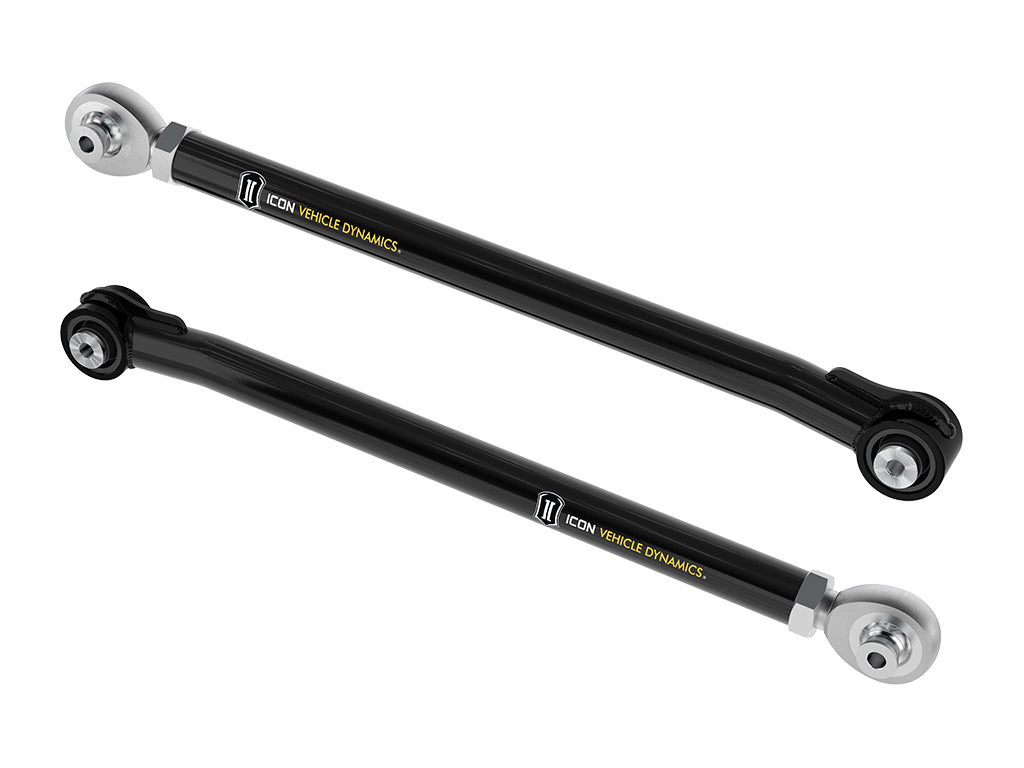

The ICON Tubular Rear Lower Link System helps free up rear axle movement on the 2024-2026 Toyota Land Cruiser 250 Series, 2025-2026 Toyota 4Runner, and the 2024-2026 Lexus GX550 to allow for increased suspension travel and articulation. Formed using 1 ¾” x .313 wall DOM Tubing for high strength, with CNC machined threaded ends and bushing housings, and feature a multi-stage black powder coat finish. These lower links are designed specifically for high clearance for reduced contact with trail obstacles and massive FK Rod End at one end, along with a dual-durometer, high angle greaseless bushing at the other end yields the best combination of maximum travel and articulation while isolating and damping road noise and vibrations. The quality rod ends and bushings featured in these link arms allow the vehicle’s suspension to function as intended, without the bushing bind that limits the vehicle in stock form. Hit the trail with the confidence of knowing your suspension components are covered by ICON’s Limited Lifetime Warranty.
Questions
Will this fit my truck?
Select your truck at the top of the page and the fit check will confirm it. If your exact trim is not listed, call 866-235-4715 or live chat and a fitment specialist will check it before you order.
Do you help with installation?
Yes. Our technical team helps you or your shop with installation and troubleshooting after delivery, on top of the manufacturer’s support.
What if the part has a problem?
We work the warranty claim with the manufacturer on your behalf, within the manufacturer’s warranty policy.
Can I return it?
Most items can be returned within 30 days. See our return policy for details.
No reviews for this part yet. Trucks R Us is rated on Trustpilot, Google and the BBB.
About ICON Vehicle Dynamics
ICON Vehicle Dynamics specializes in performance suspension components, shocks, and accessories for today’s most popular trucks & SUVs. Since 2008, ICON has been developing products that redefine the limits of what a “stock” vehicle is capable of. ICON is part... Shop all ICON Vehicle Dynamics
