Important notes before you order
- Factory Wheels & Tires Fitment: Yes
- APPLICATION NOTE #30: An adjustable track bar is recommended to realign the axle but not required.
- APPLICATION NOTE #155: Requires recalibration of Advanced Driver Assistance Systems (ADAS) after install
- APPLICATION NOTE #164: Will not fit Tacoma submodels equipped with rear leaf springs
- APPLICATION NOTE #191: Advertised lift height ranges are for a vehicle with approx 600lbs of additional weight in rear. Increasing or decreasing weight of vehicle due to accessories will alter lift range.
Specifications
| Brand | ICON Vehicle Dynamics |
|---|---|
| Part number | 51215 |
| UPC / GTIN | 840103432946 |
| Bump Stops Included | No |
| Color | Black |
| Finish | Powdercoated |
| Grade Type | Performance |
| Material | Steel |
| Maximum Lift Height | 0.5 IN |
| Rear Spring Compressed Length | 6.4 IN |
| Rear Spring Inside Diameter | 5.65 IN |
| Rear Spring Outside Diameter | 6.96 IN |
| Rear Spring Rate | 125 PPI, 270 PPI |
| Rear Spring Rate Type | Progressive Dual Rate |
| Rear Spring Relaxed Length | 19.04 IN |
| Rear Spring Seat Included | No |
| Spring Color | Black |
| Spring Material | Steel |
| Wire Diameter | .656 IN |
| Country of Origin | US |
| Warranty | Lifetime |
California Proposition 65 warning applies to this product. www.P65Warnings.ca.gov
Features
- .5" rear lift height over stock with 600lbs of additional weight in the rear
- Dual rate rear coil springs with ICON-engineered ride and overload rates
- Significantly improves on- and off-road ride quality and performance over stock
- Dual stage powder coating for corrosion resistance
- Lifetime guarantee against sagging/breakage
Fitment
| Years | Vehicle |
|---|---|
| 2019-2021 | Ram 1500 2WD, 4WD: Laramie Longhorn; Excluded True; Source custom |
| 2021-2024 | Ram 1500 2WD, 4WD: Limited Longhorn; Excluded True; Source custom |
| 2019-2024 | Ram 1500 2WD, 4WD: Limited, Lone Star; Excluded True; Source custom |
| 2019-2024 | Ram 1500 2WD: HFE; Excluded True; Source custom |
| 2019-2024 | Ram 1500 4WD, 2WD: Big Horn, Laramie, Rebel, Tradesman; Excluded True; Source custom |
| 2021 | Ram 1500 4WD, 2WD: Longhorn; Excluded True; Source custom |
| 2022-2024 | Ram 1500 4WD: HFE; Excluded True; Source custom |
| 2020-2021 | Ram 1500 4WD: Special Service; Excluded True; Source custom |
| 2021 | Ram 1500 AWD: TRX Launch Edition; Excluded True; Source custom |
| 2021-2024 | Ram 1500 AWD: TRX; Excluded True; Source custom |
| 2024-2026 | Toyota Tacoma: Limited, SR5, TRD Off-Road, TRD Sport |
| 2026 | Toyota Tacoma: TRD Offroad |
| 2025-2026 | Toyota Tacoma: TRD Sport Premium |
Use the fit check above with your truck selected, or ask a specialist if your trim isn't listed.
Recommended wheels & tires
- Recommended Aftermarket Wheels: ICON Alloys - 17" x 8.5" with 5.75" Backspace / 25mm Offset
- Recommended Aftermarket Wheels: ICON Alloys - 18" x 9" with 6" Backspace / 25mm Offset
- Recommended Aftermarket Tires: 33" x 11.50" (Larger tires may fit but fender trimming and modifications will be required.)
Installation
Free install support from the Trucks R Us tech team, for you or your shop.
Overview

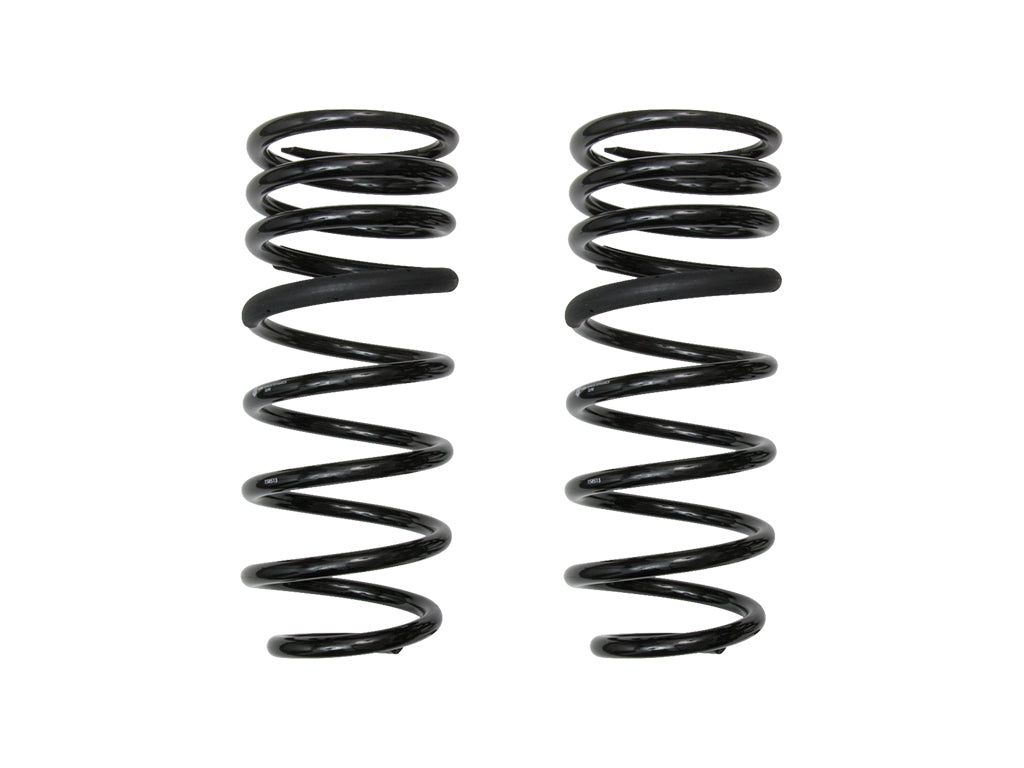

ICON Dual Rate Overland rear coil springs for 2024-2026 Toyota Tacoma provide a modest increase in ground clearance on heavier Tacoma builds while also greatly enhancing on- and off-road performance, especially when used with ICON shocks and suspension components. Their dual rate coil design provides a softer ride rate with a firmer overload rate that combine to deliver on-road comfort with excellent load support, bottoming resistance, and superior off-road performance. These springs are designed to net .5" of rear lift over stock with approximately 600lbs of additional weight added to the rear, for a more aggressive stance and increased fender clearance for larger wheels and tires on more outfitted vehicles. Like all ICON coil springs, they feature a lifetime guarantee against sagging/breakage allow you to drive with confidence in knowing that you have the best suspension products available for the 2024-2026 Toyota Tacoma.
