ICON 2021-2026 Ford Bronco, Rear, 1.25-3” Lift, V.S. 2.5 Series Coilover Kit, Remote Reservoir w/ CDEV, Heavy Rate Springs, Pair

Name: ICON 2021-2026 Ford Bronco, Rear, 1.25-3” Lift, V.S. 2.5 Series Coilover Kit, Remote Reservoir w/ CDEV, Heavy Rate Springs, Pair
Brand: ICON Vehicle Dynamics
SKU: 48711E
Price: 3119.95 USD
Availability: OutOfStock

ICON 2021-2026 Ford Bronco, Rear, 1.25-3” Lift, V.S. 2.5 Series Coilover Kit, Remote Reservoir w/ CDEV, Heavy Rate Springs, Pair

PART #

$3,119.95

SALE CALL OR CHAT TO ORDER

Shipping calculated at checkout.

Product variants

Quantity

Inventory: Special Order (Live Chat or Call)

View full details

Important: Always read the entire product description, including Important Notes and Fitment information, before making a purchase. Components contained in images and descriptions may change based upon your selections.

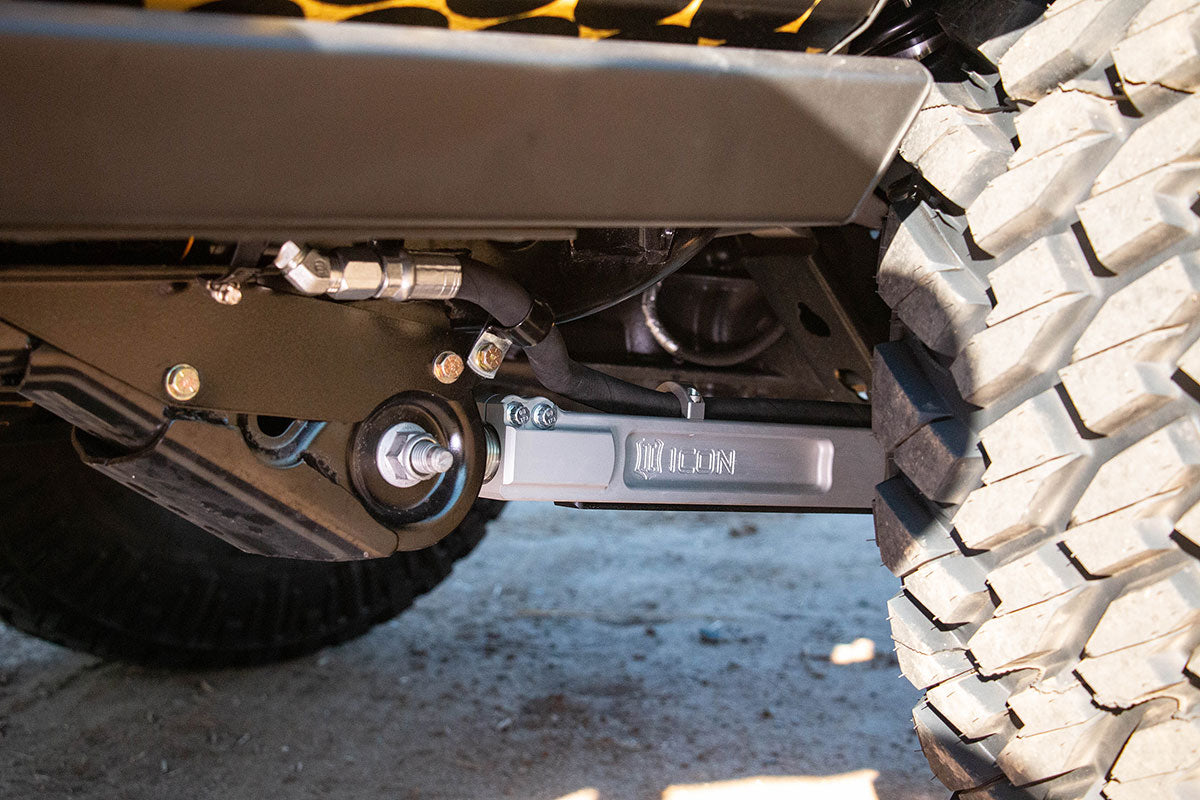

These rear coilovers are mounted in a shaft up orientation and feature unique ICON engineered progressive dual rate coil springs that provide extra weight capacity for those who frequently load out their Broncos with extra gear and equipment while maintaining excellent on- and off-road performance characteristics. Their shaft up orientation requires the reservoir hose to be routed along the rear lower links so ICON offers hose bracket options for the OE or ICON tubular links while ICON billet links incorporate this bracketry into their design.

Features

100% Bolt-on - no drilling, cutting or welding necessary for installation

Brand Overview

ICON Vehicle Dynamics specializes in performance suspension components, shocks, and accessories for today’s most popular trucks & SUVs. Since 2008, ICON has been developing products that redefine the limits of what a “stock” vehicle is capable of. ICON is part of a family of manufacturing companies that includes state of the art machining, laser cutting, and metal forming processes. This unique situation allows ICON to develop products that are at the forefront of technology quickly and efficiently, while maintaining a standard of quality unrivaled in the industry.

APPLICATION NOTE #273: ICON Heavy Rate Rear Coil Springs are optimized for increased rear ride height on Broncos with additional weight added to the rear. ICON Heavy Rate Rear Coil Springs will result in a slight positive rake when the Bronco is unloaded.

Quick Specs

Specs: AAP_UDA_12: EA
Specs: AAP_UDA_22: 1
Specs: AAP_UDA_4: 55
Specs: Active or Passive Suspension: Active
Specs: Add-On Part: 44200T - 21-26 BRONCO REAR ADJ TRACK BAR KIT
Specs: Add-On Part: 198001 - BILLET SPANNER WRENCH KIT
Specs: Add-On Part: 611072 - 21-26 BRONCO HOSE ROUTE KIT OEM REAR LINK 1.9"
Specs: Add-On Part: 252012 - -4 TO -10 HOSE SHIELD KIT
Specs: Add-On Part: 198000 - 2 PIN COILOVER SPANNER WRENCH KIT
Specs: Add-On Part: 48700E - 21-26 BRONCO FRONT 2.5 VS RR CDEV COILOVER KIT
Specs: Add-On Part: 611073 - 21-26 BRONCO HOSE ROUTE KIT REAR LINK 1.75"
Specs: Add-On Part: 611074 - C/O BUMP STOP SPACER KIT 7/8" SHAFT 3/8" TALL
Specs: Add-On Part: 43501 - 21-26 BRONCO IIC INSTALL KIT
Specs: Adjustable Compression: Yes
Specs: Adjustable Damping: Yes
Specs: Adjustable Rebound: No
Specs: Adjustable Ride Height: Yes
Specs: Assembled: Yes
Specs: Body Diameter: 2.5 IN
Specs: California Prop 65 Warning: Yes
Specs: California Proposition 65: WARNING: This product contains chemicals known to the State of California to cause cancer, and birth defects or other reproductive harm.
Specs: Coil Over Springs Included: Yes
Specs: Compressed Length: 18.54 IN
Specs: Cylinder Color: Silver
Specs: Cylinder Finish: Cadmium Plated
Specs: Cylinder Material: Steel

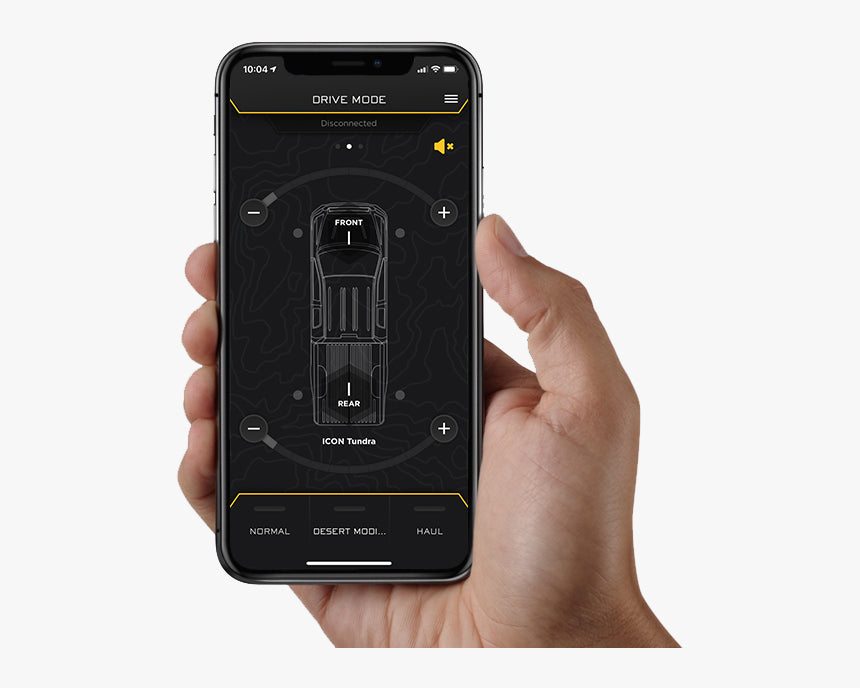

Specs: Damping Adjustment Type: Electronic
Specs: Damping Type: Oil
Specs: Dust Shield Included: No
Specs: Extended Length: 29.21 IN
Specs: Gas Charged: Yes
Specs: Grade Type: Performance
Specs: Includes Bump Stop: Yes
Specs: Internal Construction Type: Single Tube
Specs: Lower Mount Type: Eyelet
Specs: Material: Aluminum
Specs: Material: Steel
Specs: Maximum Lift: 3 IN
Specs: Maximum Ride Height Raising Distance: 3 IN
Specs: Minimum Lift: 1.25 IN
Specs: OEM Wheels & Tires Fitment: Yes
Specs: Rear Spring Rate: 220 PPI
Specs: Rear Spring Rate: 300 PPI
Specs: Recommended Aftermarket Tires: (Without Sasquatch Package): 35" x 12.50" (37" tires require coilover bump stop spacers)
Specs: Recommended Aftermarket Tires: (With Sasquatch Package): 35" x 12.50" (37" tires require coilover bump stop spacers)
Specs: Recommended Aftermarket Wheels: (Without Sasquatch Package): ICON Alloys - 18x9" w/ 6.00" Backspace / 25mm Offset
Specs: Recommended Aftermarket Wheels: (With Sasquatch Package): ICON Alloys - 18x9" w/ 5.00" Backspace / 0mm Offset
Specs: Recommended Aftermarket Wheels: (With Sasquatch Package): ICON Alloys - 17x8.5" w/ 4.75" Backspace / 0mm Offset
Specs: Recommended Aftermarket Wheels: (Without Sasquatch Package): ICON Alloys - 17x8.5" w/ 5.75" Backspace / 25mm Offset
Specs: Recommended Aftermarket Wheels: (With Sasquatch Package): ICON Alloys - 20x9" w/ 5.00" Backspace / 0mm Offset
Specs: Remote Reservoir: Yes
Specs: Reservoir Style: Remote
Specs: Self-Leveling: No
Specs: Service Parts: 252011 - 2.5 PIGGYBACK/REMOTE RESI/BYPASS REBUILD KIT
Specs: Shaft Diameter: 0.875 IN
Specs: Shock Absorber Body End Measuring Point: Center of Eylet
Specs: Shock Absorber Rod End Measuring Point: Top of Mounting Plate
Specs: Spring Color: Black
Specs: Spring Material: Steel
Specs: Spring Rate Type: Progressive Dual Rate
Specs: Title: ICON 2021-2026 Ford Bronco, Rear, 1.25-3” Lift, V.S. 2.5 Series Coilover Kit, Remote Reservoir w/ CDEV, Heavy Rate Springs, Pair
Specs: Travel Length: 10.67 IN
Specs: Upper Mount Type: Mounting Plate
Specs: Valving Type: Digressive

Instructions

Instructions (pdf)

Fitment

: N/A
