ICON 2021-2023 Ford Bronco, Hoss 2.0 Pkg, Rear, 0-1.75” Lift, 2.5 EXP Series Coilover

ICON 2021-2023 Ford Bronco, Hoss 2.0 Pkg, Rear, 0-1.75” Lift, 2.5 EXP Series Coilover

PART #

$535.55
$535.55
SALE Backordered
Shipping calculated at checkout.

Inventory: In Stock
View full details

Important: Always read the entire product description, including Important Notes and Fitment information, before making a purchase. Components contained in images and descriptions may change based upon your selections.

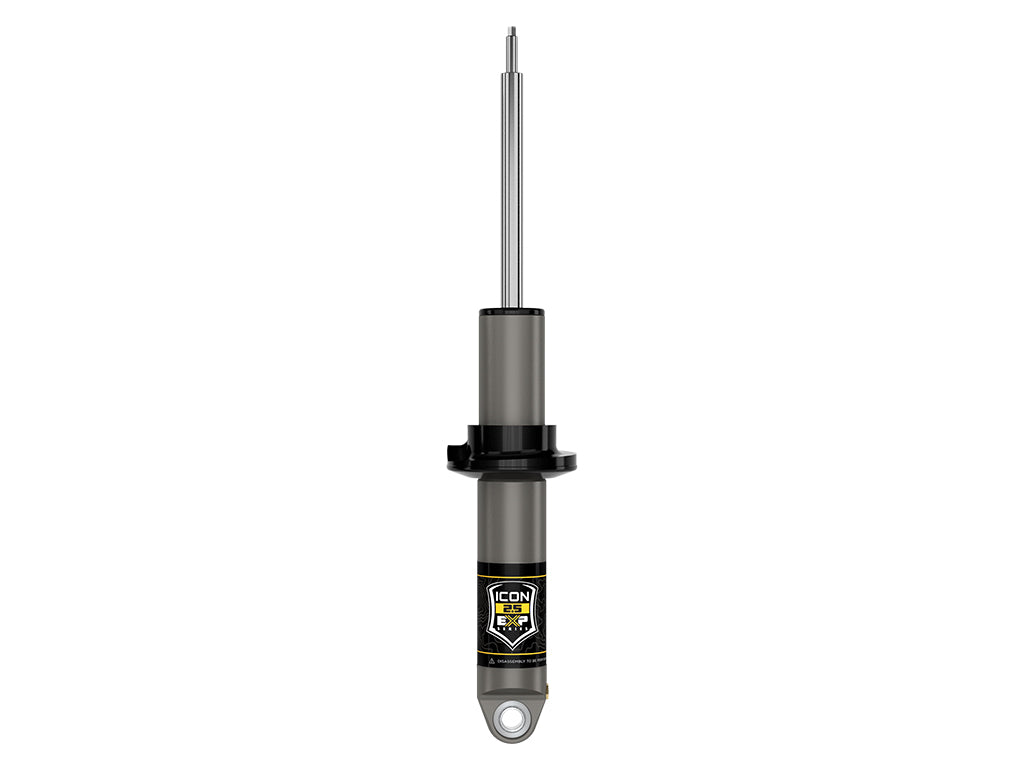

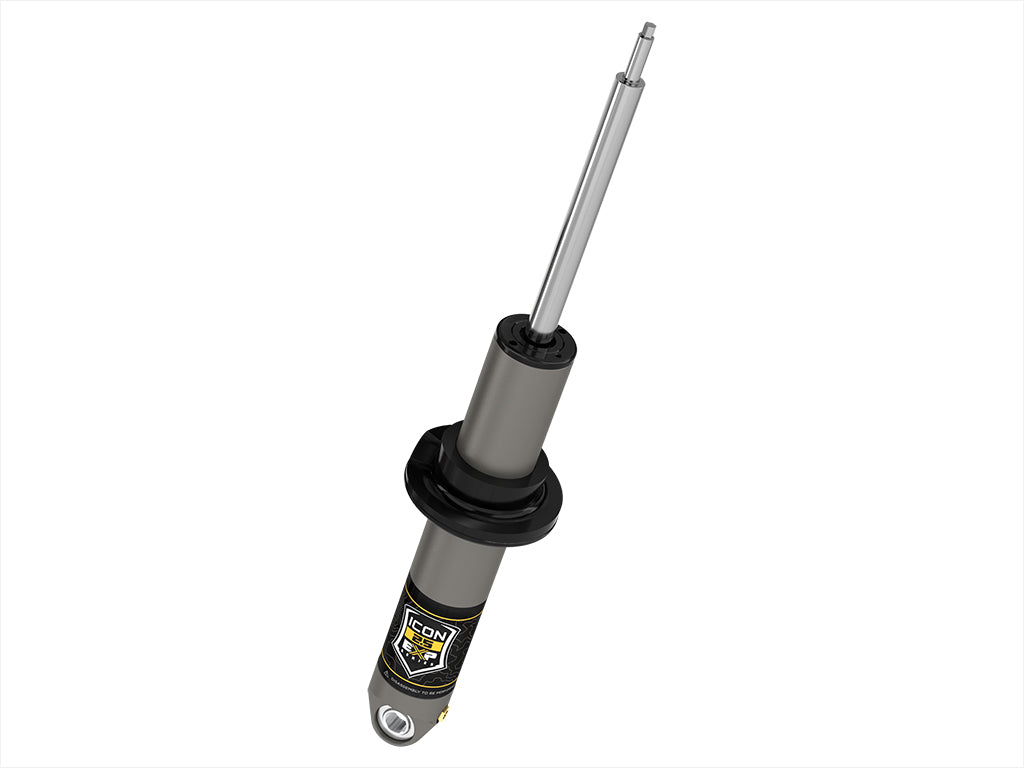

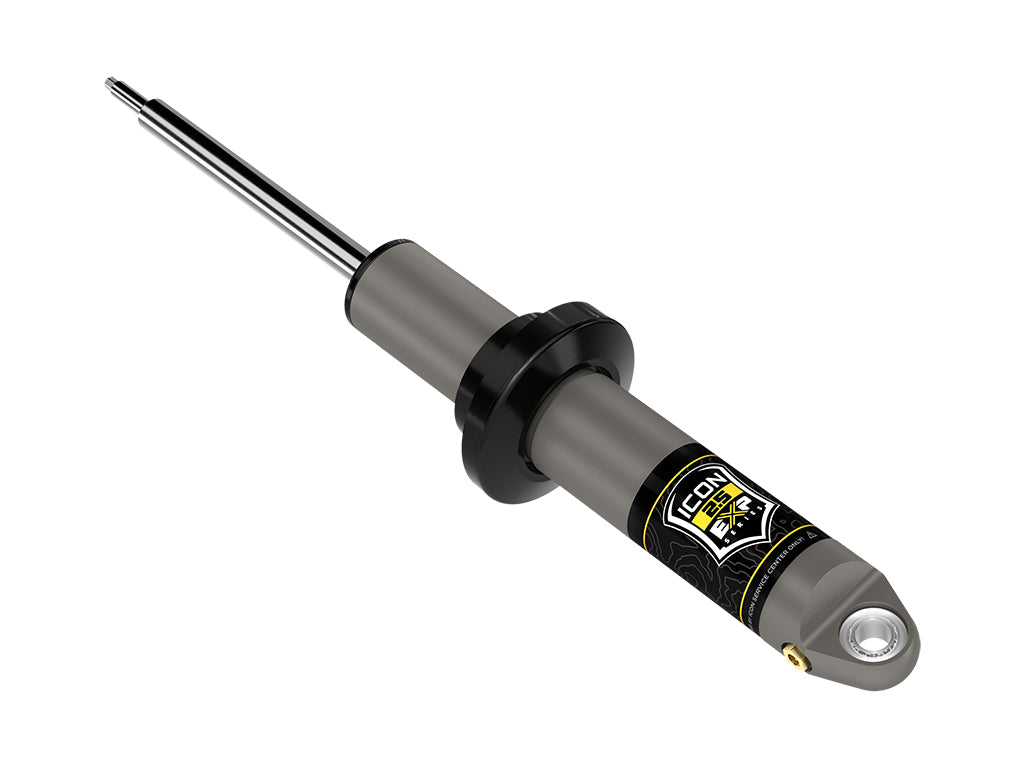

The 2021-2023 Ford Bronco EXP Series rear shock absorbers by ICON Vehicle Dynamics combine the performance of a fully rebuildable 2.5-inch diameter premium shock absorber with the convenience and cost-benefits of re-using the Bronco’s factory coil spring and other components. EXP bridges the gap between spacer lifts and threaded bodied coilovers providing suspension lift custom-tuned performance and maximum travel all in an economical package.

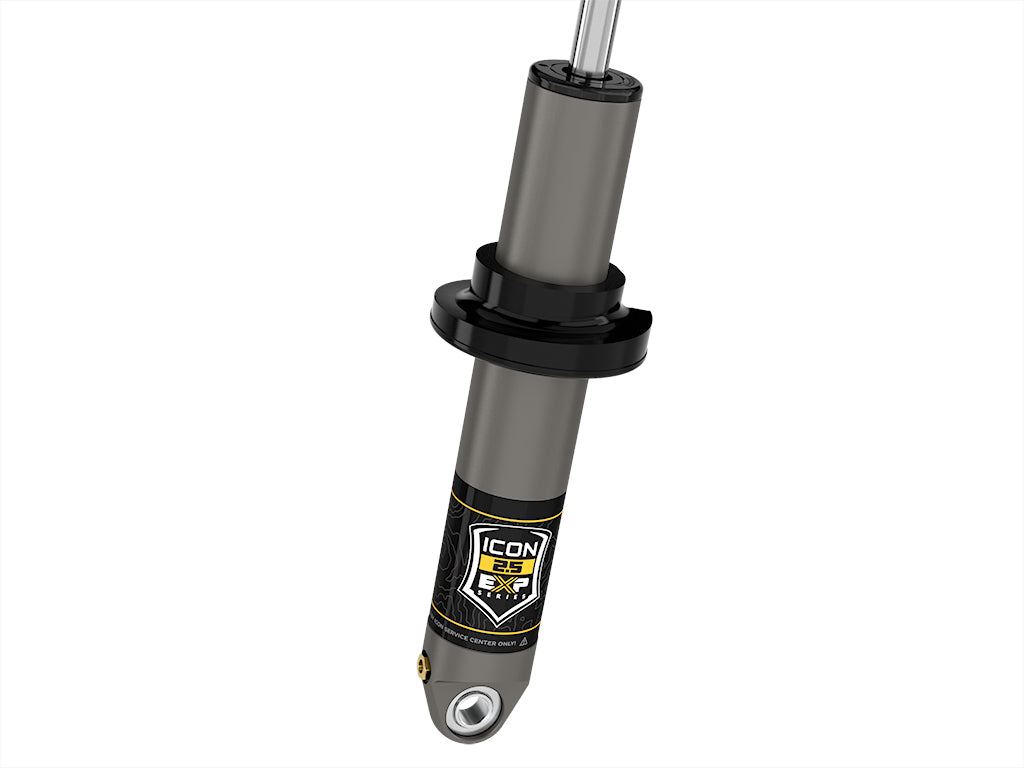

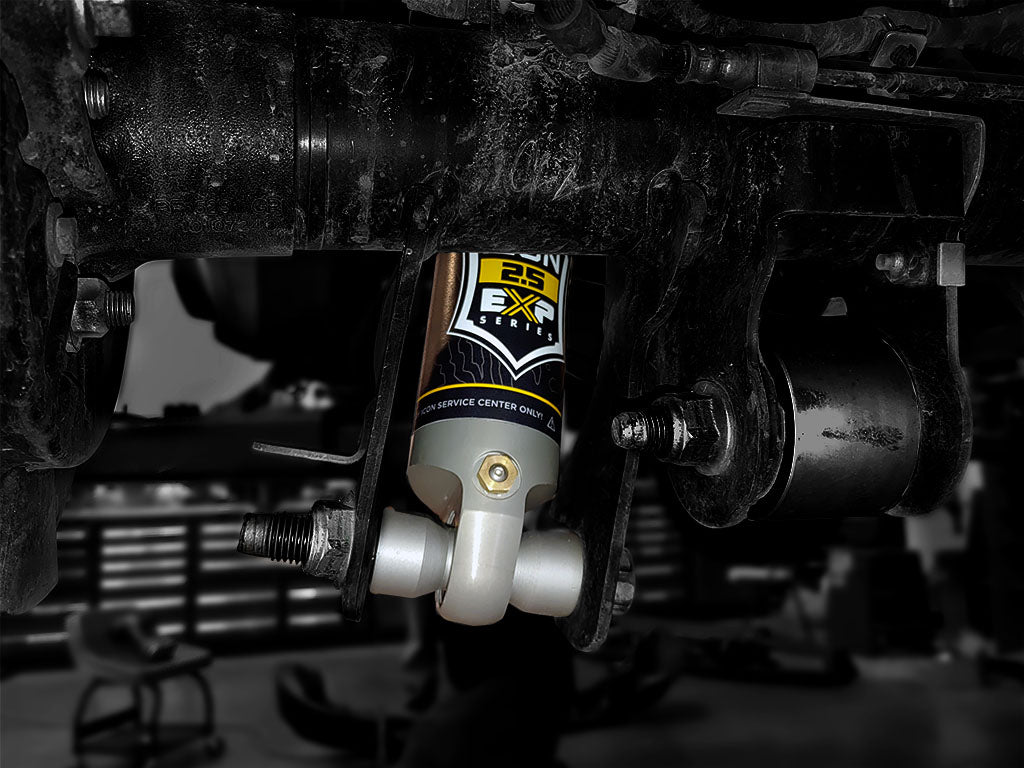

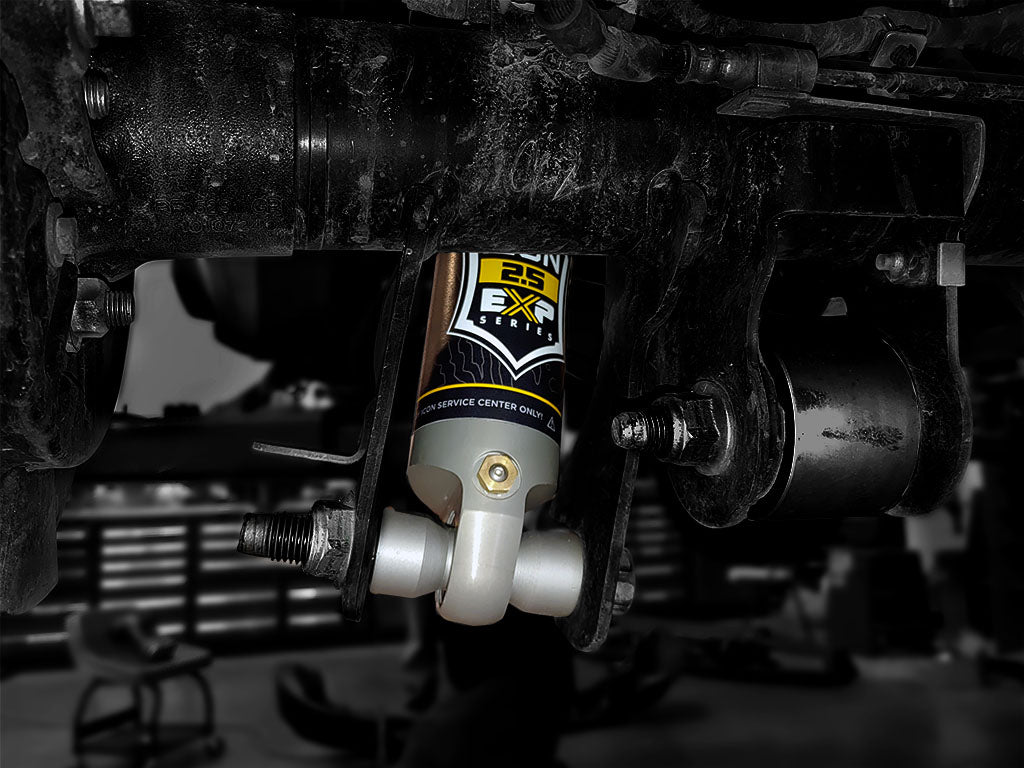

EXP Series is based on ICON’s proven 2.5-inch diameter Aluminum Series shock absorber featuring a one-piece impact-extruded aluminum shock body. Hard anodizing provides a great-looking consistent finish with superior resistance to abrasion and corrosion. The massive 7/8-inch diameter shaft is induction hardened and chrome plated. EXP shocks use the factory shaft-up orientation with the shaft ends machined to re-use the Bronco’s OE upper shock and spring mounts.

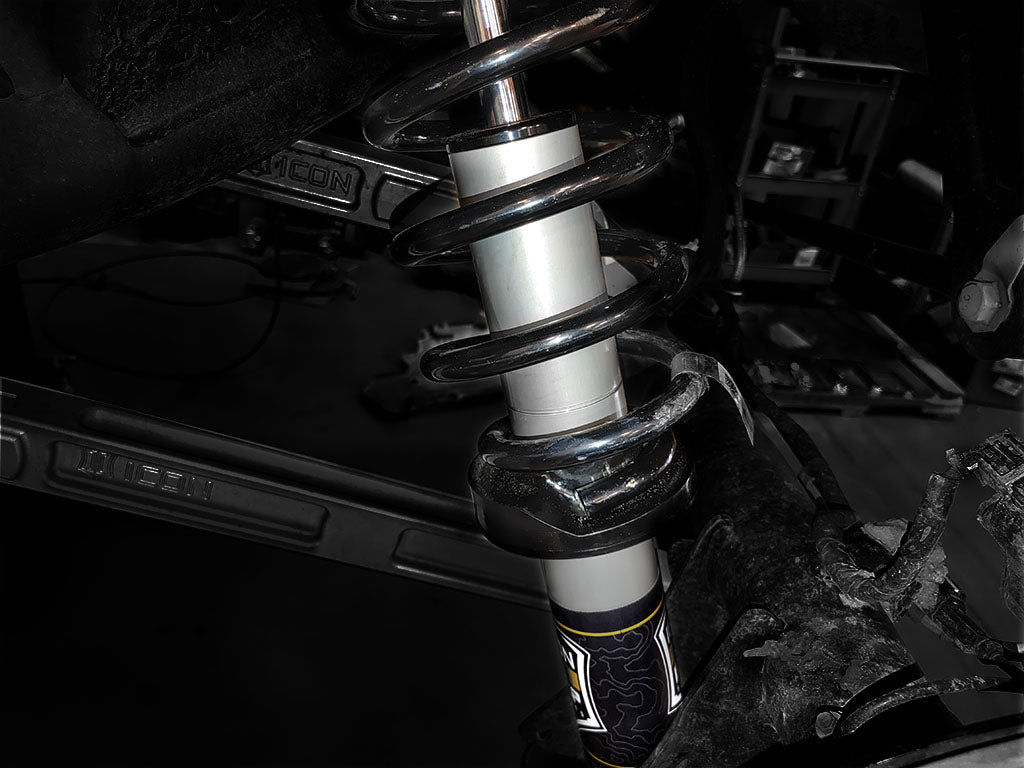

The 6061-billet aluminum coil spring seat is CNC machined to fit the molded heavy duty urethane coil spring seat that is specifically design for fit each of the Bronco model’s OE coil springs. A series of snap-ring grooves machined into the shock body provide easily-selectable rear-end ride height adjustment from 0” to 1.75” of lift over stock on Bronco’s equipped with the OE HOSS 2.0 suspension package.

EXP Series shocks utilize a one-piece digressive piston design and are custom tuned for the Bronco in conjunction with their stock coil springs to maximize damping performance and provide unsurpassed ride quality on and off-road. The increased piston size and shock oil volume provided by the 2.5-inch diameter aluminum body also provide superior heat dissipation compared to the smaller steel bodied OE shocks resulting in longer-lasting shock performance over prolonged use at higher speeds and through rougher terrain. For those who would like to further tune their suspension EXP shocks are fully re-valvable (and rebuildable) by any qualified shock technician with parts available from ICON.

HOSS 2.0 is Ford's upgraded suspension system for Broncos of the Base Big Bend Outer Banks and Black Diamond trim levels WITH the optional Sasquatch package and it is also standard on Badlands Wildtrak First Edition and Everglades. HOSS 2.0 is most easily identified by the YELLOW shock bodies of the OE shocks.

Features

  • Vehicle specific design for 2021-2023 Ford Bronco with HOSS. 2.0 Suspension Package
  • 100% Bolt-on - no cutting or welding necessary for installation
  • Fully rebuildable and re-tunable
  • Vehicle specific tuned for superior shock damping and control
  • 2.5 Aluminum Series Shock with Internal Reservoir
  • Adjustable ride heights from 0-1.75” of rear lift over stock with the use of snap ring
  • Utilizes factory coil and coil hardware
  • Inverted shaft up design featuring 7/8” diameter induction hardened chrome plated shaft
  • One-piece impact extruded hard anodized aluminum cylinder offer excellent corrosion resistance and consistent finish
  • CNC machined 6061 aluminum components with a black anodized finish
  • PTFE lined spherical bearing for extended longevity and minimal deflection
