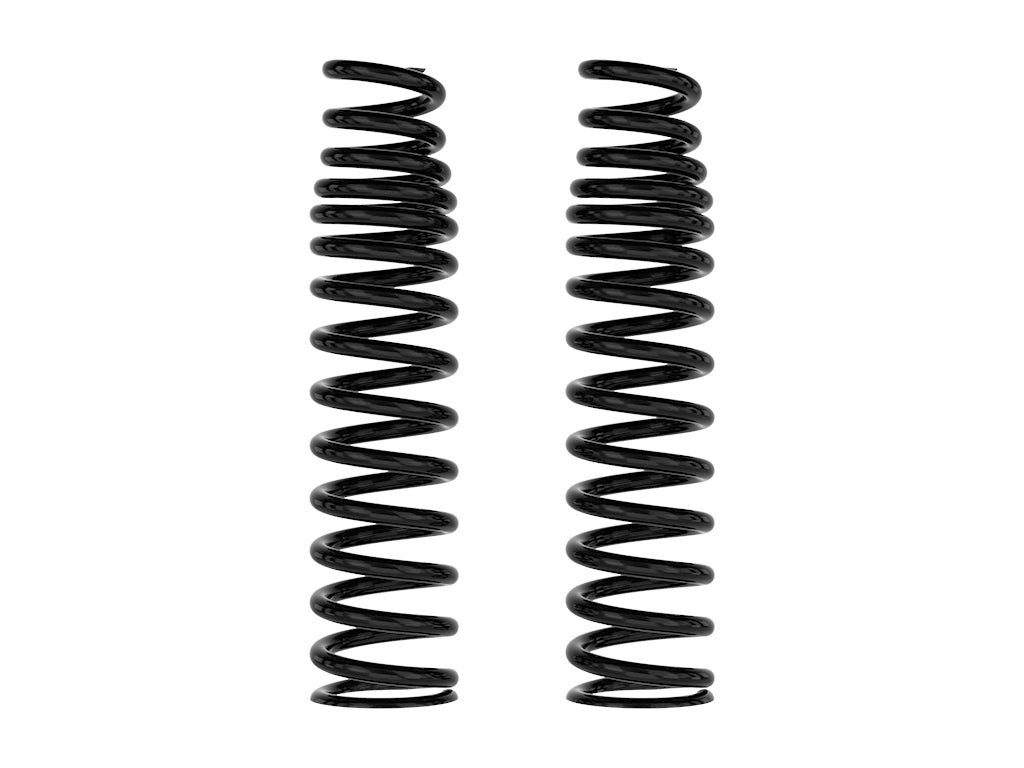

ICON 2021-2026 Ford Bronco, Rear, Heavy Rate Coil Kit for ICON Coilovers
Questions about fitment? Live chat or call 866-235-4715
Couldn't load pickup availability
- Free shippingMost orders $500+
- 30-day returnsSee policy
- Warranty supportWe work with the maker
Questions about fitment?
Talk to a TRU specialist
We’ll help you verify fitment before you buy.
Veteran-owned · Austin, Texas · Mon–Fri 9:30a–11:00a & 1:00p–5:30p CT
Important notes before you order
- APPLICATION NOTE #10: Will not fit Bronco Raptor
- APPLICATION NOTE #155: Requires recalibration of Advanced Driver Assistance Systems (ADAS) after install
- APPLICATION NOTE #263: If coilovers are equipped with coil spring part number 148350, Coil Cup Kit part number 48201 is also required (sold seperately). The coil spring part number can be identified by the number stamped on the coil spring itself.
- APPLICATION NOTE #264: Fits ICON rear 2.5 Series coilovers ONLY. Not compatible with OE, ICON EXP Series, or other aftermarket Bronco rear coilovers.
- TECH NOTE: Sold as a pair
Specifications
| Brand | ICON Vehicle Dynamics |
|---|---|
| Part number | 48200 |
| UPC / GTIN | 840103424187 |
| Bump Stops Included | No |
| Finish | Powdercoated |
| Grade Type | Heavy Duty |
| Rear Spring Compressed Length | 7.5 IN |
| Rear Spring Inside Diameter | 3 IN |
| Rear Spring Outside Diameter | 4.75 IN |
| Rear Spring Rate | 220 PPI, 300 PPI |
| Rear Spring Rate Type | Progressive Dual Rate |
| Rear Spring Relaxed Length | 20 IN |
| Rear Spring Seat Included | No |
| Spring Color | Black |
| Spring Material | Steel |
| Wire Diameter | .577 IN |
| Country of Origin | US |
| Warranty | Lifetime |
California Proposition 65 warning applies to this product. www.P65Warnings.ca.gov
Features
- Increased cargo load carrying capacity with less suspension squat
- Unique ICON engineered dual rate coil spring guaranteed for life against sagging and breaking
- Designed for full time large cargo loads
- Retrofits onto existing ICON Bronco rear coilovers
- Semi-gloss black powder coat finish for excellent corrosion resistance
Recommended wheels & tires
- OEM Wheels & Tires Fitment: Yes
- Recommended Aftermarket Wheels (With Sasquatch Package): ICON Alloys - 17x8.5" w/ 4.75" Backspace / 0mm Offset
- Recommended Aftermarket Wheels (With Sasquatch Package): ICON Alloys - 18x9" w/ 5.00" Backspace / 0mm Offset
- Recommended Aftermarket Wheels (With Sasquatch Package): ICON Alloys - 20x9" w/ 5.00" Backspace / 0mm Offset
- Recommended Aftermarket Wheels (Without Sasquatch Package): ICON Alloys - 17x8.5" w/ 5.75" Backspace / 25mm Offset
- Recommended Aftermarket Wheels (Without Sasquatch Package): ICON Alloys - 18x9" w/ 6.00" Backspace / 25mm Offset
- Recommended Aftermarket Tires (With Sasquatch Package): 35" x 12.50" (37" tires require coilover bump stop spacers)
- Recommended Aftermarket Tires (Without Sasquatch Package): 35" x 12.50" (37" tires require coilover bump stop spacers)
Installation
Free install support from the Trucks R Us tech team, for you or your shop.
Overview

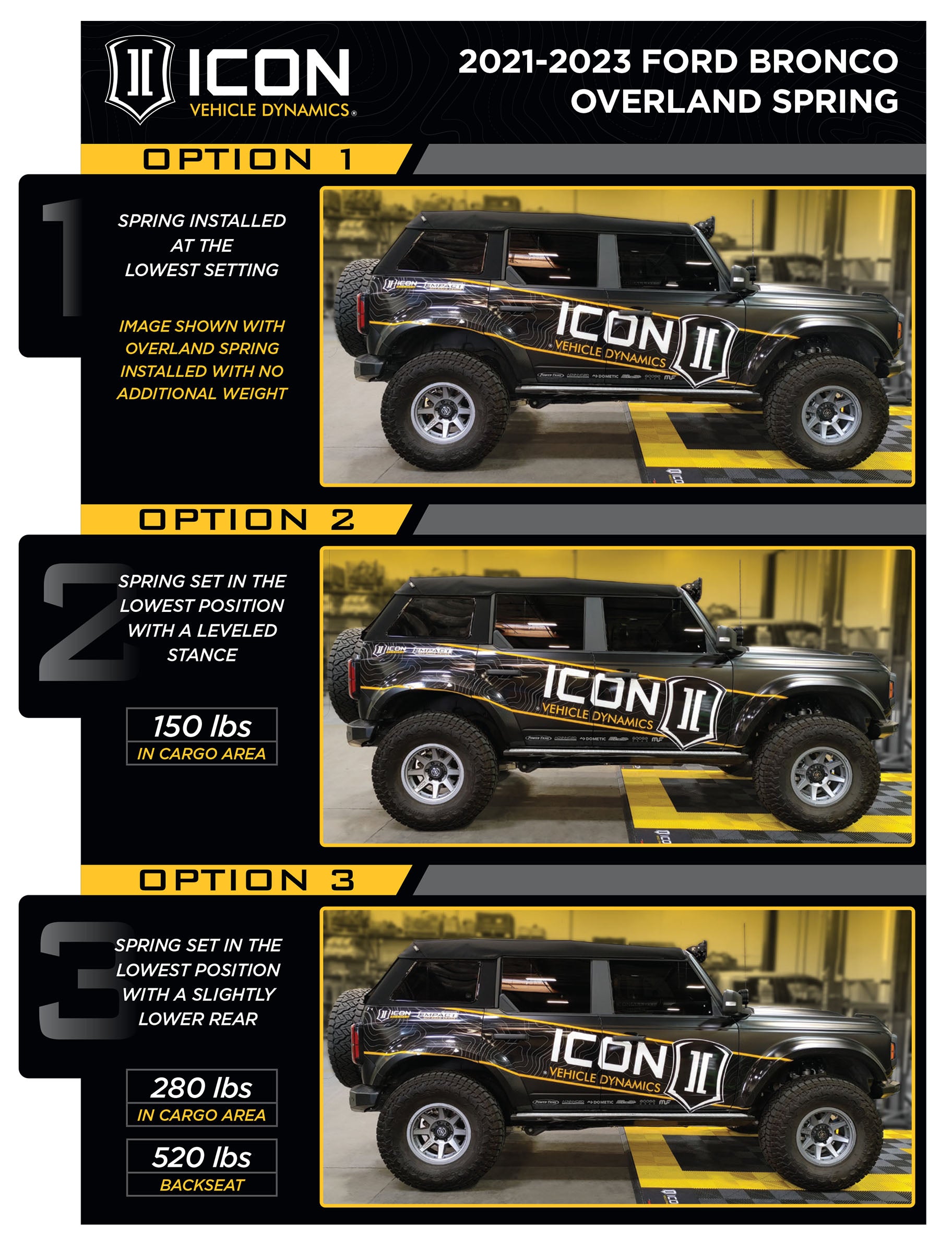

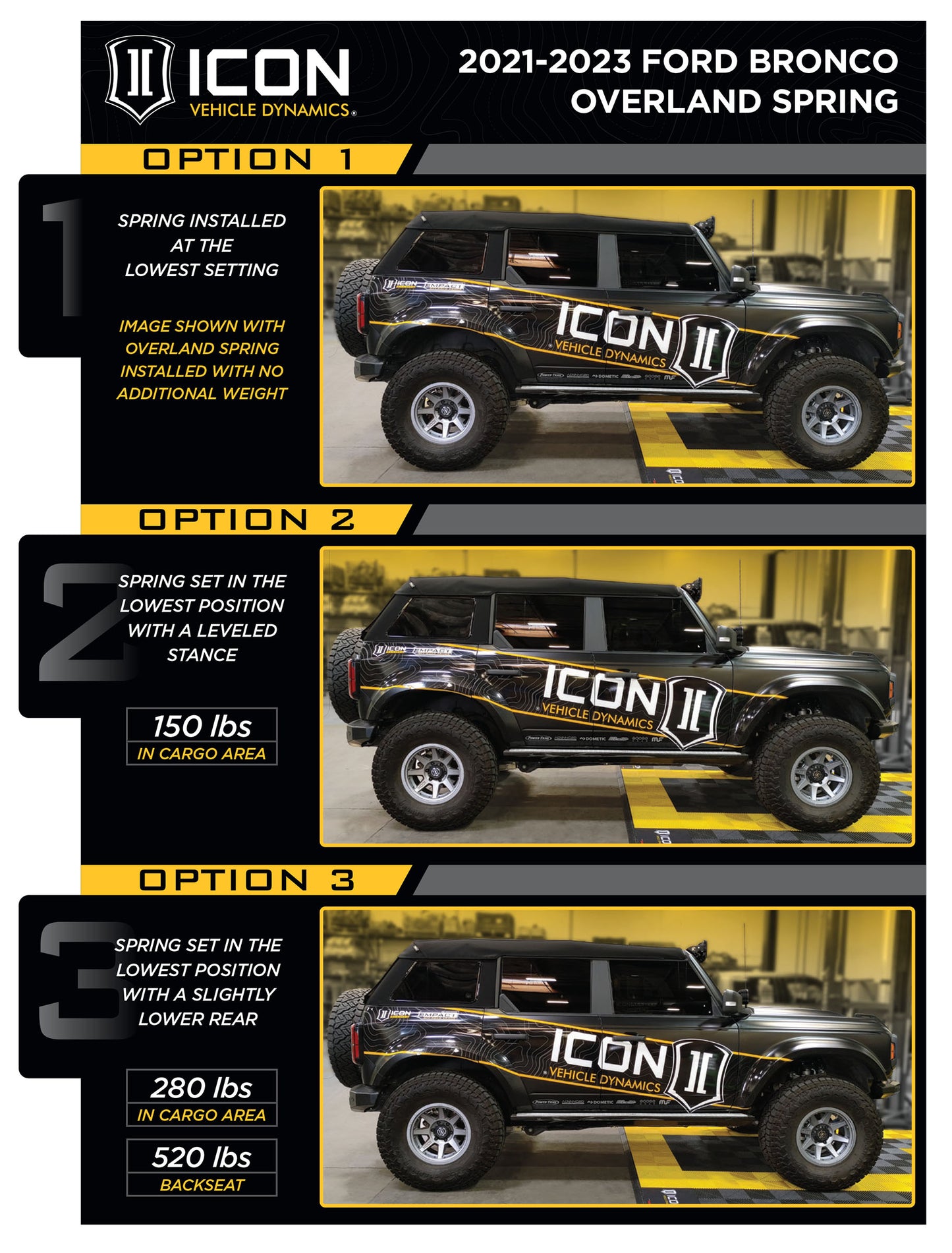

The ICON Vehicle Dynamics Heavy Rate Rear Coil Spring Kit is a dual rate coil spring kit that provides extra weight capacity for those who frequently load out the rear of their Broncos with extra gear and equipment while maintaining excellent on- and off-road performance characteristics. The Heavy Rate Coil Spring Kit simply includes the replacement Heavy Rate coil springs used to retrofit existing ICON Rear Coilovers to the Heavy Rate specification. This Heavy Rate Coil Spring Kit is a perfect all-around rear coil spring for those who either keep their Broncos heavily loaded full time, or only for occasional expeditions yet want to maintain the best possible performance across various load-out scenarios with taller ride heights under load compared to the standard ICON triple rate Bronco rear coil springs.
Questions
Will this fit my truck?
Select your truck at the top of the page and the fit check will confirm it. If your exact trim is not listed, call 866-235-4715 or live chat and a fitment specialist will check it before you order.
Do you help with installation?
Yes. Our technical team helps you or your shop with installation and troubleshooting after delivery, on top of the manufacturer’s support.
What if the part has a problem?
We work the warranty claim with the manufacturer on your behalf, within the manufacturer’s warranty policy.
Can I return it?
Most items can be returned within 30 days. See our return policy for details.
