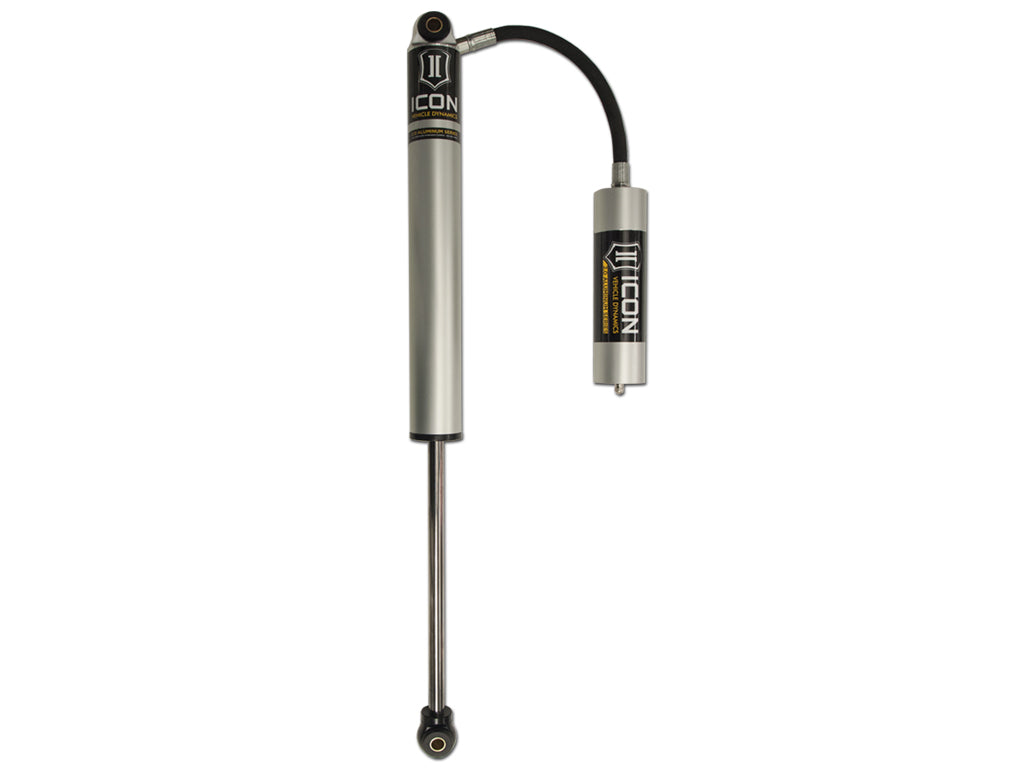

ICON 1999-04 Ford F250/F350 SD 4WD, 8-10” Front/12” Rear Lift, 2.0 VS RR Shock
ICON 1999-04 Ford F250/F350 SD 4WD, 8-10” Front/12” Rear Lift, 2.0 VS RR Shock
PART #
Couldn't load pickup availability
- Free shippingmost orders $500+
- 30-day returnssee policy
- Warranty helpwe work claims for you
Specifications
| Brand | ICON Vehicle Dynamics |
|---|---|
| Part number | 36510R |
| Active or Passive Suspension | Passive |
| Add-On Part | 614600 - 2.0 ICON BILLET RESI CLAMP KIT |
| Adjustable | No |
| Adjustable Compression | No |
| Adjustable Rebound | No |
| Adjustable Ride Height | No |
| Body Color | Gray |
| Body Diameter | 2 IN |
| Body Material | Aluminum |
| Boot Included | No |
| Bushing Color | Black |
| Bushing Included | yes |
| Bushing Material | Polyurethane |
| Coil Over Springs Included | No |
| Color | Black |
| Compressed Length | 21.1 IN |
| Cylinder Color | Gray |
| Cylinder Finish | Anodized |
| Cylinder Material | Aluminum |
| Cylinder Outside Diameter | 2 IN |
| Dust Shield | No |
| Dust Shield Included | No |
| Extended Length | 36.05 IN |
| Finish | Anodized |
| Gas Charged | Yes |
| Grade Type | Performance |
| Hydraulic Lockout | No |
| Includes Bump Stop | No |
| Internal Construction Type | Single Tube |
| Internal Rebound Bumper | Yes |
| Internal Rebound Spring | No |
| Lower Mount Bushing Inside Diameter | .62 IN |
| Lower Mount Bushing Overall Length | 1.45 IN |
| Lower Mount Sleeve Inside Diameter | .51 IN |
| Lower Mount Sleeve Overall Length | 1.475 IN |
| Lower Mount Type | Eyelet |
| Maximum Ride Height Raising Distance | 12.5 IN |
| Minimum Ride Height Raising Distance | 8 IN |
| Mounting Hardware Included | Yes |
| Remote Reservoir | Yes |
| Reservoir Diameter | 2 IN |
| Reservoir Hose Inside Diameter | .25 IN |
| Reservoir Hose Length | 10 IN |
| Reservoir Length | 8 IN |
| Reservoir Type | Remote |
| Rod Diameter | .625 IN |
| Self-Leveling | No |
| Service Parts | 254101G - 1/2 GALLON ICON PERFORMANCE SHOCK OIL |
| Shaft Material | Chrome |
| Shock Absorber Body End Measuring Point | CENTER OF EYELET |
| Shock Absorber Bore Size | 1.75 IN |
| Shock Absorber Rod End Measuring Point | Center of Eylet |
| Shock Stroke | 14.95 IN |
| Travel Length | 14.95 IN |
| Type | Telescopic |
| Upper Mount Bushing Inside Diameter | .62 IN |
| Upper Mount Bushing Overall Length | 1.45 IN |
| Upper Mount Sleeve Inside Diameter | .51 IN |
| Upper Mount Sleeve Overall Length | 1.475 IN |
| Upper Mount Type | EYELET |
| Valving Type | Digressive |
California Proposition 65 warning applies to this product. www.P65Warnings.ca.gov
Features
- 100% revalveable
Overview
ICON Vehicle Specific (V.S.) 2.0 Aluminum Series shock absorbers are the ultimate in cost effective upgrades, specifically tailored by ICON engineers for your application. The V.S. 2.0 Aluminum Series shocks are a high quality upgrade for the everyday street driver and weekend warrior looking for improved on and off-road performance. Like all ICON shock absorbers, V.S. 2.0 Aluminum Series shocks are 100% rebuildable and 100% revalveable. For those using their vehicle in extreme off-road situations, consider the ICON V.S. 2.5 Series shock to handle extra abuse and punishment your suspension will need to endure.
Questions
Will this fit my truck?
Select your truck at the top of the page and the fit check will confirm it. If your exact trim is not listed, call 866-235-4715 or live chat and a fitment specialist will check it before you order.
Do you help with installation?
Yes. Our technical team helps you or your shop with installation and troubleshooting after delivery, on top of the manufacturer’s support.
What if the part has a problem?
We work the warranty claim with the manufacturer on your behalf, within the manufacturer’s warranty policy.
Can I return it?
Most items can be returned within 30 days. See our return policy for details.
No reviews for this part yet. Trucks R Us is rated on Trustpilot, Google and the BBB.
About ICON Vehicle Dynamics
ICON Vehicle Dynamics specializes in performance suspension components, shocks, and accessories for today’s most popular trucks & SUVs. Since 2008, ICON has been developing products that redefine the limits of what a “stock” vehicle is capable of. ICON is part... Shop all ICON Vehicle Dynamics
