ICON Vehicle Dynamics

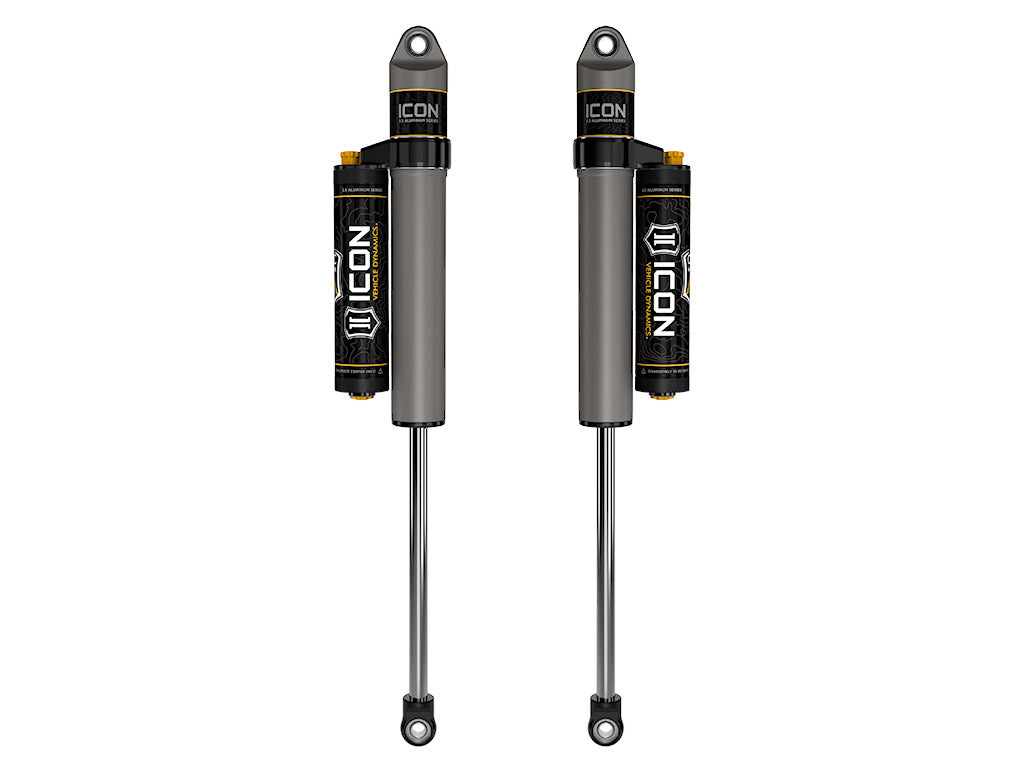

ICON 2020-2023 Jeep Gladiator, 1.5" Lift, Rear, V.S. 2.5 Aluminum Series Shock Absorbers, Piggyback Reservoir w/ CDCV, Pair
ICON 2020-2023 Jeep Gladiator, 1.5" Lift, Rear, V.S. 2.5 Aluminum Series Shock Absorbers, Piggyback Reservoir w/ CDCV, Pair
PART #
Couldn't load pickup availability
- Free shippingmost orders $500+
- 30-day returnssee policy
- Warranty helpwe work claims for you
Important notes before you order
- TECH NOTE: Rear shocks require sway bar relocation kit (Part #22062) or sway bar link kit (Part #22070) to be used in conjunction with JT coil spacer (Part #22065) or JT coil spring (Part #22066)
Specifications
| Brand | ICON Vehicle Dynamics |
|---|---|
| Part number | 27727CP |
| Adjustable | Yes |
| Adjustable Damping | Yes |
| Boot Included | NO |
| Bore Diameter | 2.25 IN |
| Cylinder Color | Silver |
| Cylinder Diameter | 2.5 IN |
| Cylinder Material | Steel |
| Damping Adjustment Type | Manual |
| Damping Type | Oil |
| External Reservoir | Yes |
| Gas Charged | Yes |
| Grade Type | Performance |
| Lower Mount Type | Eyelet |
| Mounting Hardware Included | Yes |
| Service Parts | 257341 - 7/8 SHAFT 15.85 OAL, 11.00 TRAVEL |
| Shaft Diameter | 0.875 IN |
| Shaft Material | Chrome |
| Shock Absorber Body End Measuring Point | Center of Eylet |
| Shock Absorber Rod End Measuring Point | Center of Eylet |
| Tube Outside Diameter | 2.5 IN |
| Upper Mount Type | Eyelet |
California Proposition 65 warning applies to this product. www.P65Warnings.ca.gov
Features
- 6061 aircraft grade aluminum CNC machined components
Installation
Free install support from the Trucks R Us tech team, for you or your shop.
Overview
ICON Vehicle Specific (V.S.) 2.5 Aluminum Series shocks are designed and built to give your vehicle outstanding performance off-road and a smooth ride on the street. These shocks are configured specifically for each application in both length and damping tune. Like all ICON'S Shock Absorbers, V.S. 2.5 Aluminum Series shocks are 100% rebuildable and 100% revalveable. For piggyback and specific remote reservoir applications, ICON'S unique use of a 6061 billet aluminum manifold a few inches below the top cap of the shock creates an internal Bump Zone that when used creates an additional 20% of damping force. This additional force helps prevent harsh bottom outs and controls the suspension when compressing at high velocity. The ICON CDC Valve is an externally adjustable valve that restricts oil flow into the reservoir which creates 10 levels of compression damping force ranges. Shin guards are also included with this application to help protect the shock shafts from debris strikes during off-road use.
