ICON 2007-18 Jeep JK Wrangler, 2-3" Lift, Rear, 2.0 VS Shock

Name: ICON 2007-18 Jeep JK Wrangler, 2-3" Lift, Rear, 2.0 VS Shock
Brand: ICON Vehicle Dynamics
SKU: 26520
Price: 198.74 USD
Availability: InStock

ICON 2007-18 Jeep JK Wrangler, 2-3" Lift, Rear, 2.0 VS Shock

PART #

$198.74

SALE Backordered

Shipping calculated at checkout.

Product variants

Quantity

Inventory: Low (Live-Chat or Call For Stock)

View full details

Important: Always read the entire product description, including Important Notes and Fitment information, before making a purchase. Components contained in images and descriptions may change based upon your selections.

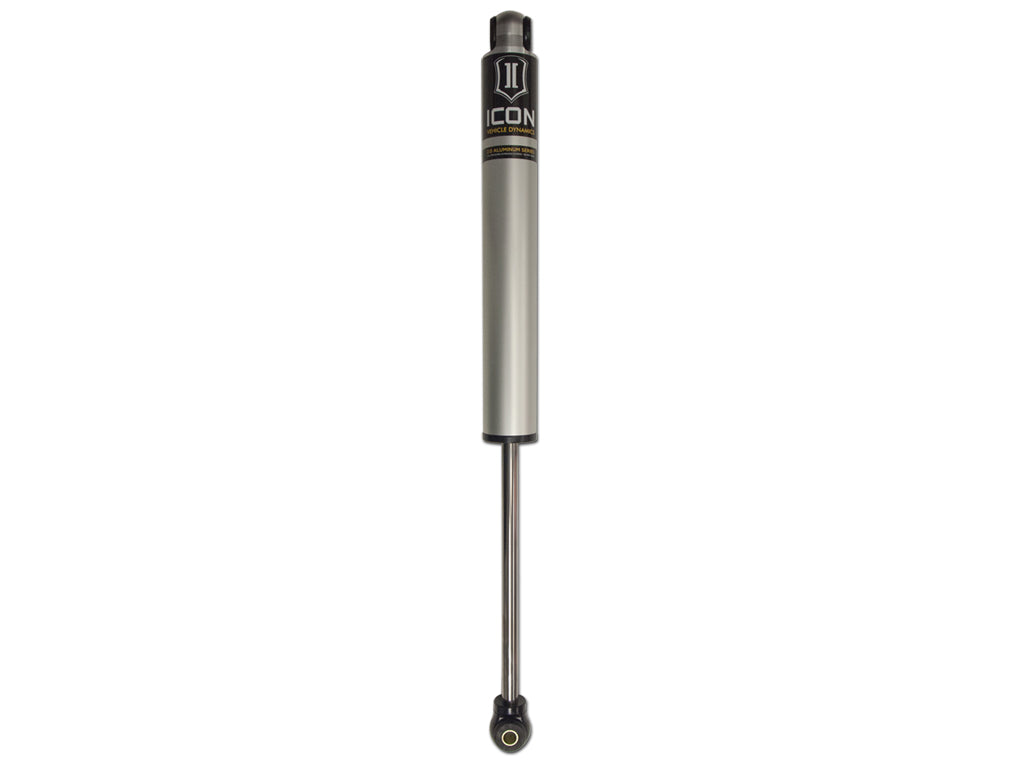

ICON Vehicle Specific (V.S.) 2.0 Aluminum Series shock absorbers are the ultimate in cost effective upgrades, specifically tailored by ICON engineers for your application. The V.S. 2.0 Aluminum Series shocks are a high quality upgrade for the everyday street driver and weekend warrior looking for improved on and off-road performance. Like all ICON shock absorbers, V.S. 2.0 Aluminum Series shocks are 100% rebuildable and 100% revalveable. For those using their vehicle in extreme off road situations, consid er the ICON V.S. 2.5 Series shock to handle extra abuse and punishment your suspension will need to endure.

Features

100% revalveable

Brand Overview

ICON Vehicle Dynamics specializes in performance suspension components, shocks, and accessories for today’s most popular trucks & SUVs. Since 2008, ICON has been developing products that redefine the limits of what a “stock” vehicle is capable of. ICON is part of a family of manufacturing companies that includes state of the art machining, laser cutting, and metal forming processes. This unique situation allows ICON to develop products that are at the forefront of technology quickly and efficiently, while maintaining a standard of quality unrivaled in the industry.

Quick Specs

Specs: AAP_UDA_12: EA
Specs: AAP_UDA_22: 1
Specs: AAP_UDA_4: 55
Specs: Active or Passive Suspension: Passive
Specs: Add-On Part: 614700 - 2.0 SHOCK BOOT KIT (EACH)
Specs: Adjustable Compression: No
Specs: Adjustable Damping: No
Specs: Adjustable Rebound: No
Specs: Adjustable Ride Height: No
Specs: Attributed Description: ICON Vehicle Dynamics; Shock Absorber; Adjustable: No; Boot Included: No; Coil Over Springs Included: No; Dust Shield: No; Gas Charged: Yes; Lower Mount Type: Eyelet; Shock Absorber Body End Measuring Point: Center of Eyelet; Shock Absorber Rod End Measuring Point: Center of Eyelet; Upper Mount Type: Barpin; Remote Reservoir: No; Body Diameter: 2 IN; Compressed Length: 14.475 IN; Fully Open Length: 25.55 IN; Shock Stroke: 10.07 IN; Travel Length: 10.07 IN
Specs: Body Color: Gray
Specs: Body Diameter: 2 IN
Specs: Body Material: Aluminum
Specs: Boot Included: NO
Specs: Bore Diameter: 1.75 IN
Specs: Bushing Color: Black
Specs: Bushing Included: yes
Specs: Bushing Material: Polyurethane
Specs: California Prop 65 Warning: Yes
Specs: California Proposition 65: WARNING: This product contains chemicals known to the State of California to cause cancer, and birth defects or other reproductive harm.
Specs: Coil Over Springs Included: NO
Specs: Coil Spring Insulator(s) Included: No
Specs: Configuration: Performance
Specs: Cylinder Color: Gray
Specs: Cylinder Finish: Anodized
Specs: Cylinder Material: Aluminum
Specs: Cylinder Outside Diameter: 2 IN
Specs: Damping Type: Oil
Specs: Dust Boot Included: No
Specs: Dust Shield: NO
Specs: Dust Shield Included: No
Specs: External Reservoir: No
Specs: Finish: Anodized
Specs: Fully Open Length: 25.55 IN
Specs: Gas Charged: Yes
Specs: Grade Type: Performance
Specs: Hydraulic Lockout: No
Specs: Includes Bump Stop: No
Specs: Internal Construction Type: Single Tube
Specs: Internal Rebound Bumper: Yes
Specs: Internal Rebound Spring: No
Specs: Lower Mount Type: EYELET
Specs: Material: Aluminum
Specs: Material: Steel
Specs: Maximum Ride Height Raising Distance: 3 IN
Specs: Mounting Hardware Included: Yes
Specs: Quantity: 1
Specs: Remote Reservoir: NO
Specs: Rod Diameter: .625 IN
Specs: Self-Leveling: No
Specs: Service Parts: 254101G - 1/2 GALLON ICON PERFORMANCE SHOCK OIL
Specs: Service Parts: 252002 - UNIVERSAL SPANNER WRENCH (2.0/2.5/3.0)
Specs: Service Parts: 252004 - ECONOMY NEEDLE CHARGING TOOL
Specs: Shaft Diameter: 0.625 IN
Specs: Shaft Material: Chrome
Specs: Shock Absorber Body End Measuring Point: CENTER OF EYELET
Specs: Shock Absorber Bore Size: 1.75 IN
Specs: Shock Absorber Rod End Measuring Point: CENTER OF EYELET
Specs: Suspension Type: Spring
Specs: Title: 07-18 JK 2-3" REAR 2.0 VS IR
Specs: Upper Mount Type: Barpin
Specs: Valving Type: Digressive
Specs: Valving Type: Linear

Instructions

Instructions (pdf)

Fitment

: N/A
