ICON Vehicle Dynamics

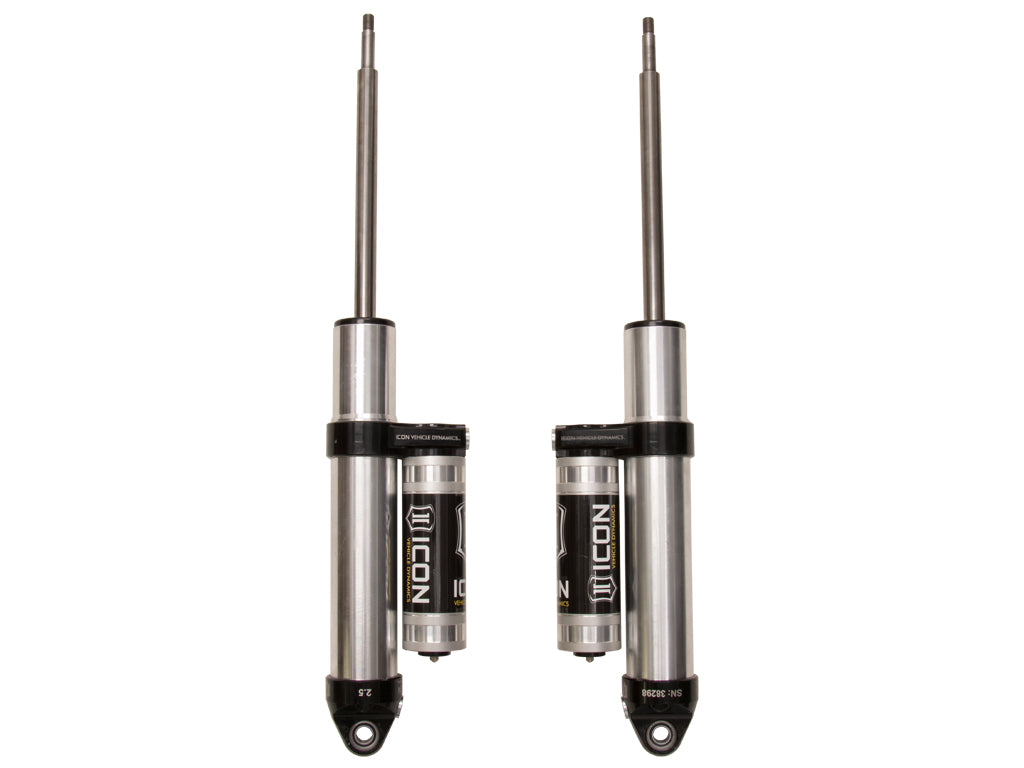

ICON 2014-2026 Ram 2500, w/ ICON 2" Lift Performance Rear Coils, Rear, V.S. 2.5 Aluminum Series Shock Absorbers, Piggyback Reservoir, Pair

ICON 2014-2026 Ram 2500, w/ ICON 2" Lift Performance Rear Coils, Rear, V.S. 2.5 Aluminum Series Shock Absorbers, Piggyback Reservoir, Pair

PART #

Regular price $1,268.09
Regular price B2B price $1,268.09
SALE CALL OR CHAT TO ORDER
Shipping calculated at checkout.
Read the important notes before ordering
Stock and ship time: call or live chat for the latest.
  • Free shippingmost orders $500+
  • 30-day returnssee policy
  • Warranty helpwe work claims for you
Not sure it fits? Ask a fitment specialist. Real people, U.S.-based
View full details

Important notes before you order

  1. APPLICATION NOTE #585: Tuning and length optimized for use with ICON 2" Lift Performance Rear Coil Springs, part number 214202

Specifications

BrandICON Vehicle Dynamics
Part number217706P
Active or Passive SuspensionPassive
Add-On Part214202 - 14-UP RAM 2500 2" REAR PERFORMANCE SPRING KIT
AdjustableNO
Adjustable CompressionNo
Adjustable DampingNo
Adjustable ReboundNo
Boot IncludedNO
Bore Diameter2.25 IN
Compressed Length16.15 IN
Cylinder ColorSilver
Cylinder Diameter2.5 IN
Cylinder MaterialAluminum
Damping TypeOil
Extended Length27.48 IN
External ReservoirYes
Gas ChargedYes
Grade TypePerformance
Includes Bump StopNo
Lower Mount TypeEYELET
Mounting Hardware IncludedYes
Reservoir TypePiggyback
Service Parts191016 - 7.5" FINNED RESI UPGRADE KIT
Shaft Diameter0.875 IN
Shaft MaterialChrome
Shock Absorber Body End Measuring PointCENTER OF EYELET
Shock Absorber Rod End Measuring PointShoulder of Stem
Stroke Length Rear11.33 IN
Tube Outside Diameter2.5 IN
Upper Mount TypeStem
Valving TypeDigressive

California Proposition 65 warning applies to this product. www.P65Warnings.ca.gov

Features

  • One-piece impact extruded aluminum cylinders offer excellent corrosion resistance and consistent finish

Installation

    Free install support from the Trucks R Us tech team, for you or your shop.

    Overview

    ICON’s 2.5 Aluminum Series shocks are designed and built to give your vehicle outstanding performance off-road and a smooth ride on the street. These shocks are configured specifically for each application in both length and damping tune. Featuring one-piece impact extruded aluminum cylinders, these 2.5 Aluminum Series shocks offer lighter weight, improved corrosion resistance, and a more uniform finish than traditional plated steel cylinders. Like all ICON'S Shock Absorbers, 2.5 Aluminum Series shocks are 100% rebuildable and 100% revalveable. For piggyback and specific remote reservoir applications, ICON'S unique use of a 6061 billet aluminum manifold a few inches below the top cap of the shock creates an internal Bump Zone that when used creates an additional 20% of damping force. This additional force helps prevent harsh bottom outs and controls the suspension when compressing at high velocity. If you are looking for a more user defined tune, consider looking into the Compression Damping Control Valve (CDCV) shocks.
