ICON Vehicle Dynamics

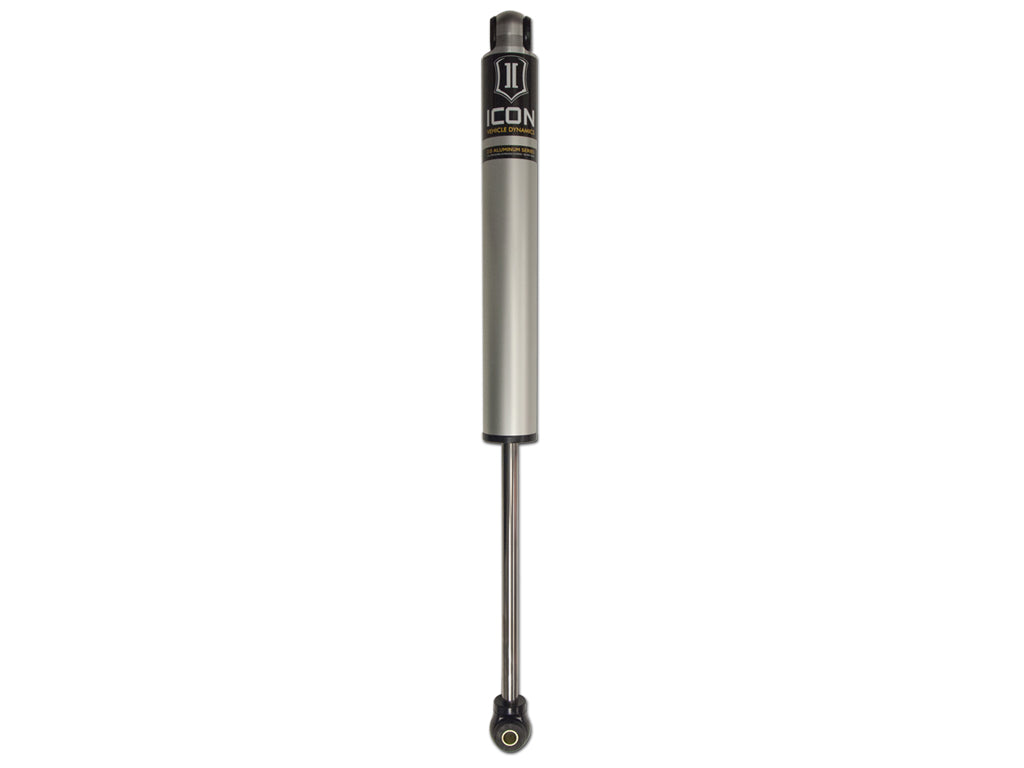

ICON Universal 2.0 Aluminum Series Rear Shock, Heavy Duty Valving, 15” Travel
ICON Universal 2.0 Aluminum Series Rear Shock, Heavy Duty Valving, 15” Travel
PART #
- Finish Anodized
- Material Aluminum
Couldn't load pickup availability
- Free shippingmost orders $500+
- 30-day returnssee policy
- Warranty helpwe work claims for you
Important notes before you order
- MOUNTING DIMENSIONS: Upper/lower eyelets for 1.5" width between tabs and .5" diameter bolt
Specifications
| Brand | ICON Vehicle Dynamics |
|---|---|
| Part number | 206515 |
| Adjustable Damping | No |
| Body Color | Gray |
| Body Diameter | 2 IN |
| Boot Included | No |
| Bore Diameter | 1.75 IN |
| Bushing Color | Black |
| Bushing Included | yes |
| Bushing Material | Polyurethane |
| Coil Over Springs Included | No |
| Compressed Length | 19.35 IN |
| Cylinder Color | Grey |
| Cylinder Material | Aluminum |
| Damping Type | Oil |
| Dust Boot Included | No |
| Dust Shield | No |
| Dust Shield Included | No |
| Extended Length | 34.3 IN |
| Finish | Anodized |
| Gas Charged | Yes |
| Grade Type | Performance |
| Hydraulic Lockout | No |
| Includes Bump Stop | No |
| Internal Construction Type | Single Tube |
| Internal Rebound Bumper | Yes |
| Lower Mount Type | Eyelet |
| Material | Aluminum |
| Mounting Hardware Included | No |
| Mounting Width | 1.5" x 1/2" Bolt (Upper&Lower) |
| Remote Reservoir | NO |
| Service Parts | 252004 - ECONOMY NEEDLE CHARGING TOOL |
| Shaft Diameter | 0.625 IN |
| Shaft Material | Chrome |
| Shock Absorber Body End Measuring Point | CENTER OF EYELET |
| Shock Absorber Rod End Measuring Point | CENTER OF EYELET |
| Shock Stroke | 14.95 IN |
| Travel Length | 14.95 IN |
| Upper Mount Type | EYELET |
California Proposition 65 warning applies to this product. www.P65Warnings.ca.gov
Features
- 100% revalveable
Overview
ICON 2.0 Aluminum Series shock absorbers are the ultimate in cost effective upgrades. The 2.0 Aluminum Series shocks are a high quality upgrade for the everyday street driver and weekend warrior looking for improved on and off-road performance. Like all ICON shock absorbers, 2.0 Aluminum Series shocks are 100% rebuildable and 100% revalveable. For those using their vehicle in extreme off road situations, consider the ICON 2.5 Series shocks to handle extra abuse and punishment your suspension will need to endure.
Questions
Will this fit my truck?
Select your truck at the top of the page and the fit check will confirm it. If your exact trim is not listed, call 866-235-4715 or live chat and a fitment specialist will check it before you order.
Do you help with installation?
Yes. Our technical team helps you or your shop with installation and troubleshooting after delivery, on top of the manufacturer’s support.
What if the part has a problem?
We work the warranty claim with the manufacturer on your behalf, within the manufacturer’s warranty policy.
Can I return it?
Most items can be returned within 30 days. See our return policy for details.
No reviews for this part yet. Trucks R Us is rated on Trustpilot, Google and the BBB.
About ICON Vehicle Dynamics
ICON Vehicle Dynamics specializes in performance suspension components, shocks, and accessories for today’s most popular trucks & SUVs. Since 2008, ICON has been developing products that redefine the limits of what a “stock” vehicle is capable of. ICON is part... Shop all ICON Vehicle Dynamics
