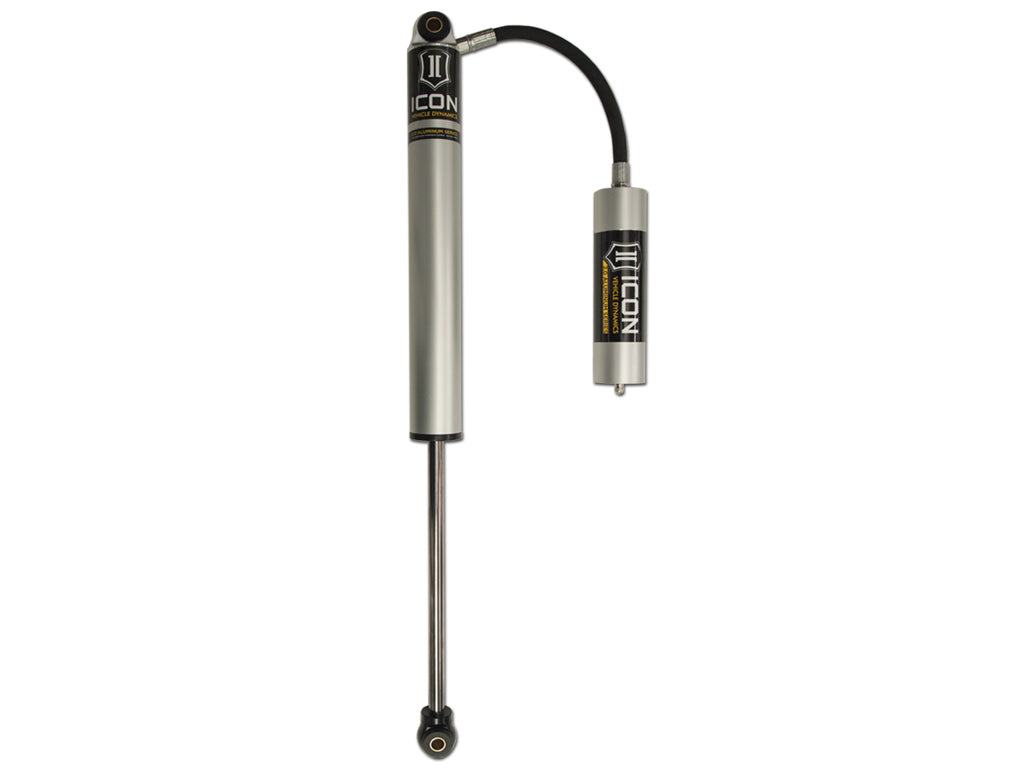

ICON Universal 2.0 Aluminum Series Front Shock, Remote Reservoir, 7.5” Travel
ICON Universal 2.0 Aluminum Series Front Shock, Remote Reservoir, 7.5” Travel
PART #
Couldn't load pickup availability
- Free shippingmost orders $500+
- 30-day returnssee policy
- Warranty helpwe work claims for you
Important notes before you order
- MOUNTING DIMENSIONS: Upper/lower eyelets for 1.5" width between tabs and .5" diameter bolt
Specifications
| Brand | ICON Vehicle Dynamics |
|---|---|
| Part number | 206511R |
| Add-On Part | 614600 - 2.0 ICON BILLET RESI CLAMP KIT |
| Adjustable | NO |
| Adjustable Damping | No |
| Body Color | Gray |
| Body Diameter | 2 IN |
| Boot Included | NO |
| Bushing Color | Black |
| Bushing Included | yes |
| Bushing Material | Polyurethane |
| Coil Over Springs Included | NO |
| Compressed Length | 11.55 IN |
| Cylinder Color | Grey |
| Cylinder Material | Aluminum |
| Damping Type | Oil |
| Dust Shield | NO |
| Dust Shield Included | No |
| Extended Length | 19 IN |
| Finish | Anodized |
| Gas Charged | Yes |
| Grade Type | Performance |
| Hydraulic Lockout | No |
| Includes Bump Stop | No |
| Internal Construction Type | Single Tube |
| Internal Rebound Bumper | Yes |
| Lower Mount Type | EYELET |
| Mounting Hardware Included | No |
| Mounting Width | 1.5" x 1/2" Bolt (Upper&Lower) |
| Remote Reservoir | Yes |
| Service Parts | 254101G - 1/2 GALLON ICON PERFORMANCE SHOCK OIL |
| Shock Absorber Body End Measuring Point | CENTER OF EYELET |
| Shock Absorber Rod End Measuring Point | CENTER OF EYELET |
| Shock Stroke | 7.45 IN |
| Travel Length | 7.45 IN |
| Upper Mount Type | EYELET |
California Proposition 65 warning applies to this product. www.P65Warnings.ca.gov
Features
- 100% revalveable
Overview
ICON 2.0 Aluminum Series shock absorbers are the ultimate in cost effective upgrades. The 2.0 Aluminum Series shocks are a high quality upgrade for the everyday street driver and weekend warrior looking for improved on and off-road performance. Remote reservoirs greatly increase shock oil volume and heat dissipation surface area to resist overheating and cavitation under hard use, which can lead to damper fade. Like all ICON shock absorbers, 2.0 Aluminum Series shocks are 100% rebuildable and 100% revalveable. For those using their vehicle in extreme off road situations, consider the ICON 2.5 Series shocks to handle extra abuse and punishment your suspension will need to endure.
