ICON Alloys 17-20 Ford Raptor .5-2.25" Lift Adjustment Collar Front Leveling Kit
Questions about fitment? Live chat or call 866-235-4715
Couldn't load pickup availability
- Free shippingMost orders $500+
- 30-day returnsSee policy
- Warranty supportWe work with the maker
Questions about fitment?
Talk to a TRU specialist
We’ll help you verify fitment before you buy.
Veteran-owned · Austin, Texas · Mon–Fri 9:30a–11:00a & 1:00p–5:30p CT
Important notes before you order
- TECH NOTE: Ride height sensor recalibration recommended on 2019-2020 F-150 Raptor
TRU specialist notes
From the Trucks R Us fitment and install team, beyond the manufacturer's information.
- Plan for a professional wheel alignment after installing any lift or leveling kit.
- Going to bigger tires as well? Speedometer recalibration may be needed, and some tire and wheel combinations need trimming. Check the recommended wheels and tires, or ask us before you order.
Specifications
| Brand | ICON Alloys |
|---|---|
| Part number | IVD6130B |
| UPC / GTIN | 840103408170 |
| Bracket Material | Aluminum |
| Maximum Lift | 2.25 IN |
| Mounting Hardware Included | yes |
| Country of Origin | US |
| Warranty | Lifetime |
California Proposition 65 warning applies to this product. www.P65Warnings.ca.gov
Features
- Features mounting holes for 2019-2020 model specific wire harnesses
- Multi-height design can yield 0.5” to 2.25” of front lift height
- Does not require disassembly of the shock for installation
- CNC machined 6061 billet aluminum construction
- Black anodized finish for corrosion resistance and great looks
- Keeps OE shock in the ride zone, maintaining factory ride quality
- Lifetime guarantee against component breakage or manufacturer defect
Recommended wheels & tires
- OEM Wheels & Tires Fitment: Yes
- Recommended Aftermarket Wheels: ICON Alloys | 17x8.5 w/ 5" BS / 6mm Offset
- Recommended Aftermarket Tires: 35" x 12.50" (Larger Tires May Fit but Fender Trimming and Modifications will be Required)
Installation
Free install support from the Trucks R Us tech team, for you or your shop.
Overview

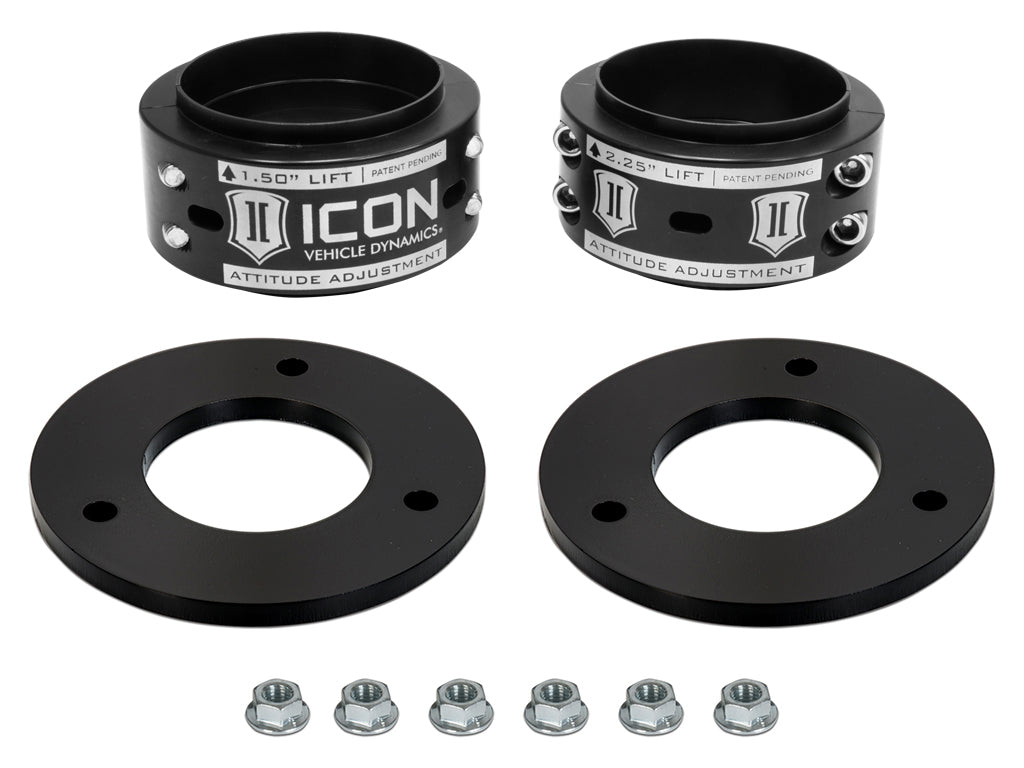

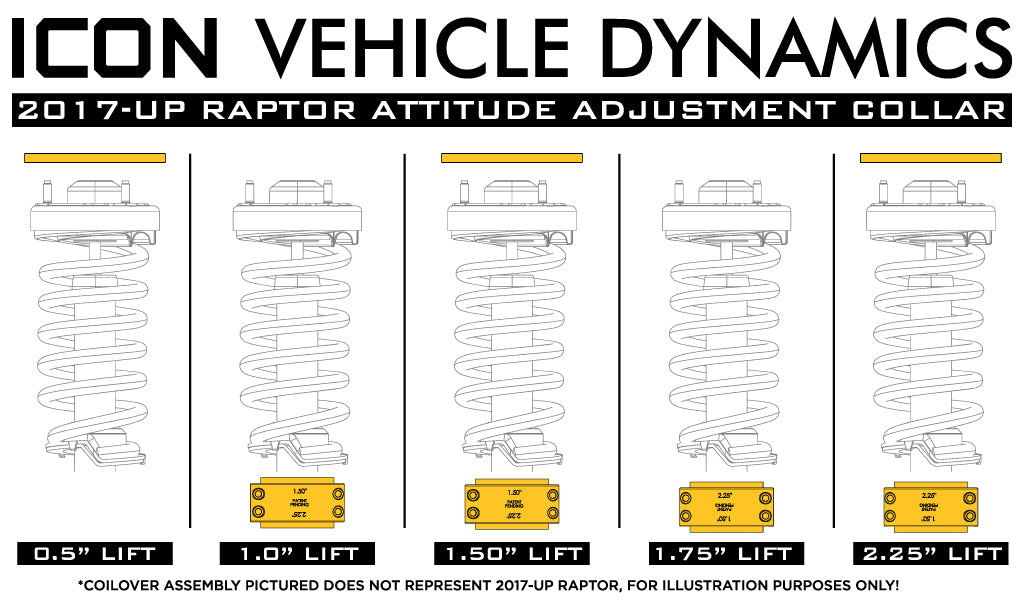

The ICON Attitude Adjustment Collar (AAC) is an industry first, patent pending multi-height coil spring collar that works in conjunction with a top load shim that can be configured in five unique ways to yield .5” to 2.25” of front lift height over stock. Taking the front end dimensions of the "Gen 2" Raptor into account, the collar and shim design of this leveling system achieves this range of lift height while keeping the OE shock in the ride zone, maintaining factory ride quality. Other options on the market achieve lift height solely through coil preload, which places the shock in the rebound zone at ride height and drastically impacts ride quality and performance. Installation of this leveling system requires no disassembly of the shock, making it a simple and straightforward process as opposed to other options currently available. CNC machined 6061 billet aluminum construction and a black anodized finish mean this product can stand up to the test of time in the harshest on and off-road conditions. Backed by ICON’s limited lifetime warranty, the ICON Vehicle Dynamics Attitude Adjustment Collar is the best leveling solution on the market for the 2017-2020 Ford Raptor.
Questions
Will this fit my truck?
Select your truck at the top of the page and the fit check will confirm it. If your exact trim is not listed, call 866-235-4715 or live chat and a fitment specialist will check it before you order.
Do you help with installation?
Yes. Our technical team helps you or your shop with installation and troubleshooting after delivery, on top of the manufacturer’s support.
What if the part has a problem?
We work the warranty claim with the manufacturer on your behalf, within the manufacturer’s warranty policy.
Can I return it?
Most items can be returned within 30 days. See our return policy for details.
Do I need an alignment after installing?
Yes. Any lift or leveling kit changes suspension geometry, so get a professional alignment after installation.
No reviews for this part yet. Trucks R Us is rated on Trustpilot, Google and the BBB.
About ICON Alloys
ICON Alloys was established with an objective to provide quality wheels built with precision, performance, and strength in mind. Time after time in the development of suspension components the ICON R&D team ran into clearance, fitment, and steering geometry issues... Shop all ICON Alloys
