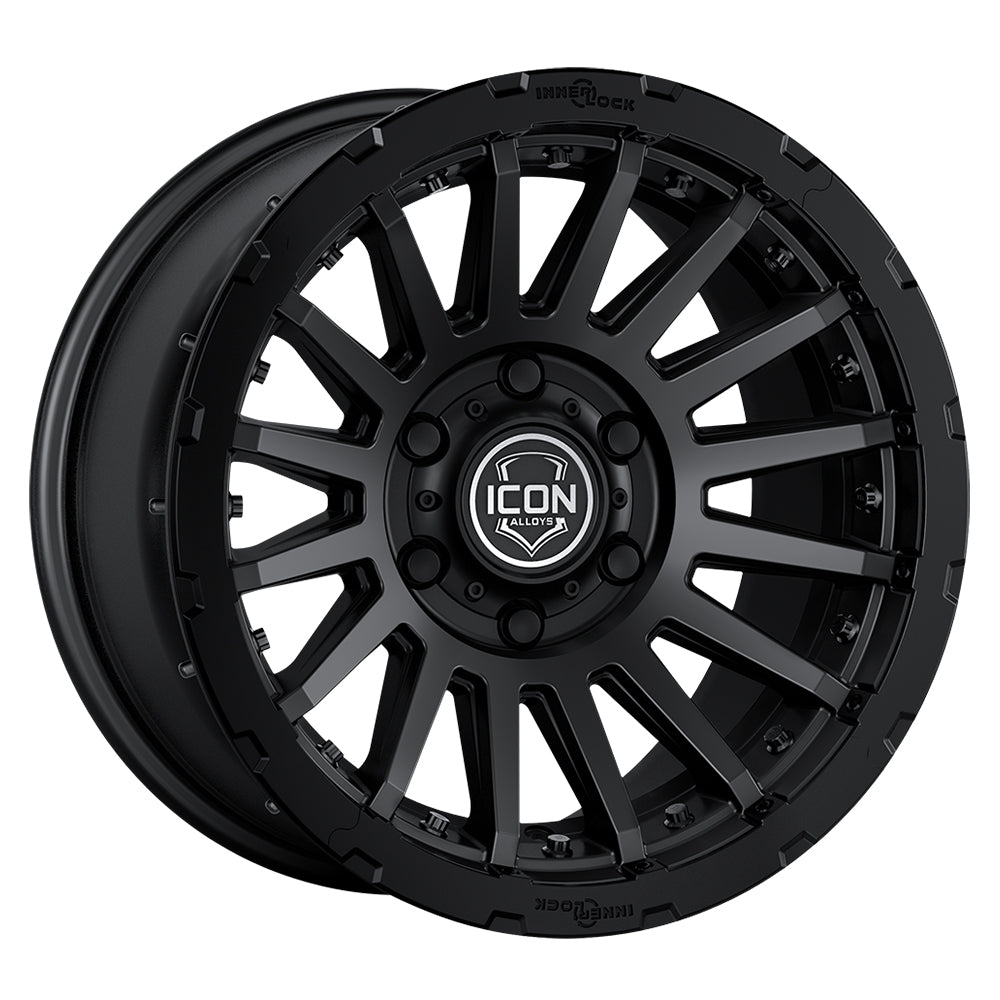

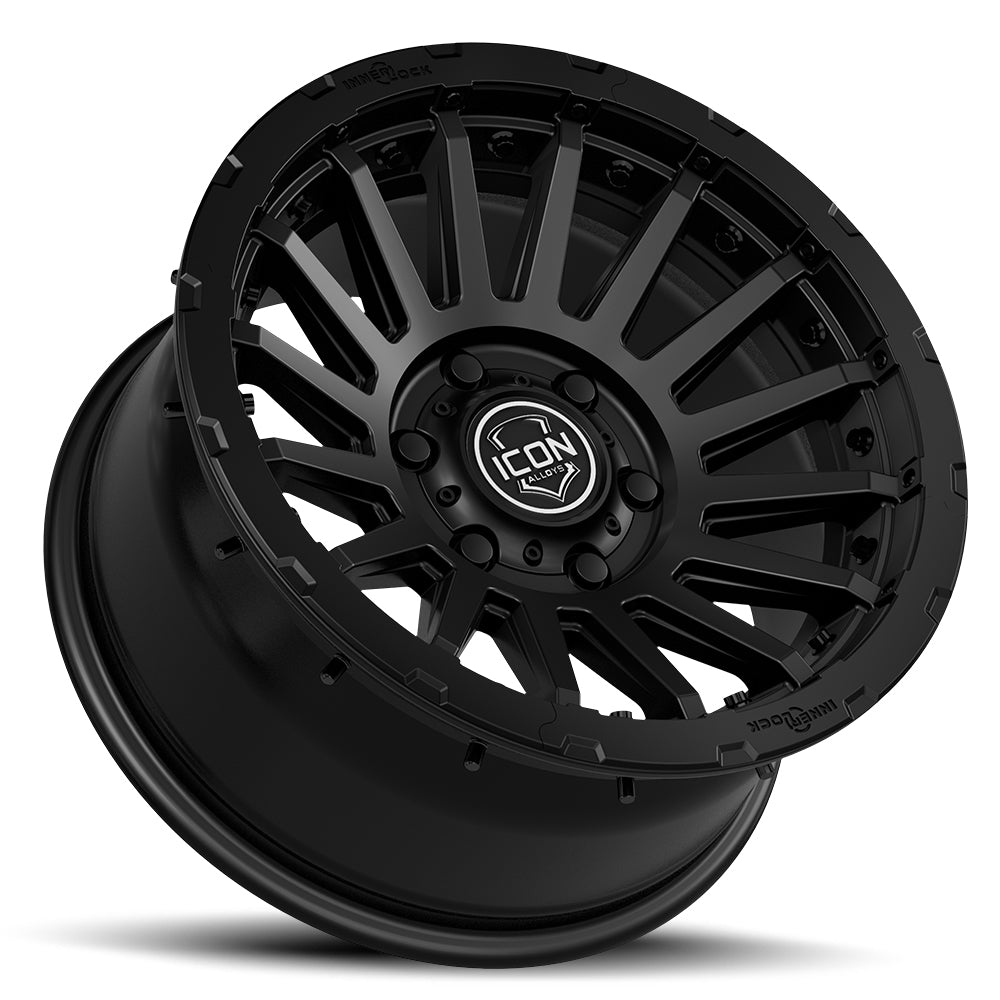

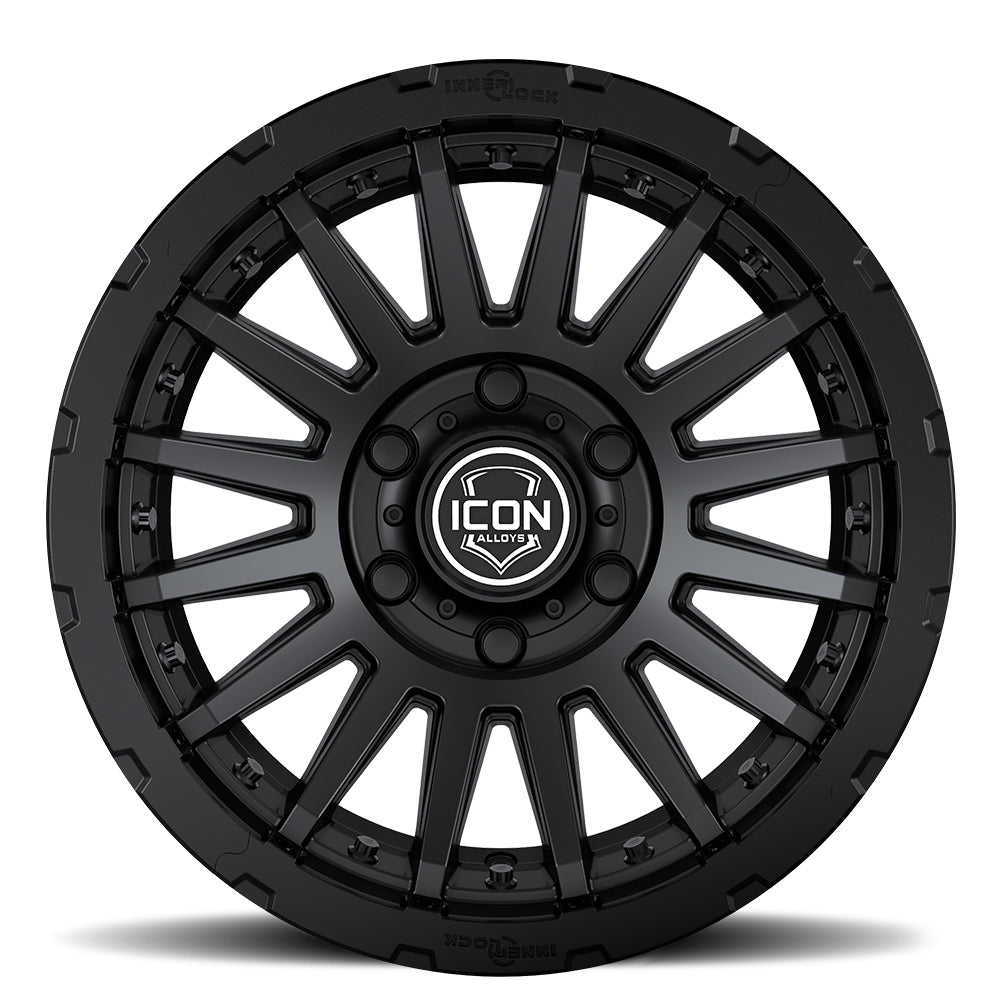

ICON Alloys Recon Pro, Satin Black, 17 x 8.5 / 5 x 5, -6mm Offset, 4.5" BS
- Finish Powdercoated
- Material Aluminum
Questions about fitment? Live chat or call 866-235-4715
Couldn't load pickup availability
- Free shippingMost orders $500+
- 30-day returnsSee policy
- Warranty supportWe work with the maker
Questions about fitment?
Talk to a TRU specialist
We’ll help you verify fitment before you buy.
Veteran-owned · Austin, Texas · Mon–Fri 9:30a–11:00a & 1:00p–5:30p CT
Important notes before you order
- TECH NOTE: Professional mounting and balancing of an appropriately sized tire prior to installation onto vehicle is recommended.
TRU specialist notes
From the Trucks R Us fitment and install team, beyond the manufacturer's information.
- Confirm bolt pattern, center bore and offset for your exact truck. Some aftermarket wheels need hub-centric rings or different lug nuts. Ask us and we will check your setup.
Specifications
| Brand | ICON Alloys |
|---|---|
| Part number | 23617857345SB |
| UPC / GTIN | 840103426808 |
| Backspacing | 4.5 IN |
| Bolt Pattern | 5 X 5 |
| Center Cap Included | Yes |
| Color | Satin Black |
| Construction | Cast |
| Design | Bead Retention |
| Diameter | 17 IN |
| Finish | Powdercoated |
| Inside Diameter | 71.5 MM |
| Lug Hole Diameter | 1.1 IN |
| Lug Hole Quantity | 5 |
| Lug Nut Seat Type | Conical |
| Material | Aluminum |
| Maximum Load Rating | 3200 LBS |
| Negative Offset | 6 MM |
| Offset | -6 MM |
| Split Type | No |
| Spoke Quantity | 16 |
| Tires Included | No |
| TPMS Compatible | yes |
| TPMS Included | No |
| Wheel Nuts Included | No |
| Wheel Size | 17x8.5 IN |
| Width | 8.5 IN |
| Country of Origin | CN |
| Warranty | 2 Years-Powder Coat Finish; Limited Lifetime-Structural |
California Proposition 65 warning applies to this product. www.P65Warnings.ca.gov
Features
- Engineered for DOT compliance
- Patented InnerLock technology (U.S. Patent No. 11,090,976) provides the ultimate blend of on-road safety and off-road performance, ideal for the “weekend warrior”
- Bead retention system features alloy pins that are removable, reusable, and replaceable
- Hardened bead retention pins utilize a SAE J1926 O-ring seal and are constructed from high strength alloy that is thermochemically treated for extreme corrosion resistance
- Quick, easy, and safe tire installation and removal
- Strategically placed hardware for maximum protection from trail damage
- Compatible with a wide variety of tires without the need for any shims or special tools
- High-grade aluminum, removable, and replaceable HALO Wheel Armor protects wheel from trail damage
- Application-specific dimensions optimize vehicle dynamics and tire clearance
- Reduced unsprung weight and rotating mass (compared to a traditional bead lock) improves handling characteristics and vehicle dynamics
- Aluminum alloy construction provides strength properties that are well suited for off-road use
- Super strong 3200 lbs load rating
Installation
Free install support from the Trucks R Us tech team, for you or your shop.
Overview
Any hardcore off-road enthusiast knows the numerous benefits that lower tire pressures offer such as improved ride quality and a larger contact patch for increased traction. However, low pressures also increase the risk of de-beading the tire during extreme side loads or aggressive driving. While traditional bead lock wheels address this issue by clamping the tire’s bead, they also need frequent maintenance, require specialty tools/parts, increase rotational mass, and are NOT legal for on-road use.
The ICON Alloys Recon PRO with patented InnerLock technology offers the best of both worlds by using a robust bead retention system to keep the tire bead secured to the wheel while also being fully DOT compliant. This provides confidence in knowing that your wheels are prepared to tackle whatever situation you encounter - on or off the beaten path. InnerLock is ready for any type of terrain and every single adventure.

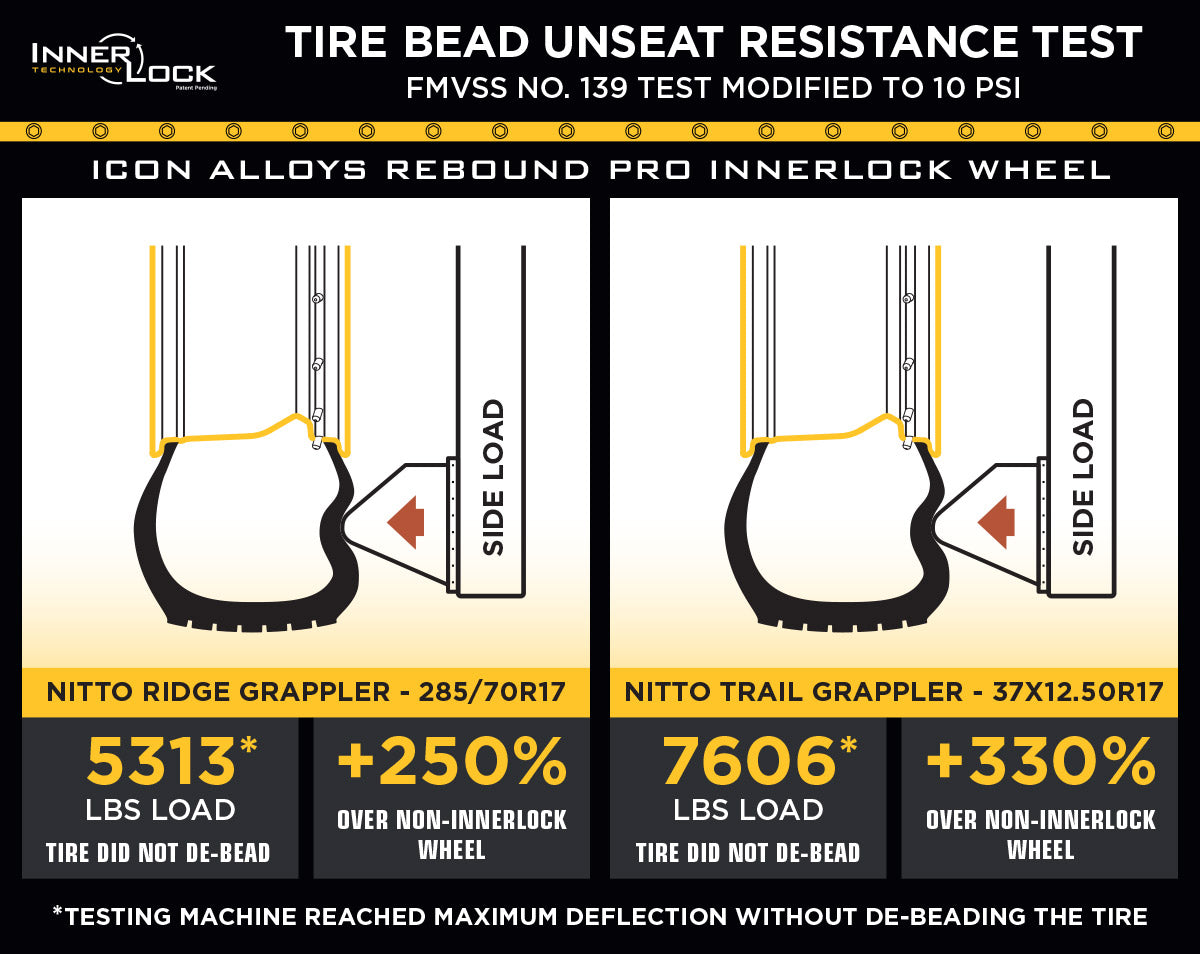

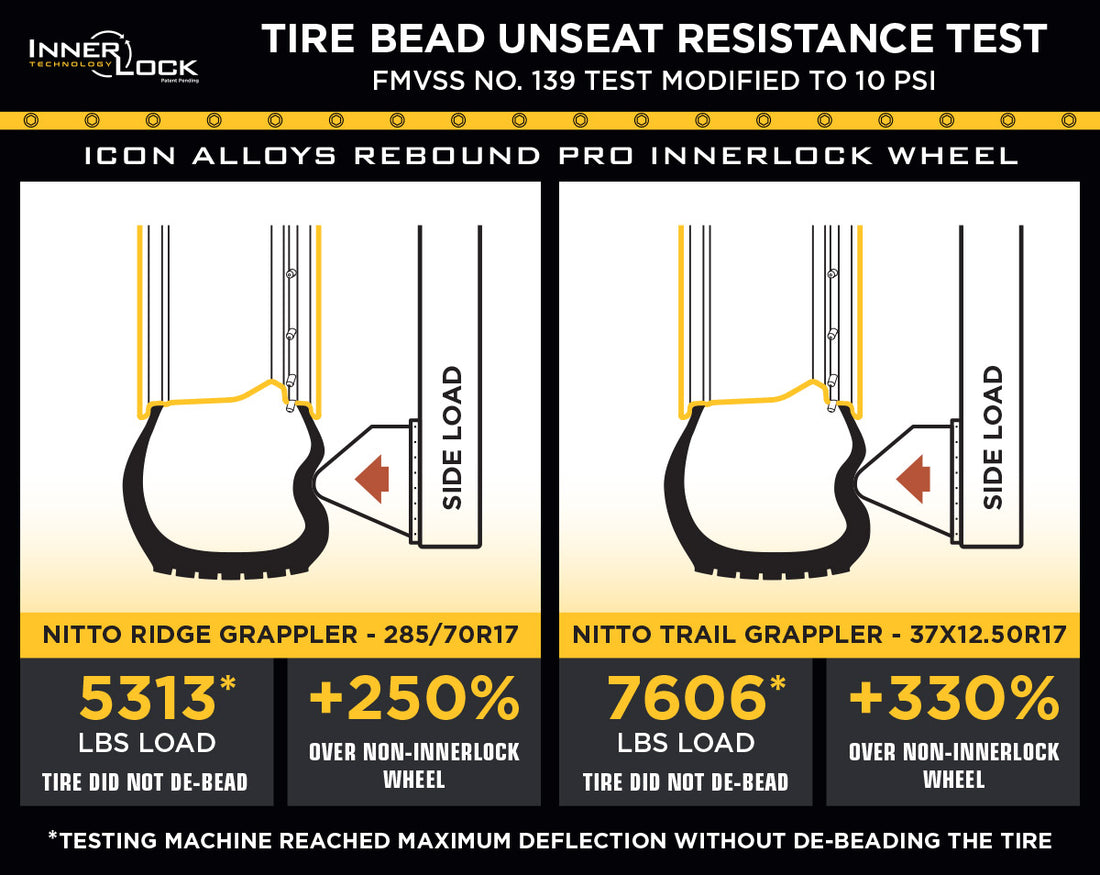

During an accelerated R&D process ICON engineers subjected the Recon PRO to thousands of miles of real-world abuse throughout harsh and unforgiving environments. After on-vehicle testing was concluded, the Recon PRO was sent to an independent contractor for precise lab testing, specifically the FMVSS No.139 Tire Bead Unseat Resistance Test (modified to 10 psi). Results from multiple tests validated the effectiveness of ICON’s InnerLock technology by exceeding the mechanical limits of the machine (over 7600lbs load) without ever de-beading the tire.
The included high-grade aluminum, removable, and replaceable HALO Wheel Armor keeps the wheel looking new by protecting the Recon Pro from trail rash. This HALO Wheel Armor is replaceable in 90° segments so individual sections can be changed if only a portion of the ring becomes damaged. Beyond superior form and function the HALO Wheel Armor can be easily customized to match your style for a truly unique wheel experience.
Staying true to the ICON Alloys approach, the Recon PRO has been engineered to maximize caliper clearance and optimize wheel position for un-hindered suspension travel and steering function. Backspace and wheel offset dimensions have been strategically developed to reduce scrub radius, improving all-around handling and ride quality. The Recon PRO has also been strength tested to yield a 3,200lb load rating - making it one of the strongest wheel options on the market. With build features such as these, it's clear that a set of ICON Alloys wheels is the perfect complement to any truck, Jeep, or SUV.
Questions
Will this fit my truck?
Select your truck at the top of the page and the fit check will confirm it. If your exact trim is not listed, call 866-235-4715 or live chat and a fitment specialist will check it before you order.
Do you help with installation?
Yes. Our technical team helps you or your shop with installation and troubleshooting after delivery, on top of the manufacturer’s support.
What if the part has a problem?
We work the warranty claim with the manufacturer on your behalf, within the manufacturer’s warranty policy.
Can I return it?
Most items can be returned within 30 days. See our return policy for details.
No reviews for this part yet. Trucks R Us is rated on Trustpilot, Google and the BBB.
About ICON Alloys

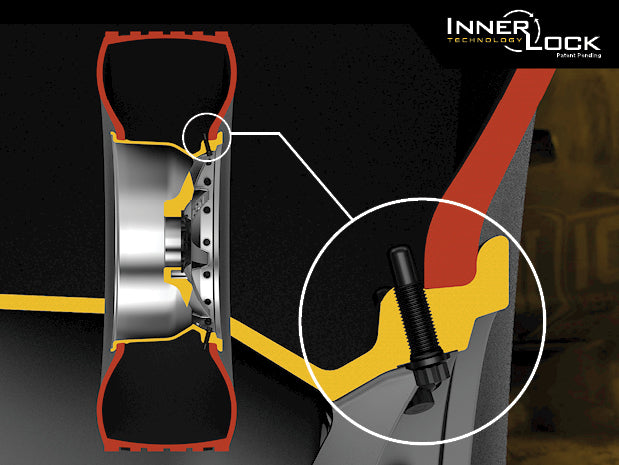

Patented InnerLock technology (U.S. Patent No. 11,090,976) is an all-new way of capturing the tire bead and retaining it onto the wheel. InnerLock uses a series of O-ring sealed, hardened alloy pins that are inserted radially on the inner side... Shop all ICON Alloys
