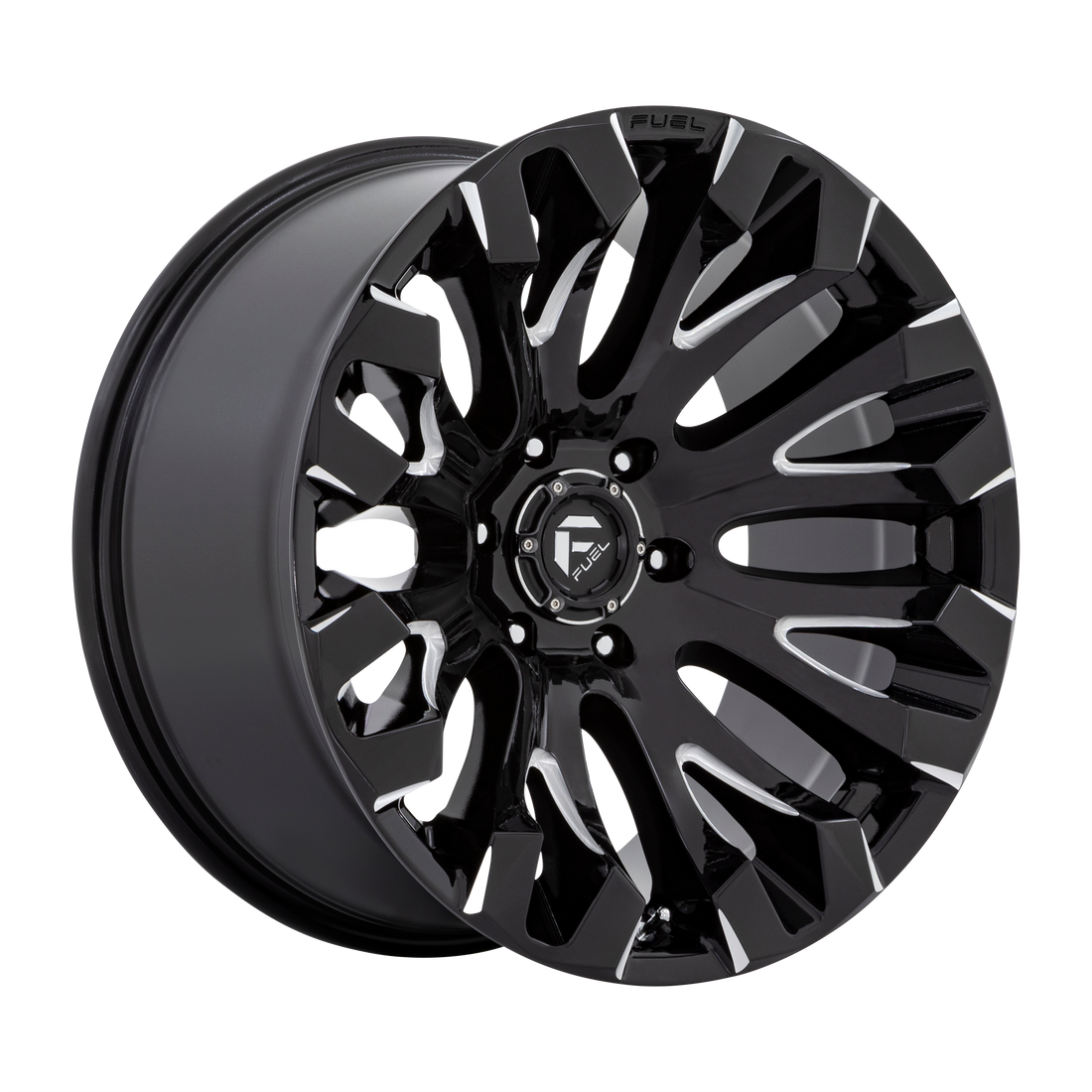

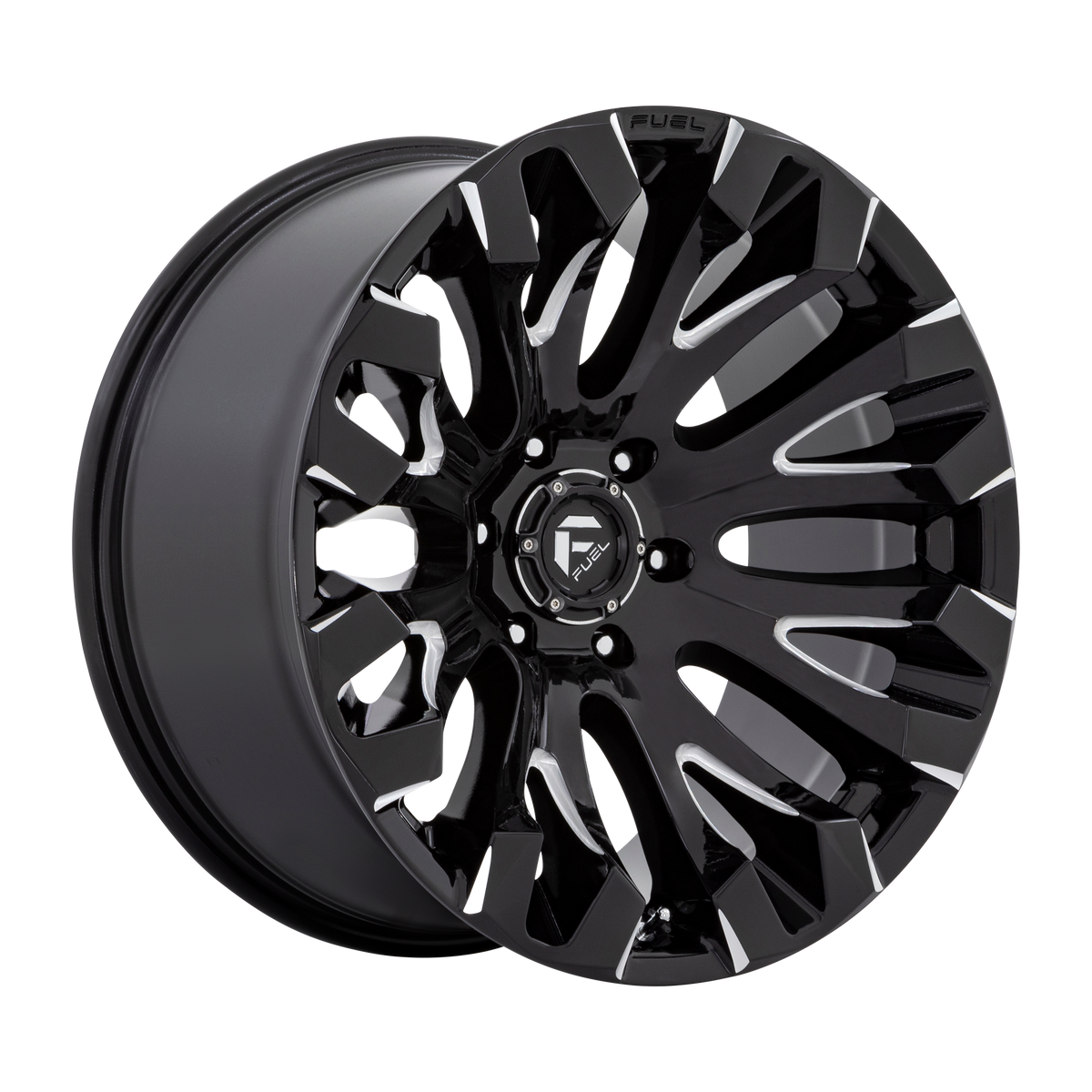

Fuel Off-Road Quake Wheel 5x5 (5x127) Bolt Pattern
Questions about fitment? Live chat or call 866-235-4715
Couldn't load pickup availability
- Free shippingMost orders $500+
- 30-day returnsSee policy
- Warranty supportWe work with the maker
Questions about fitment?
Talk to a TRU specialist
We’ll help you verify fitment before you buy.
Veteran-owned · Austin, Texas · Mon–Fri 9:30a–11:00a & 1:00p–5:30p CT
Important notes before you order
- CAUTION! Upon receipt of wheels, open one box and conduct a test-fit prior to opening remaining boxes. Do not mount tires until wheel fitment is verified. Once tires are mounted or wheels are otherwise used, damaged, or remaining packaging is opened, wheels are non-returnable.
TRU specialist notes
From the Trucks R Us fitment and install team, beyond the manufacturer's information.
- Confirm bolt pattern, center bore and offset for your exact truck. Some aftermarket wheels need hub-centric rings or different lug nuts. Ask us and we will check your setup.
Specifications
| Brand | Fuel 1PC |
|---|---|
| Part number | D83118907550 |
| UPC / GTIN | 194933296361 |
| Part Number | D83118907550 |
| Finish | Blackout |
| Size | 18x9 |
| Bolt Pattern | 5x5 (5x127) |
| Offset | 1mm |
| Backspacing | 5.04" |
| Center Bore | 71.5mm |
| Load Rating | 2500 lbs |
| Wheel Weight | 40.48 lbs |
| Construction | Cast Aluminum |
| Cap Part No. | 1004-68GBLD |
| TPMS Compatible | Yes |
| Part Number | D83120907550 |
| Finish | Blackout |
| Size | 20x9 |
| Bolt Pattern | 5x5 (5x127) |
| Offset | 1mm |
| Backspacing | 5.04" |
| Center Bore | 71.5mm |
| Load Rating | 2500 lbs |
| Wheel Weight | 45.1 lbs |
| Construction | Cast Aluminum |
| Cap Part No. | 1004-68GBLD |
| TPMS Compatible | Yes |
| Part Number | D83120007547 |
| Finish | Blackout |
| Size | 20x10 |
| Bolt Pattern | 5x5 (5x127) |
| Offset | -18mm |
| Backspacing | 4.79" |
| Center Bore | 71.5mm |
| Load Rating | 2500 lbs |
| Wheel Weight | 48.4 lbs |
| Construction | Cast Aluminum |
| Cap Part No. | 1004-68BLD |
| TPMS Compatible | Yes |
| Part Number | D82818907550 |
| Finish | Gloss Black Milled |
| Size | 18x9 |
| Bolt Pattern | 5x5 (5x127) |
| Offset | 1mm |
| Backspacing | 5.04" |
| Center Bore | 71.5mm |
| Load Rating | 2500 lbs |
| Wheel Weight | 40.48 lbs |
| Construction | Cast Aluminum |
| Cap Part No. | 1004-68NBL |
| TPMS Compatible | Yes |
| Part Number | D82820007547 |
| Finish | Gloss Black Milled |
| Size | 20x10 |
| Bolt Pattern | 5x5 (5x127) |
| Offset | -18mm |
| Backspacing | 4.79" |
| Center Bore | 71.5mm |
| Load Rating | 2500 lbs |
| Wheel Weight | 48.4 lbs |
| Construction | Cast Aluminum |
| Cap Part No. | 1004-68NBL |
| TPMS Compatible | Yes |
| Part Number | D82920907550 |
| Finish | Gloss Black Milled Red Tint |
| Size | 20x9 |
| Bolt Pattern | 5x5 (5x127) |
| Offset | 1mm |
| Backspacing | 5.04" |
| Center Bore | 71.5mm |
| Load Rating | 2500 lbs |
| Wheel Weight | 45.1 lbs |
| Construction | Cast Aluminum |
| Cap Part No. | 1004-68GBQ |
| TPMS Compatible | Yes |
| Part Number | D82920007547 |
| Finish | Gloss Black Milled Red Tint |
| Size | 20x10 |
| Bolt Pattern | 5x5 (5x127) |
| Offset | -18mm |
| Backspacing | 4.79" |
| Center Bore | 71.5mm |
| Load Rating | 2500 lbs |
| Wheel Weight | 48.4 lbs |
| Construction | Cast Aluminum |
| Cap Part No. | 1004-68GBQ |
| TPMS Compatible | Yes |
| Part Number | D83018907550 |
| Finish | Platinum |
| Size | 18x9 |
| Bolt Pattern | 5x5 (5x127) |
| Offset | 1mm |
| Backspacing | 5.04" |
| Center Bore | 71.5mm |
| Load Rating | 2500 lbs |
| Wheel Weight | 40.48 lbs |
| Construction | Cast Aluminum |
| Cap Part No. | 1004-68GD |
| TPMS Compatible | Yes |
| Part Number | D83020907550 |
| Finish | Platinum |
| Size | 20x9 |
| Bolt Pattern | 5x5 (5x127) |
| Offset | 1mm |
| Backspacing | 5.04" |
| Center Bore | 71.5mm |
| Load Rating | 2500 lbs |
| Wheel Weight | 45.1 lbs |
| Construction | Cast Aluminum |
| Cap Part No. | 1004-68GD |
| TPMS Compatible | Yes |
Features
- Cast Aluminum
- TPMS Compatible
- Structural Warranty: Lifetime
- Finish Warranty: One Year
Overview
From the work site to the trails, the Fuel Off-Road Quake delivers the strength and reliability you need to get the job done. This rugged off-road wheel features eight heavy-duty spokes and a deep concave profile, making it a solid upgrade for any truck, Jeep, or SUV. Designed for work trucks and off-road builds alike, the Quake is available in 18" and 20" diameters with 5, 6, and 8-lug fitments. Perfect for Ford F-150s, Chevrolet Silverados, and other popular trucks, these Fuel truck wheels combine bold styling with dependable performance. With offsets from -24mm to +20mm, the Quake off-road wheel is ready to handle whatever you throw at it.
Questions
Will this fit my truck?
Select your truck at the top of the page and the fit check will confirm it. If your exact trim is not listed, call 866-235-4715 or live chat and a fitment specialist will check it before you order.
Do you help with installation?
Yes. Our technical team helps you or your shop with installation and troubleshooting after delivery, on top of the manufacturer’s support.
What if the part has a problem?
We work the warranty claim with the manufacturer on your behalf, within the manufacturer’s warranty policy.
Can I return it?
Most items can be returned within 30 days. See our return policy for details.
