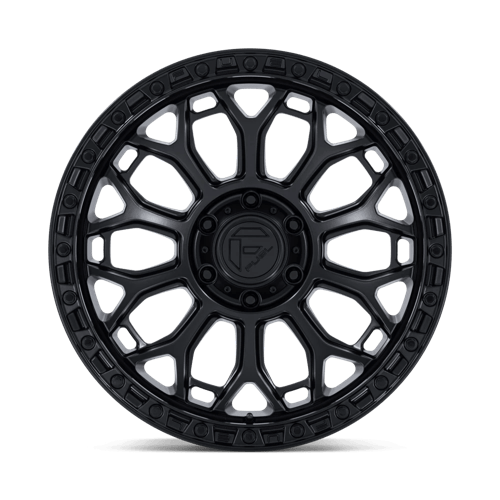

Fuel Off-Road FC901 Talon Wheel 5x5 (5x127) Bolt Pattern
Questions about fitment? Live chat or call 866-235-4715
Couldn't load pickup availability
- Free shippingMost orders $500+
- 30-day returnsSee policy
- Warranty supportWe work with the maker
Questions about fitment?
Talk to a TRU specialist
We’ll help you verify fitment before you buy.
Veteran-owned · Austin, Texas · Mon–Fri 9:30a–11:00a & 1:00p–5:30p CT
Important notes before you order
- CAUTION! Upon receipt of wheels, open one box and conduct a test-fit prior to opening remaining boxes. Do not mount tires until wheel fitment is verified. Once tires are mounted or wheels are otherwise used, damaged, or remaining packaging is opened, wheels are non-returnable.
TRU specialist notes
From the Trucks R Us fitment and install team, beyond the manufacturer's information.
- Confirm bolt pattern, center bore and offset for your exact truck. Some aftermarket wheels need hub-centric rings or different lug nuts. Ask us and we will check your setup.
Specifications
| Brand | Fuel 1PC |
|---|---|
| Part number | FC901MX17905001 |
| UPC / GTIN | 194933425204 |
| Part Number | FC901MX17905001 |
| Finish | Blackout |
| Size | 17x9 |
| Bolt Pattern | 5x5 (5x127) |
| Offset | 1mm |
| Backspacing | 5.04" |
| Center Bore | 71.5mm |
| Load Rating | 2650 lbs |
| Wheel Weight | 28.9 lbs |
| Lip Depth | 1.46" |
| Construction | Cast Aluminum |
| Cap Part No. | 1007-10BLD |
| TPMS Compatible | Yes |
| Part Number | FC901MX20905001 |
| Finish | Blackout |
| Size | 20x9 |
| Bolt Pattern | 5x5 (5x127) |
| Offset | 1mm |
| Backspacing | 5.04" |
| Center Bore | 71.5mm |
| Load Rating | 2650 lbs |
| Wheel Weight | 35.3 lbs |
| Lip Depth | 1.44" |
| Construction | Cast Aluminum |
| Cap Part No. | 1007-10BLD |
| TPMS Compatible | Yes |
| Part Number | FC901MX20905020 |
| Finish | Blackout |
| Size | 20x9 |
| Bolt Pattern | 5x5 (5x127) |
| Offset | 20mm |
| Backspacing | 5.79" |
| Center Bore | 71.5mm |
| Load Rating | 2650 lbs |
| Wheel Weight | 36.6 lbs |
| Lip Depth | 1.23" |
| Construction | Cast Aluminum |
| Cap Part No. | 1007-10BLD |
| TPMS Compatible | Yes |
| Part Number | FC901BA17905001 |
| Finish | Gloss Black w/ Gunmetal Lip |
| Size | 17x9 |
| Bolt Pattern | 5x5 (5x127) |
| Offset | 1mm |
| Backspacing | 5.04" |
| Center Bore | 71.5mm |
| Load Rating | 2650 lbs |
| Wheel Weight | 28.9 lbs |
| Lip Depth | 1.46" |
| Construction | Cast Aluminum |
| Cap Part No. | 1007-10GBLV |
| TPMS Compatible | Yes |
| Part Number | FC901BA20905001 |
| Finish | Gloss Black w/ Gunmetal Lip |
| Size | 20x9 |
| Bolt Pattern | 5x5 (5x127) |
| Offset | 1mm |
| Backspacing | 5.04" |
| Center Bore | 71.5mm |
| Load Rating | 2650 lbs |
| Wheel Weight | 35.3 lbs |
| Lip Depth | 1.44" |
| Construction | Cast Aluminum |
| Cap Part No. | 1007-10GBLV |
| TPMS Compatible | Yes |
| Part Number | FC901BA20905020 |
| Finish | Gloss Black w/ Gunmetal Lip |
| Size | 20x9 |
| Bolt Pattern | 5x5 (5x127) |
| Offset | 20mm |
| Backspacing | 5.79" |
| Center Bore | 71.5mm |
| Load Rating | 2650 lbs |
| Wheel Weight | 36.6 lbs |
| Lip Depth | 1.23" |
| Construction | Cast Aluminum |
| Cap Part No. | 1007-10GBLV |
| TPMS Compatible | Yes |

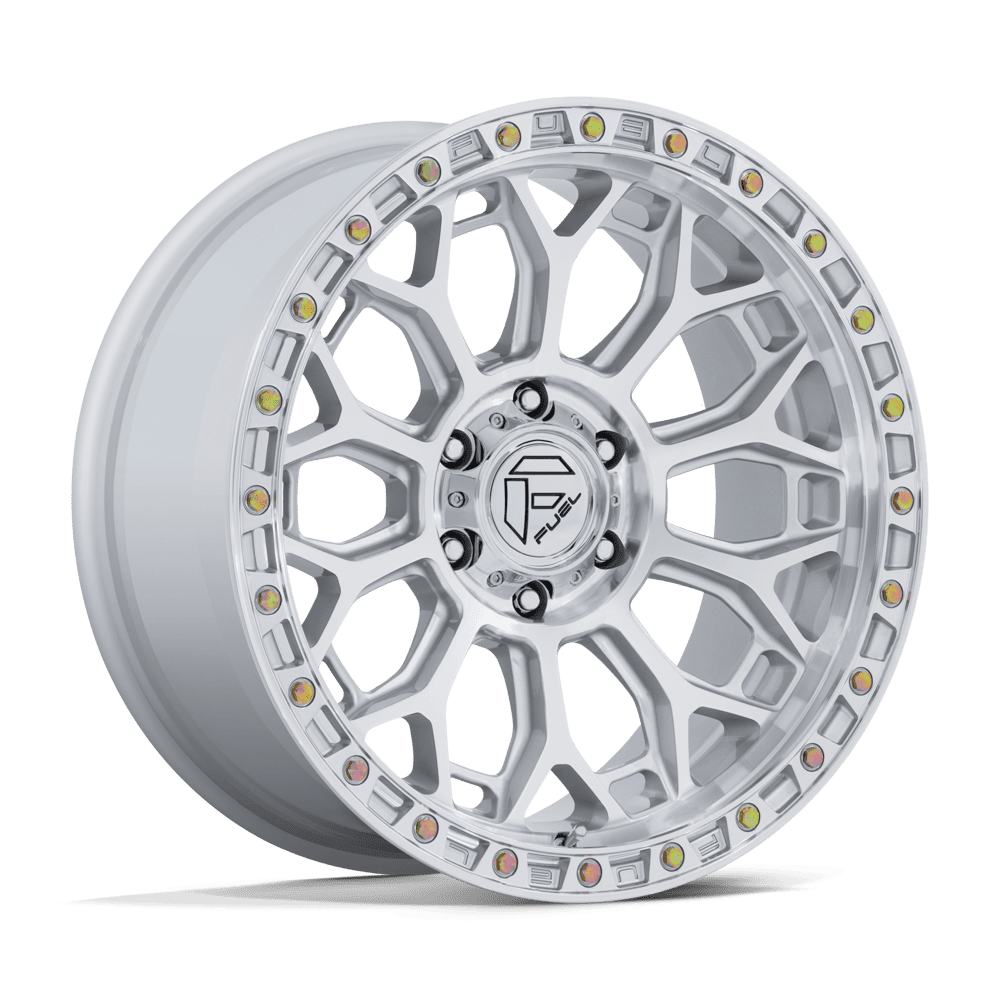

| Part Number | FC901SD17905001 |
| Finish | Gloss Silver w/ Machined Face |
| Size | 17x9 |
| Bolt Pattern | 5x5 (5x127) |
| Offset | 1mm |
| Backspacing | 5.04" |
| Center Bore | 71.5mm |
| Load Rating | 2650 lbs |
| Wheel Weight | 28.9 lbs |
| Lip Depth | 1.46" |
| Construction | Cast Aluminum |
| Cap Part No. | 1007-10 |
| TPMS Compatible | Yes |
| Part Number | FC901SD20905001 |
| Finish | Gloss Silver w/ Machined Face |
| Size | 20x9 |
| Bolt Pattern | 5x5 (5x127) |
| Offset | 1mm |
| Backspacing | 5.04" |
| Center Bore | 71.5mm |
| Load Rating | 2650 lbs |
| Wheel Weight | 35.3 lbs |
| Lip Depth | 1.44" |
| Construction | Cast Aluminum |
| Cap Part No. | 1007-10 |
| TPMS Compatible | Yes |
| Part Number | FC901SD20905020 |
| Finish | Gloss Silver w/ Machined Face |
| Size | 20x9 |
| Bolt Pattern | 5x5 (5x127) |
| Offset | 20mm |
| Backspacing | 5.79" |
| Center Bore | 71.5mm |
| Load Rating | 2650 lbs |
| Wheel Weight | 36.6 lbs |
| Lip Depth | 1.23" |
| Construction | Cast Aluminum |
| Cap Part No. | 1007-10 |
| TPMS Compatible | Yes |
Features
- Cast Aluminum
- TPMS Compatible
- Structural Warranty: Lifetime
- Finish Warranty: One Year
Overview
The Fuel FC901 Talon brings trail-bred style to your daily setup without overcomplicating the build. It’s a one-piece monoblock with a clean mesh layout and just enough detail to keep things interesting. Plus, scuppers and debris slots make it easy to keep clean after a dirty weekend on the trails. Available in 17" and 20" sizes for 5-lug and 6-lug setups, it fits right in on rigs like the Jeep Wrangler, Toyota Tacoma, Chevy Colorado, RAM 1500, Silverado 1500, and F-150s.
