Fuel Off-Road FC896 Heathen Wheel 6x135 Bolt Pattern
Questions about fitment? Live chat or call 866-235-4715
Couldn't load pickup availability
- Free shippingMost orders $500+
- 30-day returnsSee policy
- Warranty supportWe work with the maker
Questions about fitment?
Talk to a TRU specialist
We’ll help you verify fitment before you buy.
Veteran-owned · Austin, Texas · Mon–Fri 9:30a–11:00a & 1:00p–5:30p CT
Important notes before you order
- CAUTION! Upon receipt of wheels, open one box and conduct a test-fit prior to opening remaining boxes. Do not mount tires until wheel fitment is verified. Once tires are mounted or wheels are otherwise used, damaged, or remaining packaging is opened, wheels are non-returnable.
TRU specialist notes
From the Trucks R Us fitment and install team, beyond the manufacturer's information.
- Confirm bolt pattern, center bore and offset for your exact truck. Some aftermarket wheels need hub-centric rings or different lug nuts. Ask us and we will check your setup.
Specifications

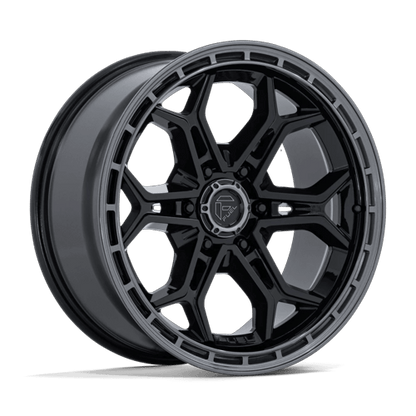

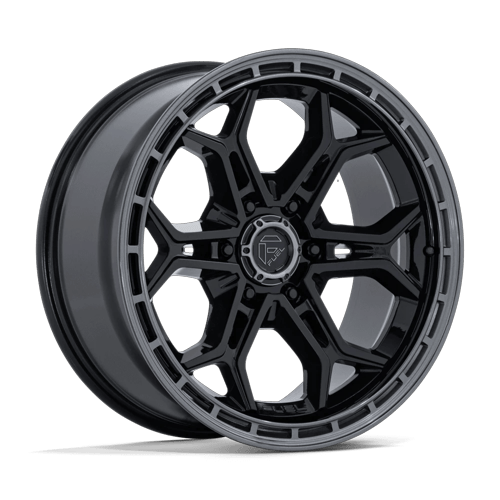

| Brand | Fuel 1PC |
|---|---|
| Part number | FC896BA20906301 |
| UPC / GTIN | 194933423897 |
| Part Number | FC896BA20906301 |
| Finish | Gloss Black Gloss Gunmetal Lip |
| Size | 20x9 |
| Bolt Pattern | 6x135 |
| Offset | 1mm |
| Backspacing | 5.04" |
| Center Bore | 87.1mm |
| Load Rating | 2650 lbs |
| Wheel Weight | 35.49 lbs |
| Lip Depth | 1.55" |
| Construction | Cast Aluminum |
| Cap Part No. | 1004-79GL |
| TPMS Compatible | Yes |
| Part Number | FC896BA20906320 |
| Finish | Gloss Black Gloss Gunmetal Lip |
| Size | 20x9 |
| Bolt Pattern | 6x135 |
| Offset | 20mm |
| Backspacing | 5.79" |
| Center Bore | 87.1mm |
| Load Rating | 2650 lbs |
| Wheel Weight | 35.49 lbs |
| Lip Depth | 1.55" |
| Construction | Cast Aluminum |
| Cap Part No. | 1004-79GL |
| TPMS Compatible | Yes |

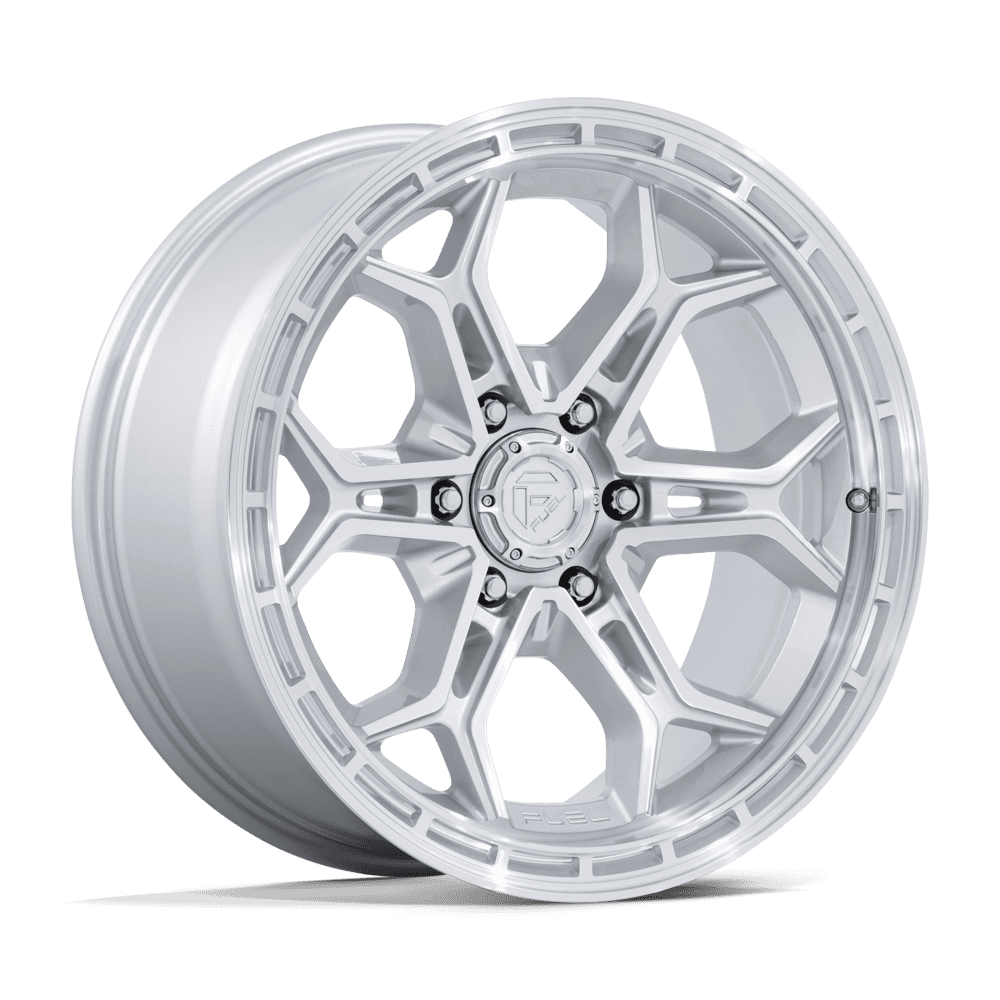

| Part Number | FC896SD20906301 |
| Finish | Gloss Silver w/ Machined Face |
| Size | 20x9 |
| Bolt Pattern | 6x135 |
| Offset | 1mm |
| Backspacing | 5.04" |
| Center Bore | 87.1mm |
| Load Rating | 2650 lbs |
| Wheel Weight | 35.49 lbs |
| Lip Depth | 1.55" |
| Construction | Cast Aluminum |
| Cap Part No. | 1004-79SLMC |
| TPMS Compatible | Yes |
| Part Number | FC896SD20906320 |
| Finish | Gloss Silver w/ Machined Face |
| Size | 20x9 |
| Bolt Pattern | 6x135 |
| Offset | 20mm |
| Backspacing | 5.79" |
| Center Bore | 87.1mm |
| Load Rating | 2650 lbs |
| Wheel Weight | 35.49 lbs |
| Lip Depth | 1.55" |
| Construction | Cast Aluminum |
| Cap Part No. | 1004-79SLMC |
| TPMS Compatible | Yes |

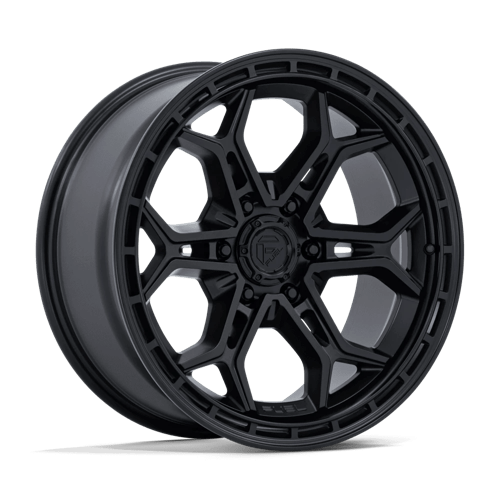

| Part Number | FC896MX20906301 |
| Finish | Matte Black |
| Size | 20x9 |
| Bolt Pattern | 6x135 |
| Offset | 1mm |
| Backspacing | 5.04" |
| Center Bore | 87.1mm |
| Load Rating | 2650 lbs |
| Wheel Weight | 35.49 lbs |
| Lip Depth | 1.55" |
| Construction | Cast Aluminum |
| Cap Part No. | 1004-79GBLD |
| TPMS Compatible | Yes |
| Part Number | FC896MX20906320 |
| Finish | Matte Black |
| Size | 20x9 |
| Bolt Pattern | 6x135 |
| Offset | 20mm |
| Backspacing | 5.79" |
| Center Bore | 87.1mm |
| Load Rating | 2650 lbs |
| Wheel Weight | 35.49 lbs |
| Lip Depth | 1.55" |
| Construction | Cast Aluminum |
| Cap Part No. | 1004-79GBLD |
| TPMS Compatible | Yes |
Features
- Cast Aluminum
- TPMS Compatible
- Structural Warranty: Lifetime
- Finish Warranty: One Year
Overview
We build the Heathen for truck owners who put their rigs to work but still want off-road capability. The FC896 features a cast monoblock construction and is load rated to take hits and keep moving. Tired of cleaning your wheels after a week on the trails? The modern 6-spoke layout and wide lip scuppers help clear out debris on rough terrain and make cleanup a breeze. We know debeading sucks, so we reinforced the inner bead lip to keep your tires secure when pressure gets low and things get rough. The Heathen hits that sweet spot for work-truck owners who aren’t afraid to get dirty.
Questions
Will this fit my truck?
Select your truck at the top of the page and the fit check will confirm it. If your exact trim is not listed, call 866-235-4715 or live chat and a fitment specialist will check it before you order.
Do you help with installation?
Yes. Our technical team helps you or your shop with installation and troubleshooting after delivery, on top of the manufacturer’s support.
What if the part has a problem?
We work the warranty claim with the manufacturer on your behalf, within the manufacturer’s warranty policy.
Can I return it?
Most items can be returned within 30 days. See our return policy for details.
