Fuel Off-Road FC405 Dynamo Wheel 6x135 Bolt Pattern
Questions about fitment? Live chat or call 866-235-4715
Couldn't load pickup availability
- Free shippingMost orders $500+
- 30-day returnsSee policy
- Warranty supportWe work with the maker
Questions about fitment?
Talk to a TRU specialist
We’ll help you verify fitment before you buy.
Veteran-owned · Austin, Texas · Mon–Fri 9:30a–11:00a & 1:00p–5:30p CT
Important notes before you order
- CAUTION! Upon receipt of wheels, open one box and conduct a test-fit prior to opening remaining boxes. Do not mount tires until wheel fitment is verified. Once tires are mounted or wheels are otherwise used, damaged, or remaining packaging is opened, wheels are non-returnable.
TRU specialist notes
From the Trucks R Us fitment and install team, beyond the manufacturer's information.
- Confirm bolt pattern, center bore and offset for your exact truck. Some aftermarket wheels need hub-centric rings or different lug nuts. Ask us and we will check your setup.
Specifications
| Brand | Fuel 1PC |
|---|---|
| Part number | FC405MZ20906301 |
| UPC / GTIN | 194933433551 |
| Part Number | FC405MZ20906301 |

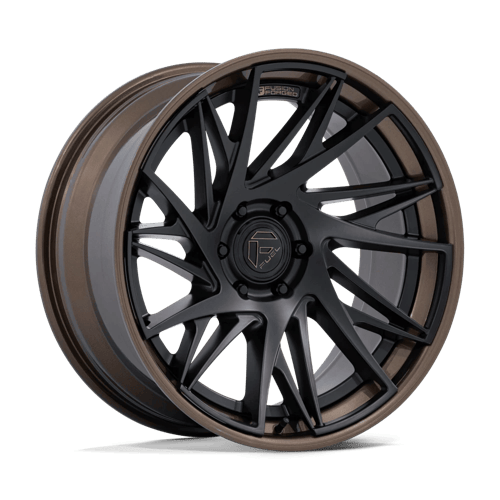

| Finish | Matte Black w/ G-Bronze Lip |
| Size | 20x9 |
| Bolt Pattern | 6x135 |
| Offset | 1mm |
| Backspacing | 5.04" |
| Center Bore | 87.1mm |
| Load Rating | 2650 lbs |
| Wheel Weight | 36.1 lbs |
| Construction | Fusion Forged |
| Cap Part No. | 1007-44MBZ |
| TPMS Compatible | Yes |
| Part Number | FC405MZ22106318N |

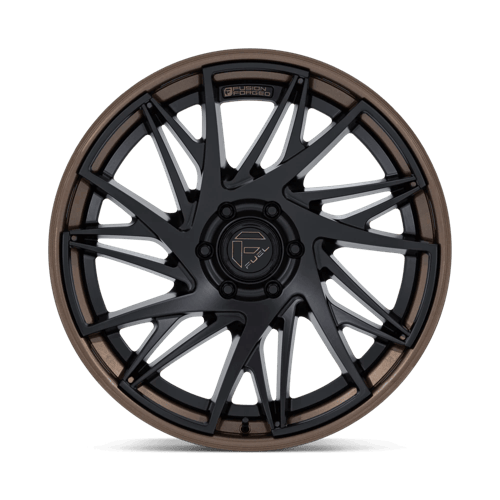

| Finish | Matte Black w/ G-Bronze Lip |
| Size | 22x10 |
| Bolt Pattern | 6x135 |
| Offset | -18mm |
| Backspacing | 4.79" |
| Center Bore | 87.1mm |
| Load Rating | 2650 lbs |
| Wheel Weight | 41.36 lbs |
| Construction | Fusion Forged |
| Cap Part No. | 1007-44MBZ |
| TPMS Compatible | Yes |
| Part Number | FC405MB20906301 |

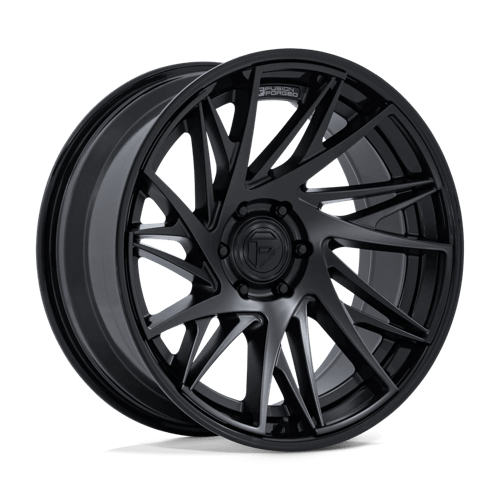

| Finish | Matte Black w/ Gloss Black Lip |
| Size | 20x9 |
| Bolt Pattern | 6x135 |
| Offset | 1mm |
| Backspacing | 5.04" |
| Center Bore | 87.1mm |
| Load Rating | 2650 lbs |
| Wheel Weight | 36.1 lbs |
| Construction | Fusion Forged |
| Cap Part No. | 1007-44BLD |
| TPMS Compatible | Yes |
| Part Number | FC405MB20106318N |
| Finish | Matte Black w/ Gloss Black Lip |
| Size | 20x10 |
| Bolt Pattern | 6x135 |
| Offset | -18mm |
| Backspacing | 4.79" |
| Center Bore | 87.1mm |
| Load Rating | 2650 lbs |
| Wheel Weight | 38.7 lbs |
| Construction | Fusion Forged |
| Cap Part No. | 1007-44BLD |
| TPMS Compatible | Yes |
| Part Number | FC405MB22956320 |
| Finish | Matte Black w/ Gloss Black Lip |
| Size | 22x9.5 |
| Bolt Pattern | 6x135 |
| Offset | 20mm |
| Backspacing | 6.04" |
| Center Bore | 87.1mm |
| Load Rating | 2650 lbs |
| Wheel Weight | 41.36 lbs |
| Construction | Fusion Forged |
| Cap Part No. | 1007-44BLD |
| TPMS Compatible | Yes |
| Part Number | FC405MB22106318N |
| Finish | Matte Black w/ Gloss Black Lip |
| Size | 22x10 |
| Bolt Pattern | 6x135 |
| Offset | -18mm |
| Backspacing | 4.79" |
| Center Bore | 87.1mm |
| Load Rating | 2650 lbs |
| Wheel Weight | 41.36 lbs |
| Construction | Fusion Forged |
| Cap Part No. | 1007-44BLD |
| TPMS Compatible | Yes |
Features
- Fusion Forged
- TPMS Compatible
- Structural Warranty: Lifetime
- Finish Warranty: One Year
Overview

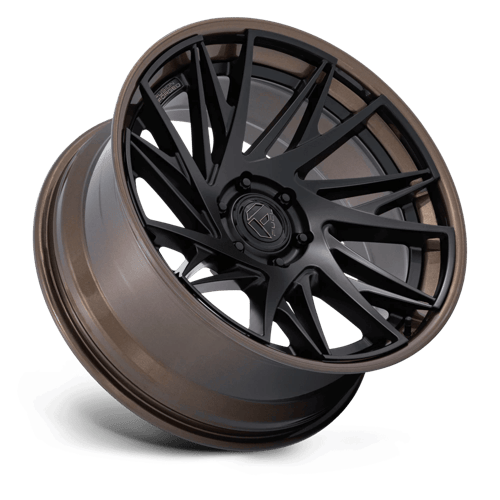

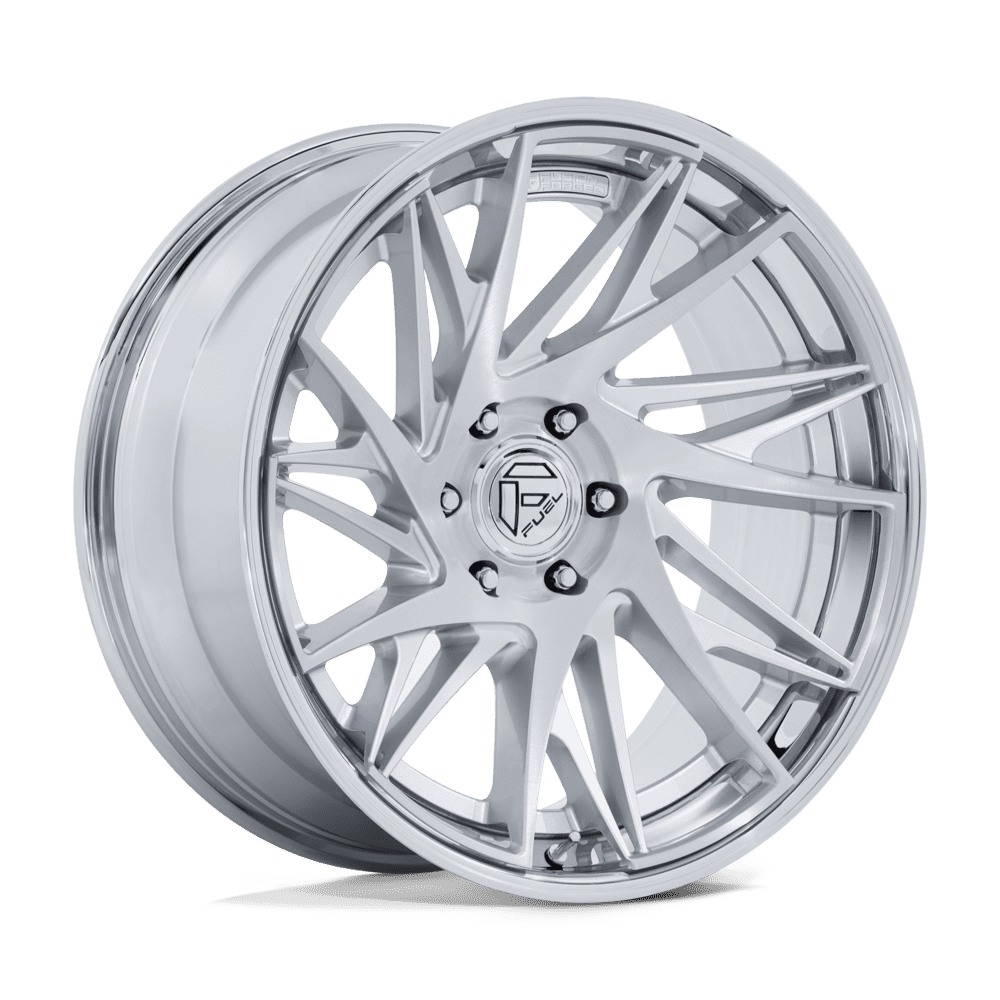

Take on the trails with the aggressive, high-energy style of the Fuel FC405 Dynamo. This wheel sports a wild, omnidirectional mesh design with layered spokes that appear to be in motion even when you're parked. Built using Fusion Forged tech, it’s lightweight and strong with a forged barrel and intricate cast face. The FC405 Dynamo is perfect for truck and Jeep owners looking to add some serious style with performance to back it up. Available in Bright (silver with chrome lip), Dark (matte black with gloss black lip), and a trendsetting matte black with gloss bronze combo. This wheel fits rigs like the Ford F-150, Toyota Tacoma, Chevy Silverado, and Jeep Gladiator.
Questions
Will this fit my truck?
Select your truck at the top of the page and the fit check will confirm it. If your exact trim is not listed, call 866-235-4715 or live chat and a fitment specialist will check it before you order.
Do you help with installation?
Yes. Our technical team helps you or your shop with installation and troubleshooting after delivery, on top of the manufacturer’s support.
What if the part has a problem?
We work the warranty claim with the manufacturer on your behalf, within the manufacturer’s warranty policy.
Can I return it?
Most items can be returned within 30 days. See our return policy for details.
