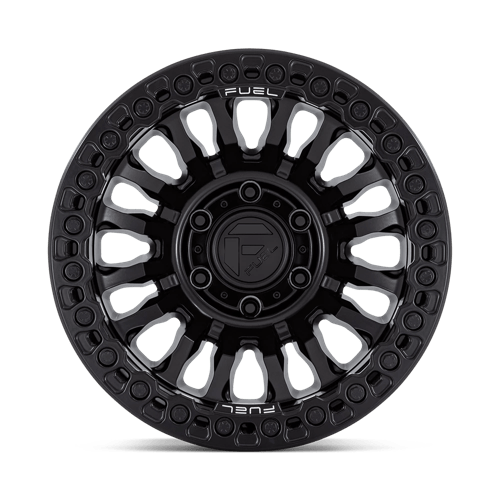

Fuel Off-Road FC125 Rincon Beadlock Wheel 8x6.5 (8x165.1) Bolt Pattern
Questions about fitment? Live chat or call 866-235-4715
Couldn't load pickup availability
- Free shippingMost orders $500+
- 30-day returnsSee policy
- Warranty supportWe work with the maker
Questions about fitment?
Talk to a TRU specialist
We’ll help you verify fitment before you buy.
Veteran-owned · Austin, Texas · Mon–Fri 9:30a–11:00a & 1:00p–5:30p CT
Important notes before you order
- CAUTION! Upon receipt of wheels, open one box and conduct a test-fit prior to opening remaining boxes. Do not mount tires until wheel fitment is verified. Once tires are mounted or wheels are otherwise used, damaged, or remaining packaging is opened, wheels are non-returnable.
TRU specialist notes
From the Trucks R Us fitment and install team, beyond the manufacturer's information.
- Confirm bolt pattern, center bore and offset for your exact truck. Some aftermarket wheels need hub-centric rings or different lug nuts. Ask us and we will check your setup.
Specifications
| Brand | Fuel 1PC |
|---|---|
| Part number | FC125MX17908038N |
| UPC / GTIN | 194933295623 |
| Part Number | FC125MX17908038N |

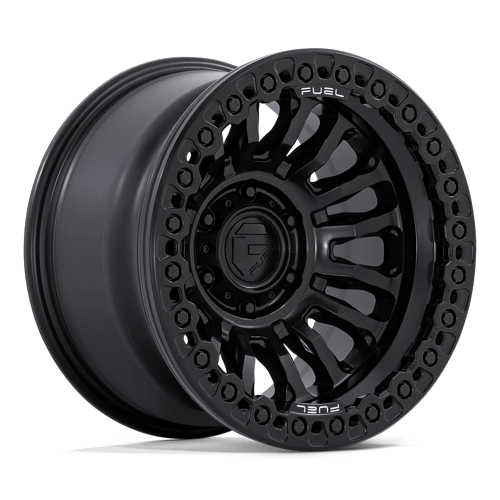

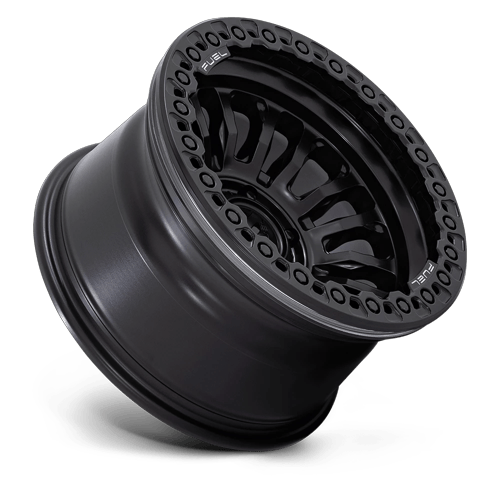

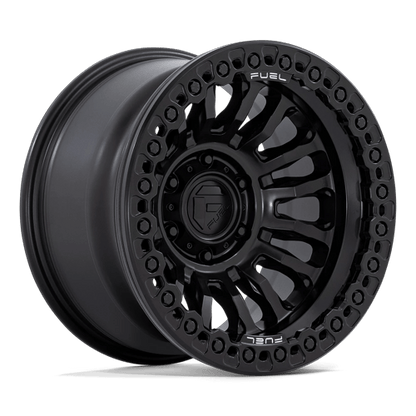

| Finish | Blackout |
| Size | 17x9 |
| Bolt Pattern | 8x6.5 (8x165.1) |
| Offset | -38mm |
| Backspacing | 3.5" |
| Center Bore | 125.1mm |
| Load Rating | 3700 lbs |
| Wheel Weight | 35.6 lbs |
| Lip Depth | 3.37" |
| Construction | Cast Aluminum |
| Cap Part No. | 1006-33BLD |
| TPMS Compatible | Yes |
| Part Number | FC125MX20108048N |
| Finish | Blackout |
| Size | 20x10 |
| Bolt Pattern | 8x6.5 (8x165.1) |
| Offset | -48mm |
| Backspacing | 3.61" |
| Center Bore | 125.1mm |
| Load Rating | 3700 lbs |
| Wheel Weight | 45.6 lbs |
| Lip Depth | 3.38" |
| Construction | Cast Aluminum |
| Cap Part No. | 1006-33BLD |
| TPMS Compatible | Yes |
| Part Number | FC125QX17908038N |

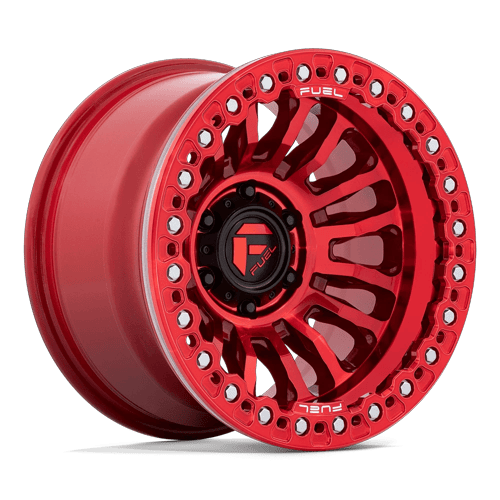

| Finish | Candy Red |
| Size | 17x9 |
| Bolt Pattern | 8x6.5 (8x165.1) |
| Offset | -38mm |
| Backspacing | 3.5" |
| Center Bore | 125.1mm |
| Load Rating | 3700 lbs |
| Wheel Weight | 35.6 lbs |
| Lip Depth | 3.37" |
| Construction | Cast Aluminum |
| Cap Part No. | 1006-33MBQ |
| TPMS Compatible | Yes |
| Part Number | FC125QX20108048N |
| Finish | Candy Red |
| Size | 20x10 |
| Bolt Pattern | 8x6.5 (8x165.1) |
| Offset | -48mm |
| Backspacing | 3.61" |
| Center Bore | 125.1mm |
| Load Rating | 3700 lbs |
| Wheel Weight | 45.6 lbs |
| Lip Depth | 3.38" |
| Construction | Cast Aluminum |
| Cap Part No. | 1006-33MBQ |
| TPMS Compatible | Yes |
| Part Number | FC125DX20108048N |

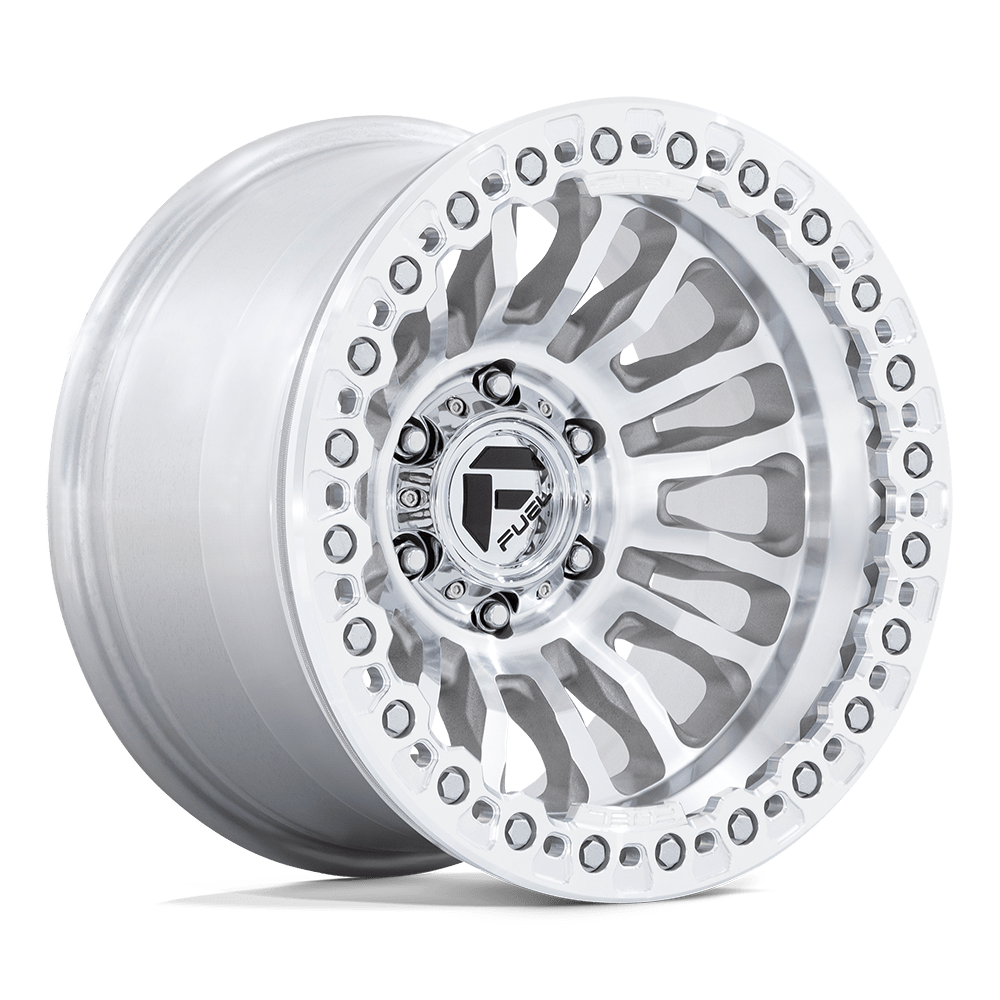

| Finish | Machined |
| Size | 20x10 |
| Bolt Pattern | 8x6.5 (8x165.1) |
| Offset | -48mm |
| Backspacing | 3.61" |
| Center Bore | 125.1mm |
| Load Rating | 3700 lbs |
| Wheel Weight | 45.6 lbs |
| Lip Depth | 3.38" |
| Construction | Cast Aluminum |
| Cap Part No. | 1006-33GDC |
| TPMS Compatible | Yes |
Features
- Cast Aluminum
- Beadlock
- TPMS Compatible
- Structural Warranty: Lifetime
- Finish Warranty: One Year
Overview
The wheel that embodies true off-road function and form. We took the Fuel Off-Road Rincon to the next level with the Rincon Beadlock, built to conquer the toughest terrain without sacrificing style. Featuring the same aggressive split 8-spoke design and concave profile, the Rincon Beadlock adds a forged beadlock ring with debris release slots so you can air down and tackle climbs, crawls, and descents with confidence. Available in 17" and 18" sizes with offsets from -38mm to -48mm, it’s offered in 5, 6, and 8-lug configurations to fit everything from Wranglers and Tacomas to F-250s and 3500-series trucks. Built for hardcore off-roaders who demand performance and strength.
Warning: Beadlock wheels are sold for Off-Road Use only. Off-Road Use only wheels are illegal on public roads in many states and provinces as they are intended only for racing and/or off-road vehicles. It is the customers’ responsibility to check state and local laws. The customer takes full responsibility for any use and/or misuse of the beadlock wheels and agrees to hold Wheel Pros, LLC and its affiliates harmless relating to such use.
