Fuel 1PCPart # D8672082A935

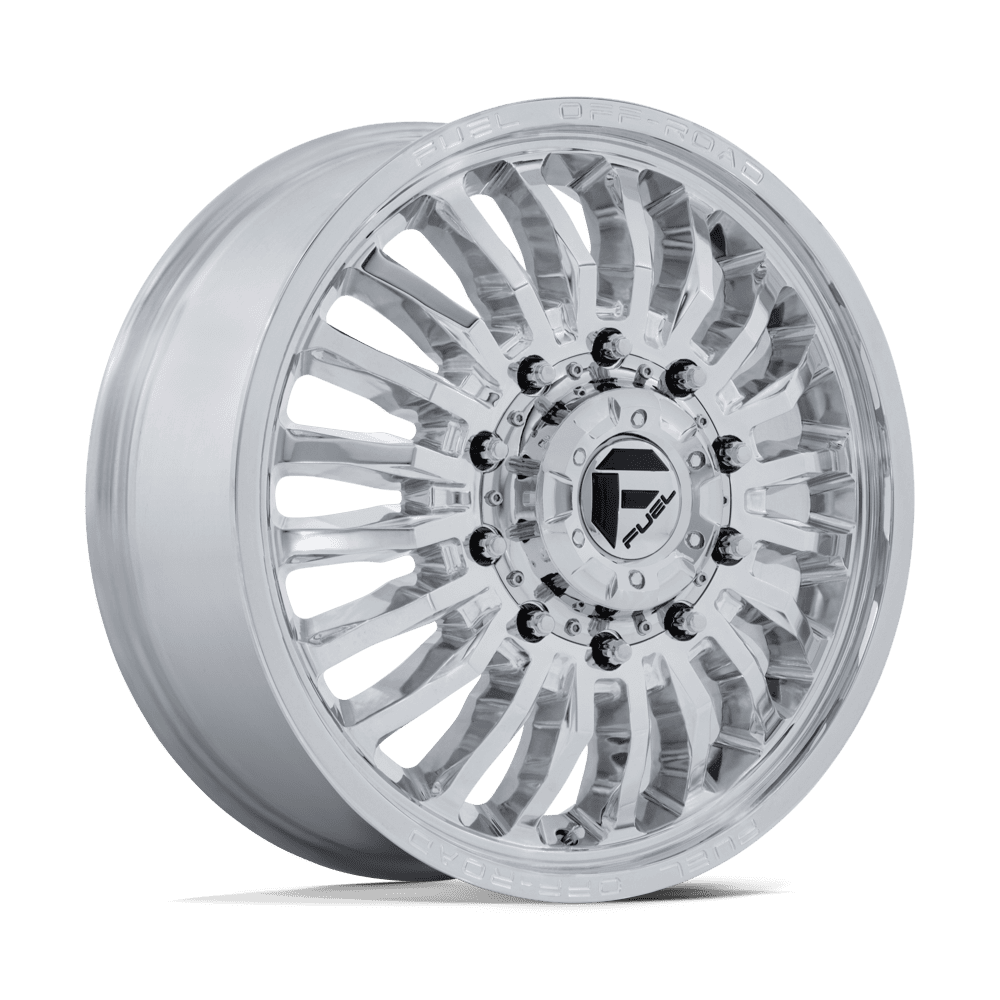

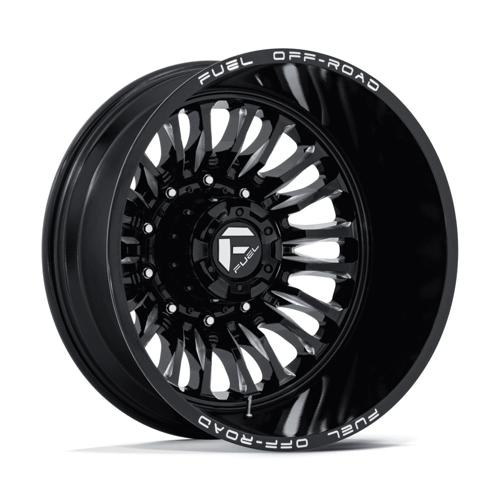

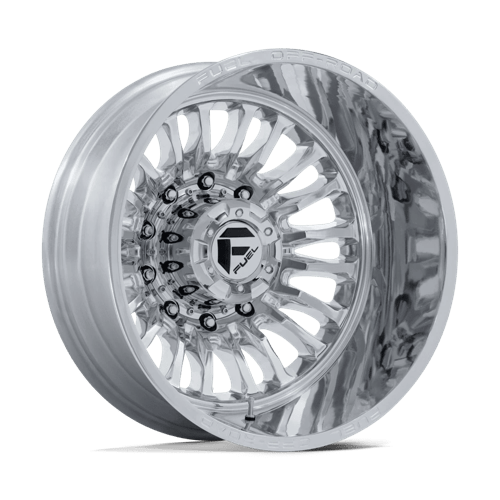

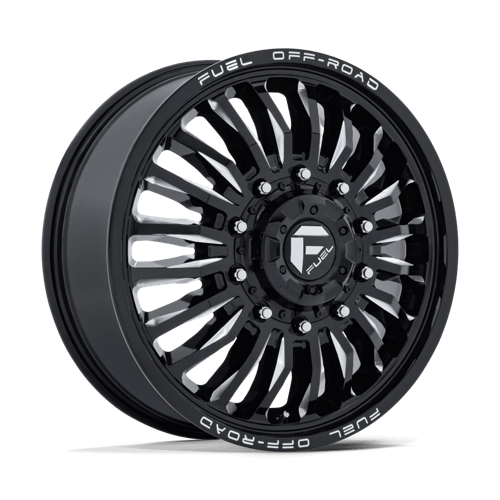

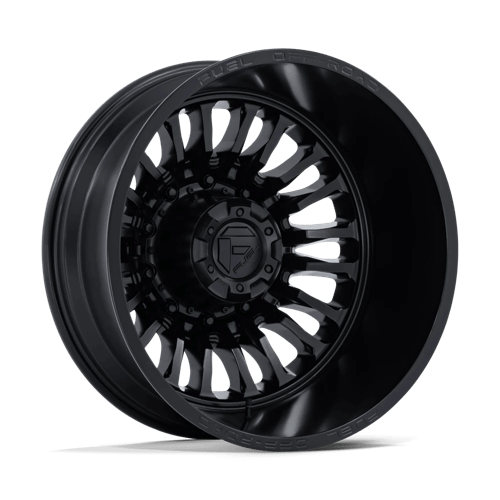

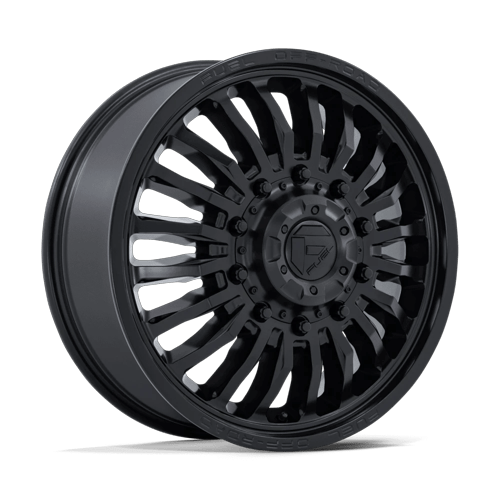

Fuel Off-Road Arc Dually Wheel 10x225 Bolt Pattern
$655.00
$655.00
SALE CALL OR CHAT TO ORDER
Shipping calculated at checkout.
Read the important notes before ordering

Questions about fitment? Live chat or call 866-235-4715

Finish
Size
Offset
Special Order (Live Chat or Call)
  • Free shippingMost orders $500+
  • 30-day returnsSee policy
  • Warranty supportWe work with the maker
View full details

Questions about fitment?

Talk to a TRU specialist

We’ll help you verify fitment before you buy.
Veteran-owned · Austin, Texas · Mon–Fri 9:30a–11:00a & 1:00p–5:30p CT

Call 866-235-4715 Live chat

Important notes before you order

  1. CAUTION! Upon receipt of wheels, open one box and conduct a test-fit prior to opening remaining boxes. Do not mount tires until wheel fitment is verified. Once tires are mounted or wheels are otherwise used, damaged, or remaining packaging is opened, wheels are non-returnable.

TRU specialist notes

From the Trucks R Us fitment and install team, beyond the manufacturer's information.

  • Confirm bolt pattern, center bore and offset for your exact truck. Some aftermarket wheels need hub-centric rings or different lug nuts. Ask us and we will check your setup.

Specifications

BrandFuel 1PC
Part numberD8672082A935
UPC / GTIN194933433957
Part NumberD8672082A935
FinishBlackout
Size20x8.25
Bolt Pattern10x225
Offset-201mm
Backspacing-3.29"
Center Bore170.1mm
Load Rating3750 lbs
Wheel Weight45.18 lbs
Lip Depth7.36"
ConstructionCast Aluminum
Cap Part No.1004-63MB
TPMS CompatibleYes
Rear OnlyYes

Features

  • Cast Aluminum
  • TPMS Compatible
  • Structural Warranty: Lifetime
  • Finish Warranty: One Year

Overview

The Fuel Off-Road Arc Dually series elevates the rugged functionality of the Arc line to meet the specific needs of dual-rear-wheel trucks. Featuring a convex front wheel and deep concave rear wheel, this series emphasizes heavy-duty load capacity. The Arc Dually is designed to handle the heavier payloads and towing demands typical of dual-rear-wheel trucks like the Chevy Silverado 3500HD, GMC Sierra 3500HD, RAM 3500, and Ford F-350 Super Duty. Available in a 20" diameter, it offers tailored options for dually configurations.

Questions

Will this fit my truck?

Select your truck at the top of the page and the fit check will confirm it. If your exact trim is not listed, call 866-235-4715 or live chat and a fitment specialist will check it before you order.

Do you help with installation?

Yes. Our technical team helps you or your shop with installation and troubleshooting after delivery, on top of the manufacturer’s support.

What if the part has a problem?

We work the warranty claim with the manufacturer on your behalf, within the manufacturer’s warranty policy.

Can I return it?

Most items can be returned within 30 days. See our return policy for details.
