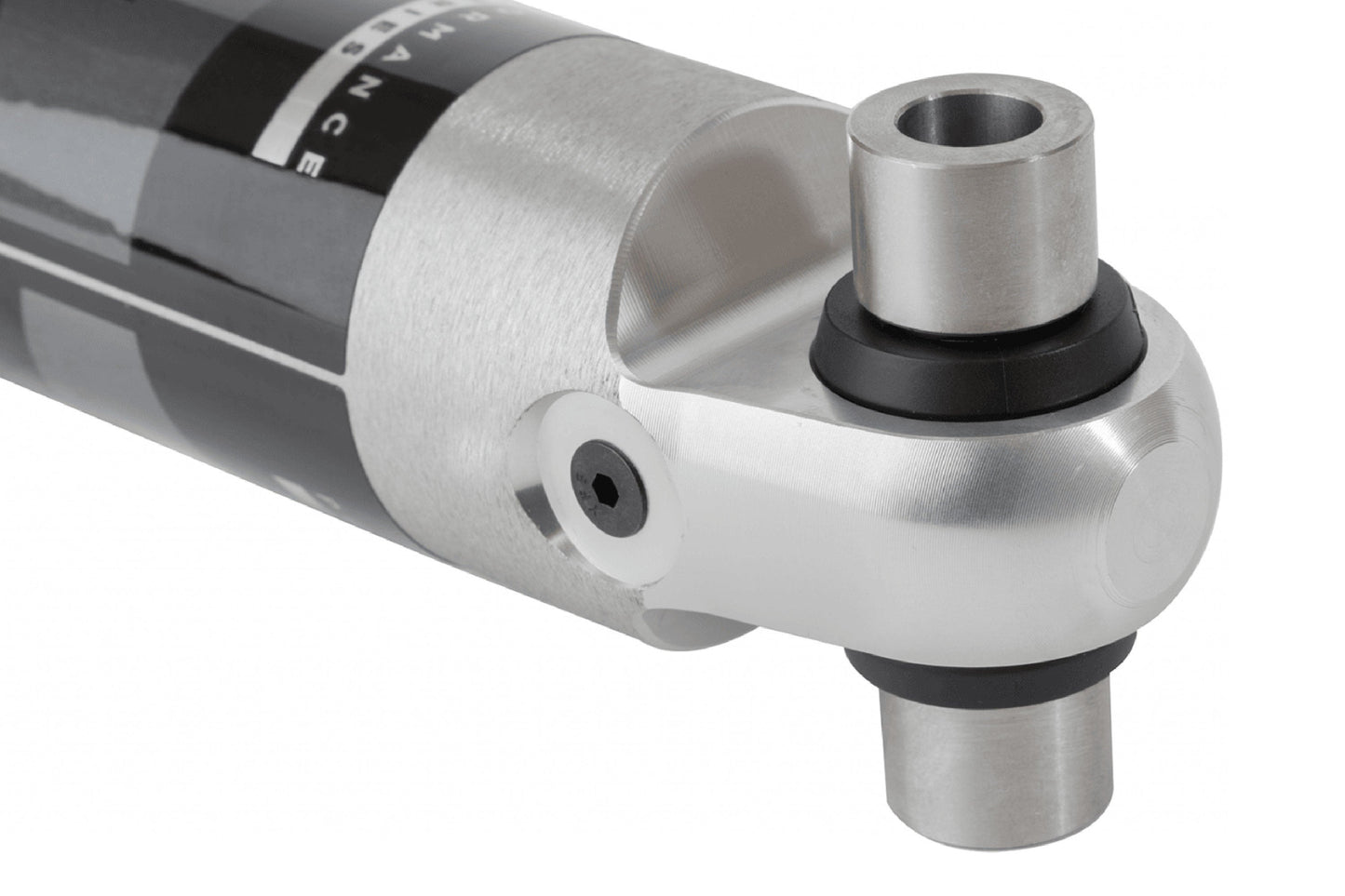

Fox Factory 2.0 IFP Front Shock | Performance Series | 4.5"-6" Lift | Wrangler JL and Gladiator JT
Fox Factory 2.0 IFP Front Shock | Performance Series | 4.5"-6" Lift | Wrangler JL and Gladiator JT
PART #
- Finish Clear-anodized
- Lift 4-6"
- Install 1 hr
- Difficulty Easy
Couldn't load pickup availability
- Free shippingmost orders $500+
- 30-day returnssee policy
- Warranty helpwe work claims for you
Specifications
| Brand | JKS Manufacturing |
|---|---|
| Part number | 98524181 |
| UPC / GTIN | 788000423769 |
| Adjustable Damping | No |
| Compressed Length | 18.5 |
| Extended Length | 30.12 |
| Finish | Clear-anodized |
| Gas Charged | Yes |
| Lift Height | 4-6" |
| Lower Mount Code | EB1 |
| Lower Mount Type | Eyelet |
| Position | Front |
| Shaft Diameter | 5/8" |
| Travel Length | 11.62 |
| Type | Smooth Body |
| Upper Mount Code | ES15 |
| Upper Mount Type | Stem |
| Installation Difficulty | Easy |
| Installation Time | 1 hr |
| Install time | 1 hr |
| Difficulty | Easy |
California Proposition 65 warning applies to this product. www.P65Warnings.ca.gov
Features
- 2-inch Impact extruded and CNC machined 6061-T6 clear anodized aluminum one-piece body resists rust over time
- 5/8-inch hard chrome plated heat-treated alloy steel shaft
- Race-developed high-flow piston design
- Application-specific valving to maximize performance
- Internal IFP mono-tube reservoir design
Installation
- Estimated install time1 hr
- DifficultyEasy
Free install support from the Trucks R Us tech team, for you or your shop.
Overview
Upgrade the on-road comfort and off-road control of your 2018-2027 Jeep Wrangler JL to FOX Performance Series 2.0 IFP (internal floating piston) front shocks. Designed to fit a BDS 4.5 to 6-inch lift suspension kit. The mono-tube design's internal reservoir separates the shock oil from the high-pressure, nitrogen-charged gas chamber. The IFP eliminates oil aeration allowing maximum performance from the factory-tuned, precision valving.
FOX and BDS joined forces to custom valve each application to work perfectly with each BDS Suspension system. Based on FOX race products but re-designed to turn your BDS-equipped truck into an off-road machine providing a predictable ride - capable of handling the roughest conditions with fade-free performance.
