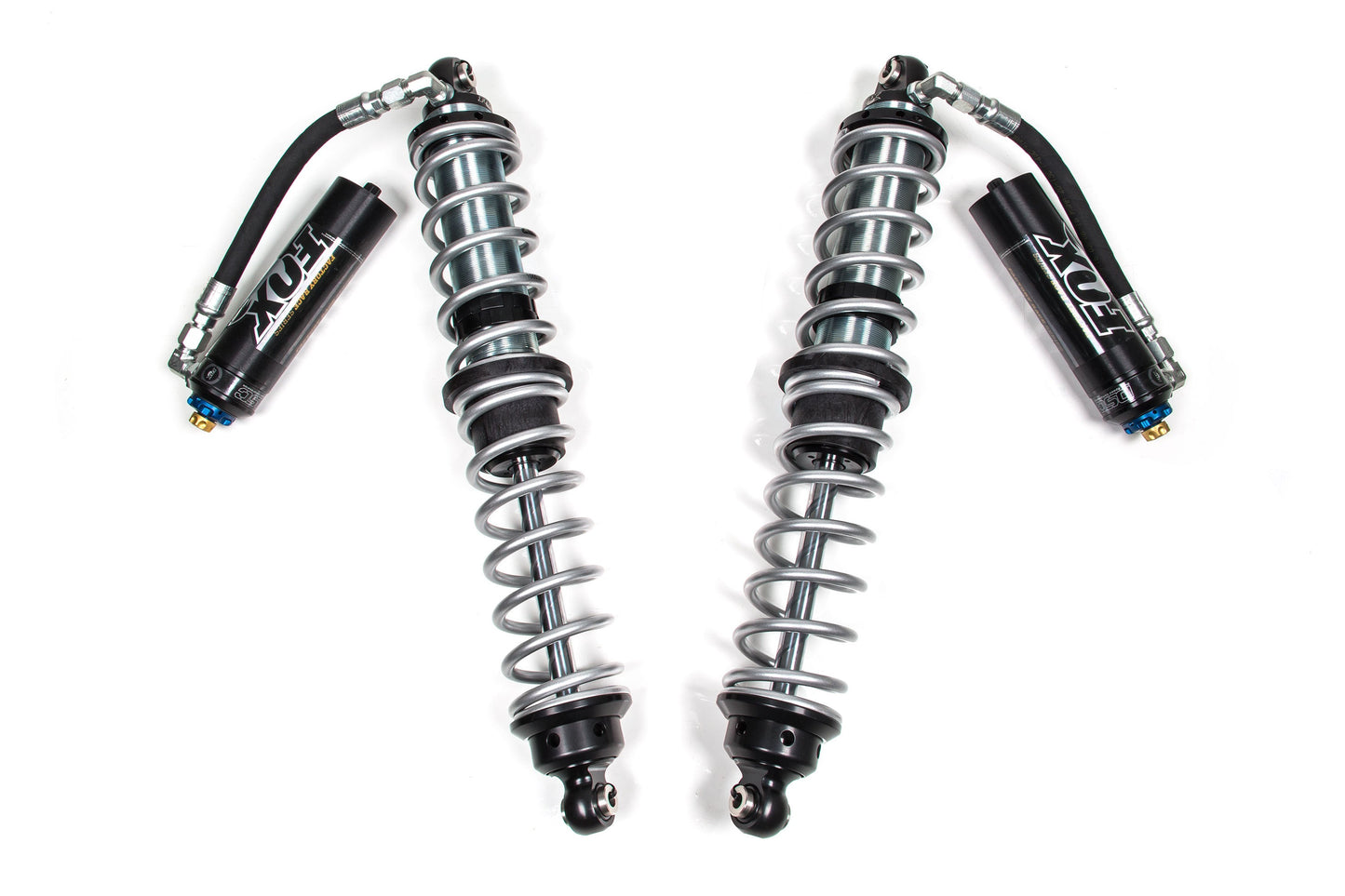

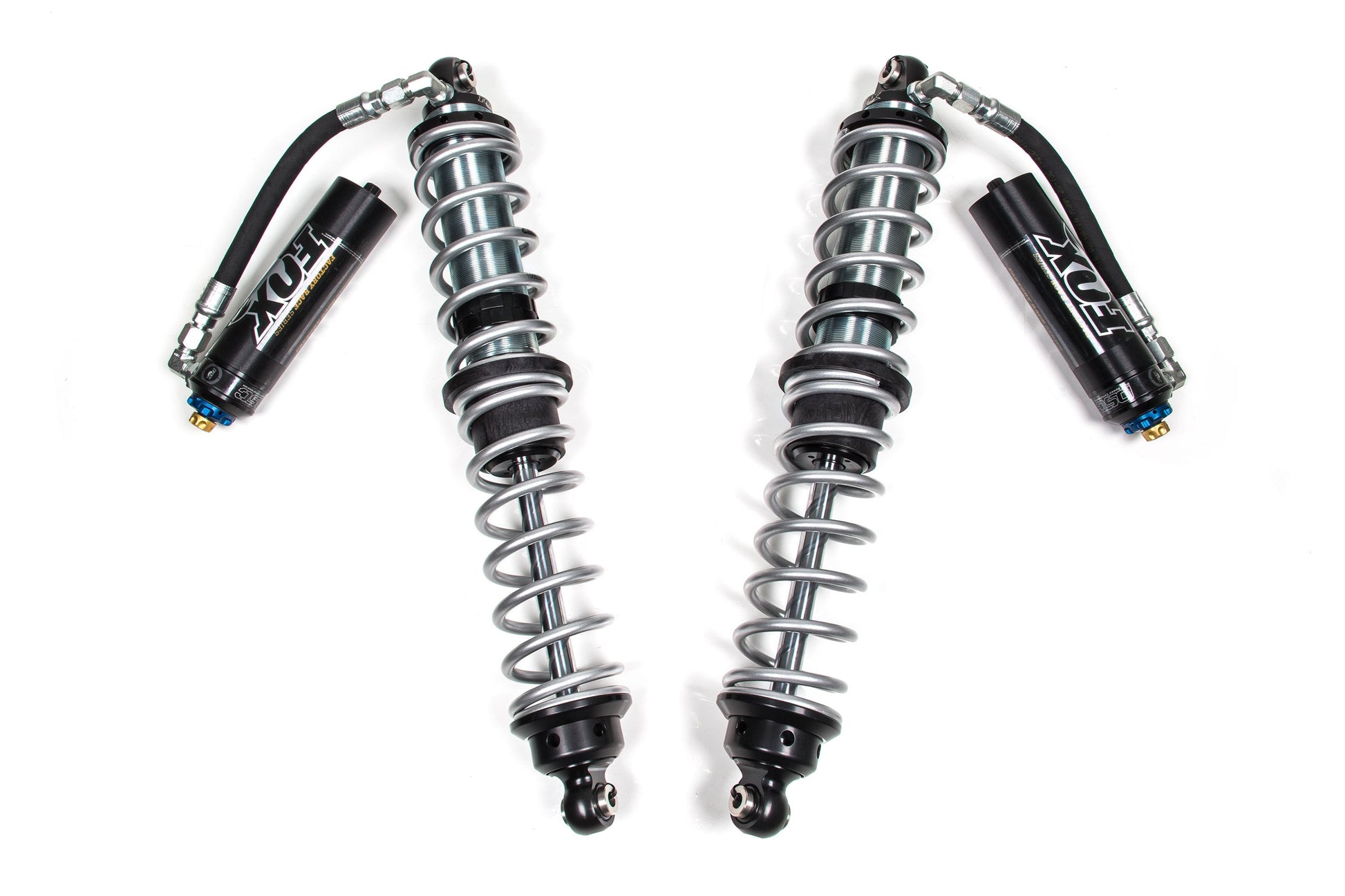

Fox Factory 2.5 Rear Coilover Shocks w/ DSC · Factory Race Wrangler JK
- Front lift 3-3.5"
- Rear lift 2-2.5"
- Lift 2-3.5"
- Install 1-2 hrs
- Difficulty Moderate
Questions about fitment? Live chat or call 866-235-4715
Couldn't load pickup availability
- Free shippingMost orders $500+
- 30-day returnsSee policy
- Warranty supportWe work with the maker
Questions about fitment?
Talk to a TRU specialist
We’ll help you verify fitment before you buy.
Veteran-owned · Austin, Texas · Mon–Fri 9:30a–11:00a & 1:00p–5:30p CT
Important notes before you order
- Coilovers will net 2" of lift on 4 Door Models and 2.5" on 2 Door Models
Specifications
| Brand | JKS Manufacturing |
|---|---|
| Part number | 88406177 |
| UPC / GTIN | 814897017832 |
| Front Lift Height | 3-3.5" |
| Rear Lift Height | 2-2.5" |
| Adjustable Damping | Yes |
| Compressed Length | 17.65 |
| Cylinder Material | Steel |
| Extended Length | 27.59 |
| Gas Charged | Yes |
| Lift Height | 2-3.5" |
| Lower Mount Code | EB1 |
| Lower Mount Type | Eyelet |
| Reservoir Type | Remote |
| Shaft Diameter | 7/8" |
| Travel Length | 9.86 |
| Type | Coil-Over |
| Upper Mount Code | EB1 |
| Upper Mount Type | Eyelet |
| Installation Difficulty | Moderate |
| Installation Time | 1-2 hrs |
| Install time | 1-2 hrs |
| Difficulty | Moderate |
California Proposition 65 warning applies to this product. www.P65Warnings.ca.gov
Features
- Custom designed and built for JKS rear JK coilover conversion.
- High strength steel body zinc plated for a long-lasting finish
- Improved performance off road with Remote Reservoir which provides lower oil temperatures.
- Dual Speed Compression (DSC) Adjuster allows you to easily adjust high and low speed dampening control.
- 2.5" diameter, 10" travel with dual rate coil springs.
Installation
- Estimated install time1-2 hrs
- DifficultyModerate
Free install support from the Trucks R Us tech team, for you or your shop.
Overview
Convert your Jeep Wrangler JK to 10" travel FOX 2.5" Factory Race Series DSC Rear Coil-overs and tackle any terrain. In addition to better shock damping response from FOX's proprietary IFP monotube design, you get complete control over shock compression with high and low speed adjustments thanks to the DSC adjusters. Adjustable locking collars give you control over spring preload for setting ride height and true dual rate springs with an adjustable crossover add another level of performance tuning. One more benefit, it's way easier to swap different coil springs with Coil-overs to tune for your Jeep's exact load requirements and usage. Whether you are flying high over the desert or crawling a rock face, FOX coil-overs provide the damping performance, suspension control and adjustability to get the job done. They come in several rock-solid configurations that will fit your application perfectly. NOTE: Coil-overs do NOT install in place of traditional shock absorbers. Coil-over Conversion Mounting kit JKS2519 required, or choose JKS J-Max Complete Suspension Systems. Sold in pairs.
