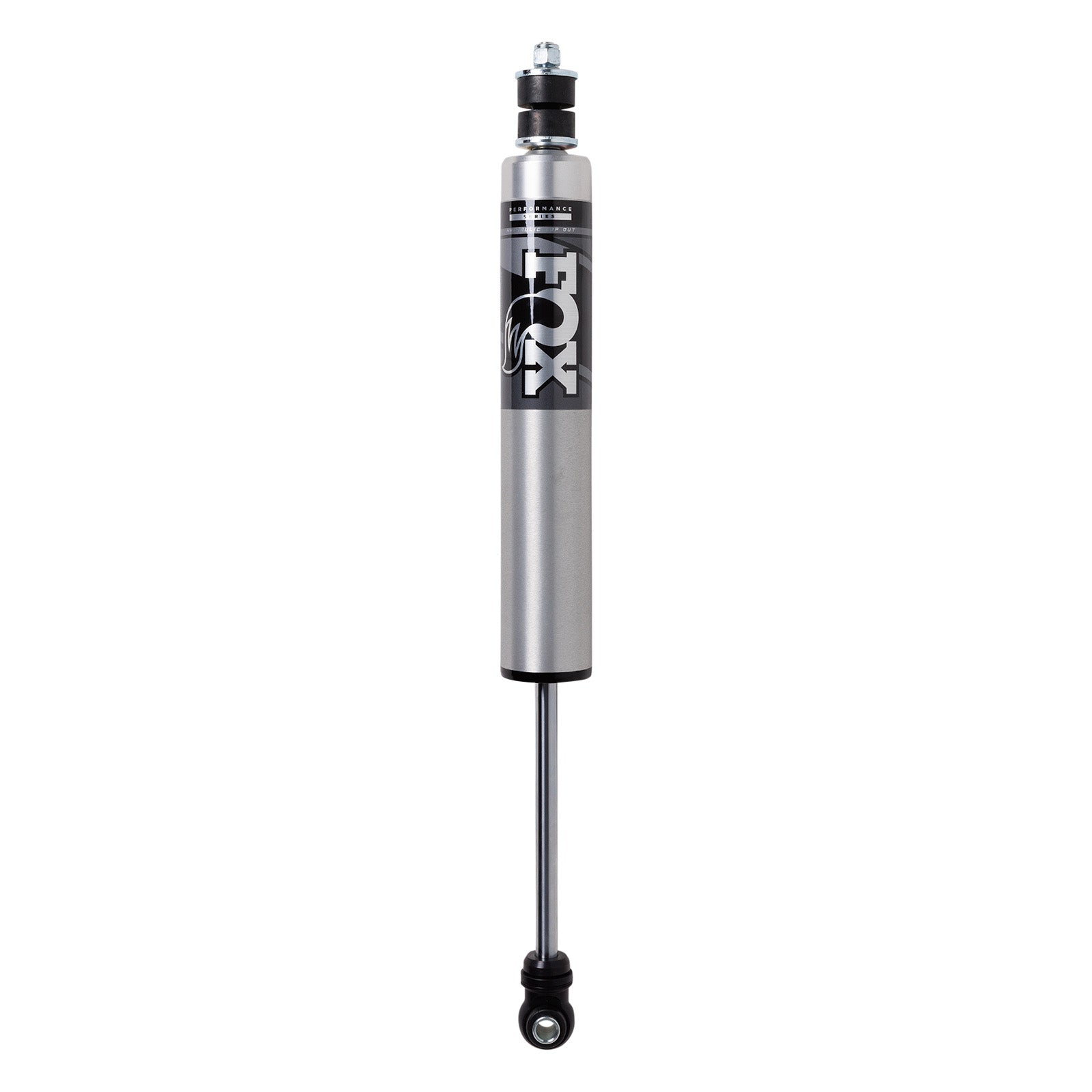

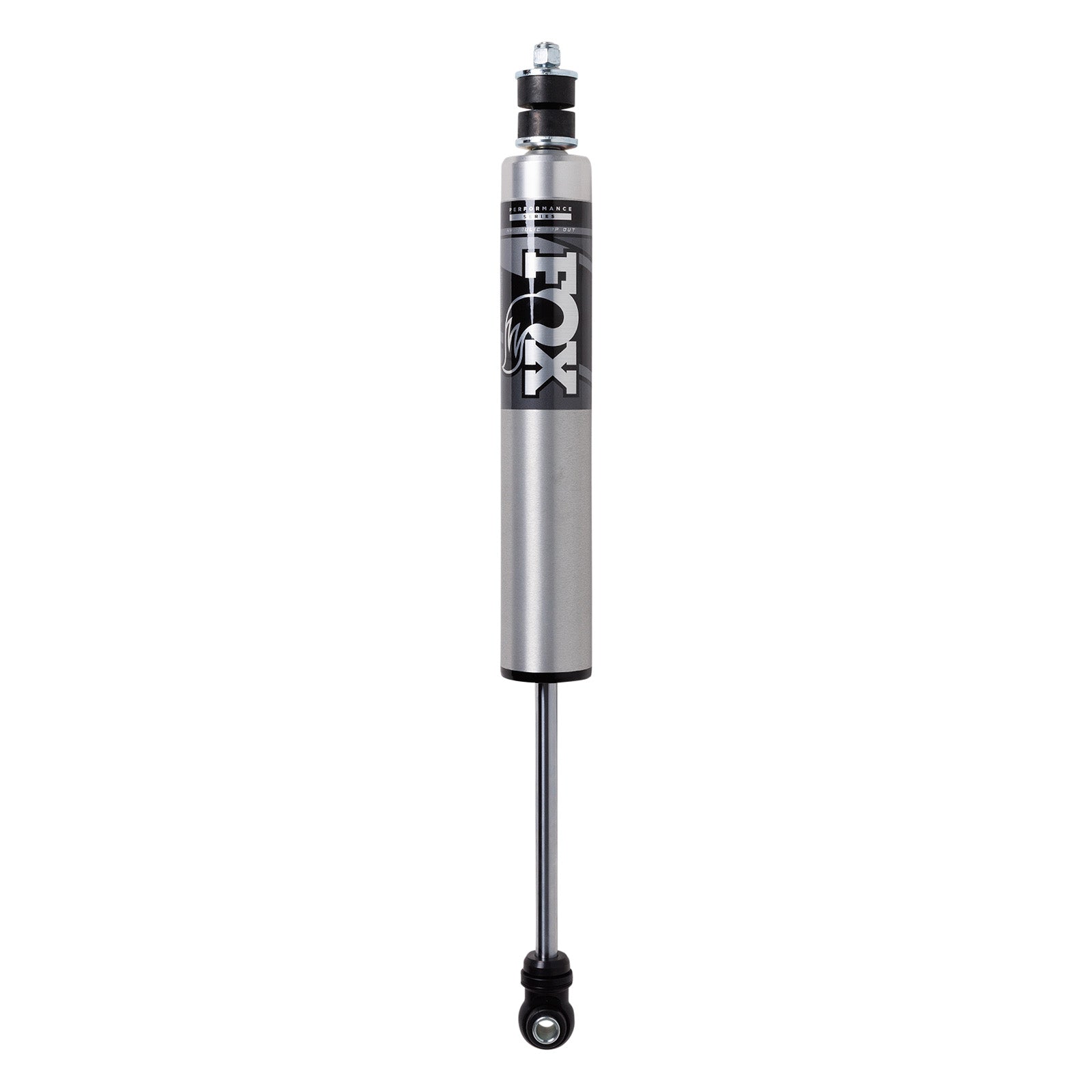

FOX Offroad Shocks 987-24-050 PERFORMANCE SERIES 2.5 SMOOTH BODY IFP HTO SHOCK
Questions about fitment? Live chat or call 866-235-4715
Couldn't load pickup availability
- Free shippingMost orders $500+
- 30-day returnsSee policy
- Warranty supportWe work with the maker
Questions about fitment?
Talk to a TRU specialist
We’ll help you verify fitment before you buy.
Veteran-owned · Austin, Texas · Mon–Fri 9:30a–11:00a & 1:00p–5:30p CT
Important notes before you order
- Increase your vehicle's off-road capability by extending drop-out travel in most applications.
- Experience on-road comfort with performance-minded shock valving for a connected ride with less vehicle sway.
- Tuned specifically for your vehicle’s application.
- _x000d__x000d_
- _x000d__x000d_
- consistent and fade-resistant performance due to high-quality materials: aluminum bodies, race-developed main piston, and a true internal floating piston (ifp) to separate gas and oil.
- _x000d__x000d_
- _x000d__x000d_
- built-to-last, torture-tested and race-proven to give a lifetime of great rides.
- Fox products are built from aluminum, dissipating heat four times better than conventional materials.
- All fox shocks are fully serviceable and resistant to corrosion and harsh environments.
Specifications
| Brand | FOX Offroad Shocks |
|---|---|
| Part number | 987-24-050 |
| Body Diameter (in) | 2.5 |
| Body Material | Aluminum |
| Bottom Mount | Eyelet |
| Compressed Length (in) | 19.00 IN |
| Extended Length (in) | 30.36 IN |
| Fox Catalog | TRUCK |
| Reservoir Type | Internal Floating Piston |
| Series | Performance |
| Top Mount | Stem |
| Travel (in) | 11.36 IN |
| Type | Smooth Body |
| Country of Origin | US |
| Warranty | 12 Months |
| Weight (lbs) | 7 |
California Proposition 65 warning applies to this product. www.P65Warnings.ca.gov
Features
- 2.5” Impact extruded 6061-T6 aluminum shock body
- Type II clear-anodized body plating
- High-flow velocity-sensitive damping
- 5/8” hard chrome shaft
- Internal floating piston (IFP)
- Hydraulic Top Out (HTO) piston
- Corrosion resistant
- Application specific tune
- Fully rebuildable and re-tunable
Installation
Free install support from the Trucks R Us tech team, for you or your shop.
Overview
FOX 2.5 Performance Series HTO shock is a bolt-on shock loaded with position-sensitive technology vehicle-specific valving and larger pistons to improve on and off-road performance. A type II anodized aluminum body efficiently dissipates heat and prevents corrosion. The 2.5-inch shock body features an internal floating piston (IFP) to separate the shock oil from the high-pressure nitrogen optimizing damping. Hydraulic Top Out (HTO) technology offers usable position-sensitive rebound damping control on and off the pavement. HTO reduces harsh top-outs and increases comfort by forcing shock oil through a secondary shim stack to slow down shock shaft speed
HTO is particularly beneficial after installing heavier aggressive tires and applications lifted higher than OEM specification. Bolt-on 2.5 Performance Series HTO shocks to increase damping capacity and ride in comfort with position-sensitive rebound control.
