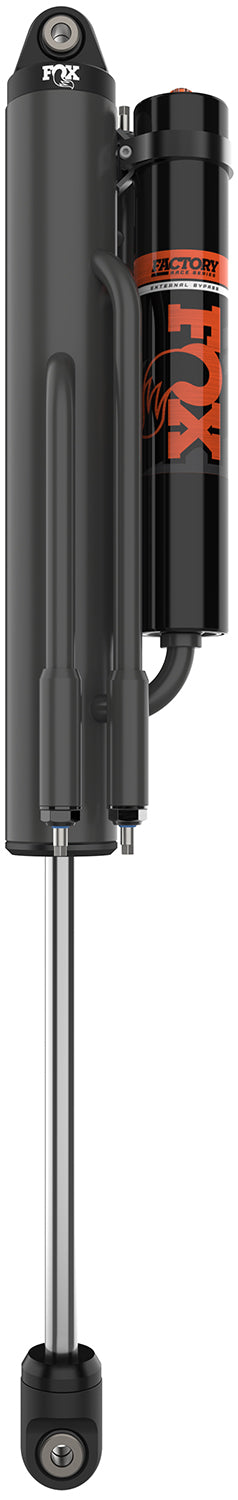

FACTORY RACE 3.0 X 18 EXTERNAL BYPASS (5 TUBE) REMOTE SHOCK (LEFT)

Name: FACTORY RACE 3.0 X 18 EXTERNAL BYPASS (5 TUBE) REMOTE SHOCK (LEFT)
Brand: FOX Offroad Shocks
SKU: 981-30-432-L
Price: 1944.95 USD
Availability: OutOfStock

FACTORY RACE 3.0 X 18 EXTERNAL BYPASS (5 TUBE) REMOTE SHOCK (LEFT)

PART #

$1,944.95

SALE CALL OR CHAT TO ORDER

Shipping calculated at checkout.

Product variants

Quantity

Inventory: Special Order (Live Chat or Call)

View full details

Important: Always read the entire product description, including Important Notes and Fitment information, before making a purchase. Components contained in images and descriptions may change based upon your selections.

FOX External Bypass shocks have racked up countless wins across the globe over the past 30 years. There's no questioning whether they're race proven but in the words of Bob Fox "we're never done." In that spirit we've reitalized our tried-and-true externally adjustable position sensitive damping archtecture to deliver all-new standards of performance and durability all while streamlining the production process.

Features

NEW proprietary Cerakote® protective ceramic coating over zinc plated basecoat
17-4 H900 hard chrome plated stainless steel shaft
Owner serviceable and rebuildable
JM92 MIL-SPEC oil developed specifically for off-road racing
Black Anodized CNC Machined Aluminum Components

Fox devotes countless hours of research and development to design race-winning suspension that withstands incredible punishment and provides consistent performance you can rely on.
Regardless of whether you are flying high over the desert or struggling to stick to a rock face on an off-camber climb, our shocks will give you the damping performance, suspension control and proper spring rate to get the job done.

Quick SpecsOverview:

Adjuster Type: External Bypass Clicker - Gen 2
Body Diameter (in): 3
Body Finish: FOX Grey Cerakote
Body Material: Steel
Bottom Mount: Eyelet
Bypass Tube Size: 3/4
Bypass Tubes: 5
California Proposition 65: ! Warning: Cancer and Reproductive Harm - www.P65Warnings.ca.gov
Compressed Length (in): 27.6 IN
Extended Length (in): 45.46 IN
Eyelet Length (in): 2 IN
Fox Catalog: OFFROAD
Hose: -10 x 28.00
Label Name: 3.0 FRS EXBP 5T R/R 18" LH
Mounting: 1/2 x 1-1/2
Reservoir Dimensions: 2.55 x 14.00
Reservoir Type: Remote
Seal Kit: 803-04-025
Series: Factory Race
Shaft Size (in): 7/8 IN
Title: FACTORY RACE 3.0 X 18 EXTERNAL BYPASS (5 TUBE) REMOTE SHOCK (LEFT)
Top Mount: Eyelet
Travel (in): 17.86 IN
Travel (rounded): 18
Type: External Bypass
Valving: 807-24-600

Additional Specifications:

Country of Origin: US
Warranty: 12 Months
Weight (lbs): 18.0
Vehicle Specific Fitment: N

Instructions

605-00-035_REV_B.pdf

Fitment

: N/A
