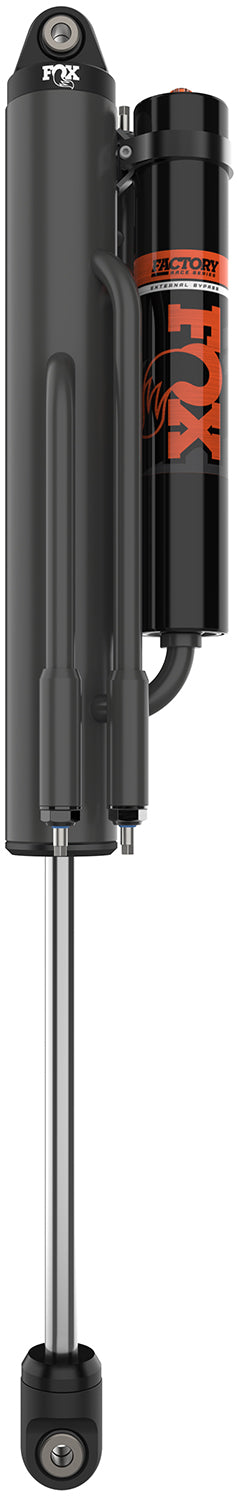

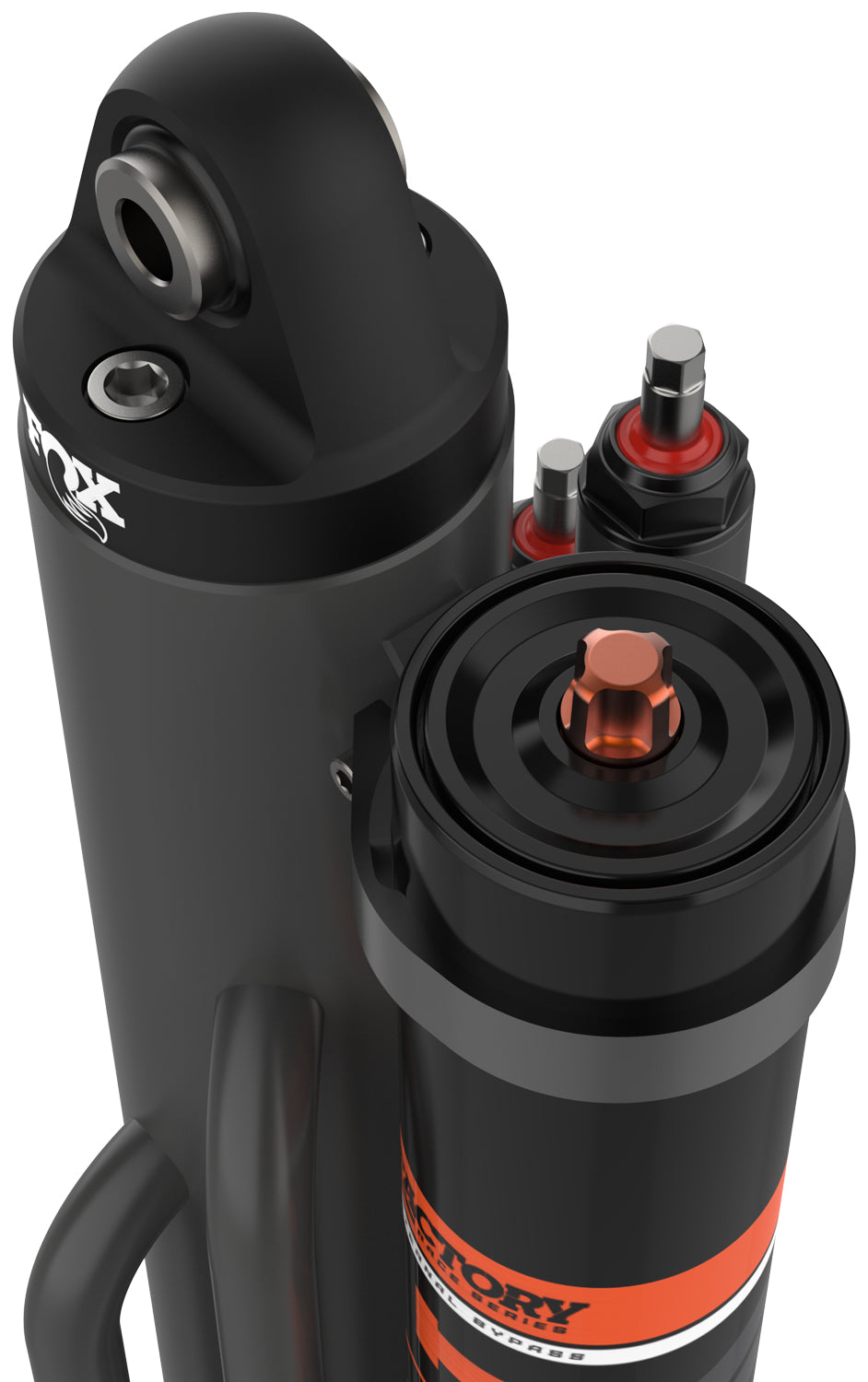

FACTORY RACE 3.0 X 16 EXTERNAL BYPASS (5 TUBE) REMOTE SHOCK (LEFT)
Questions about fitment? Live chat or call 866-235-4715
Couldn't load pickup availability
- Free shippingMost orders $500+
- 30-day returnsSee policy
- Warranty supportWe work with the maker
Questions about fitment?
Talk to a TRU specialist
We’ll help you verify fitment before you buy.
Veteran-owned · Austin, Texas · Mon–Fri 9:30a–11:00a & 1:00p–5:30p CT
Important notes before you order
- Fox devotes countless hours of research and development to design race-winning suspension that withstands incredible punishment and provides consistent performance you can rely on.
- Regardless of whether you are flying high over the desert or struggling to stick to a rock face on an off-camber climb, our shocks will give you the damping performance, suspension control and proper spring rate to get the job done.
Specifications
| Brand | FOX Offroad Shocks |
|---|---|
| Part number | 981-30-431-L |
| Adjuster Type | External Bypass Clicker - Gen 2 |
| Body Diameter (in) | 3 |
| Body Finish | FOX Grey Cerakote |
| Body Material | Steel |
| Bottom Mount | Eyelet |
| Bypass Tube Size | 3/4 |
| Bypass Tubes | 5 |
| Compressed Length (in) | 25.6 IN |
| Extended Length (in) | 41.46 IN |
| Eyelet Length (in) | 2 IN |
| Fox Catalog | OFFROAD |
| Hose | -10 x 28.00 |
| Mounting | 1/2 x 1-1/2 |
| Reservoir Dimensions | 2.55 x 14.00 |
| Reservoir Type | Remote |
| Seal Kit | 803-04-025 |
| Series | Factory Race |
| Shaft Size (in) | 7/8 IN |
| Top Mount | Eyelet |
| Travel (in) | 15.86 IN |
| Travel (rounded) | 16 |
| Type | External Bypass |
| Valving | 807-24-686 |
| Country of Origin | US |
| Warranty | 12 Months |
| Weight (lbs) | 18 |
California Proposition 65 warning applies to this product. www.P65Warnings.ca.gov
Features
- NEW proprietary Cerakote® protective ceramic coating over zinc plated basecoat
- 17-4 H900 hard chrome plated stainless steel shaft
- Owner serviceable and rebuildable
- JM92 MIL-SPEC oil developed specifically for off-road racing
- NEW MAC piston now standard
Installation
Free install support from the Trucks R Us tech team, for you or your shop.
Overview
FOX External Bypass shocks have racked up countless wins across the globe over the past 30 years. There's no questioning whether they're race proven but in the words of Bob Fox "we're never done." In that spirit we've reitalized our tried-and-true externally adjustable position sensitive damping archtecture to deliver all-new standards of performance and durability all while streamlining the production process.
