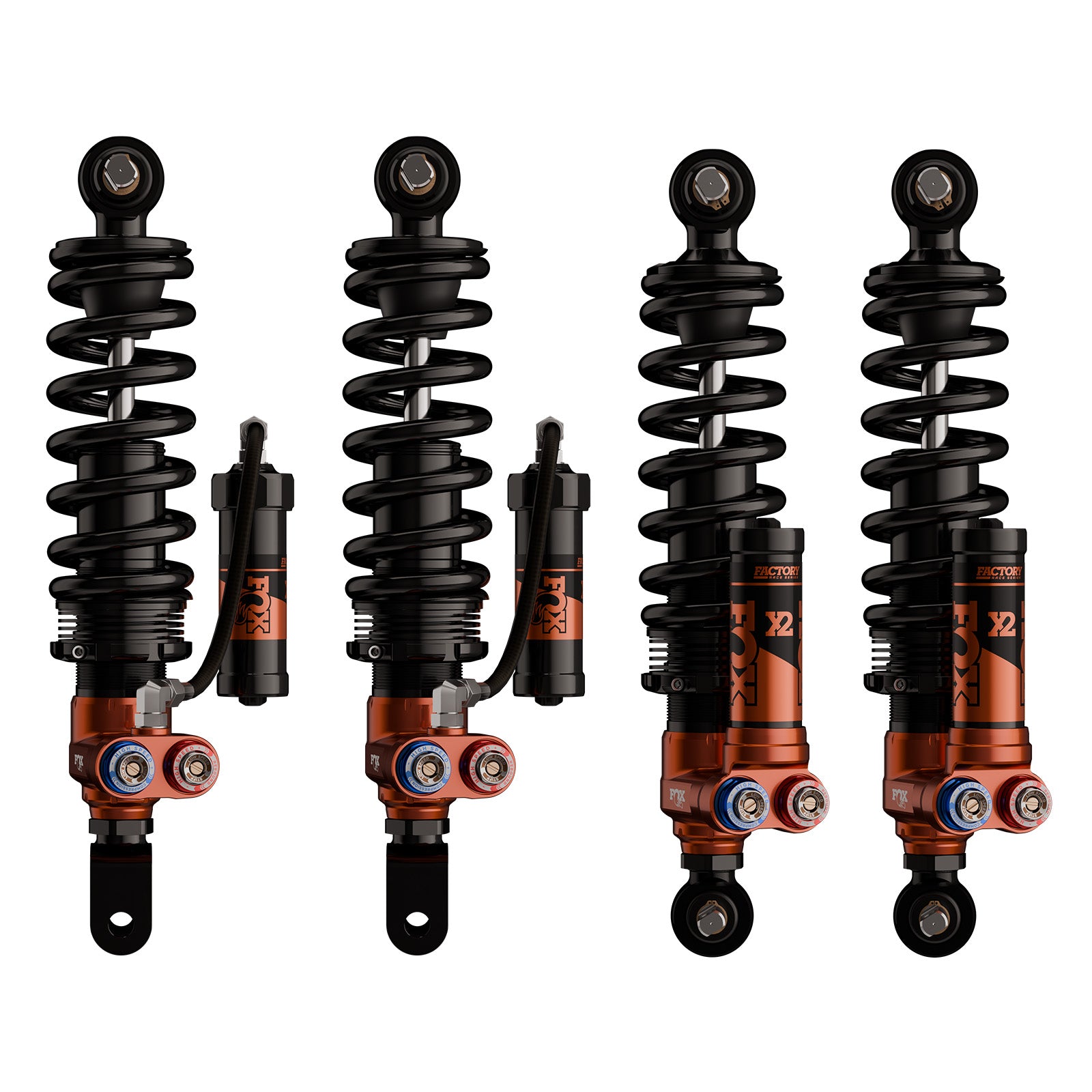

FACTORY RACE SERIES 2.0 COIL-OVER RESERVOIR SHOCK (KIT) - ADJUSTABLE
Questions about fitment? Live chat or call 866-235-4715
Couldn't load pickup availability
- Free shippingMost orders $500+
- 30-day returnsSee policy
- Warranty supportWe work with the maker
Questions about fitment?
Talk to a TRU specialist
We’ll help you verify fitment before you buy.
Veteran-owned · Austin, Texas · Mon–Fri 9:30a–11:00a & 1:00p–5:30p CT
Important notes before you order
- Fox devotes countless hours of research and development to design race-winning suspension that withstands incredible punishment and provides consistent performance you can rely on.
- Regardless of whether you are flying high over the desert or struggling to stick to a rock face on an off-camber climb, our shocks will give you the damping performance, suspension control and proper spring rate to get the job done.
Specifications
| Brand | FOX Offroad Shocks |
|---|---|
| Part number | 883-30-004 |
| Adjuster Type | X2 DSC - Dual-Speed Compression DSR - Dual-Speed Rebound |
| Body Diameter (in) | 2 |
| Body Material | Aluminum |
| Bottom Mount | Bar Pin(F)/Clevis(R) |
| Compressed Length (in) | 12.58(F)/12.86(R) IN |
| Extended Length (in) | 16.56(F)/16.94(R) IN |
| Fox Catalog | TRUCK |
| Reservoir Type | Remote |
| Series | Factory Race |
| Top Mount | Bar Pin |
| Travel (in) | 3.98(F)/4.08(R) IN |
| Type | Coil-Over |
| Vehicle Ride Height Drop | 0.75"-1.5" |
| Country of Origin | US |
| Warranty | 12 Months |
| Weight (lbs) | 59.2 |
California Proposition 65 warning applies to this product. www.P65Warnings.ca.gov
Features
- 2.0” impact-extruded and CNC-machined 6061-T6 TYPE III anodized aluminum body
- 5/8” hard chromed steel shafts
- Vehicle-specific tuning maximizes performance
- Patented rubber isolated spherical bearing
- Redundant sealing pack system: main seal wiper seal scraper seal
- External reservoir with internal floating piston
Installation
Free install support from the Trucks R Us tech team, for you or your shop.
Overview
The C7 Corvette delivers speed from the factory and a strong aftermarket catalog makes the chassis an ideal vehicle to configure into a dedicated track car or performance-oriented daily driver. FOX Factory Race Series 2.0 X2 shocks dramatically improve the car’s handling and driver confidence.
TYPE III hard anodization prevents corrosion and wear of the 2.0-inch aluminum bodies. Converting the front suspension to a coil-over makes spring changes ride height adjustment and corner balancing easier. The Factory Race Series kit accommodates 0.75-1.5” of lowering. External reservoirs increase oil capacity and decrease the harshness associated with nitrogen ramp-up.
Our ride engineers spent considerable time testing the Corvette. We tracked the car drove the C7 on the street and optimized the shock valving for various driving conditions. Fine-tune the vehicle’s damping with the 4-way adjuster X2. Easily tune high-speed compression high-speed rebound low-speed compression and low-speed rebound separately with 24 clicks each. The shock’s twin tube recirculating oil architecture coupled with X2 provides motorsport-level damping on the track and 4-way adjustment allows for a comfortable drive home.
The C7 Corvette is powerful and track-capable. With FOX you can transform its ride dynamics to deliver more comfort over rough surfaces while feeling planted and stable through different track layouts and topography.
