FACTORY RACE SERIES 2.5 INTERNAL BYPASS RESERVOIR (PAIR) - ADJUSTABLE
Questions about fitment? Live chat or call 866-235-4715
Couldn't load pickup availability
- Free shippingMost orders $500+
- 30-day returnsSee policy
- Warranty supportWe work with the maker
Questions about fitment?
Talk to a TRU specialist
We’ll help you verify fitment before you buy.
Veteran-owned · Austin, Texas · Mon–Fri 9:30a–11:00a & 1:00p–5:30p CT
Specifications
| Brand | FOX Offroad Shocks |
|---|---|
| Part number | 883-26-124 |
| Adjuster Type | DSC - Dual Speed Compression |
| Body Diameter (in) | 2.5 |
| Body Material | Aluminum |
| Bottom Mount | ES5 |
| Compressed Length (in) | 15.36 IN |
| Extended Length (in) | 24.65 IN |
| Fox Catalog | TRUCK |
| Reservoir Type | Remote |
| Series | Factory Race |
| Top Mount | SM1 |
| Travel (in) | 9.29 IN |
| Type | Smooth Body Internal Bypass |
| Country of Origin | US |
| Warranty | 12 Months |
| Weight (lbs) | 36 |
California Proposition 65 warning applies to this product. www.P65Warnings.ca.gov
Features
- Finned External Reservoir System Dissipates Heat Fast
- Quick Switch Compression And Rebound Adjusters
- Black Anodized CNC Machined Aluminum Components
Fitment
| Years | Vehicle |
|---|---|
| 2005-2014 | Toyota Tacoma 2WD (Rear, 2"-3" lift): Fits 6 lug version only |
| 2016-2023 | Toyota Tacoma 4WD (Rear, 2"-3" lift) |
| 2015 | Toyota Tacoma Base 2WD (Rear, 2"-3" lift): Fits 6 lug version only |
| 2005-2015 | Toyota Tacoma Base 4WD (Rear, 2"-3" lift) |
| 2016-2023 | Toyota Tacoma Limited 2WD (Rear, 2"-3" lift): Fits 6 lug version only |
| 2015 | Toyota Tacoma Pre Runner (Rear, 2"-3" lift): Fits 6 lug version only |
| 2016-2023 | Toyota Tacoma SR 2WD (Rear, 2"-3" lift): Fits 6 lug version only |
| 2016-2023 | Toyota Tacoma SR5 2WD (Rear, 2"-3" lift): Fits 6 lug version only |
| 2017-2023 | Toyota Tacoma Sport 2WD (Rear, 2"-3" lift): Fits 6 lug version only |
| 2016-2023 | Toyota Tacoma TRD Off-Road 2WD (Rear, 2"-3" lift): Fits 6 lug version only |
| 2015 | Toyota Tacoma TRD Pro (Rear, 2"-3" lift) |
| 2017 | Toyota Tacoma TRD Pro 2WD (Rear, 2"-3" lift): Fits 6 lug version only |
| 2015-2023 | Toyota Tacoma TRD Sport 2WD (Rear, 2"-3" lift): Fits 6 lug version only |
| 2010-2015 | Toyota Tacoma TRD Sport 4WD (Rear, 2"-3" lift) |
| 2021 | Toyota Tacoma Trail 2WD (Rear, 2"-3" lift): Fits 6 lug version only |
Use the fit check above with your truck selected, or ask a specialist if your trim isn't listed.
Installation
Free install support from the Trucks R Us tech team, for you or your shop.
Overview

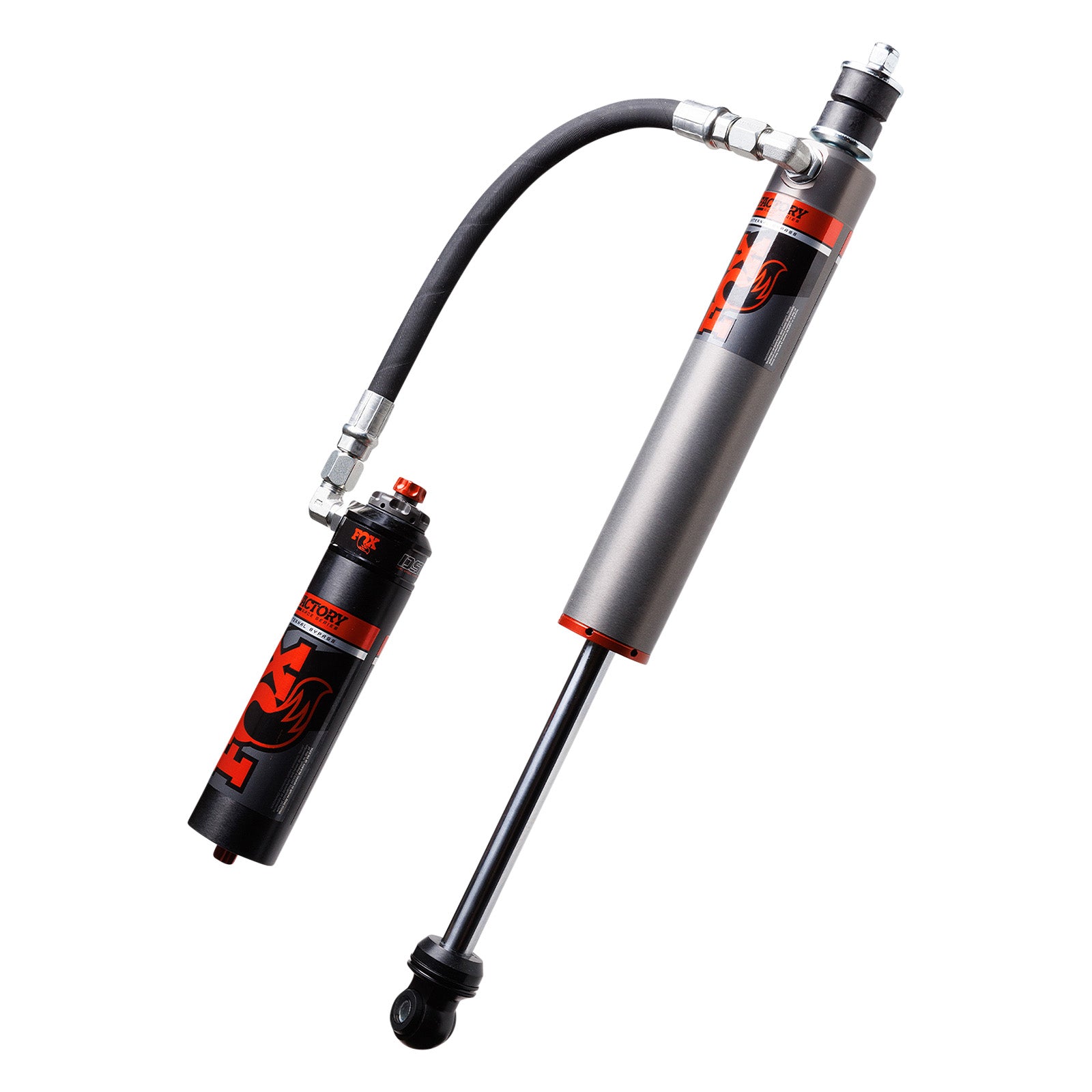

FOX Factory Race Series 2.5 Internal Bypass shocks for the Toyota Tacoma deliver velocity and position-sensitive damping technology, Dual Speed Compression (DSC) adjustment, and high-speed ready performance in a bolt-on kit.
Patented Internal Bypass technology allows for multiple zones of damping control. The result is a comfortable, confident ride with increased damping capacity through rough terrain. Internal bypass shocks produce more force progressively to control hard bottom-outs, prevent harsh top-outs, and provide an initial catch for landing. Shock fluid bypasses the main piston through a series of bleed holes in the ride zone. As the shock extends past the ride zone in rebound or compression, the bleed holes terminate, forcing fluid through the main piston.
Type III anodization prevents corrosion and wear of the 2.5-inch diameter aluminum bodies. Dial in your Tacoma for load, environment, and driving style with the DSC adjuster. External reservoirs increase oil capacity and house an internal floating piston (IFP) to separate the shock oil and nitrogen charge, maintaining consistent damping and keeping shock temperatures cool.
Experience the support and confidence of FOX Internal Bypass shocks you need while driving high-speed through rugged terrain.
