Fits 2019-2024, 2026-2027 RAM 1500 (New body) with 5.7L Hemi (Including e-Torque) engines and factory dual tailpipes. - Aggressive to moderate sound
Questions about fitment? Live chat or call 866-235-4715
Couldn't load pickup availability
- Free shippingMost orders $500+
- 30-day returnsSee policy
- Warranty supportWe work with the maker
Questions about fitment?
Talk to a TRU specialist
We’ll help you verify fitment before you buy.
Veteran-owned · Austin, Texas · Mon–Fri 9:30a–11:00a & 1:00p–5:30p CT
Important notes before you order
- Does not fit trucks with factory single exit tailpipe or 2019-2024 Classic body.
Specifications
| Brand | Flowmaster |
|---|---|
| Part number | 817843 |
| Brand | Flowmaster |
| CARB (California) Compliant | Yes |
| Catalytic Converter Included | No |
| Catalytic Converter Quantity | 0 |
| Category | Exhaust |
| Clamping Type | Flat Band |
| Clamps Included | Yes |
| Emission Code | 5 |
| Exhaust Series | American Thunder |
| Exhaust Tip Color | Black |
| Exhaust Tip Connection | Clamp-On |
| Exhaust Tip Cut | Angled |
| Exhaust Tip Diameter | 4.00 IN |
| Exhaust Tip Edge | Angle Cut |
| Exhaust Tip Finish | Black Ceramic Coating |
| Exhaust Tip Intercooled | No |
| Exhaust Tip Length | 13.00 IN |
| Exhaust Tip Material | 304 Stainless Steel |
| Exhaust Tip Quantity | 2 |
| Exhaust Tip Resonated | No |
| Exhaust Tip Shape | Round |
| Exhaust Tip Wall | Double Wall |
| Exit Style | Dual Out Rear |
| Finish | Natural |
| Gasket Or Seal Included | No |
| Grade Type | Performance |
| Hangers Included | Yes |
| Heat Shield Included | No |
| Inlet Type | Flanged |
| Main Piping Diameter | 3.00 IN |
| Mount Type | Uses Factory Hangers |
| Mounting Bracket Included | No |
| Muffler Body Height | 5.00 IN |
| Muffler Body Length | 18.00 IN |
| Muffler Body Material | 409 Stainless Steel |
| Muffler Body Shape | Oval |
| Muffler Body Width | 10.00 IN |
| Muffler Color | Black |
| Muffler Finish | Black High-Temperature Paint Finish |
| Muffler Flanged Inlet | No |
| Muffler Flanged Outlet | No |
| Muffler Included | Yes |
| Muffler Inlet Connection | Slip-Fit |
| Muffler Inlet Inside Diameter | 3.00 IN |
| Muffler Inlet Location | Center |
| Muffler Inlet Outside Diameter | 3.13 IN |
| Muffler Outlet Connection | Slip-Fit |
| Muffler Outlet Diameter | 3.00 IN |
| Muffler Outlet Location | Dual |
| Muffler Outlet Quantity | 2 |
| Muffler Overall Length | 24.00 IN |
| Muffler Part Number | Kit Only |
| Muffler Quantity | 1 |
| Muffler Series | 50 Series HD |
| Muffler Type | Chambered |
| part type | Exhaust System |
| Pipe Color | Silver |
| Pipe Material | 409 Stainless Steel |
| Product Type | Exhaust System |
| Sound Level | Aggressive / Moderate |
| Spring Bolt Kit Included | No |
| Sub Category | Exhaust and Tail Pipes |
| Tail Pipe Outlet Outside Diameter | 3.00 IN |
| Tail Pipe Quantity | 2 |
| Tail Pipe Tapered Outlet | No |
| Tip Logo | Embossed |
| Type | Cat-Back |
| Valve Included | No |
| Valve Type | Not Applicable |
| Warning | California Proposition 65 |
California Proposition 65 warning applies to this product. www.P65Warnings.ca.gov
Features
- Lifetime Limited Warranty
Installation
Free install support from the Trucks R Us tech team, for you or your shop.
Overview

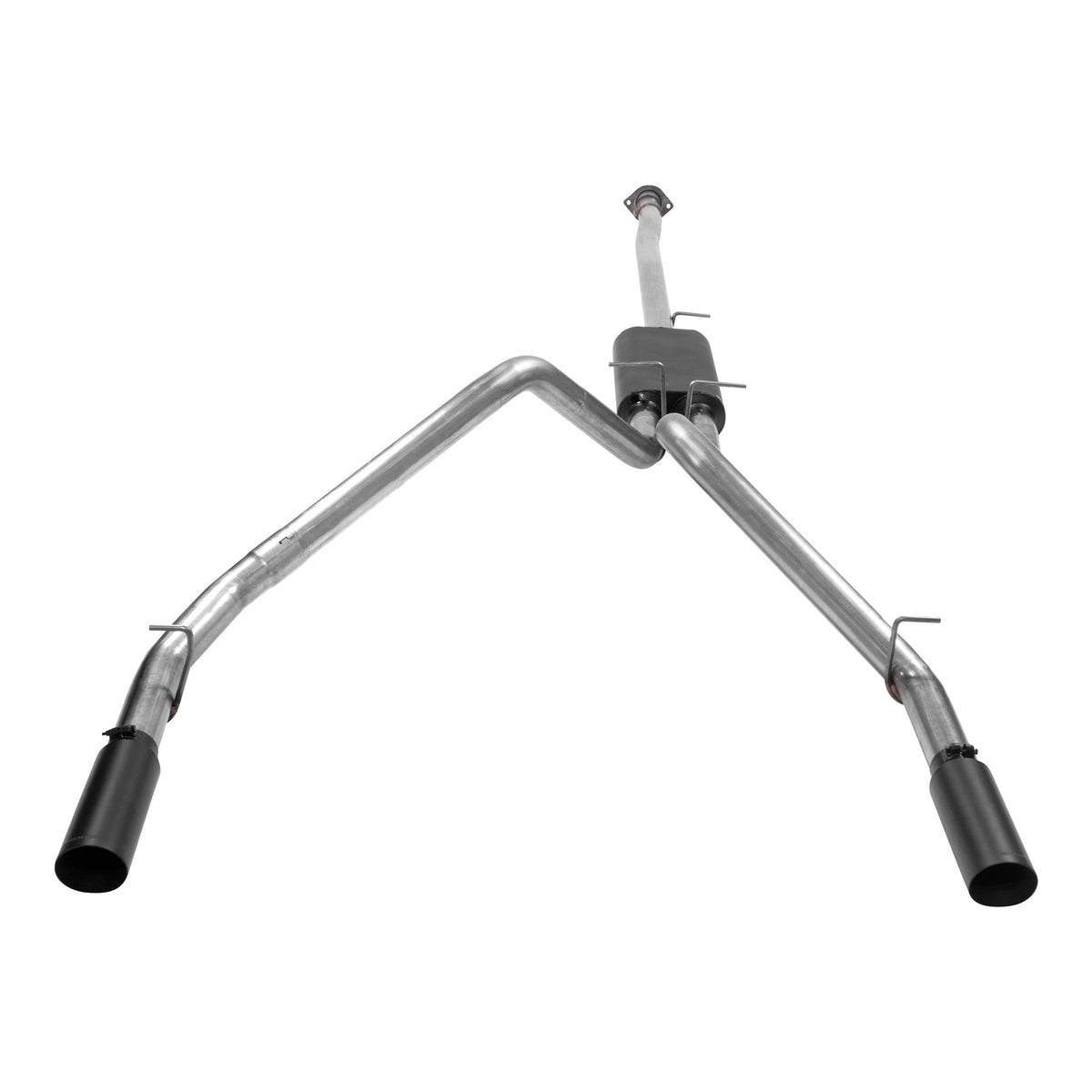

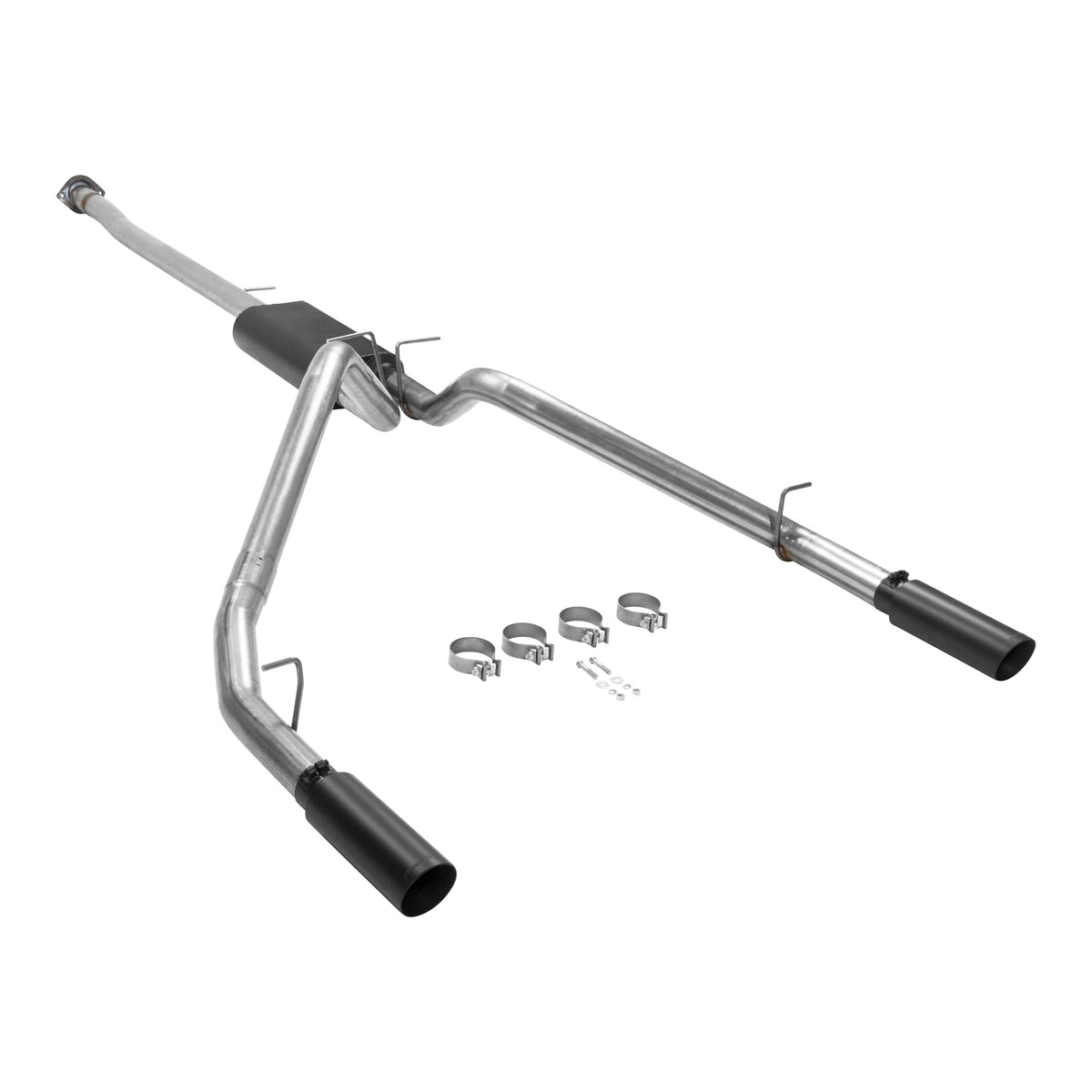

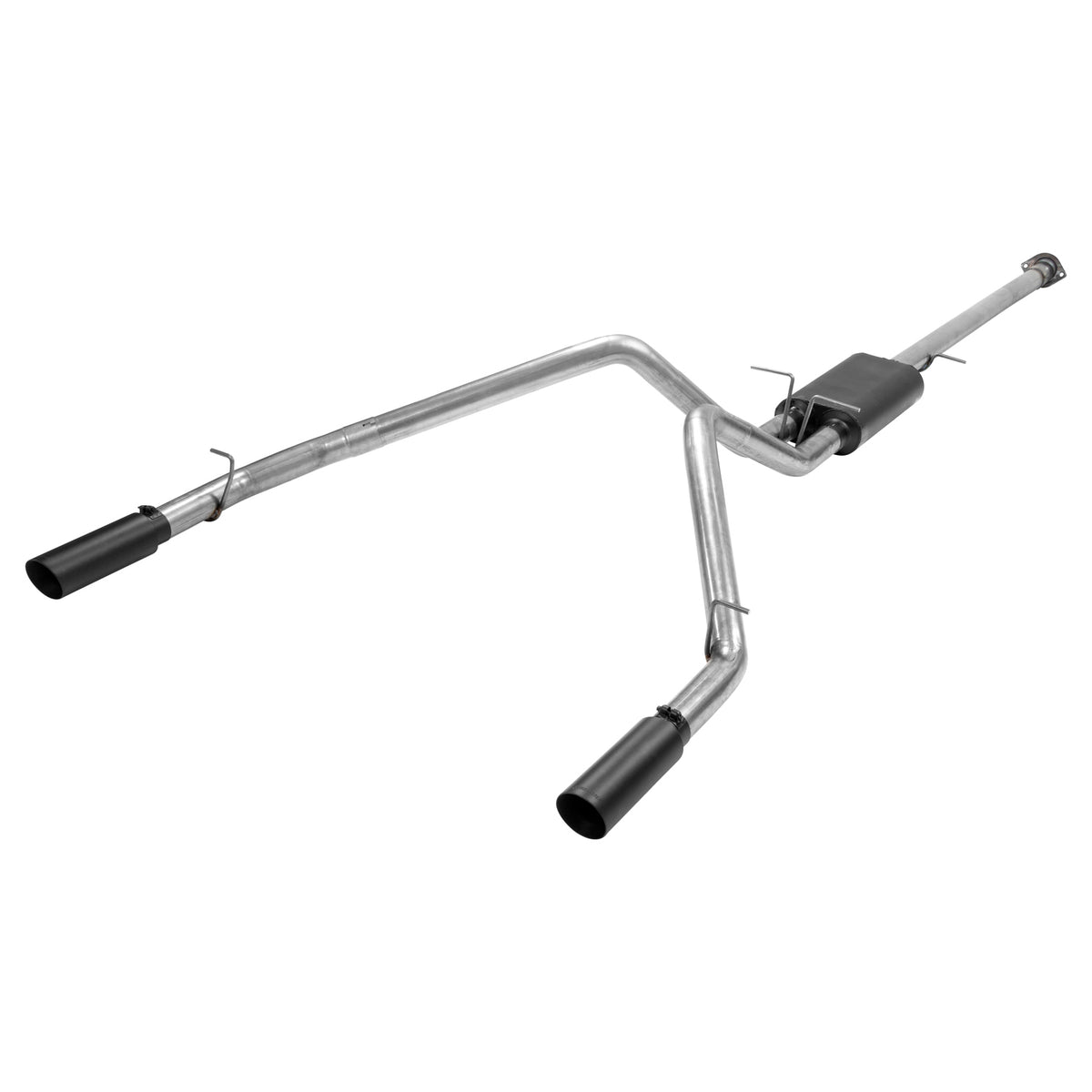

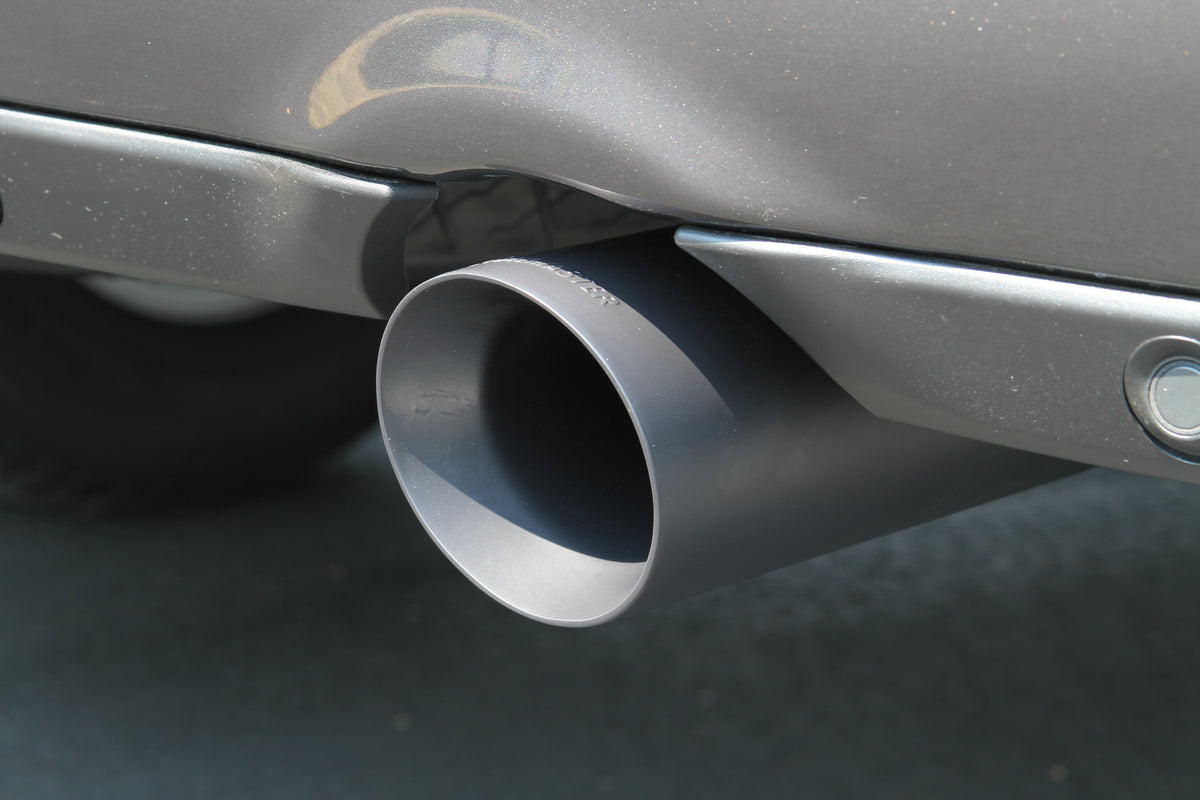

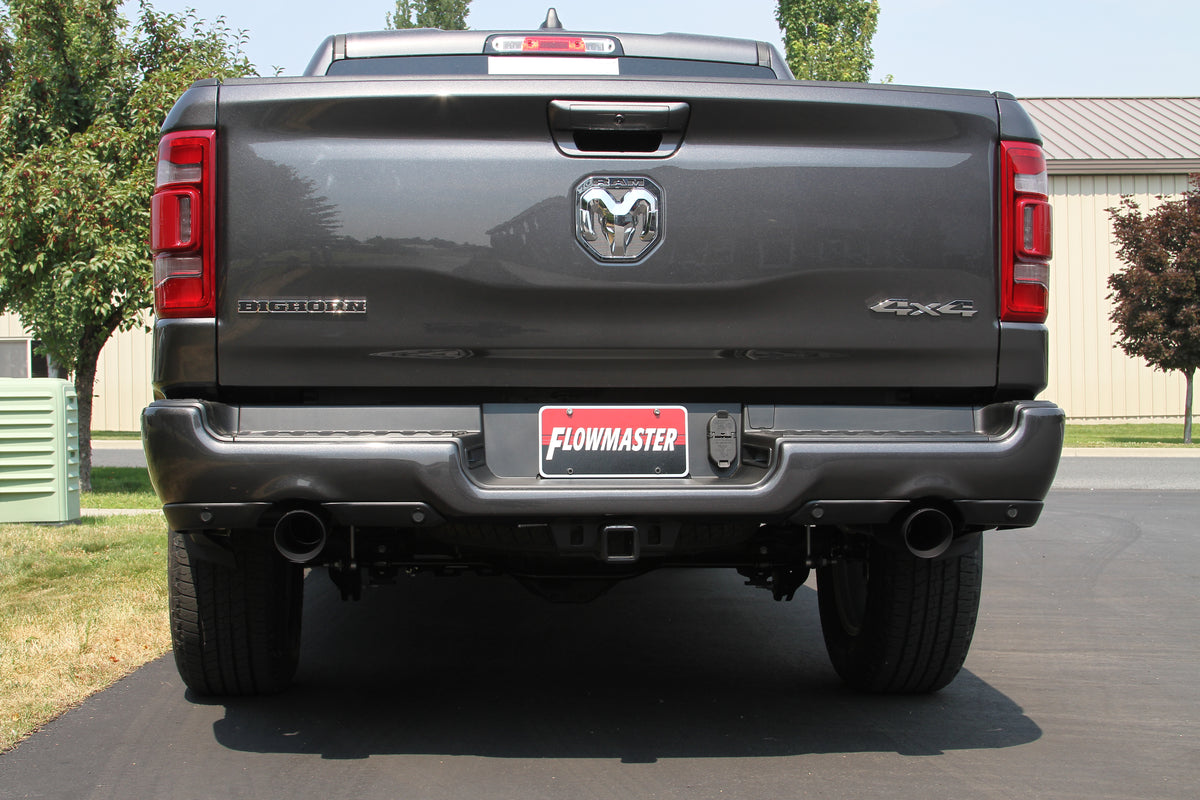

The American Thunder® cat-back exhaust system for the 2019-2024, 2026-2027 RAM 1500 (New body) with 5.7L Hemi (Including e-Torque) engines and factory dual tailpipes is perfect for the person looking for a deep powerful exterior sound with all of the performance benefits that you would expect from Flowmaster®. This bolt-on emissions legal system features all mandrel-bent stainless steel tubing leading into a 50 Series™ HD muffler that was originally designed specifically for RAM Hemi engines to deliver maximum power and exterior sound quality, but with a moderately pleasant interior tone at cruising speeds. Other features include dual 3.00-inch tailpipes that clear the factory spare tire and are finished with large 4.00-inch black ceramic coated exhaust tips filling out the factory cutouts in the rear bumper. The system utilizes the factory hangers, includes all necessary parts, hardware and instructions for an easy installation you can do at home. Comes with Flowmaster's Lifetime Limited Warranty. Notes: Fits all 5.7L Hemi, 2/4 wheel drive models with 140.5, 144.6 and 153.5-inch wheelbases with 5.7 and 6.4-foot bed lengths.
Questions
Will this fit my truck?
Select your truck at the top of the page and the fit check will confirm it. If your exact trim is not listed, call 866-235-4715 or live chat and a fitment specialist will check it before you order.
Do you help with installation?
Yes. Our technical team helps you or your shop with installation and troubleshooting after delivery, on top of the manufacturer’s support.
What if the part has a problem?
We work the warranty claim with the manufacturer on your behalf, within the manufacturer’s warranty policy.
Can I return it?
Most items can be returned within 30 days. See our return policy for details.
No reviews for this part yet. Trucks R Us is rated on Trustpilot, Google and the BBB.
About Flowmaster
Manufacturer of performance exhaust systems, mufflers, performance air intakes, catalytic converters, race mufflers, headers and numerous exhaust accessories for late model cars, trucks, off-road, Jeeps, SUV’s, classic muscle cars, powersports vehicles and more. Flowmaster® gives you lots of exhaust choices... Shop all Flowmaster
