2009-2013 Chevrolet Silverado & GMC Sierra 1500 trucks with the 5.3L engine with 143.5 and 157.5-inch wheelbases. - Aggressive sound
Questions about fitment? Live chat or call 866-235-4715
Couldn't load pickup availability
- Free shippingMost orders $500+
- 30-day returnsSee policy
- Warranty supportWe work with the maker
Questions about fitment?
Talk to a TRU specialist
We’ll help you verify fitment before you buy.
Veteran-owned · Austin, Texas · Mon–Fri 9:30a–11:00a & 1:00p–5:30p CT
Important notes before you order
- 2009-2013 Chevrolet Silverado & GMC Sierra 1500 trucks with the 5.3L engine with 143.5 and 157.5-inch wheelbases.
Specifications
| Brand | Flowmaster |
|---|---|
| Part number | 817706 |
| Brand | Flowmaster |
| CARB (California) Compliant | Yes |
| Catalytic Converter Included | No |
| Catalytic Converter Quantity | 0 |
| Category | Exhaust |
| Clamping Type | Flat Band |
| Clamps Included | Yes |
| Drive | 4WD |
| Emission Code | 5 |
| Exhaust Series | Outlaw Extreme |
| Exhaust Tip Color | Black |
| Exhaust Tip Connection | Welded |
| Exhaust Tip Cut | Square |
| Exhaust Tip Diameter | 3.00 IN |
| Exhaust Tip Edge | Slash Cut |
| Exhaust Tip Finish | Black Ceramic Coating |
| Exhaust Tip Intercooled | No |
| Exhaust Tip Length | 12.00 IN |
| Exhaust Tip Material | 409 Stainless Steel |
| Exhaust Tip Quantity | 1 |
| Exhaust Tip Resonated | No |
| Exhaust Tip Shape | Round |
| Exhaust Tip Wall | Single Wall |
| Exit Style | Single Out Dump |
| Finish | Natural |
| Gasket Or Seal Included | No |
| Grade Type | Performance |
| Hangers Included | Yes |
| Heat Shield Included | No |
| Inlet Diameter | 3.00 IN |
| Inlet Type | Clamp-On |
| Main Piping Diameter | 3.00 IN |
| Mount Type | Uses Factory Hangers |
| Mounting Bracket Included | No |
| Muffler Body Diameter | 4.00 IN |
| Muffler Body Height | 4.00 IN |
| Muffler Body Length | 10.50 IN |
| Muffler Body Material | 409 Stainless Steel |
| Muffler Body Shape | Round |
| Muffler Body Width | 4.00 IN |
| Muffler Finish | Black High-Temperature Paint Finish |
| Muffler Flanged Inlet | No |
| Muffler Flanged Outlet | No |
| Muffler Included | Yes |
| Muffler Inlet Connection | Slip-Fit |
| Muffler Inlet Inside Diameter | 3.00 IN |
| Muffler Inlet Outside Diameter | 3.13 IN |
| Muffler Outlet Quantity | 1 |
| Muffler Part Number | Kit Only |
| Muffler Quantity | 1 |
| Muffler Series | Outlaw |
| Muffler Type | Chambered |
| part type | Exhaust System |
| Pipe Color | Black |
| Pipe Material | 409 Stainless Steel |
| Product Type | Exhaust System |
| Sound Level | Aggressive |
| Spring Bolt Kit Included | No |
| Sub Category | Exhaust and Tail Pipes |
| Tail Pipe Outlet Outside Diameter | 3.00 IN |
| Tail Pipe Quantity | 1 |
| Tail Pipe Tapered Outlet | No |
| Type | Cat-Back |
| Valve Included | No |
| Valve Type | Not Applicable |
| Warning | California Proposition 65 |
California Proposition 65 warning applies to this product. www.P65Warnings.ca.gov
Features
- Race Proven Outlaw Muffler Technology
Installation
Free install support from the Trucks R Us tech team, for you or your shop.
Overview

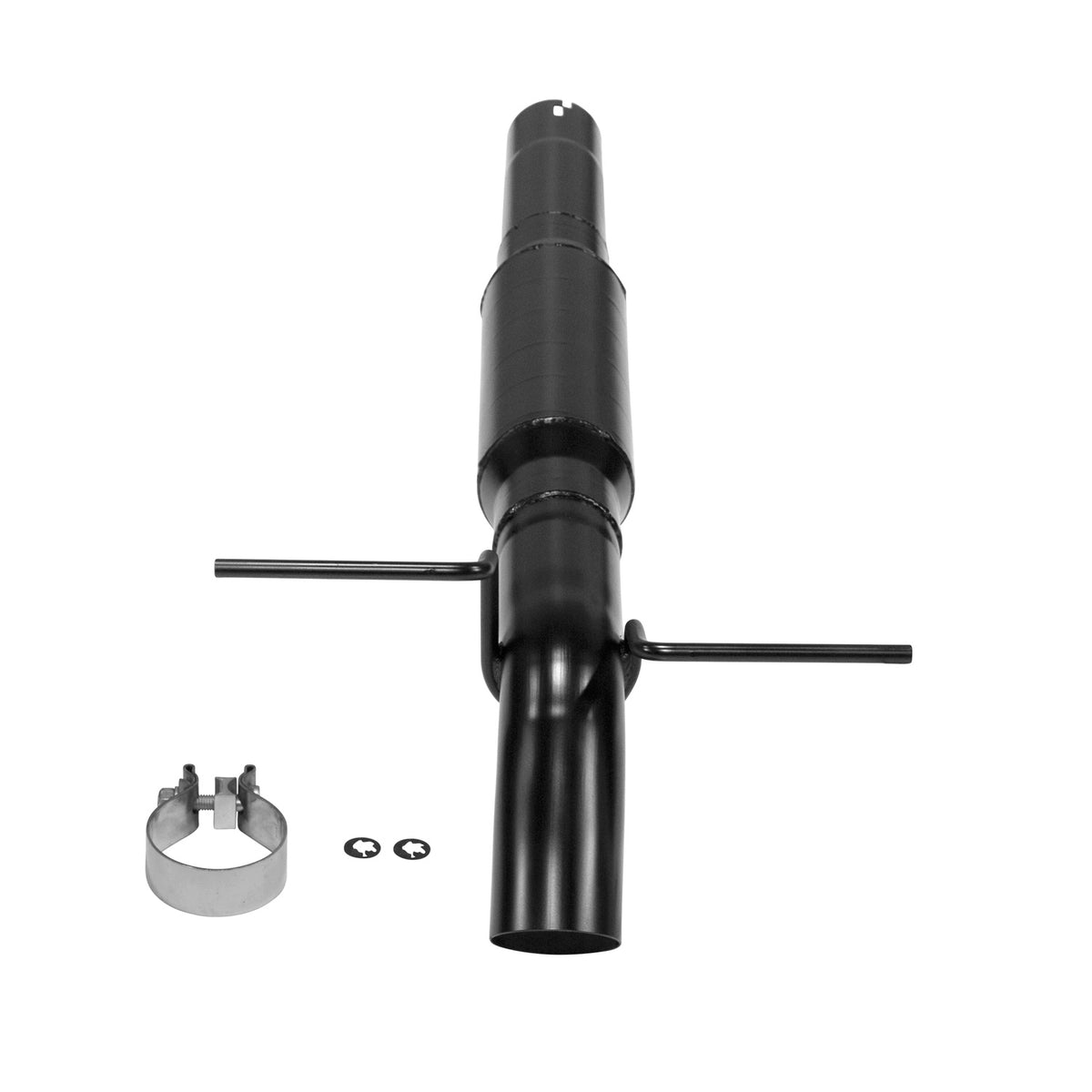

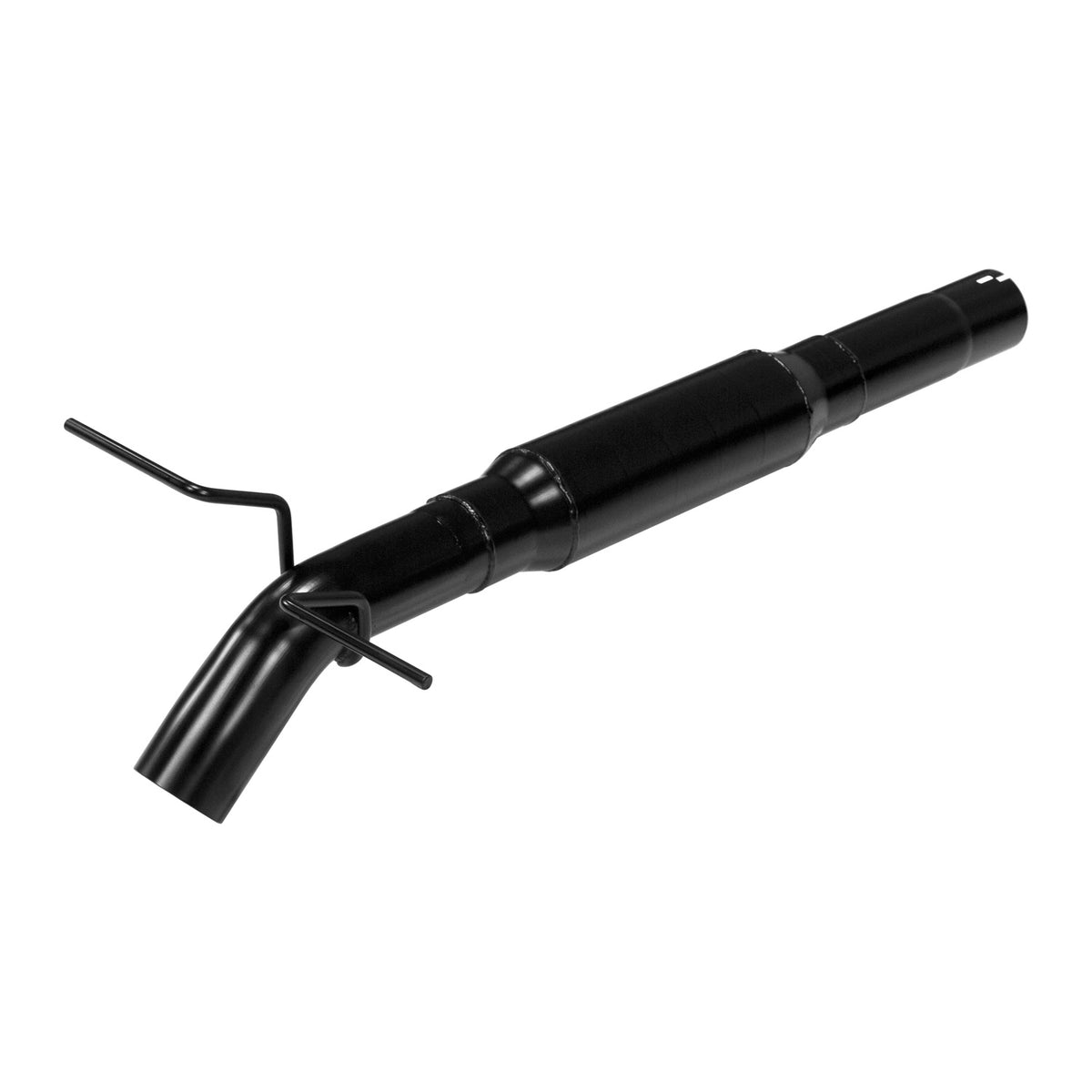

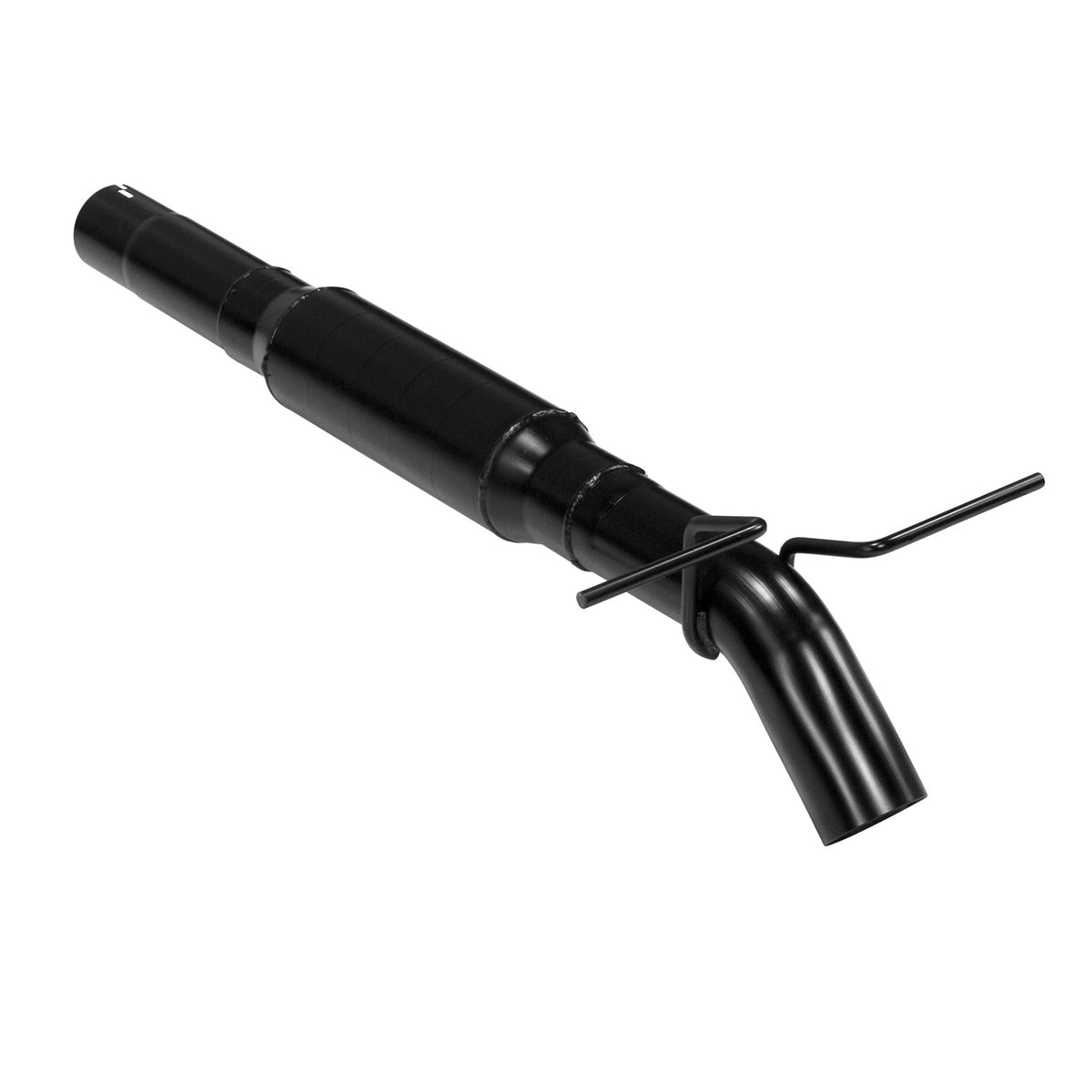

Flowmaster introduces their new Outlaw Extreme Cat-back system for the 2009-2013 Chevrolet Silverado & GMC Sierra 1500 trucks with the 5.3L engine. These kits deliver the ultimate sound in aggressive exhaust systems by using a race-proven 3.00-inch stainless steel Outlaw muffler with a 3.00-inch dump style turn down exit with no tailpipes. As an Outlaw extreme system, this will deliver a very aggressive sound and tone both outside and inside the truck. The stainless steel system is covered by our Lifetime Limited Warranty and includes all of the necessary parts and hardware for an easy installation you can do at home. This system fits both 2/4 wheel drive Extended Cab and Crew Cab models only with 143.5 and 157.5-inch wheelbases.
Questions
Will this fit my truck?
Select your truck at the top of the page and the fit check will confirm it. If your exact trim is not listed, call 866-235-4715 or live chat and a fitment specialist will check it before you order.
Do you help with installation?
Yes. Our technical team helps you or your shop with installation and troubleshooting after delivery, on top of the manufacturer’s support.
What if the part has a problem?
We work the warranty claim with the manufacturer on your behalf, within the manufacturer’s warranty policy.
Can I return it?
Most items can be returned within 30 days. See our return policy for details.
No reviews for this part yet. Trucks R Us is rated on Trustpilot, Google and the BBB.
About Flowmaster
Manufacturer of performance exhaust systems, mufflers, performance air intakes, catalytic converters, race mufflers, headers and numerous exhaust accessories for late model cars, trucks, off-road, Jeeps, SUV’s, classic muscle cars, powersports vehicles and more. Flowmaster® gives you lots of exhaust choices... Shop all Flowmaster
