Fits 2009-2014 Ford F-150 with 4.6L, 5.0L or 5.4L engine, stainless steel - Aggressive to moderate sound
Questions about fitment? Live chat or call 866-235-4715
Couldn't load pickup availability
- Free shippingMost orders $500+
- 30-day returnsSee policy
- Warranty supportWe work with the maker
Questions about fitment?
Talk to a TRU specialist
We’ll help you verify fitment before you buy.
Veteran-owned · Austin, Texas · Mon–Fri 9:30a–11:00a & 1:00p–5:30p CT
Important notes before you order
- Fits 2009-2014 Ford F-150 with 4.6L, 5.0L or 5.4L engine. Fits 2/4 wheel drive and all wheelbases.
Specifications
| Brand | Flowmaster |
|---|---|
| Part number | 817522 |
| Brand | Flowmaster |
| CARB (California) Compliant | Yes |
| Catalytic Converter Included | No |
| Catalytic Converter Quantity | 0 |
| Category | Exhaust |
| Clamping Type | Flat Band |
| Clamps Included | Yes |
| Drive | 4WD |
| Emission Code | 5 |
| Exhaust Series | American Thunder |
| Exhaust Tip Color | Silver |
| Exhaust Tip Connection | Clamp-On |
| Exhaust Tip Cut | Angled |
| Exhaust Tip Diameter | 3.00 IN |
| Exhaust Tip Edge | Rolled Edge Angle Cut |
| Exhaust Tip Finish | Polished |
| Exhaust Tip Intercooled | No |
| Exhaust Tip Length | 13.00 IN |
| Exhaust Tip Material | 304 Stainless Steel |
| Exhaust Tip Quantity | 2 |
| Exhaust Tip Resonated | No |
| Exhaust Tip Shape | Round |
| Exhaust Tip Wall | Single Wall |
| Exit Style | Dual Out Side |
| Finish | Natural |
| Gasket Or Seal Included | No |
| Grade Type | Performance |
| Hangers Included | Yes |
| Heat Shield Included | No |
| Inlet Diameter | 3.00 IN |
| Inlet Type | Flanged |
| Main Piping Diameter | 2.50 IN |
| Mounting Bracket Included | Yes |
| Muffler Body Height | 5.00 IN |
| Muffler Body Length | 10.50 IN |
| Muffler Body Material | 409 Stainless Steel |
| Muffler Body Shape | Oval |
| Muffler Body Width | 10.00 IN |
| Muffler Finish | Black High-Temperature Paint Finish |
| Muffler Flanged Inlet | No |
| Muffler Flanged Outlet | No |
| Muffler Included | Yes |
| Muffler Inlet Connection | Slip-Fit |
| Muffler Inlet Inside Diameter | 3.00 IN |
| Muffler Inlet Outside Diameter | 3.13 IN |
| Muffler Outlet Connection | Slip-Fit |
| Muffler Outlet Quantity | 2 |
| Muffler Part Number | Kit Only |
| Muffler Quantity | 1 |
| Muffler Series | Super 40 Series |
| Muffler Type | Chambered |
| part type | Exhaust System |
| Pipe Color | Silver |
| Pipe Material | 409 Stainless Steel |
| Product Type | Exhaust System |
| Sound Level | Aggressive / Moderate |
| Spring Bolt Kit Included | No |
| Sub Category | Exhaust and Tail Pipes |
| Tail Pipe Outlet Outside Diameter | 2.50 IN |
| Tail Pipe Quantity | 2 |
| Tail Pipe Tapered Outlet | No |
| Type | Cat-Back |
| Valve Included | No |
| Valve Type | Not Applicable |
| Warning | California Proposition 65 |
California Proposition 65 warning applies to this product. www.P65Warnings.ca.gov
Features
- Connects After Factory Catalytic Converter
Installation
Free install support from the Trucks R Us tech team, for you or your shop.
Overview

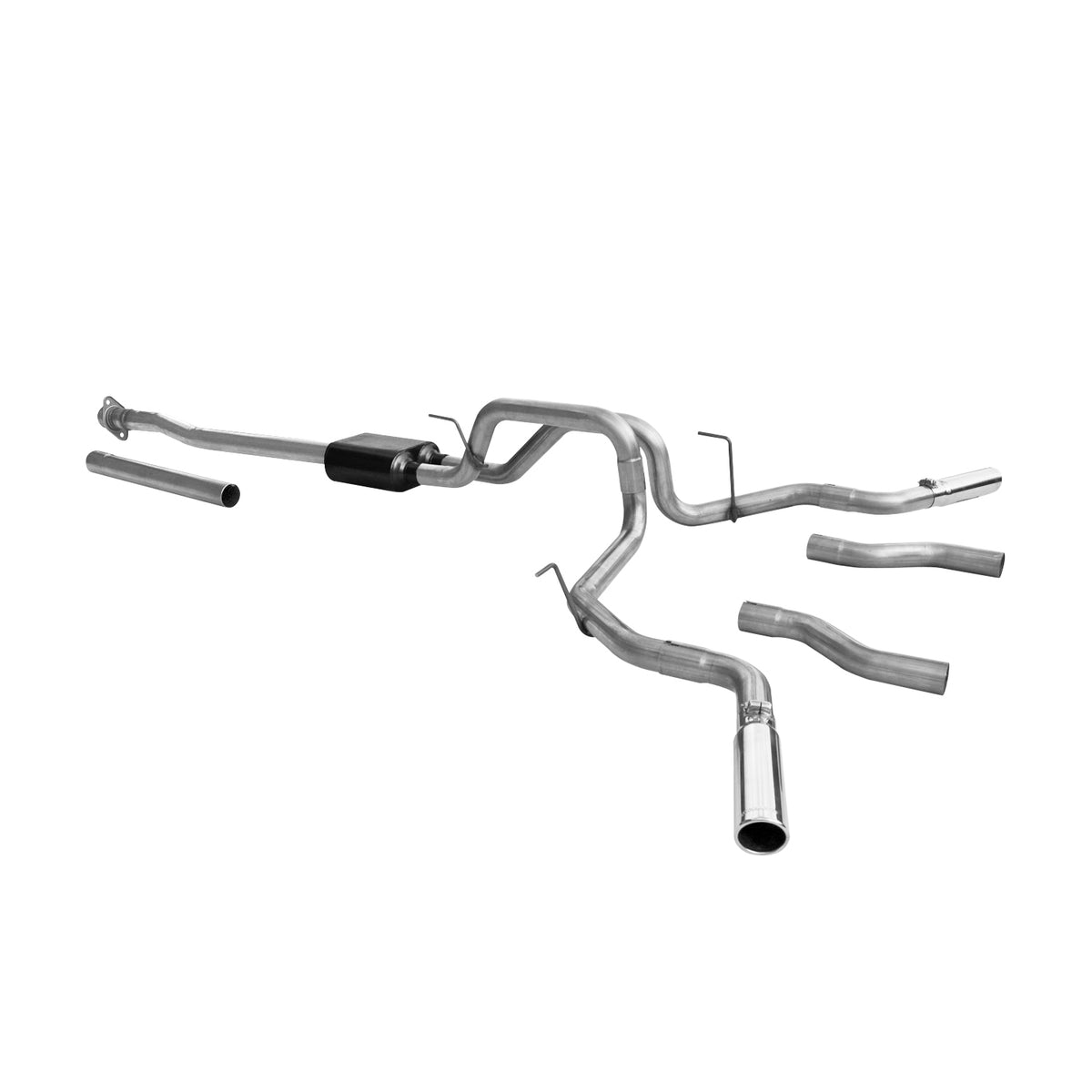

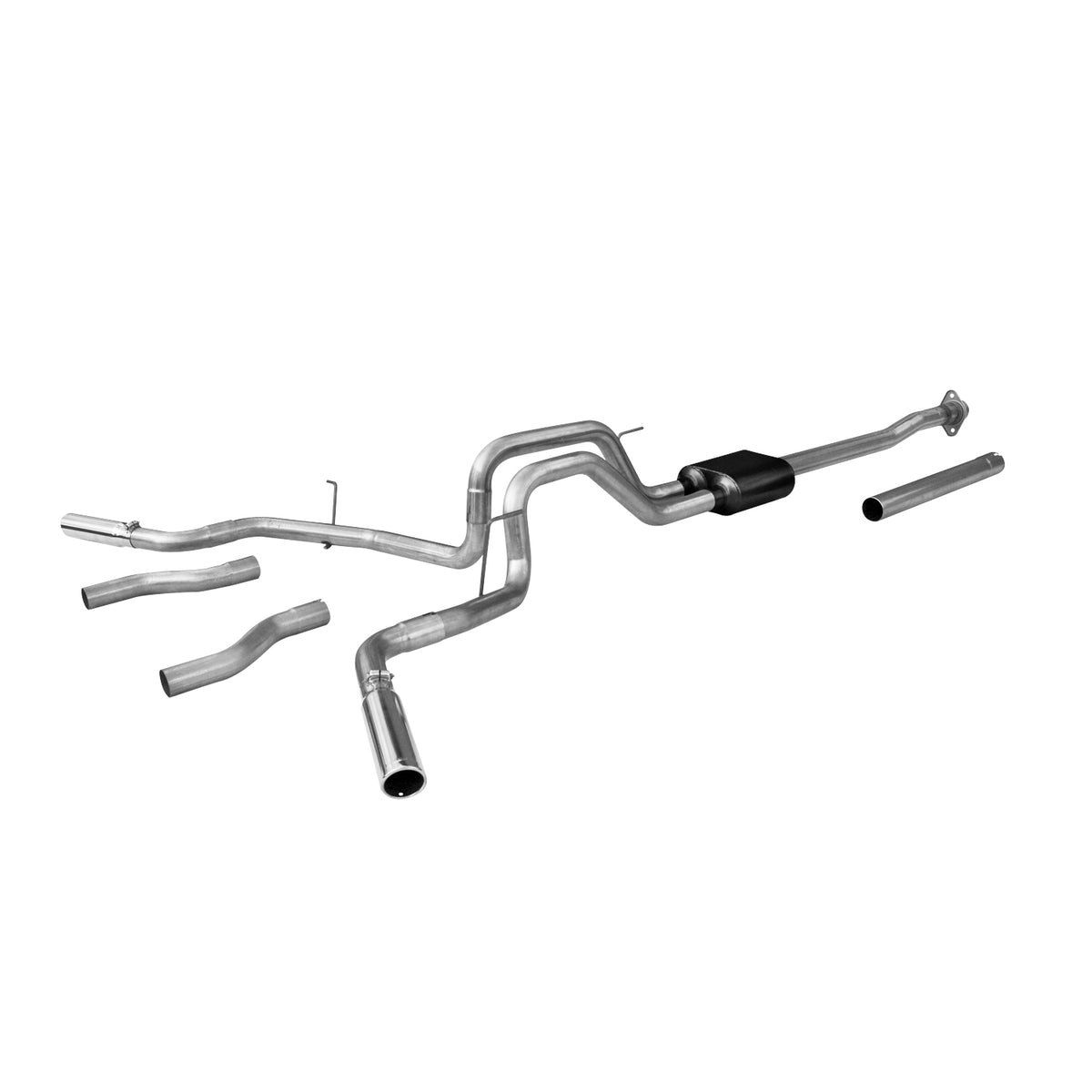

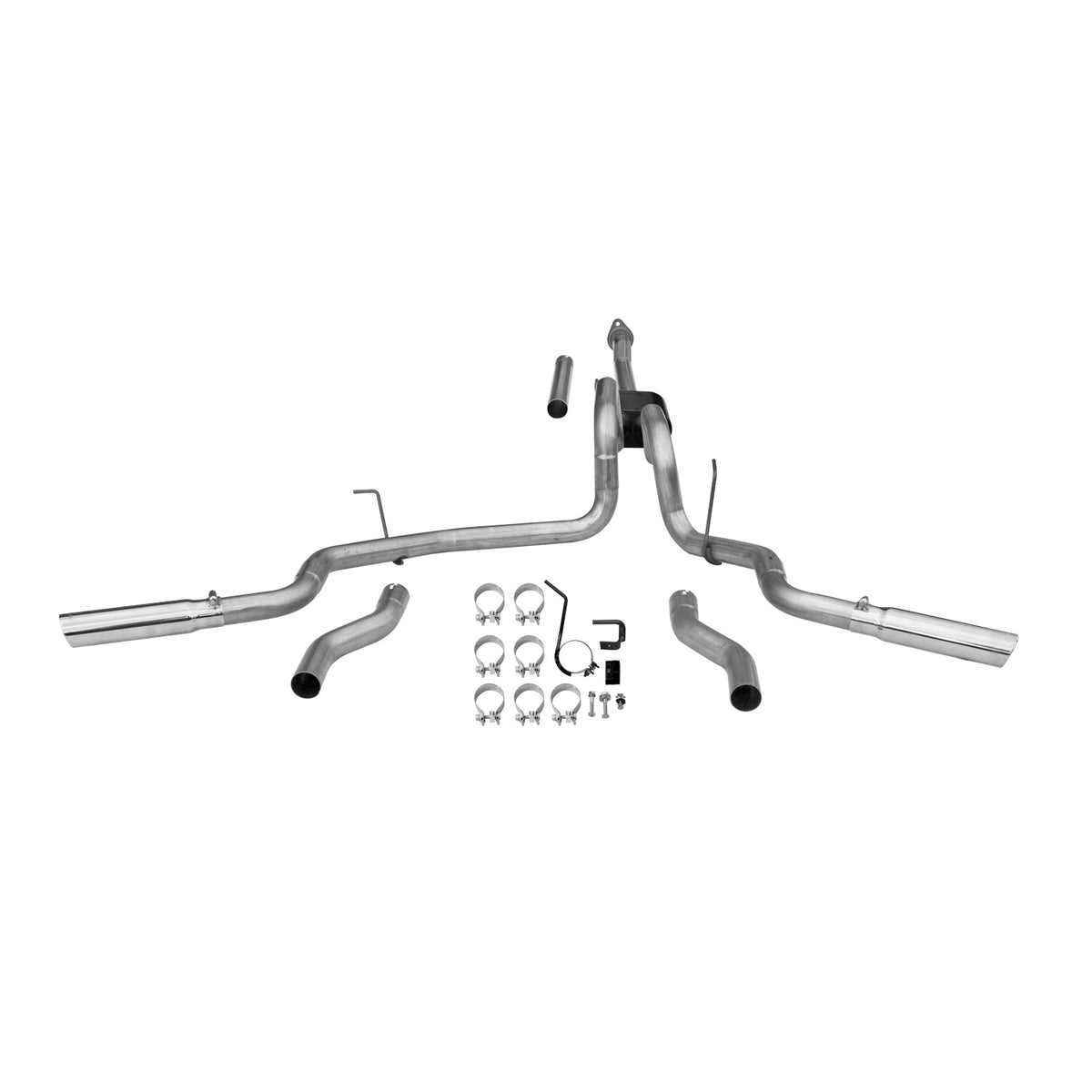

Our American Thunder cat-back exhaust system for 2009-2014 Ford F-150 trucks is perfect for the person looking for a moderately aggressive sound levels both inside and outside of the truck with all of the performance benefits that you would expect from Flowmaster. This bolt-on DOR/DOS (dual out rear or dual out the side tailpipe exits) is emissions legal and fits trucks with the 4.6L, 5.0L and 5.4L engines. Features include all stainless steel mandrel-bent construction, a Super 40 Series muffler exiting into dual 2.50-inch mandrel-bent tailpipes for maximum performance and sound. The exhaust features large 3.50-inch polished stainless steel tips and the system is covered by our Lifetime Limited Warranty. Designed for an easy fit, this system includes all necessary parts and hardware for easy installation you can do at home. Note: Fits 2/4 wheel drive and all wheelbases.
Questions
Will this fit my truck?
Select your truck at the top of the page and the fit check will confirm it. If your exact trim is not listed, call 866-235-4715 or live chat and a fitment specialist will check it before you order.
Do you help with installation?
Yes. Our technical team helps you or your shop with installation and troubleshooting after delivery, on top of the manufacturer’s support.
What if the part has a problem?
We work the warranty claim with the manufacturer on your behalf, within the manufacturer’s warranty policy.
Can I return it?
Most items can be returned within 30 days. See our return policy for details.
No reviews for this part yet. Trucks R Us is rated on Trustpilot, Google and the BBB.
About Flowmaster
Manufacturer of performance exhaust systems, mufflers, performance air intakes, catalytic converters, race mufflers, headers and numerous exhaust accessories for late model cars, trucks, off-road, Jeeps, SUV’s, classic muscle cars, powersports vehicles and more. Flowmaster® gives you lots of exhaust choices... Shop all Flowmaster
