Fits 2009-2014 Ford F-150 with 3.5L Ecoboost, 4.6L, 5.0L, 5.4L engines. - Moderate sound
Questions about fitment? Live chat or call 866-235-4715
Couldn't load pickup availability
- Free shippingMost orders $500+
- 30-day returnsSee policy
- Warranty supportWe work with the maker
Questions about fitment?
Talk to a TRU specialist
We’ll help you verify fitment before you buy.
Veteran-owned · Austin, Texas · Mon–Fri 9:30a–11:00a & 1:00p–5:30p CT
Important notes before you order
- 2009-2014 Ford F-150 with 3.5L Ecoboost, 4.6L, 5.0L, 5.4L engines, 2/4 wheel drive and all wheelbases.
Specifications
| Brand | Flowmaster |
|---|---|
| Part number | 717864 |
| Brand | Flowmaster |
| CARB (California) Compliant | Yes |
| Catalytic Converter Included | No |
| Catalytic Converter Quantity | 0 |
| Category | Exhaust |
| Clamping Type | Flat Band |
| Clamps Included | Yes |
| Emission Code | 5 |
| Exhaust Series | Flow FX |
| Exhaust Tip Color | Black |
| Exhaust Tip Connection | Clamp-On |
| Exhaust Tip Cut | Angled |
| Exhaust Tip Diameter | 4.50 IN |
| Exhaust Tip Edge | Rolled Edge Angle Cut |
| Exhaust Tip Finish | Black Ceramic Coating |
| Exhaust Tip Intercooled | No |
| Exhaust Tip Length | 11.00 IN |
| Exhaust Tip Material | 304 Stainless Steel |
| Exhaust Tip Quantity | 1 |
| Exhaust Tip Resonated | No |
| Exhaust Tip Shape | Round |
| Exhaust Tip Wall | Single Wall |
| Exit Style | Single Out Side |
| Finish | Natural |
| Gasket Or Seal Included | No |
| Grade Type | Performance |
| Hangers Included | Yes |
| Heat Shield Included | No |
| Inlet Type | Flanged |
| Main Piping Diameter | 3.00 IN |
| Mount Type | Uses Factory Hangers |
| Mounting Bracket Included | No |
| Muffler Body Height | 4.00 IN |
| Muffler Body Length | 18.00 IN |
| Muffler Body Material | 409 Stainless Steel |
| Muffler Body Shape | Oval |
| Muffler Body Width | 9.00 IN |
| Muffler Finish | Natural |
| Muffler Flanged Inlet | No |
| Muffler Flanged Outlet | No |
| Muffler Included | Yes |
| Muffler Inlet Connection | Slip-Fit |
| Muffler Inlet Inside Diameter | 3.00 IN |
| Muffler Inlet Outside Diameter | 3.13 IN |
| Muffler Outlet Connection | Slip-Fit |
| Muffler Outlet Quantity | 1 |
| Muffler Quantity | 1 |
| Muffler Series | Flow FX |
| Muffler Type | Absorption |
| part type | Exhaust System |
| Pipe Color | Silver |
| Pipe Material | 409 Stainless Steel |
| Product Type | Exhaust System |
| Sound Level | Moderate |
| Spring Bolt Kit Included | No |
| Sub Category | Exhaust and Tail Pipes |
| Tail Pipe Outlet Outside Diameter | 3.00 IN |
| Tail Pipe Quantity | Single |
| Tail Pipe Tapered Outlet | No |
| Tip Logo | Embossed |
| Type | Cat-Back |
| Valve Included | No |
| Valve Type | Not Applicable |
| Warning | California Proposition 65 |
California Proposition 65 warning applies to this product. www.P65Warnings.ca.gov
Features
- Lifetime Limited Warranty
Installation
Free install support from the Trucks R Us tech team, for you or your shop.
Overview

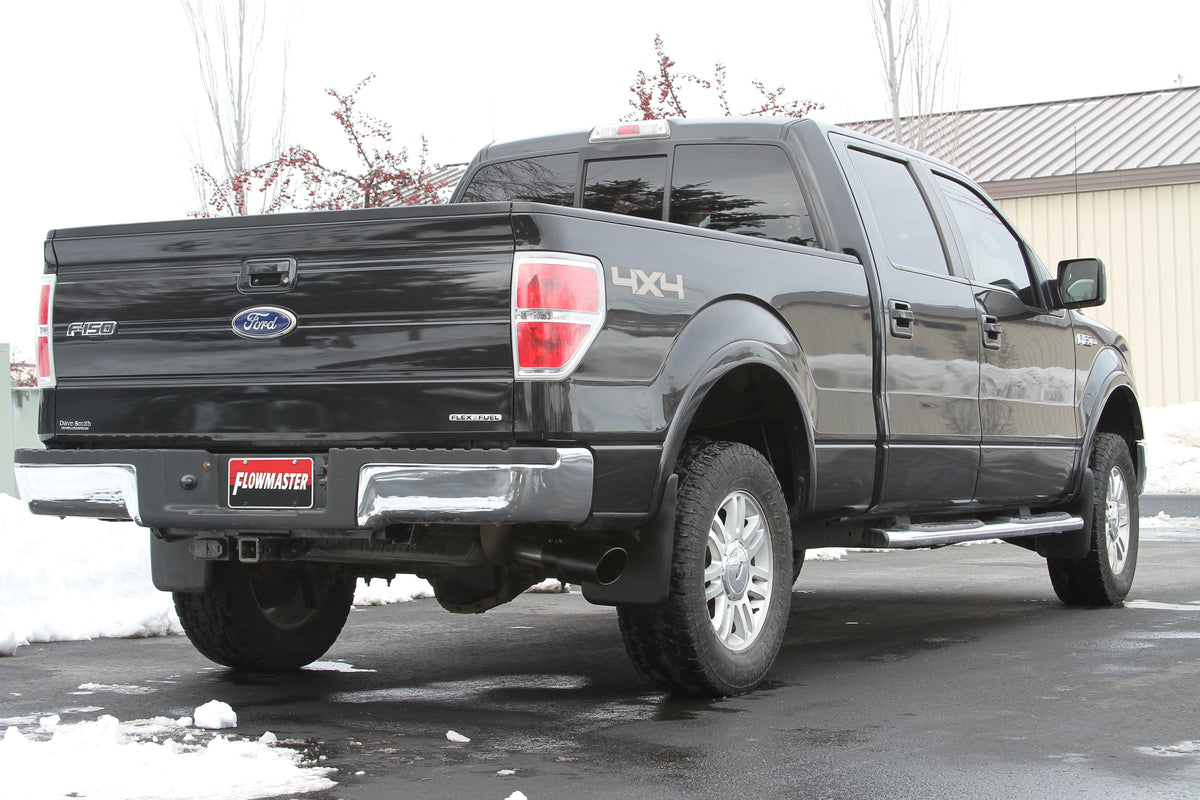

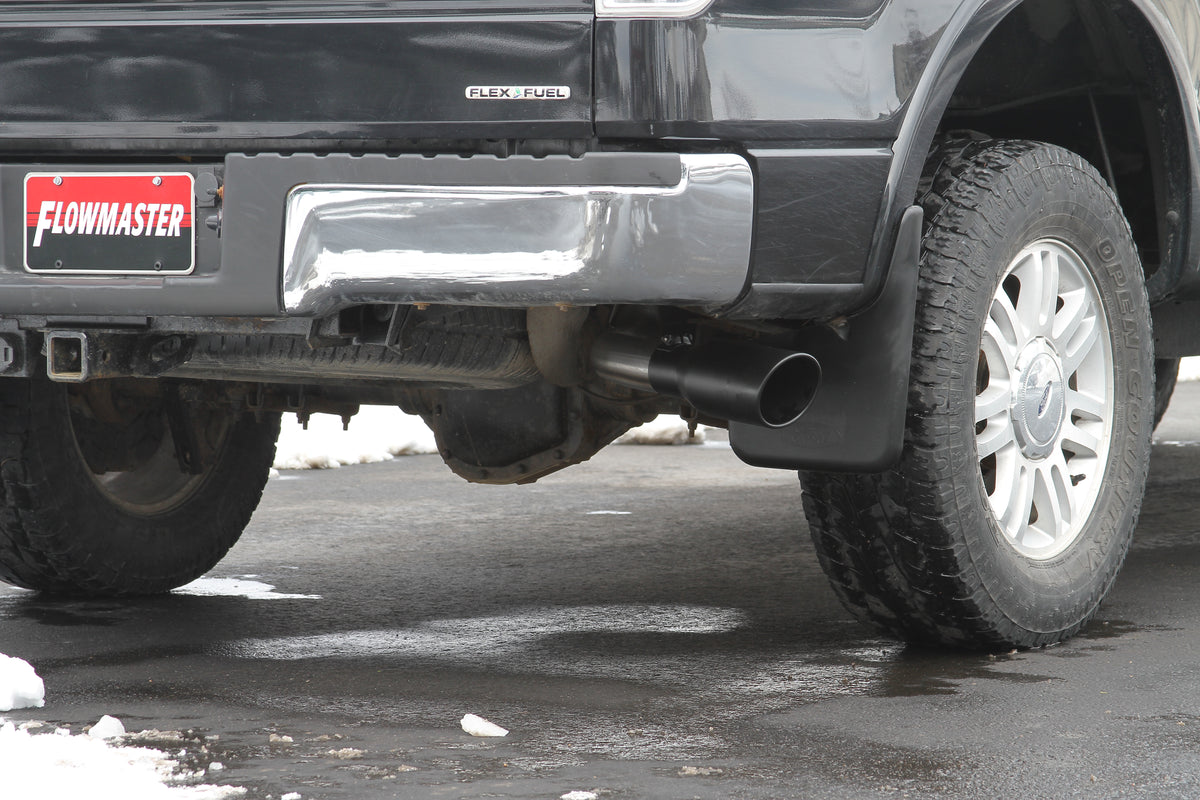

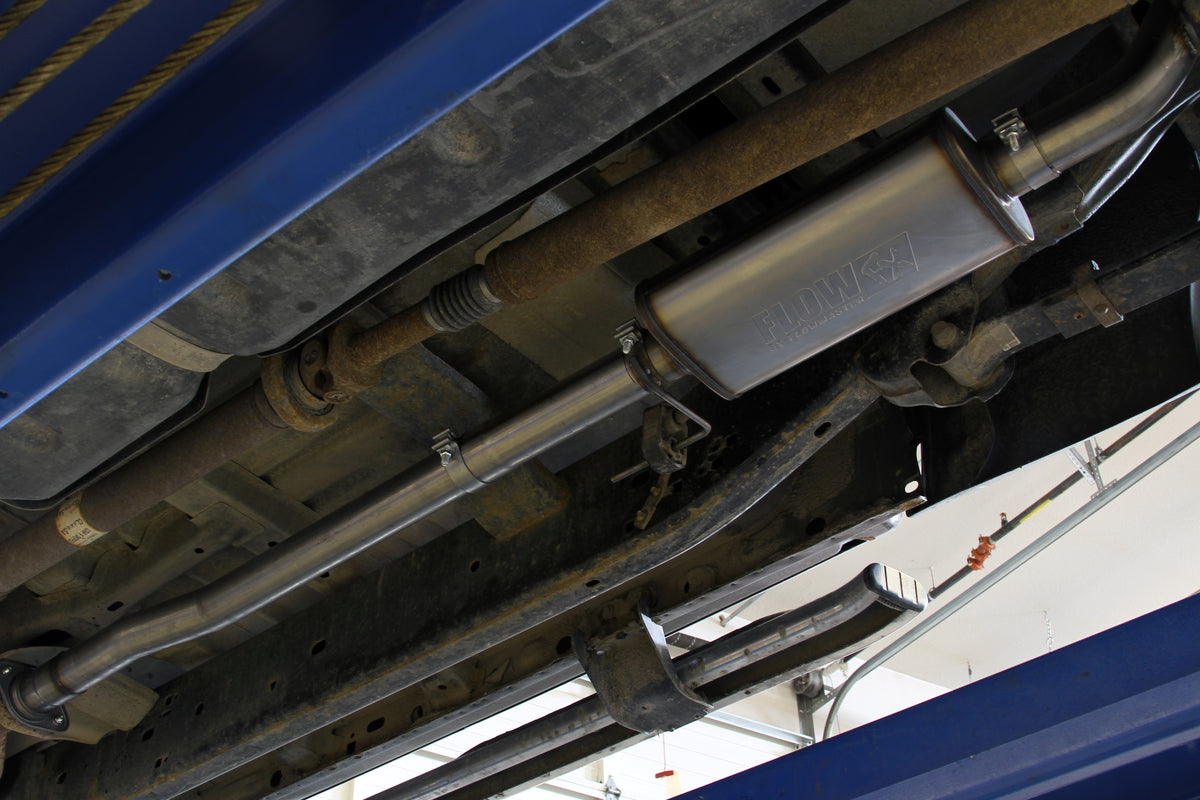

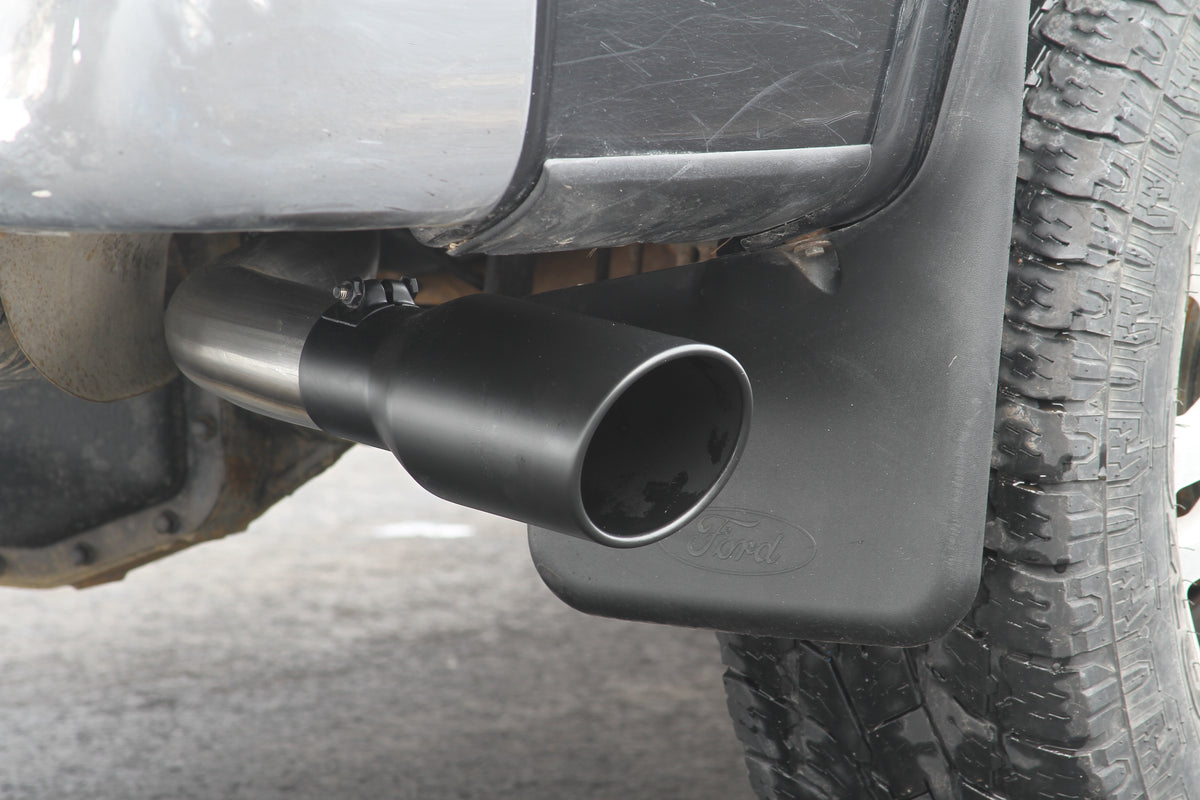

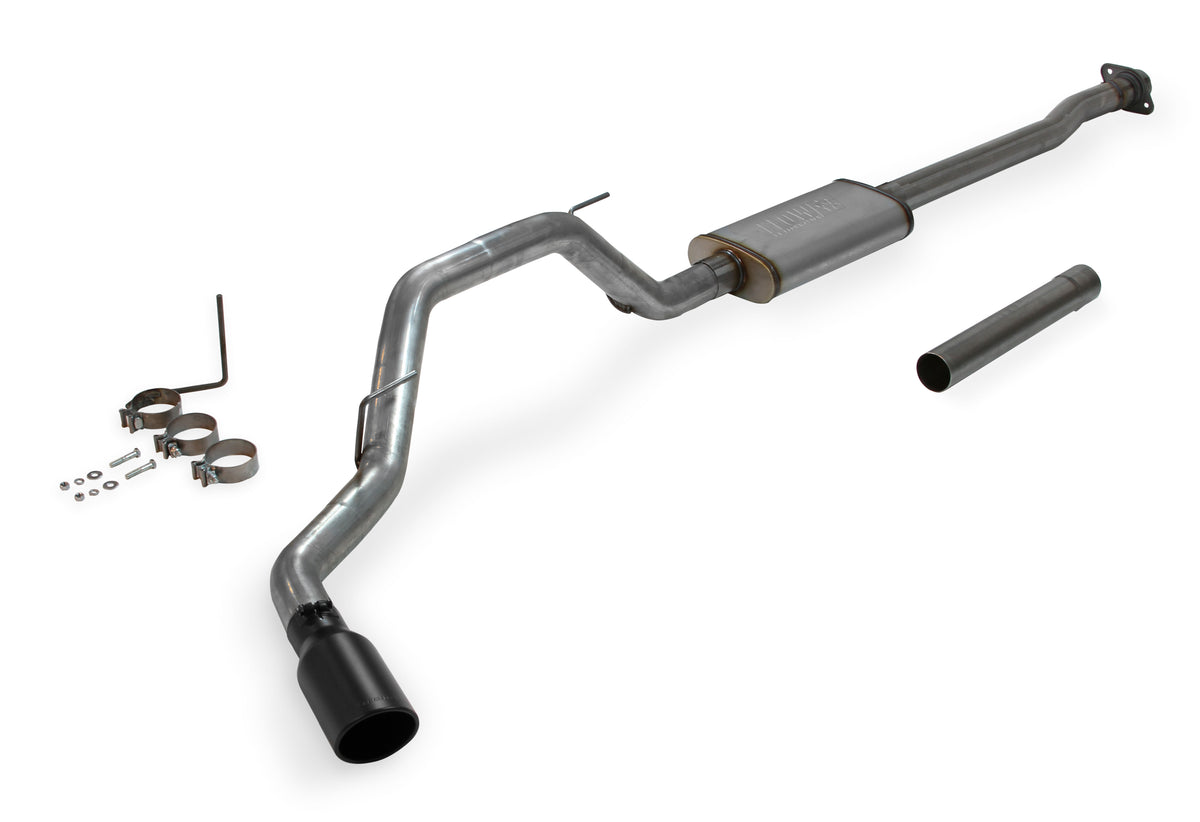

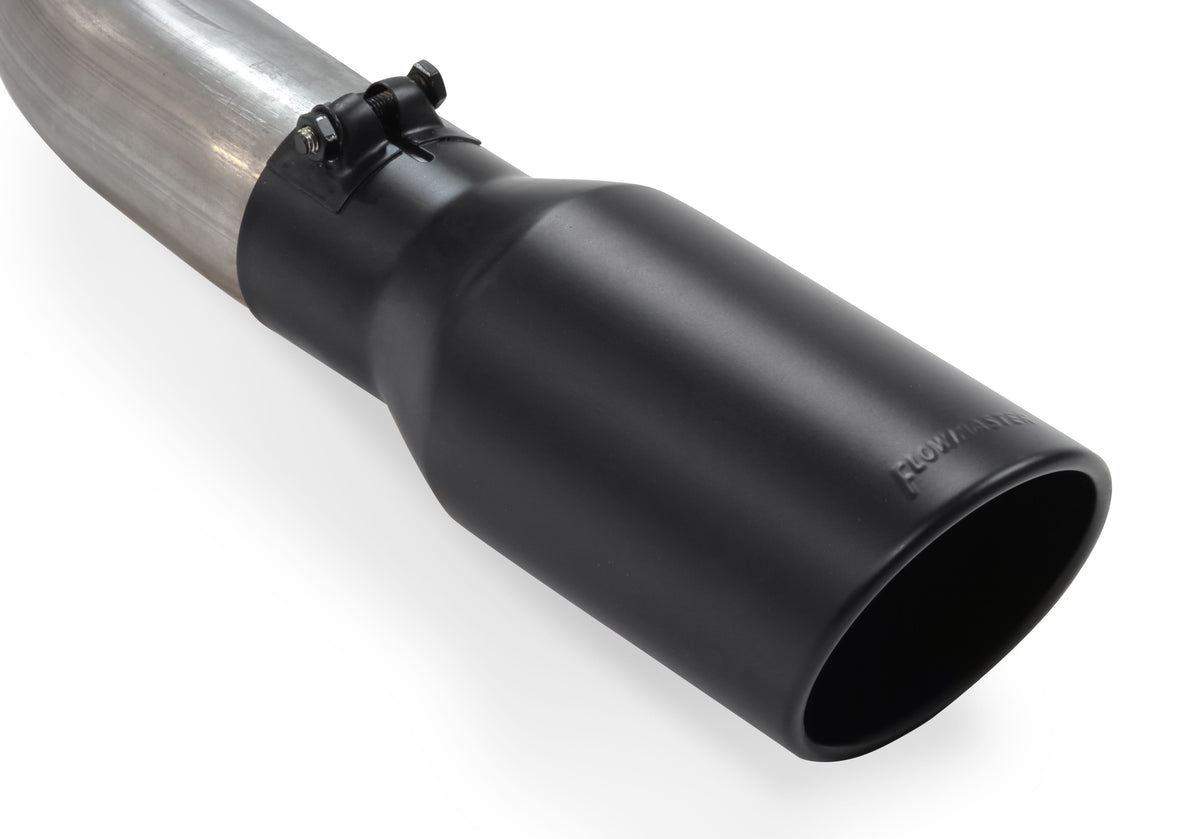

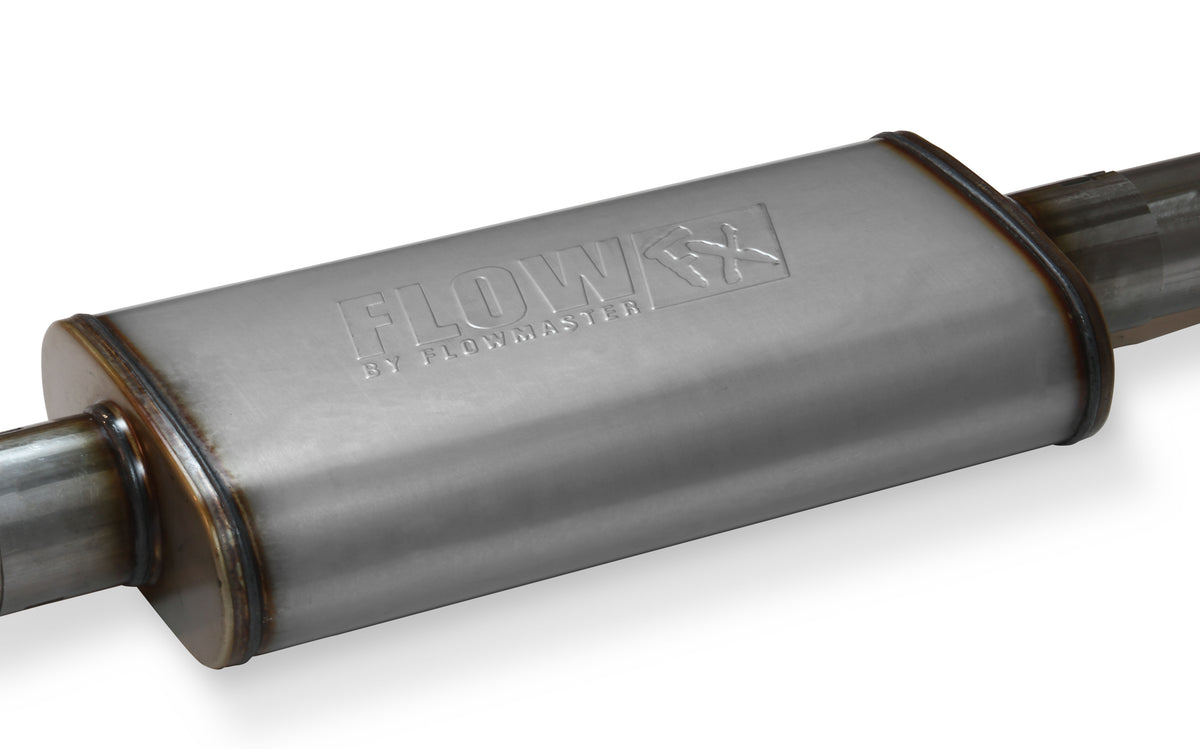

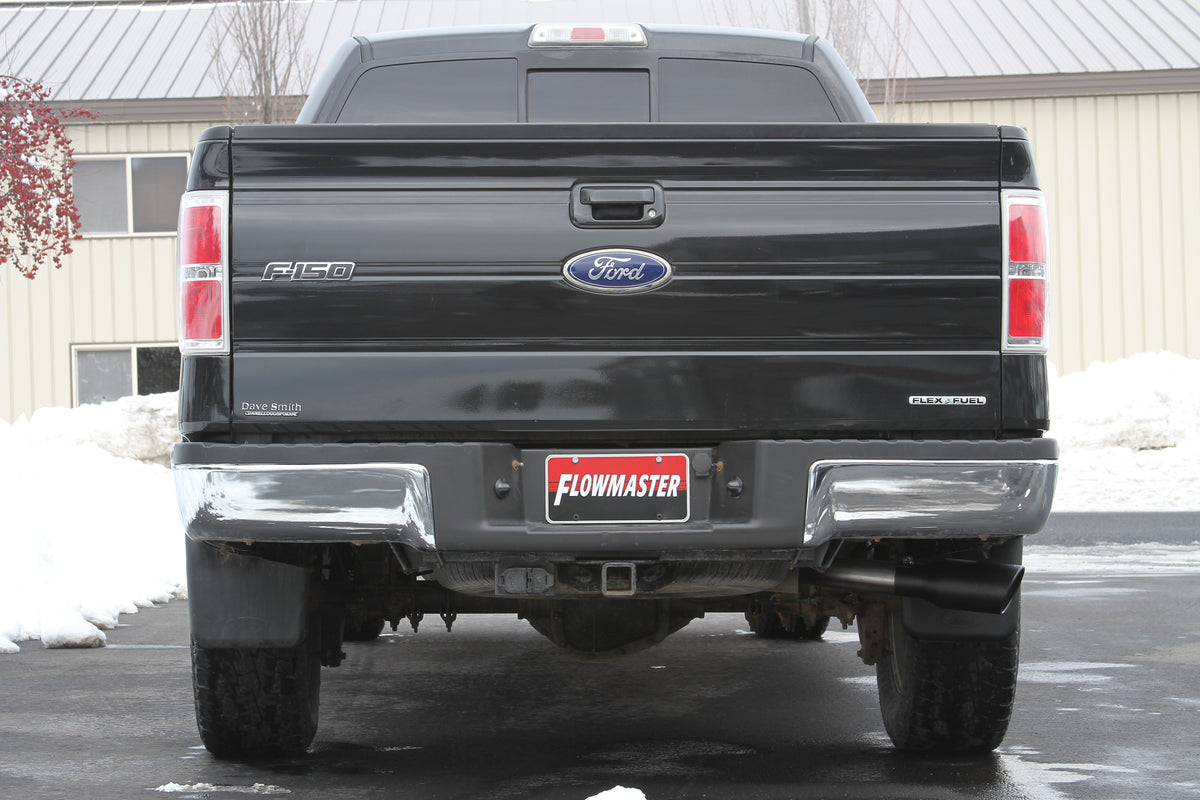

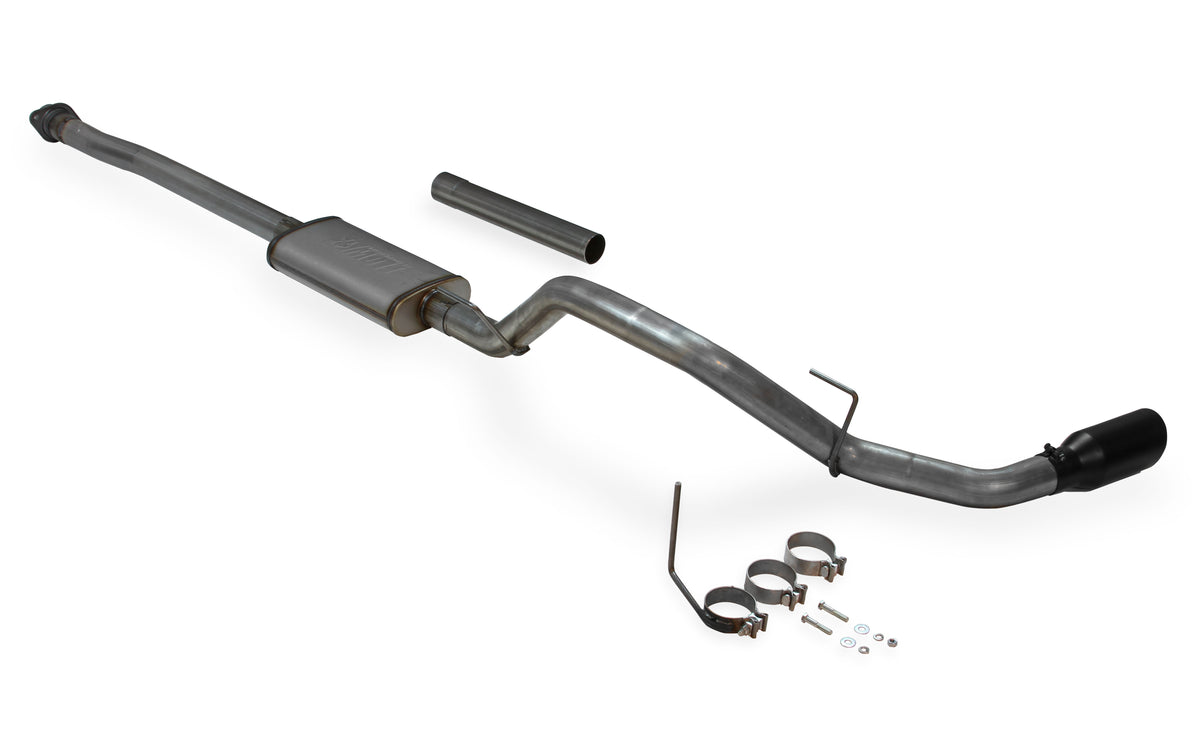

Introducing the Flow FX Cat-back exhaust system for the 2009-2014 Ford F-150 with 3.5L Ecoboost, 4.6L, 5.0L and 5.4L engines. This stainless steel performance single exhaust system bolts up to the factory catalytic converter flange with a large 3-inch mandrel-bent tubing flowing into the "straight-through" Flow FX performance muffler. The Flow FX muffler creates a deep powerful sound outside the vehicle with a moderate tone inside the cab. The mandrel-bent tailpipe exits behind the passenger side rear tire and is finished off with a large 4.50-inch black ceramic coated exhaust tip embossed with the Flowmaster name. The system utilizes the factory hanger locations and connections and includes all necessary parts, hardware and detailed instructions for an easy at home installation. Note: Fits 2/4 wheel drive and all wheelbases.
Questions
Will this fit my truck?
Select your truck at the top of the page and the fit check will confirm it. If your exact trim is not listed, call 866-235-4715 or live chat and a fitment specialist will check it before you order.
Do you help with installation?
Yes. Our technical team helps you or your shop with installation and troubleshooting after delivery, on top of the manufacturer’s support.
What if the part has a problem?
We work the warranty claim with the manufacturer on your behalf, within the manufacturer’s warranty policy.
Can I return it?
Most items can be returned within 30 days. See our return policy for details.
No reviews for this part yet. Trucks R Us is rated on Trustpilot, Google and the BBB.
About Flowmaster
Manufacturer of performance exhaust systems, mufflers, performance air intakes, catalytic converters, race mufflers, headers and numerous exhaust accessories for late model cars, trucks, off-road, Jeeps, SUV’s, classic muscle cars, powersports vehicles and more. Flowmaster® gives you lots of exhaust choices... Shop all Flowmaster
