Fabtech K4163M Sport II Lift System
Questions about fitment? Live chat or call 866-235-4715
Couldn't load pickup availability
- Free shippingMost orders $500+
- 30-day returnsSee policy
- Warranty supportWe work with the maker
Questions about fitment?
Talk to a TRU specialist
We’ll help you verify fitment before you buy.
Veteran-owned · Austin, Texas · Mon–Fri 9:30a–11:00a & 1:00p–5:30p CT
TRU specialist notes
From the Trucks R Us fitment and install team, beyond the manufacturer's information.
- Plan for a professional wheel alignment after installing any lift or leveling kit.
- Going to bigger tires as well? Speedometer recalibration may be needed, and some tire and wheel combinations need trimming. Check the recommended wheels and tires, or ask us before you order.
Specifications
| Brand | Fabtech |
|---|---|
| Part number | K4163M |
| Lift/Drop Height | 3 IN |
| Country of Origin | US |
| Warranty | Lifetime |
| Weight (lbs) | 117 |
California Proposition 65 warning applies to this product. www.P65Warnings.ca.gov
Features
- Everything You Will Need To Lift Your Vehicle
- Increased Leaf Spring Flexibility
- No Welding Or Cutting
- Ride Quality Enhancement
- In-field testing and multiple vehicle fit checks ensure products will fit properly during installation and provide years of trouble free service with superior vehicle ride qualities.
- Increased Travel And Articulation
- Easy Installation
Fitment
| Years | Vehicle |
|---|---|
| 2020-2026 | Jeep Gladiator 4WD |
Use the fit check above with your truck selected, or ask a specialist if your trim isn't listed.
Installation
Free install support from the Trucks R Us tech team, for you or your shop.
Overview
2020-26 Jeep Gladiator 4WD
This Sport II lift kit is Fabtech’s most popular Gladiator system providing increased ride height and suspension performance at a great price. Installation is easy and can be installed in a couple hours.
The Sport II features front and rear coil springs that are a dual rate design allowing extended suspension travel for offroad use while providing a smooth highway ride. The first stage of the spring provides a soft ride with the ability to extend for additional travel. The second stage is designed to handle the payload of the Gladiator and address large impact absorption at higher speeds.
Four bump stops extensions utilize the factory bump stops for compliant cushioning at full compression. The extensions retain the stock down travel to eliminate over cycling of the suspension and driveline.
The extended length front and rear sway bar links with urethane bushings reposition the bars to work within the factory operating planes. By extending the length of the links, it prevents the sway bar from going over center and creating bind at full extension travel.
Stealth monotube shocks are included in the popular Gladiator lift kit to provide enhanced on and offroad damping.
This Gladiator lift kit is an excellent choice for the Jeep enthusiast that wants to run larger tires with enhanced offroad capability and a good highway ride.[/cs_text][/cs_column]

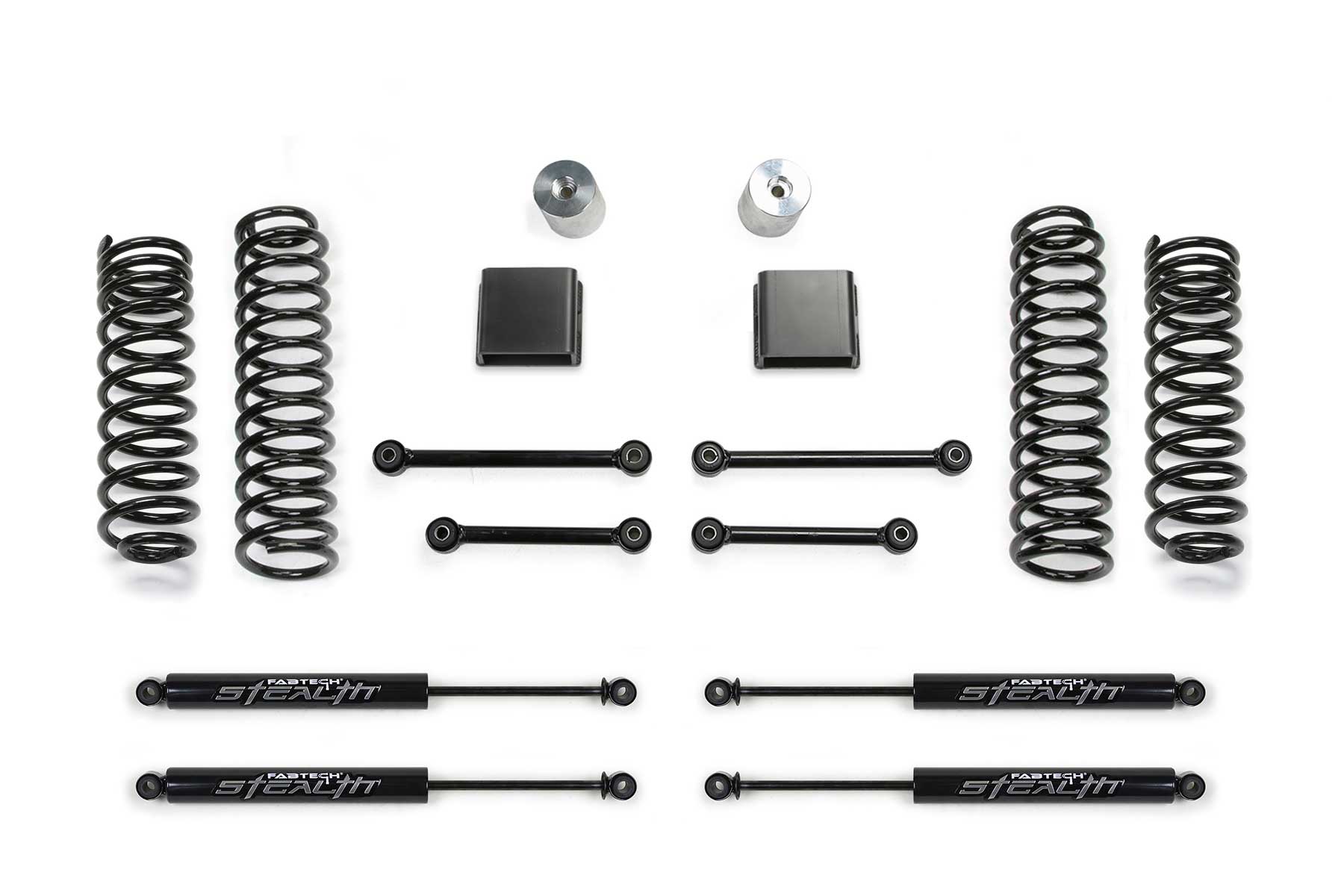

What’s In The System
- Front & Rear Dual Rate Coil Springs
- Front & Rear Sway Bar Links
- Front & Rear Bump Stop Brackets
- Free 5 Year 60,000 Mile Powertrain Warranty
Part Numbers
| Oty | Part # | Description |
|---|---|---|
| 1 | FTS24243 | 3″ Sport II Lift Kit |
| 2 | FTS6349 | Front Stealth Monotube |
| 2 | FTS6333 | Rear Stealth Monotube |
– California Prop 65 Warning
-
FOOTNOTES
182. Fits Gas Models Only.
