Fabtech K4107DL Sport Lift System w/Shock
Questions about fitment? Live chat or call 866-235-4715
Couldn't load pickup availability
- Free shippingMost orders $500+
- 30-day returnsSee policy
- Warranty supportWe work with the maker
Questions about fitment?
Talk to a TRU specialist
We’ll help you verify fitment before you buy.
Veteran-owned · Austin, Texas · Mon–Fri 9:30a–11:00a & 1:00p–5:30p CT
TRU specialist notes
From the Trucks R Us fitment and install team, beyond the manufacturer's information.
- Plan for a professional wheel alignment after installing any lift or leveling kit.
- Going to bigger tires as well? Speedometer recalibration may be needed, and some tire and wheel combinations need trimming. Check the recommended wheels and tires, or ask us before you order.
Specifications
| Brand | Fabtech |
|---|---|
| Part number | K4107DL |
| Lift/Drop Height | 3 IN |
| Country of Origin | US |
| Warranty | Lifetime |
| Weight (lbs) | 116.3 |
California Proposition 65 warning applies to this product. www.P65Warnings.ca.gov
Features
- Everything You Will Need To Lift Your Vehicle
- Increased Leaf Spring Flexibility
- No Welding Or Cutting
- Ride Quality Enhancement
- In-field testing and multiple vehicle fit checks ensure products will fit properly during installation and provide years of trouble free service with superior vehicle ride qualities.
- Increased Travel And Articulation
- Easy Installation
Fitment
| Years | Vehicle |
|---|---|
| 2018-2026 | Jeep Wrangler 4WD |
Use the fit check above with your truck selected, or ask a specialist if your trim isn't listed.
Installation
Free install support from the Trucks R Us tech team, for you or your shop.
Overview
2018-26 Jeep JL 4WD [4-DOOR]
The Sport system features coil springs that are a Dual Rate design allowing for long travel suspension use offroad with a smooth highway ride.
The first stage of the spring provides a soft ride with the ability to extend for additional travel. The second stage is designed to handle the payload of the vehicle and address large impact absorption at higher speeds.
The Dual Rate coil springs are corner specific to the JL. This keeps the vehicle level side to side while allowing for increased suspension travel.
Four bump stops extensions utilize the factory bump stops for compliant cushioning at full compression. The extensions retain the stock down travel to eliminate over cycling of the suspension and driveline.
The extended length front and rear sway bar links with urethane bushings re-position the bars to work within the factory operating planes. By extending the length of the links, it prevents the sway bar from going over center and creating bind at full extension travel.
A heavy duty rear track bar bracket re-centers the axle while retaining the factory roll center of the vehicle with the increased ride height.

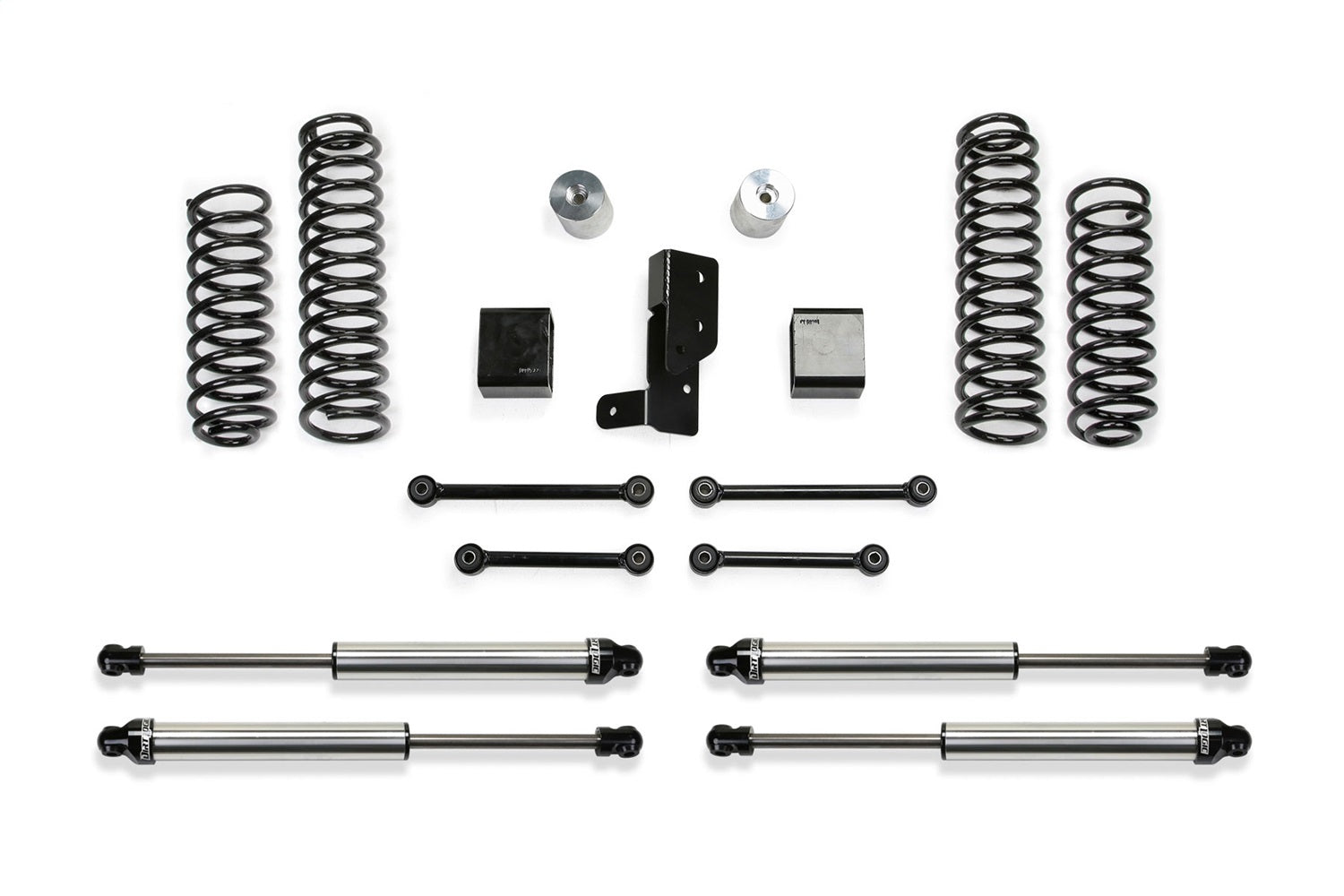

What’s In The System
- Front & Rear Dual Rate Coil Springs
- Front & Rear Sway Bar Links
- Front & Rear Bump Stop Extensions
- Rear Track Bar Bracket
- Front & Rear Dirt Logic 2.25 Shocks
Part Numbers
| Oty | Part # | Description |
|---|---|---|
| 1 | FTS24207 | 3″ Sport System |
| 2 | FTS811402 | Front Dirt Logic 2.25 Shock |
| 2 | FTS811412 | Rear Dirt Logic 2.25 Shock |
– California Prop 65 Warning
-
FOOTNOTES
185. Fits 4-door models only.
224. Does not fit 4XE models.
225.Does not fit Rubicon 392 models.
Questions
Will this fit my truck?
Select your truck at the top of the page and the fit check will confirm it. If your exact trim is not listed, call 866-235-4715 or live chat and a fitment specialist will check it before you order.
Do you help with installation?
Yes. Our technical team helps you or your shop with installation and troubleshooting after delivery, on top of the manufacturer’s support.
What if the part has a problem?
We work the warranty claim with the manufacturer on your behalf, within the manufacturer’s warranty policy.
Can I return it?
Most items can be returned within 30 days. See our return policy for details.
Do I need an alignment after installing?
Yes. Any lift or leveling kit changes suspension geometry, so get a professional alignment after installation.
No reviews for this part yet. Trucks R Us is rated on Trustpilot, Google and the BBB.
