Fabtech 3" CRAWLER C/O W/ DLSS 2.5 C/O RESI & RR DLSS 2007-18 JEEP JK 4-DOOR
Questions about fitment? Live chat or call 866-235-4715
Couldn't load pickup availability
- Free shippingMost orders $500+
- 30-day returnsSee policy
- Warranty supportWe work with the maker
Questions about fitment?
Talk to a TRU specialist
We’ll help you verify fitment before you buy.
Veteran-owned · Austin, Texas · Mon–Fri 9:30a–11:00a & 1:00p–5:30p CT
Important notes before you order
- Tire size - 35/12.
- 50r17 wheel - 17x9 w/4 1/2" bs w/minor trimming; tire size - 35/12.
- 50r18 wheel - 18x9 w/4 1/2" bs w/minor trimming; tire size - 35/12.
- 50r20 wheel - 20x9 w/5" bs w/minor trimming; tire size - 37/12.
- 50r18 wheel - 18x9 w/4 1/2" bs w/cutting; tire size - 37/12.
- 50r20 wheel - 20x9 w/5" bs w/cutting; w/tube fenders: tire size - 37/12.
- 50r17 wheel - 17x9 w/4 1/2" bs w/cutting; tire size - 325/60r20 wheel - 20x9 w/5" bs w/minor trimming; tire size - 325/65r18 wheel - 18x9 w/4 1/2" bs w/minor trimming; 50.
- Installation requires welding.
- 120.
- Exhaust modification required on all 2012-2018 jeep wranglers order fts94060 loop delete pipe.
- 249.
- For heavy offroad use, front driveshaft is required.
- Order p/n fts94057.
- 250.
- For heavy offroad use, rear driveshaft is required.
- See a quality driveline supplier to order.
TRU specialist notes
From the Trucks R Us fitment and install team, beyond the manufacturer's information.
- Plan for a professional wheel alignment after installing any lift or leveling kit.
- Going to bigger tires as well? Speedometer recalibration may be needed, and some tire and wheel combinations need trimming. Check the recommended wheels and tires, or ask us before you order.
Specifications
| Brand | Fabtech |
|---|---|
| Part number | K4065DL |
| Front Lift Height | 3" |
| Country of Origin | US |
| Warranty | Lifetime |
| Weight (lbs) | 400.4 |
California Proposition 65 warning applies to this product. www.P65Warnings.ca.gov
Features
- In-field testing and multiple vehicle fit checks ensure products will fit properly during installation and provide years of trouble free service with superior vehicle ride qualities.
Overview

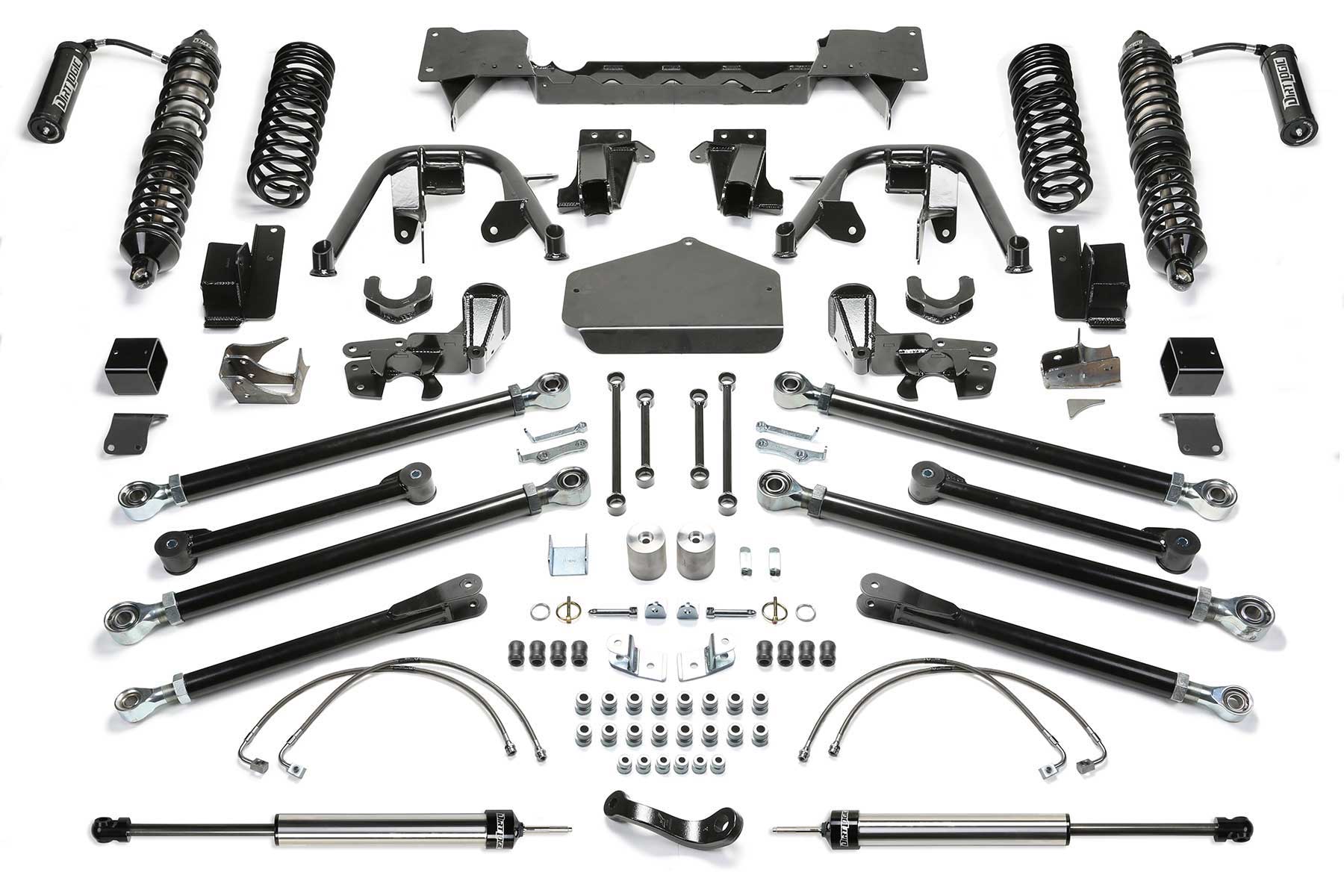

This heavy duty Crawler Coilover system replaces all eight link arms with extended length units for aggressive offroad use while providing superior on road driving characteristics. The links are mounted up high on the frame for maximum ground clearance. The large link arms pivot on Fabtech 5 Ton Joints for reliability and a quiet ride with a lifetime warranty. System includes 1/4'' thick steel Track Bar brackets that weld on. It?s the strongest way to relocate the Track Bars for proper roll center front and rear that will not fail and leave you stranded. The bolt on front Dirt Logic 2.5 Coilover conversion provides outstanding high speed damping with the ability to crawl at low speed with maximum articulation for big rocks. Coilover is mounted on top of the centerline of the axle to prevent premature Link Arm bushing wear leading to poor handling. Dual rate coil springs provide factory load carrying capacity with a smooth ride. The flexible coil design offers an extended travel range for aggressive rock crawling with great highway manners. Includes 8 Long Arm Links &
Mounts Coilover Hoop Kit Front Long Travel Rear Coil Springs Track Bar Brackets Front &
Rear Sway Bar Links Front &
Rear Pitman Arm Brake Lines Front &
Rear E Brake Bracket Rear Bump Stop Brackets Front Dirt Logic 2.5 Coilovers w/ Reservoirs and Rear Dirt Logic 2.25 Shocks.
Questions
Will this fit my truck?
Select your truck at the top of the page and the fit check will confirm it. If your exact trim is not listed, call 866-235-4715 or live chat and a fitment specialist will check it before you order.
Do you help with installation?
Yes. Our technical team helps you or your shop with installation and troubleshooting after delivery, on top of the manufacturer’s support.
What if the part has a problem?
We work the warranty claim with the manufacturer on your behalf, within the manufacturer’s warranty policy.
Can I return it?
Most items can be returned within 30 days. See our return policy for details.
Do I need an alignment after installing?
Yes. Any lift or leveling kit changes suspension geometry, so get a professional alignment after installation.
