Fabtech 3" CRAWLER W/ DLSS SHKS 2007-18 JEEP JK 2-DOOR
Questions about fitment? Live chat or call 866-235-4715
Couldn't load pickup availability
- Free shippingMost orders $500+
- 30-day returnsSee policy
- Warranty supportWe work with the maker
Questions about fitment?
Talk to a TRU specialist
We’ll help you verify fitment before you buy.
Veteran-owned · Austin, Texas · Mon–Fri 9:30a–11:00a & 1:00p–5:30p CT
Important notes before you order
- Tire size - 35/12.
- 50r17 wheel - 17x9 w/4 1/2" bs w/minor trimming; tire size - 35/12.
- 50r18 wheel - 18x9 w/4 1/2" bs w/minor trimming; tire size - 35/12.
- 50r20 wheel - 20x9 w/5" bs w/minor trimming; tire size - 37/12.
- 50r18 wheel - 18x9 w/4 1/2" bs w/cutting; tire size - 37/12.
- 50r20 wheel - 20x9 w/5" bs w/cutting; w/tube fenders: tire size - 37/12.
- 50r17 wheel - 17x9 w/4 1/2" bs w/cutting; tire size - 325/60r20 wheel - 20x9 w/5" bs w/minor trimming; tire size - 325/65r18 wheel - 18x9 w/4 1/2" bs w/minor trimming; 50.
- Installation requires welding.
- 120.
- Exhaust modification required on all 2012-2018 jeep wranglers order fts94060 loop delete pipe.
- 249.
- For heavy offroad use, front driveshaft is required.
- Order p/n fts94057.
- 250.
- For heavy offroad use, rear driveshaft is required.
- See a quality driveline supplier to order.
TRU specialist notes
From the Trucks R Us fitment and install team, beyond the manufacturer's information.
- Plan for a professional wheel alignment after installing any lift or leveling kit.
- Going to bigger tires as well? Speedometer recalibration may be needed, and some tire and wheel combinations need trimming. Check the recommended wheels and tires, or ask us before you order.
Specifications
| Brand | Fabtech |
|---|---|
| Part number | K4057DL |
| Front Lift Height | 3" |
| Country of Origin | US |
| Warranty | Lifetime |
| Weight (lbs) | 348 |
California Proposition 65 warning applies to this product. www.P65Warnings.ca.gov
Features
- In-field testing and multiple vehicle fit checks ensure products will fit properly during installation and provide years of trouble free service with superior vehicle ride qualities.
Overview

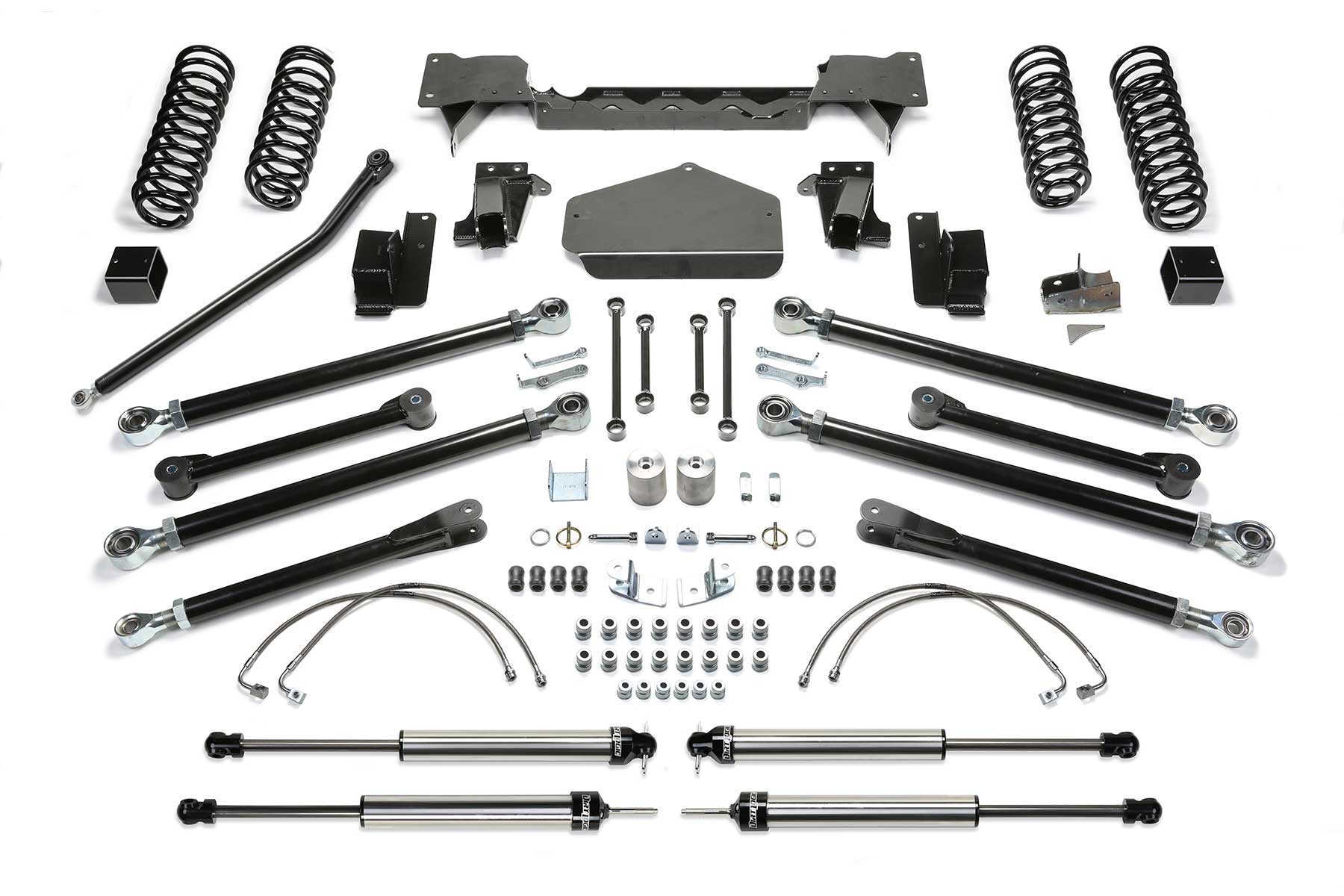

Fabtech's Crawler long arm coil systems replace all eight of the link arms with extended length units to allow for smooth operation at extreme angles. The link arms are mounted up high on the frame to increase ground clearance without the need to bend the Links as with other long arm systems on the market. Construction of the link arms is nothing short of the best heavy duty units you can buy. Each lower link is built from 2'' OD .313 thick wall DOM that is so strong Fabtech provides a warranty against bending. Link arms are internally threaded to accept the ground breaking Fabtech 5 Ton Joint that is guaranteed never to wear out. Weld on 1/4'' thick steel Track Bar brackets provide the proper roll center front and rear and will not fail leaving you stranded. This system utilizes Fabtech's Standard coil springs that are a single rate design and provide great all around suspension performance. Factory load carrying capacities are retained in these quality springs. Includes 8 Long Arm Links &
Mounts Standard Travel Coil Springs Front &
Rear Sway Bar Links Front &
Rear Adjustable Track Bar Front Track Bar Bracket Rear Brake Lines Front &
Rear E Brake Bracket Front Bump Stop Extensions Rear Bump Stop Brackets and Dirt Logic 2.25 shocks.
Questions
Will this fit my truck?
Select your truck at the top of the page and the fit check will confirm it. If your exact trim is not listed, call 866-235-4715 or live chat and a fitment specialist will check it before you order.
Do you help with installation?
Yes. Our technical team helps you or your shop with installation and troubleshooting after delivery, on top of the manufacturer’s support.
What if the part has a problem?
We work the warranty claim with the manufacturer on your behalf, within the manufacturer’s warranty policy.
Can I return it?
Most items can be returned within 30 days. See our return policy for details.
Do I need an alignment after installing?
Yes. Any lift or leveling kit changes suspension geometry, so get a professional alignment after installation.
