Fabtech K4051M Trail II Lift System
Questions about fitment? Live chat or call 866-235-4715
Couldn't load pickup availability
- Free shippingMost orders $500+
- 30-day returnsSee policy
- Warranty supportWe work with the maker
Questions about fitment?
Talk to a TRU specialist
We’ll help you verify fitment before you buy.
Veteran-owned · Austin, Texas · Mon–Fri 9:30a–11:00a & 1:00p–5:30p CT
TRU specialist notes
From the Trucks R Us fitment and install team, beyond the manufacturer's information.
- Plan for a professional wheel alignment after installing any lift or leveling kit.
- Going to bigger tires as well? Speedometer recalibration may be needed, and some tire and wheel combinations need trimming. Check the recommended wheels and tires, or ask us before you order.
Specifications
| Brand | Fabtech |
|---|---|
| Part number | K4051M |
| Lift/Drop Height | 3 IN |
| Country of Origin | US |
| Warranty | Lifetime |
| Weight (lbs) | 164.8 |
California Proposition 65 warning applies to this product. www.P65Warnings.ca.gov
Features
- Guarantee Superior Performance And Functionality
- In-field testing and multiple vehicle fit checks ensure products will fit properly during installation and provide years of trouble free service with superior vehicle ride qualities.
Fitment
| Years | Vehicle |
|---|---|
| 2007-2018 | Jeep Wrangler 4WD |
Use the fit check above with your truck selected, or ask a specialist if your trim isn't listed.
Installation
Free install support from the Trucks R Us tech team, for you or your shop.

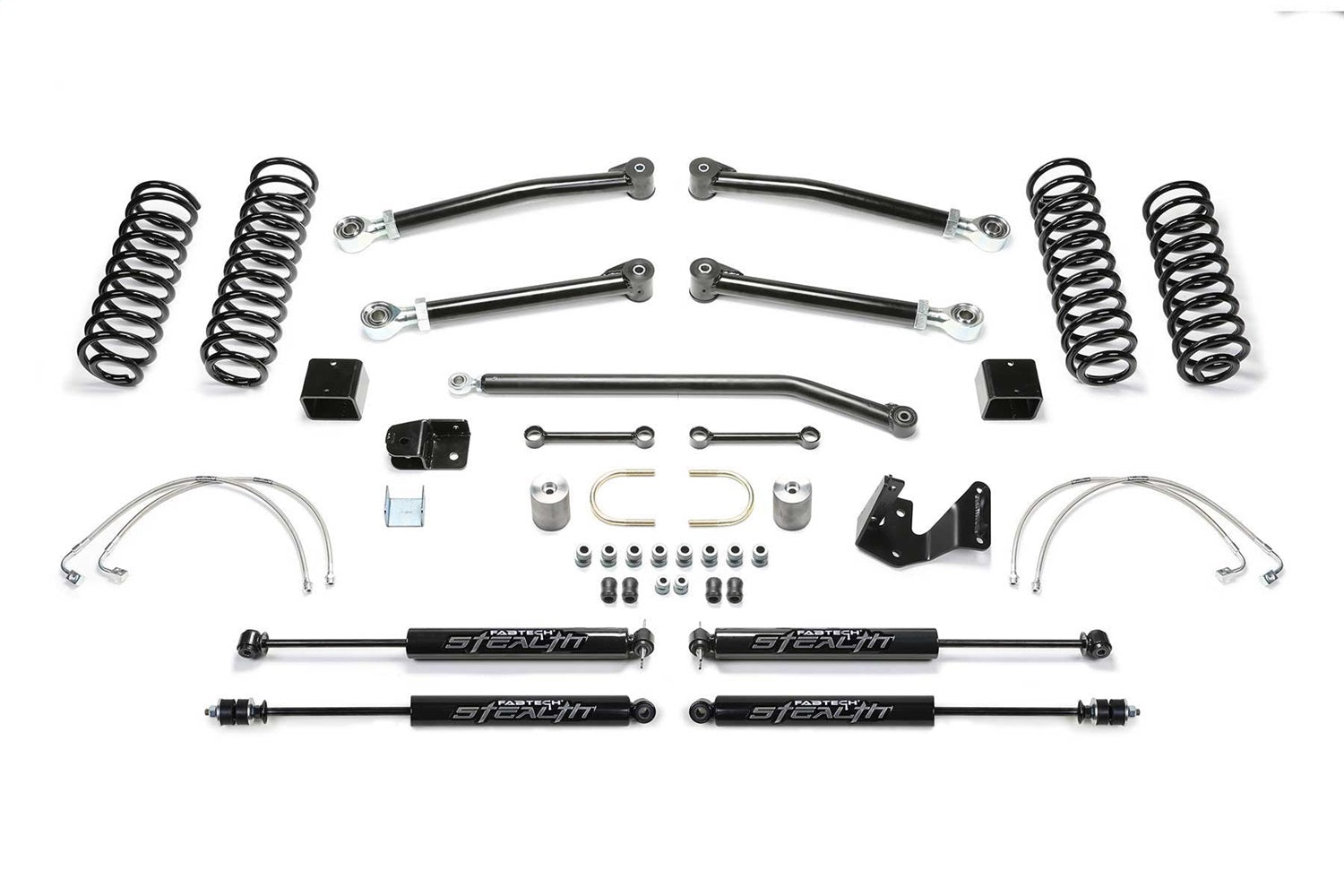

Overview
2007-18 Jeep JK 4WD [2-DOOR]
This Short Arm system replaces all four lower link arms due to their vulnerability to obstacles during offroad use.
The heavy duty Link Arms have factory parallel joint angles to reduce bushing wear. Constructed of .250″ thick wall tubing they are guaranteed not to bend. Fabtech’s 5 Ton Joints® are included and come with a lifetime warranty against wearing out. The front adjustable Track Bar and bolt on rear track bar bracket with gusset recenters the axles for the increased ride height.
System includes Fabtech’s Standard coil springs for great on and offroad suspension performance.
Perfect system for rocks, trail and overland expedition use.
Features
- Front & Rear Short Arm Lower Links
- Standard Front & Rear Coil Springs
- Front Adjustable Track Bar
- Front Sway Bar LInks
- Rear Track Bar Bracket w/Support
- Front & Rear Brake Lines
- E-brake Bracket
- Front Bump Stop Extensions
- Rear Bump Stop Brackets
- Optional Upper Links Available
Part Numbers
| Oty | Part # | Description |
|---|---|---|
| 1 | FTS24161 | FRONT & REAR STANDARD COILS |
| 1 | FTS24128 | FRONT & REAR SHORT ARM LOWER LINKS |
| 1 | FTS24129 | 1.75”-5” CHROMOLY FRONT TRACK BAR |
| 1 | FTS24130 | STANDARD BOX KIT |
| 2 | FTS6021 | FRONT STEALTH MONOTUBE |
| 2 | FTS6265 | REAR STEALTH MONOTUBE |
– California Prop 65 Warning
-
FOOTNOTES
148. Exhaust Spacer required on all 2012-18 Jeep Wranglers.
249. For heavy off-road use, front driveshaft is required.
250. For heavy off-road use, rear driveshaft is required. See a quality driveline supplier to order.
