Fabtech K3184DL Radius Arm Lift System

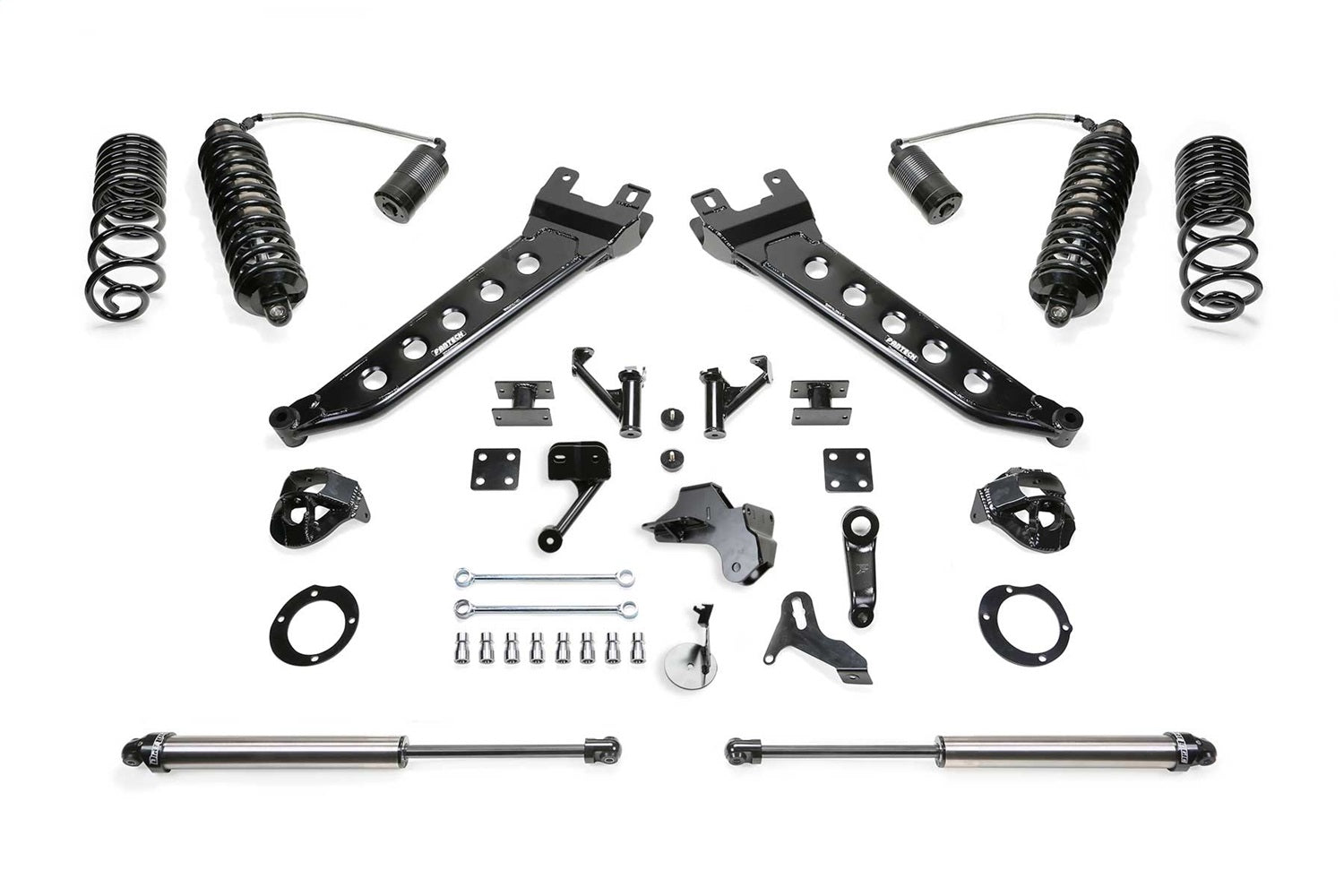

Improving on the Ram suspension design Fabtech offers their trademark Radius Arms in a complete lift kit. These exclusive tubular Radius Arms have recognizable dimple die side plates for superior strength and a signature of quality. The rugged Arms provide increased caster for use with oversized tires and lifted suspension heights. For maximum suspension damping this Ram lift kit features the massive stainless steel Dirt Logic 4.0 Coilovers. These top shelf Coilovers bolt to the factory upper coil bucket with support gussets for superior strength. The lower mounts weld to the axle housing and have cross support gussets for the factory Track Bar bracket. Heavy duty 1/4 in. thick steel front and rear Track Bar drop brackets center the axles under the vehicle with the new ride height. For the rear this lift kit has the perfect balance between ride quality and retaining the factory carrying capacity. By utilizing a dual rate spring design it provides a good highway ride in the first stage of compression then the second stage handles heavy loads. This high end lift kit system is the ultimate suspension upgrade for Ram 2500.
