Fabtech K3088DL Performance Lift System
Questions about fitment? Live chat or call 866-235-4715
Couldn't load pickup availability
- Free shippingMost orders $500+
- 30-day returnsSee policy
- Warranty supportWe work with the maker
Questions about fitment?
Talk to a TRU specialist
We’ll help you verify fitment before you buy.
Veteran-owned · Austin, Texas · Mon–Fri 9:30a–11:00a & 1:00p–5:30p CT
TRU specialist notes
From the Trucks R Us fitment and install team, beyond the manufacturer's information.
- Plan for a professional wheel alignment after installing any lift or leveling kit.
- Going to bigger tires as well? Speedometer recalibration may be needed, and some tire and wheel combinations need trimming. Check the recommended wheels and tires, or ask us before you order.
Specifications
| Brand | Fabtech |
|---|---|
| Part number | K3088DL |
| Lift/Drop Height | 6 IN |
| Country of Origin | US |
| Warranty | Lifetime |
| Weight (lbs) | 325.6 |
California Proposition 65 warning applies to this product. www.P65Warnings.ca.gov
Features
- Everything You Will Need To Lift Your Vehicle
- No Driveshaft Change Required For Auto Trac
- Increased Caster For More Control
- Retains Factory Steering Centerlink
- In-field testing and multiple vehicle fit checks ensure products will fit properly during installation and provide years of trouble free service with superior vehicle ride qualities.
- Retains Factory Upper Control Arms
- Quick No Weld Installation
- Allows Use Of Stock Tires And Wheels
Fitment
| Years | Vehicle |
|---|---|
| 2019-2023 | Ram 1500 4WD |
Use the fit check above with your truck selected, or ask a specialist if your trim isn't listed.
Installation
Free install support from the Trucks R Us tech team, for you or your shop.
Overview

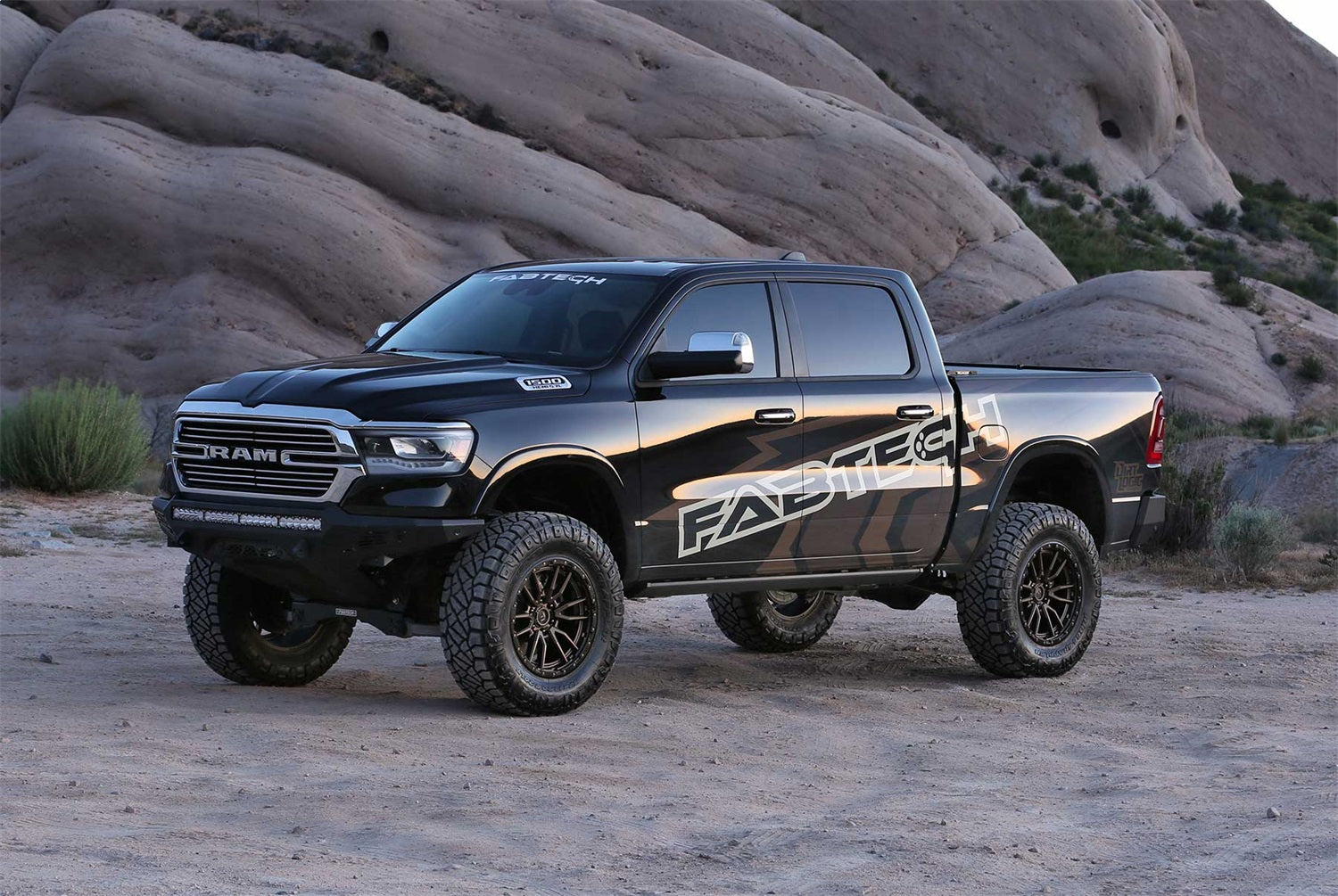

2019-23 RAM 1500 4WD
This system is a great choice for Ram 1500 owners looking to keep that stock ride yet want big tires and wheels. The factory suspension is relocated with heavy duty bolt on bracketry that will provide years of trouble free service.
The system features Fabtech’s proven IFS technology with extended length ductile iron steering knuckles for proper factory electronic stability control functionality. Heavy duty 1/4″ thick steel lower control arm crossmembers provide superior ground clearance while the integrated front differential skid plate adds protection to the drivetrain. Rear lift is accomplished with steel coil spring spacers that utilize the factory coil springs for stock load carrying capacity with a great highway ride.
The Performance system includes Fabtech’s legendary stainless steel Dirt Logic 2.5 Coilover shocks for outstanding damping capacity with a superior highway ride. Rear shocks include the Dirt Logic 2.25.
Features
CROSSMEMBERS
1/4″ thick steel lower control arm crossmembers are arched for maximum ground clearance. Four adjustable alignment cams provide a wide range of adjustment. The fully welded box design of these crossmembers provides additional strength to the front suspension.
STEERING KNUCKLES
Extended length ductile iron steering knuckles retain near stock track width keeping the tires under the fenders. These steering knuckles are designed to work in conjunction with the factory ESC for proper functionality at all speeds.
FRONT DIRT LOGIC 2.5 Resi COILOVERS
Constructed of a stainless steel body and NitroSteel® piston rod these 6″ lift Coilovers are the finest quality on the market. They feature aluminum remote reservoirs to help dissipate heat and reduce shock fade. Extensive ride work was performed to ensure a superior ride on and offroad. Outstanding damping for offroad.
SKID PLATE
A heavy duty front differential skid plate is constructed of 1/4″ thick steel to protect the diff from offroad obstacles.
DIFFERENTIAL MOUNTS
Integrated differential mounts on the crossmembers properly reposition the front diff for the precise CV and driveshaft angle throughout the entire steering and suspension travel range.
SWAY BAR BRACKETS
Heavy duty drop brackets retain the factory link ends at the correct angle for a positive road feel without creating binding at full droop.
REAR COIL SPRING SPACERS
Steel rear spring spacers utilize the factory coil springs retaining the stock load carrying capacity and ride comfort.
REAR TRACK BAR BRACKET
The bolt on relocation bracket re-centers the rear axle for the new ride height while retaining the factory roll center of the vehicle.
REAR DIRT LOGIC 2.25 SHOCKS
Constructed of a stainless steel body with NitroSteel® piston rod for maximum corrosion resistance and durability. Superior ride quality both on and offroad. Excellent damping for offroad use.

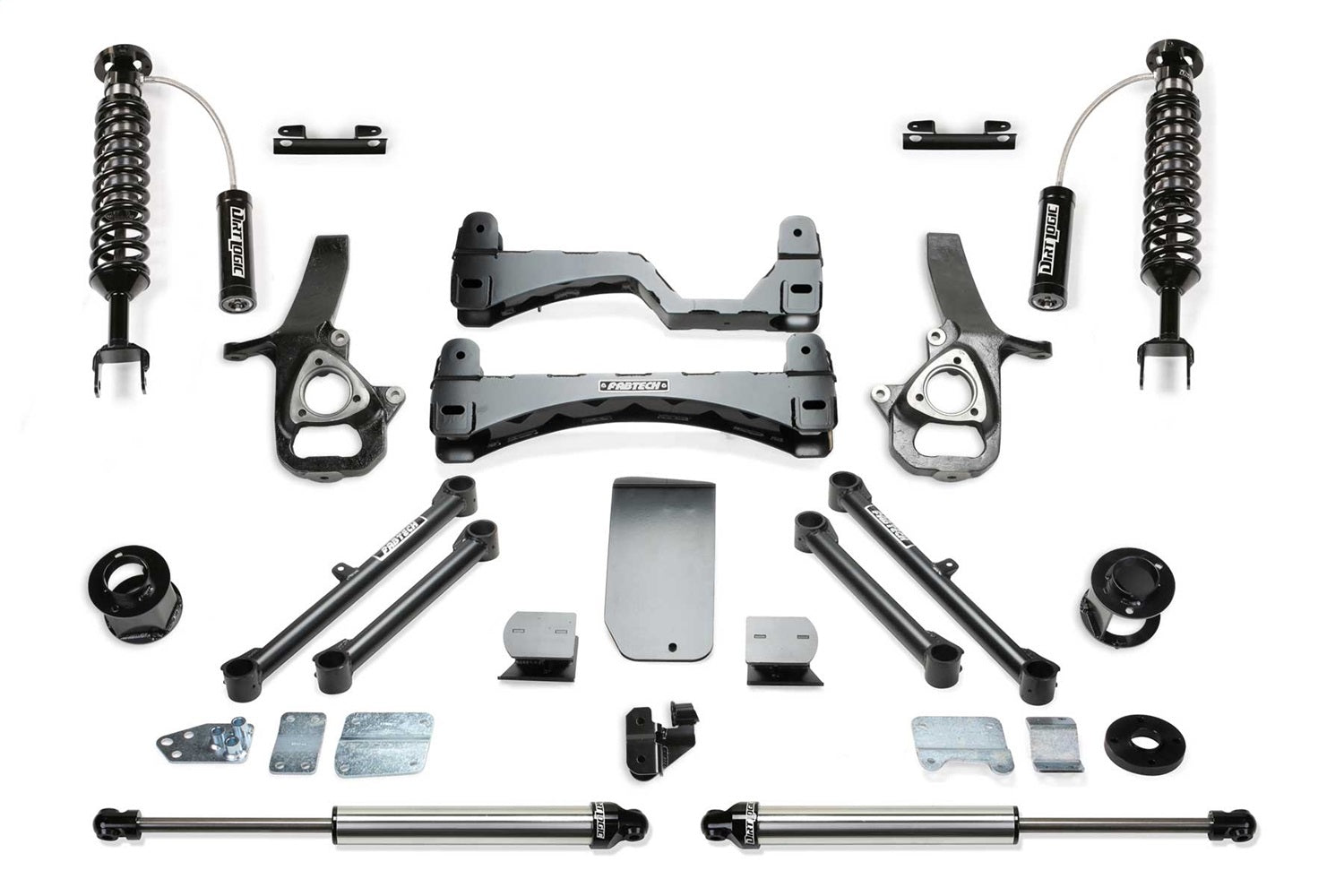

Part Numberrs
| Qty | Part # | Description |
|---|---|---|
| 1 | FTS23200 | Component Box 1 |
| 1 | FTS23201 | Component Box 2 |
| 1 | FTS23206 | Front Dirt Logic 2.5 Resi Coilovers |
| 2 | FTS811442 | Rear Dirt Logic 2.25 Shocks |
– California Prop 65 Warning
-
FOOTNOTES
14. Cannot use OEM wheel and tire.
130. Will not fit factory air suspension.
171. Will not fit diesel models.
196. Must use aftermarket 20″ wheels or larger.
200. Does not fit Rebel or TRX models.
201. Does not fit vehicles equipped with OEM 22″ wheel, and heavy duty bearing option.
203. Does not fit 2019 Ram 1500 classic models.
222. Does not fit models equipped with thermal rear axle.
223. Does not fit models equipped with 2-piece drive shaft.
Questions
Will this fit my truck?
Select your truck at the top of the page and the fit check will confirm it. If your exact trim is not listed, call 866-235-4715 or live chat and a fitment specialist will check it before you order.
Do you help with installation?
Yes. Our technical team helps you or your shop with installation and troubleshooting after delivery, on top of the manufacturer’s support.
What if the part has a problem?
We work the warranty claim with the manufacturer on your behalf, within the manufacturer’s warranty policy.
Can I return it?
Most items can be returned within 30 days. See our return policy for details.
Do I need an alignment after installing?
Yes. Any lift or leveling kit changes suspension geometry, so get a professional alignment after installation.
