2021-26 Ford F150 4WD

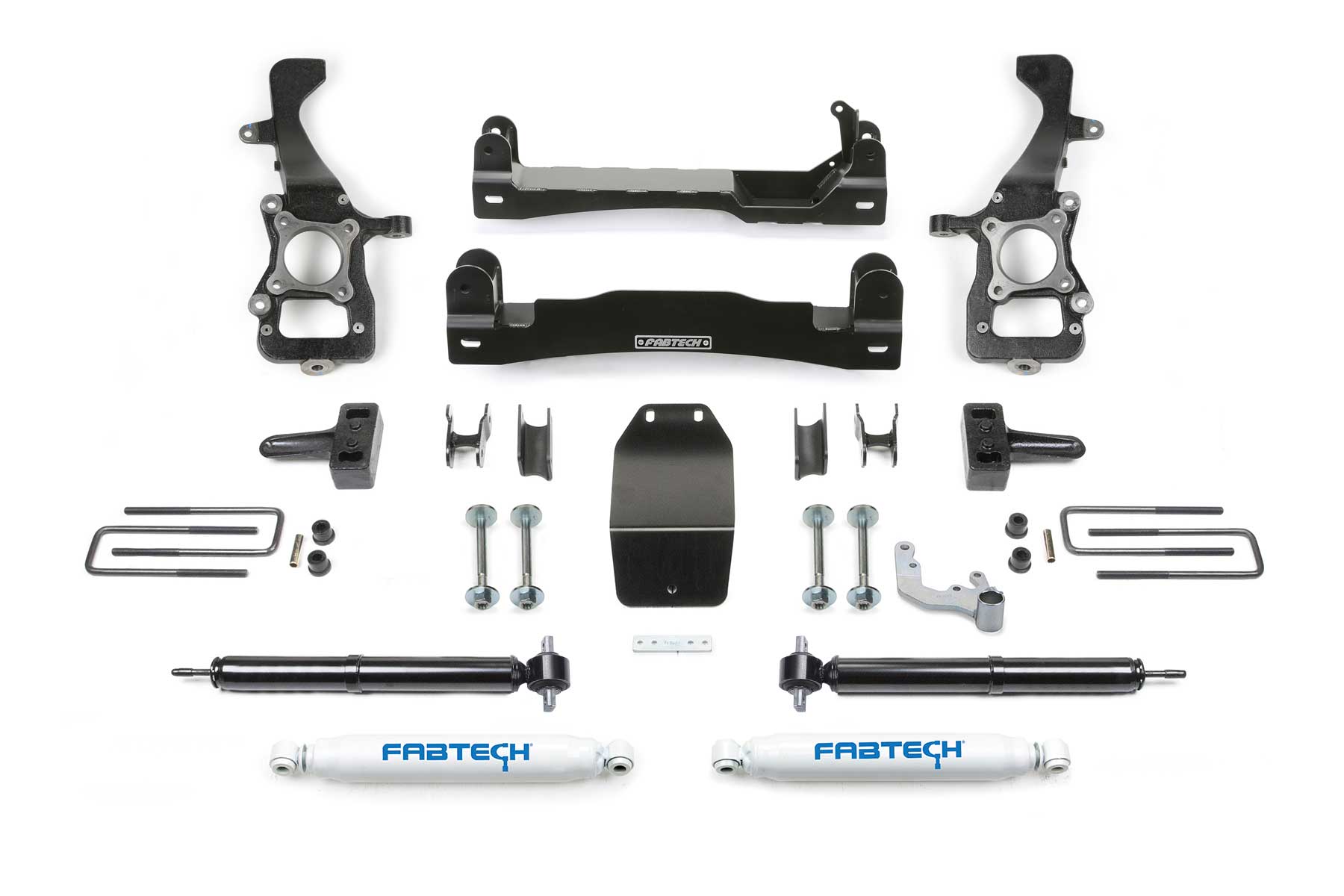

Fabtech’s 4″ F150 lift kit utilizes their proven heavy duty construction and design features found in their 6″ systems but with less lift and at a lower price. This lift kit is a great choice for Ford owners that want to run a 35″ tires for a more aggressive look while preserving the excellent highway manners of the F150.

Fabtech’s signature high arched lower control arm crossmembers are constructed of 1/4″ thick steel for maximum strength. There is a 1/4″ thick steel skid plate that spans between the lower crossmembers to protect the front differential housing from impacts of offroad obstacles. The heavy duty ductile iron steering knuckles retain the stock track width keeping tires under the fender for a clean appearance.

The front suspension receives Fabtech’s heavy duty gas charged twin tube shock that aids in damping capacity both on and offroad. The extended length of the shocks reposition the stock front coils springs to accomplish the 4″ of lift height to clear 35″ tall tires.

The rear suspension utilizes lift blocks and longer u-bolts to help level the vehicle front to rear. Damping comes from the Performance shocks that perform very well offroad with a great highway ride quality.

This Ford F150 lift kit is just the right amount of lift to have a muscular stance with the ability to hit the trails on the weekend and be your daily driver. The best of both worlds.

• High quality Fabtech construction with a low price
• 1/4″ thick steel lower control arm crossmembers and skid plate
• Allows use of 33″ or 35″ tires
• ESC and Traction Control Compliant
• Stock front track width keeps tires under the fenders

Features

Crossmembers

1/4″ thick steel lower control arm Crossmembers are arched for maximum ground clearance. The welded box design of these Crossmembers provides additional strength to the front suspension.

Steering Knuckles

Fabtech’s extended length ductile iron Steering Knuckles provide zero bump steer throughout the suspension travel. This provides an enhanced driver experience compared to stock. Near stock track width keeps the tires under the fenders for a clean appearance.

Coilover Shocks

The factory coilover shocks are replaced with extended length gas charged twin tube shocks that retain the stock coil springs and provide lift with a good highway ride.

Skid Plate

A heavy-duty front differential Skid Plate is constructed of 1/4″ thick steel to protect the diff from offroad obstacles.

Differential Mounts

Triple Differential Mounts properly reposition the front diff for the precise CV and driveshaft angle to reduce driveline vibration at high speed.

Sway Bar Mounts

1/4″ thick steel drop brackets reposition the front sway bar for the increased ride height. This allows the sway bar link ends to fully cycle without binding throughout the extended travel range.

Rear Lift Blocks

Steel rear lift blocks replace the factory blocks for additional lift without changing the ride quality or load carrying capacity.

Rear U-Bolts

High quality severe duty U-Bolts are designed to attach the entire rear differential to the vehicle. A critical part that demands the best quality for your vehicle.

Performance Rear Shocks

Extended length twin tube shocks provide a good highway ride with the ability to handle offroad use.

Part Numbers

• FOOTNOTES

  14. Can not use OEM wheel and tire.
  47. Fits SuperCrew only.
  123. Will not fit Raptor models.
  182. Fits gas models only.
  198. Does not fit models with composite rear leaf springs.
  213. Does not fit vehicles equipped with Tremor Off-road Package.
  227. Does not fit models equipped with CCD (continuously controlled damping) system.
  230. Does not fit hybrid models.
  257. Does not fit vehicles equipped with Ford onboard scale system.
  263. Will not fit F150 lightning.
  264. Will not fit vehicles equipped with BlueCruise.
